A & I Products Big Boy Suspension Tractor Seat, Black, Model# BBS108BL

Item# 716926
A & I Products Big Boy Suspension Tractor Seat, Black, Model# BBS108BL

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

A & I Products Big Boy Suspension Tractor Seat, Black, Model# BBS108BL

Click or Tap image to Zoom

$479.99

  • Shipping:

    Available now

  • Store Pickup:

    Not available - online only
  • Black
  • Integrated seatbelt
  • 12in. flip-up, adjustable, removable arm rest

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

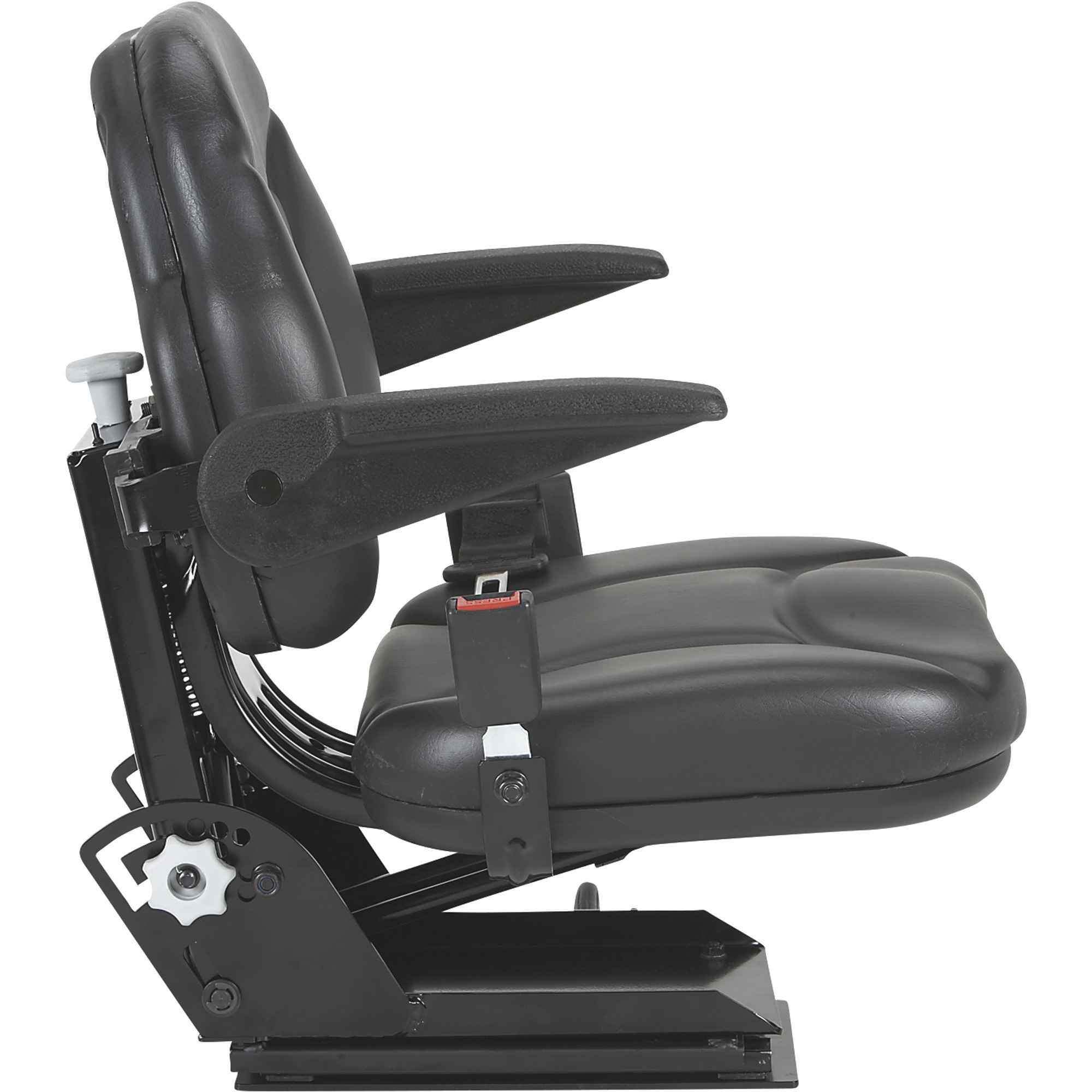

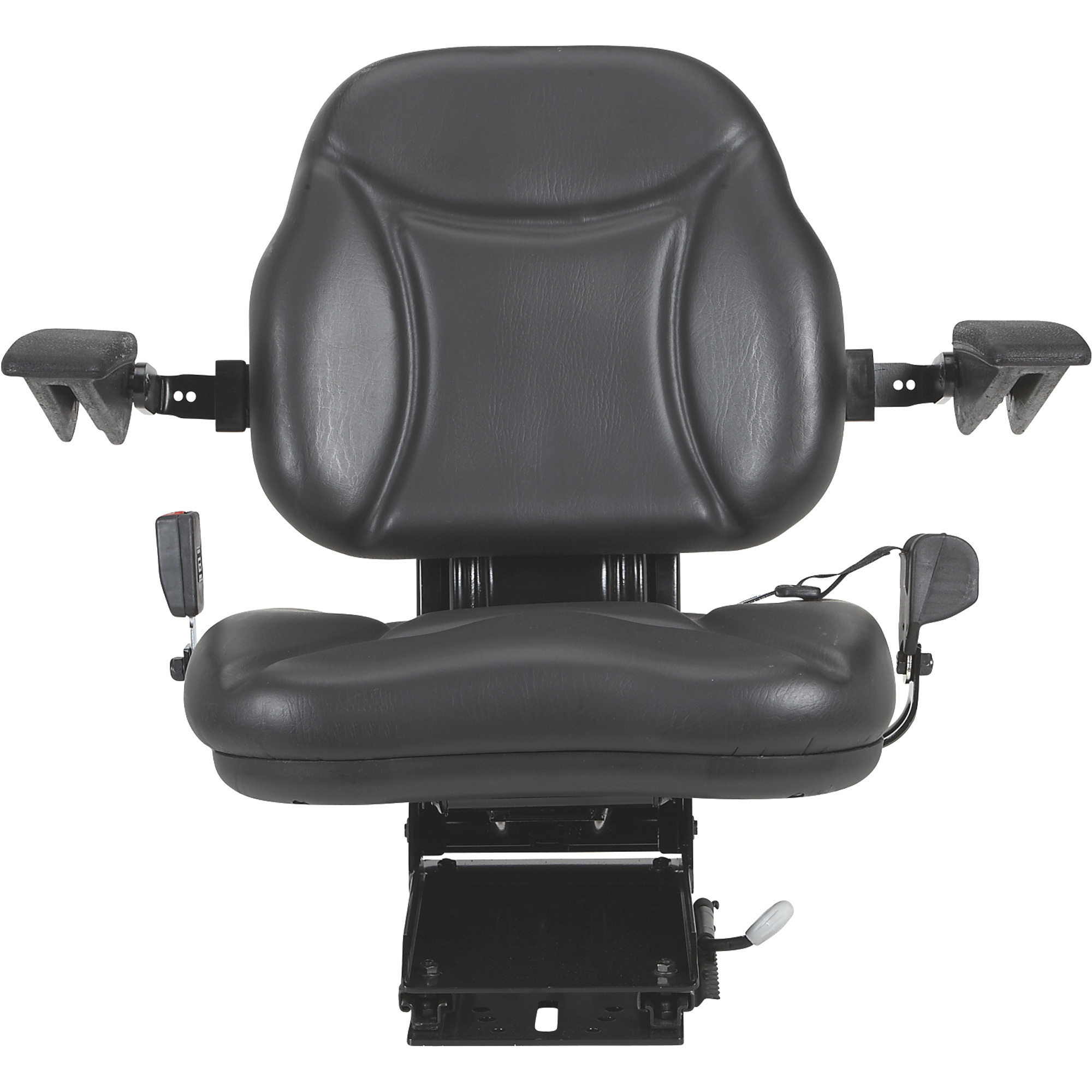

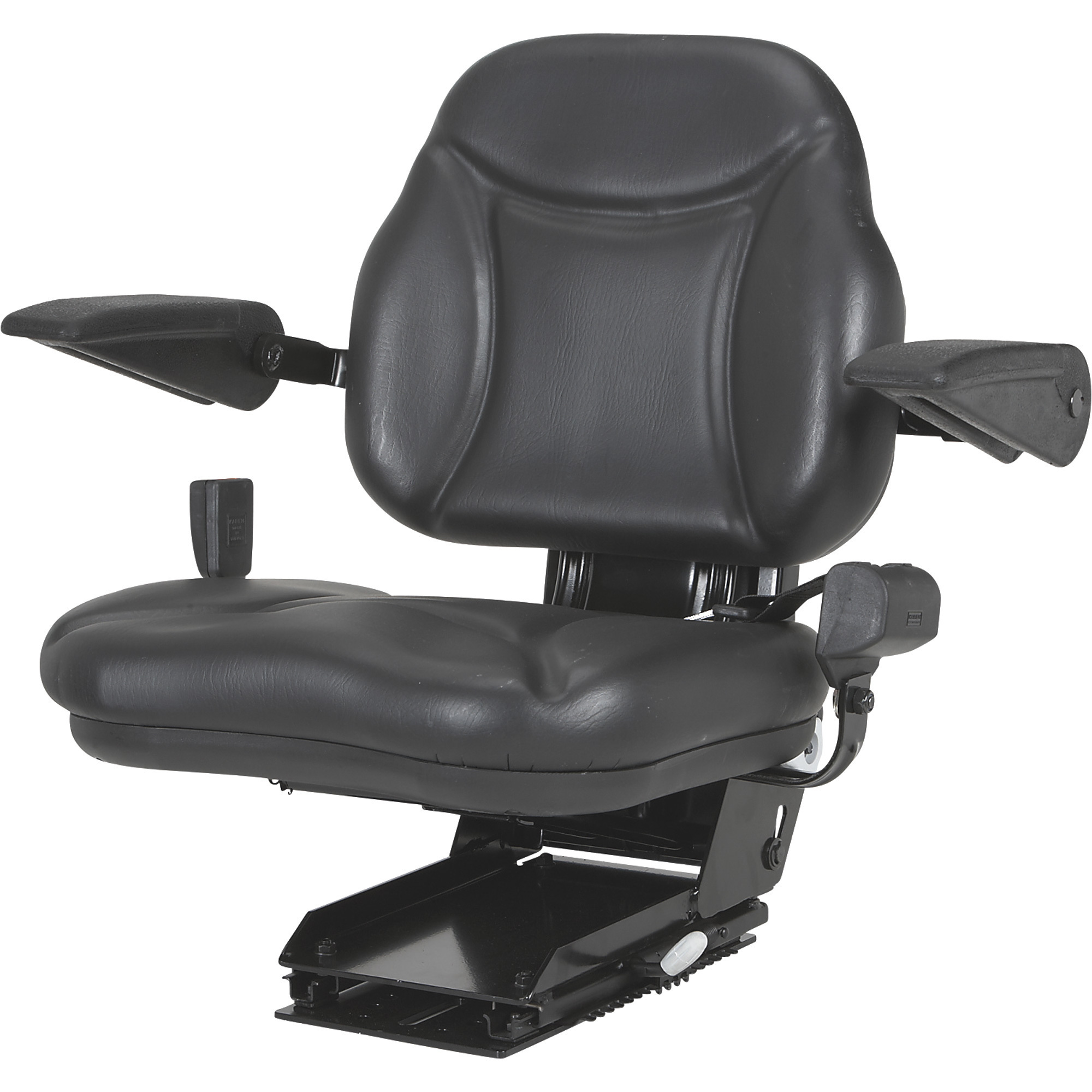

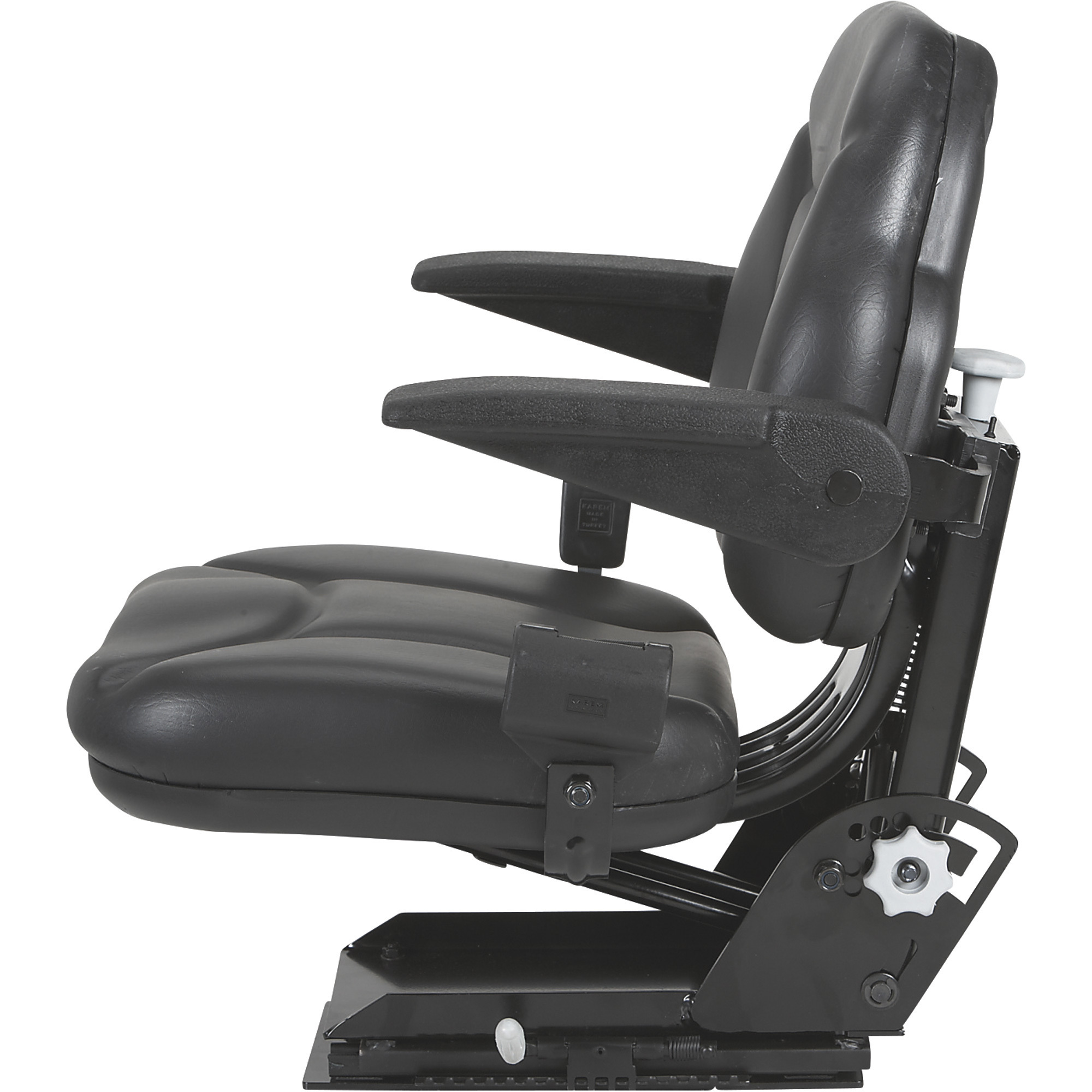

Work in comfort on your midsize tractor by equipping it with this vinyl seat. The seat features weight adjustment and can support operators up to 300 lbs. Comes standard with flip-up, adjustable armrests. With adjustable height, fore and aft tilt and base angle, you'll find this seat can be made to fit any application.

What's Included

    (1) Seat

Downloads

Additional Product Info

Features + Benefits

  • Black
  • Integrated seatbelt
  • 12in. flip-up, adjustable, removable arm rest

Key Specs

AttributeSpecification

item#

716926

Brand

A&I Products

Manufacturer's Warranty

1 year limited warranty

Ship Weight

60.0 LB

Adjustable

Yes

Suspension

Yes
AttributeSpecification

Capacity

300 lb

Color

Black

Material

Vinyl

Arm Rests

Yes

Universal Fit

Yes

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. Please provide mounting bolt hole measurements

    On the tractor I will be mounting the seat to there are six bolt holes available for the seat to mount to. They are 6 1/2" center to center left to right on the tractor. 3 5/8" center to center front to back. 1 13/16" center to center between each hole front to back. So, the six holes make a square (from center to center of each hole) of 3 5/8" x 6 1/2". The bolts are larger diameter, approximately 1/2". I need to know if this seat will fit my tractor.

    1. there are several mounting holes, about 3/8", in the seat, you may have to drill new ones in the tractor to mount it

      Helpful?

    2. The A & I Tractor Seat has a universal bolt mounting pattern with multiple elongated holes. The mounting pattern is shown in the link provided below. The patter is shown in the last picture that is provided.

      http://www.northerntool.com/shop/tools/product_200418190_200418190?isSearch=716926

      Helpful?

  2. Can you adjust seat height and what’s the lowest you can lower the seat to the mount. 7 inches is a very high lift

    1 answer

    1. The seat has an adjustable height of 24"–26 3/4". The height from the bottom of the mounting plate to the bottom of the seat is 7 3/4''.

      Helpful?

  3. Can I buy replacement cushions?

    If the cushions ever wear out, can I buy replacements? If so, how do I order and what is the pricing?

    1 answer

    1. For replacement parts please call Northern Tool Parts Department 1-800-657-0516.

      Helpful?

  4. Is the armrest width adjustable, (distance from seat back to armrest)?

    1 answer

    1. The A & I Big Boy seat does not have armrests that are adjustable as to how wide they can be set.

      Helpful?

  5. what is mounting bolt pattern?

    1 answer

    1. The Big Boy seat has a universal bolt mounting pattern with multiple elongated holes.

      Helpful?

  6. How wide is the bottom seat cusion? What is the seat height from the bottom of the mounting plate to the top of the seat cushion?

    I'm assuming the width listed includes the armrests.

    1 answer

    1. The seat cushion on the Big Boy seat is 18" wide and 15" from front to back. The measurement from the bottom of the mounting plate to the top of the seat cushion is 12 1/4".

      Helpful?

  7. this is a suspension seat, how much travel? not listed..

    1 answer

    1. This A & I suspension seat has a spring shock that reacts to the weight of the rider and the travel is not available but the seat height adjustments range from 24 inches to 26-3/4 inches.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
