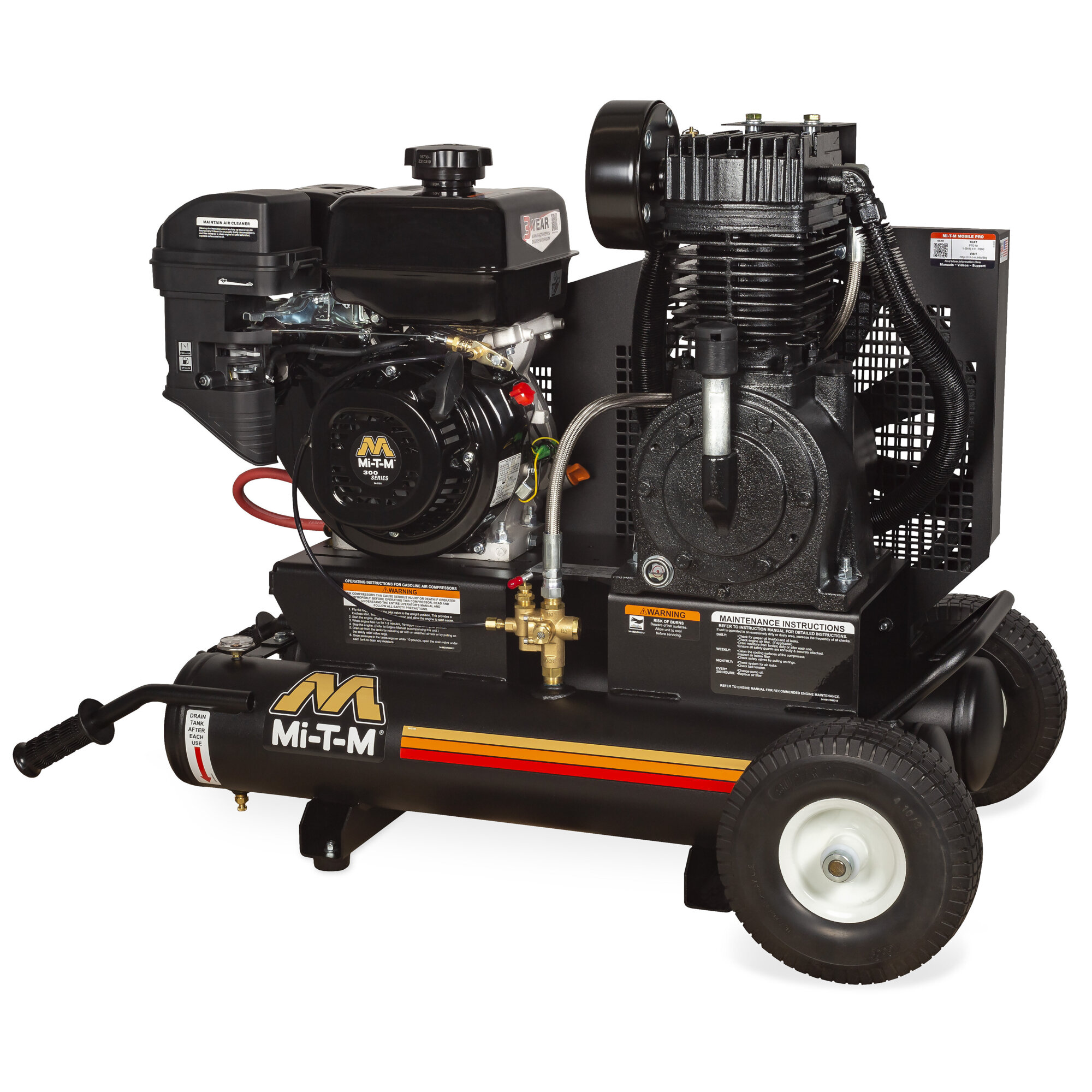

Mi-T-M Industrial Two-Stage Gasoline Belt Drive Air Compressor — 8 Gallon, Wheelbarrow Design, Model# AM2-PM09-08M

Item# 7040398
Mi-T-M Industrial Two-Stage Gasoline Belt Drive Air Compressor — 8 Gallon, Wheelbarrow Design, Model# AM2-PM09-08M

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Mi-T-M Industrial Two-Stage Gasoline Belt Drive Air Compressor — 8 Gallon, Wheelbarrow Design, Model# AM2-PM09-08M

Click or Tap image to Zoom

$2029.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
  • Frame: Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tires
  • Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch fly wheel · Quality pilot valve unloader · Start/stop control set at 145 to 175-PSI
  • Equipped with 150-PSI maximum rated regulator.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

With its wheelbarrow design, this unit powers air tools like paint sprayers and pneumatic drills, making it ideal for construction, remodeling and shop projects.

What's Included

    (1) Air Compressor

Features + Benefits

  • Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
  • Frame: Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tires
  • Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch fly wheel · Quality pilot valve unloader · Start/stop control set at 145 to 175-PSI
  • Equipped with 150-PSI maximum rated regulator.

Key Specs

AttributeSpecification

item#

7040398

Brand

Mi-T-M

Manufacturer's Warranty

2 year limited warranty

Ship Weight

352.0 LB

Horsepower

9 HP

Air Tank Size

8 Gal

Engine Brand

Mi-T-M

Max. PSI

175

Stage

2

Air Outlets (qty.)

1

Fuel Capacity

1.4 Gal

Engine Displacement

300 cc

Engine Start Type

Recoil

Pump Drive

Belt
AttributeSpecification

CFM at 40 PSI

19.7

CFM at Max. PSI

17.2

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Tank Fill Time

0.44 min

Air Dryer

None

Drain Type

Petcock

Tank Orientation

Horizontal

Engine Model

300cc Mi-T-M OHV

Product Weight

lb

Dimensions L x W x H (in.)

44.0 x 32.0 x 26.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
