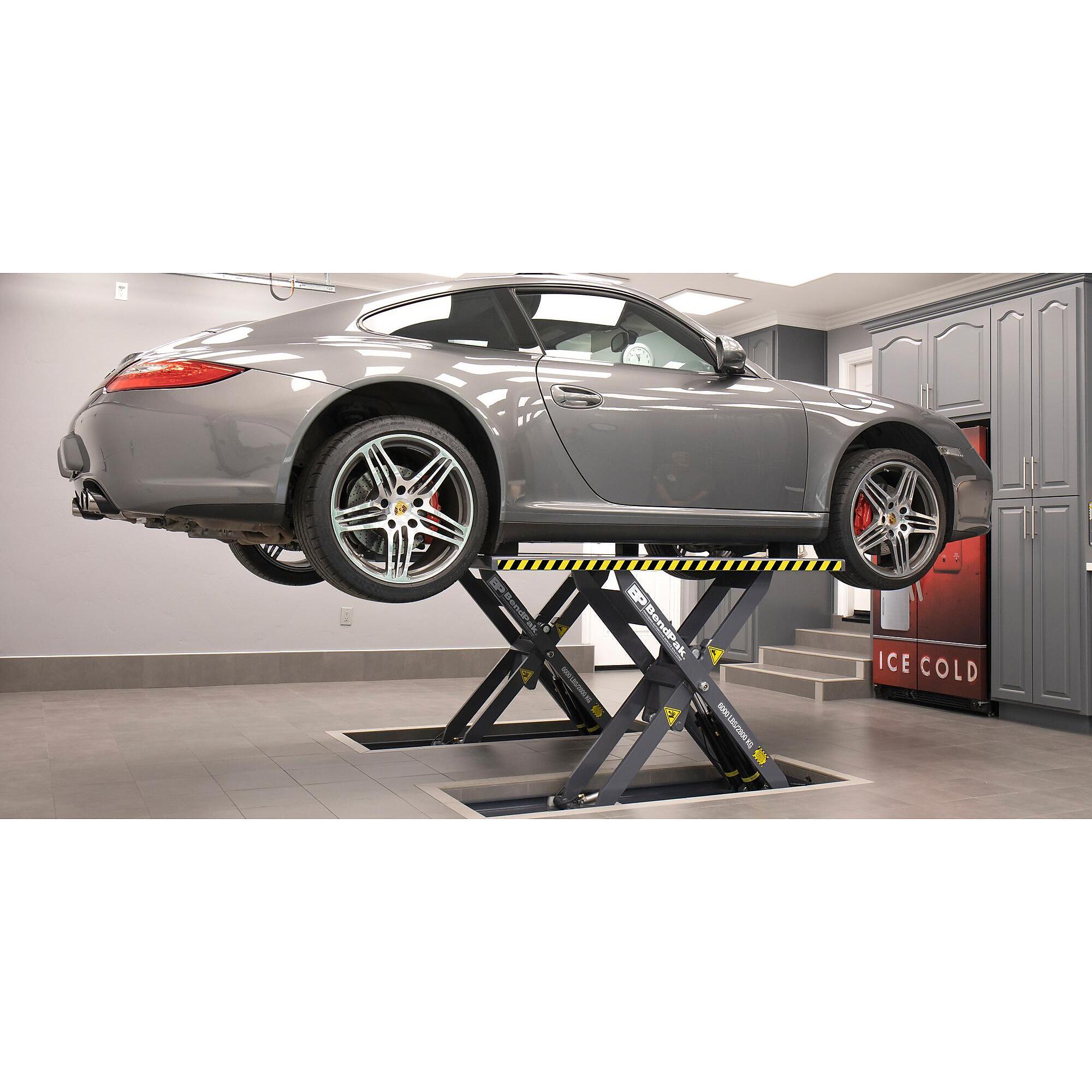

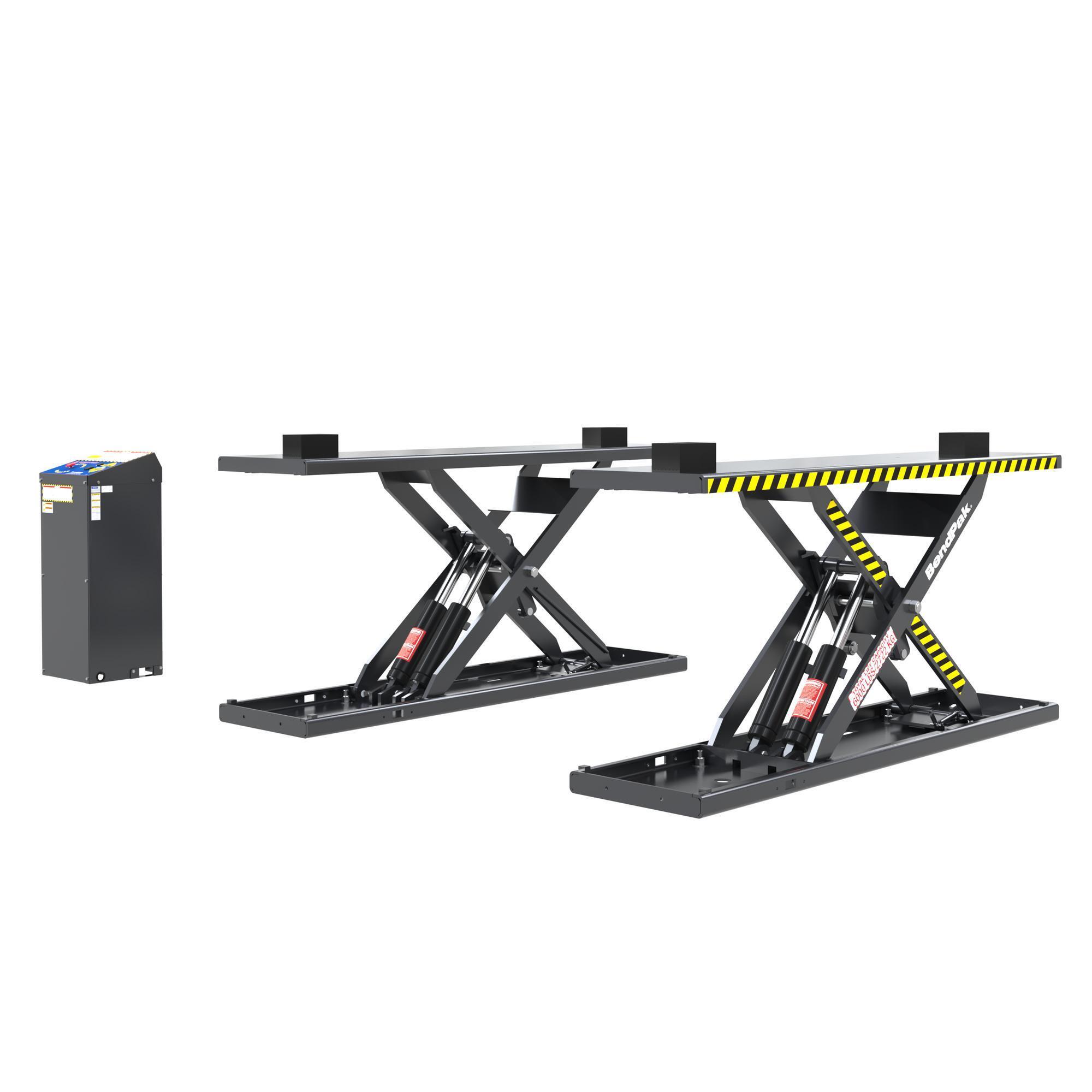

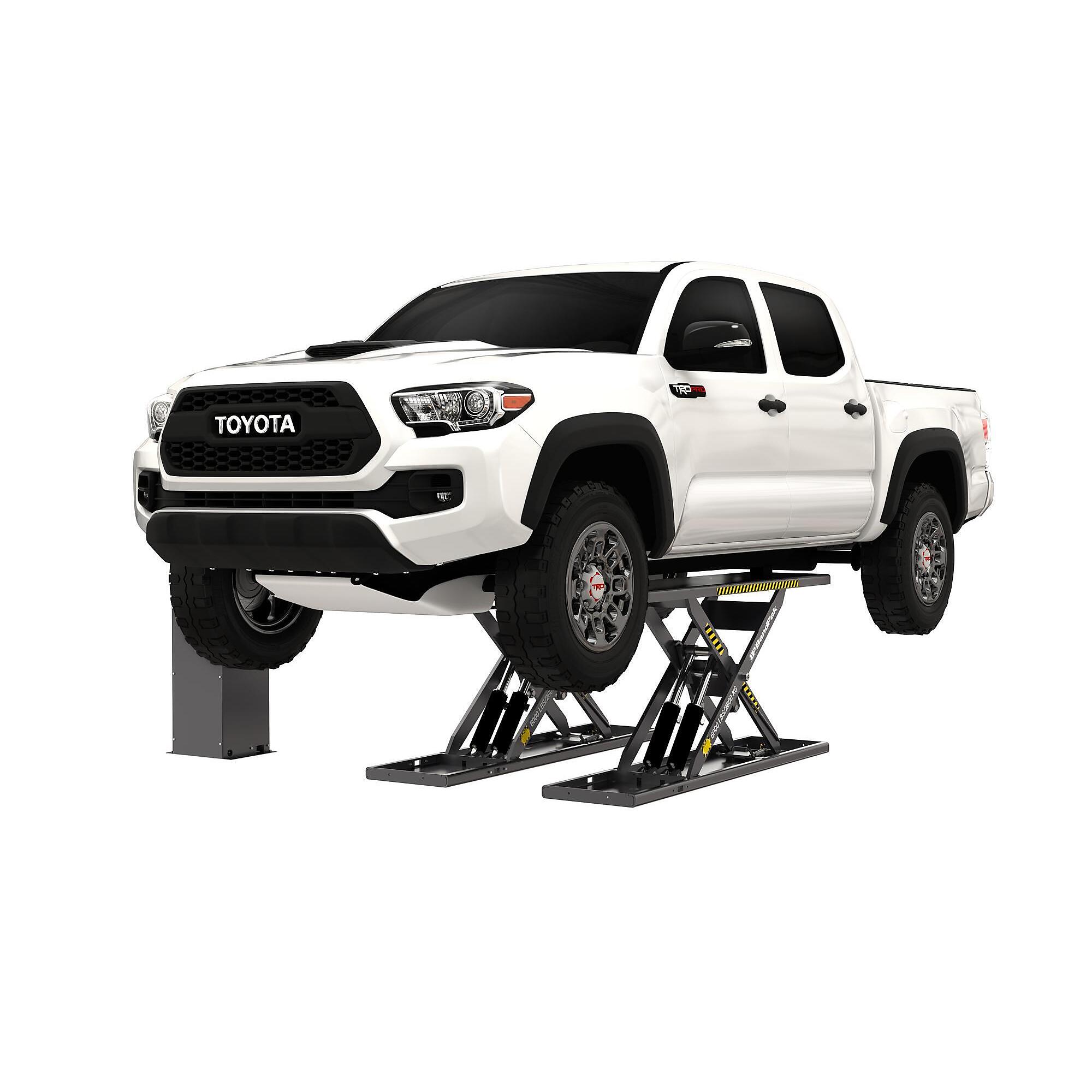

BendPak Mid-Rise Scissors Lift — 6,000-Lb. Capacity, Flush-Mount, 208-230V, 60 Hz, 1-Phase, Model# MDS-6EXTF

Item# 6761978
BendPak Mid-Rise Scissors Lift — 6,000-Lb. Capacity, Flush-Mount, 208-230V, 60 Hz, 1-Phase, Model# MDS-6EXTF

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak Mid-Rise Scissors Lift — 6,000-Lb. Capacity, Flush-Mount, 208-230V, 60 Hz, 1-Phase, Model# MDS-6EXTF

Click or Tap image to Zoom

$8195.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Each lift platform features four solid steel-scissor frame support bars, making it one of the strongest mid-rise lifts in its class.
  • Dual master hydraulic cylinder combines with dual equalizing cylinders to provide a safe and level 6,000 pound lifting capacity.
  • Solid-steel safety lock bars engage automatically during descent.
  • Hinge point features Zerk grease fitting to allow lubrication at critical wear areas.
  • Comes standard with four durable cushioned-rubber contact blocks, permitting fast vehicle setup.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The MDS-6EXTF mid-rise lift has been meticulously designed to meet the unique needs of long-wheelbase vehicles. With extended lifting points, it effortlessly reaches the far edges of your vehicle’s underbody. The addition of extended approach ramps transforms your flush-mount mid-rise lift into an approach lift, making it easy to accommodate low-stance vehicles and larger tires. The pneumatic kicker boosts the lift platforms for the initial 6in., overcoming the mechanical challenges normally faced with scissor lifts. These air-powered boosters assist the hydraulics during the initial lifting phase and are maintenance-free. Four hydraulic cylinders work in unison, ensuring a uniform lift. A built-in flow divider ensures equal pressure to each hydraulic hose, achieving about 45in. of lift quickly and efficiently. As with the rest of BendPak’s lineup, the MDS-6EXTF was built first and foremost with safety in mind. The safety arms lock automatically and continuously during ascent, transferring all pressure off the hydraulic system when secured, ensuring no failures due to fluid leaks. Air lock releases replace traditional spring releases, instantly disengaging the lock upon descent with the push of a button. These air locks require minimal maintenance and are just as safe as spring devices, needing a 50 PSI, 10 CFM air source during installation. Grease fittings keep critical wear areas from degrading due to friction, ensuring smooth operation over time. The MDS-6EXTF comes with rugged rubber lift blocks, designed to withstand heavy use and abuse while ensuring secure lifting points. With multiple lock positions, you can choose the height appropriate for any job, whether it’s a few inches for brake service or full extension for comfortable under-vehicle access. The MDS-6EXTF come standard with detailed instructions, safety decals, and training placards to ensure proper use and maintenance, extending the lifespan of your lift and ensuring safety. The ease of use, combined with robust features and a focus on safety, makes the MDS-6EXTF an indispensable addition to any workshop, especially those dealing with the latest generation of electric vehicles.

What's Included

    (1) 1 Medium Rise Scissor Lift

Downloads

Product Manual

Features + Benefits

  • Each lift platform features four solid steel-scissor frame support bars, making it one of the strongest mid-rise lifts in its class.
  • Dual master hydraulic cylinder combines with dual equalizing cylinders to provide a safe and level 6,000 pound lifting capacity.
  • Solid-steel safety lock bars engage automatically during descent.
  • Hinge point features Zerk grease fitting to allow lubrication at critical wear areas.
  • Comes standard with four durable cushioned-rubber contact blocks, permitting fast vehicle setup.
  • Three locking positions allow technicians to work at different working heights to increase productivity and minimize fatigue.
  • Powder coat finish provides a long lasting durable finish.

Key Specs

AttributeSpecification

item#

6761978

Brand

BendPak

Manufacturer's Warranty

2 year limited warranty

Ship Weight

1548.0 LB

Capacity

6,000 lb

Max. Lift Height

35 in

Collapsed Height

0 in
AttributeSpecification

Lift Type

Other

Horsepower

3 HP

Motor Phase

Single-phase

Volts

220

Material

Steel

Product Weight

1478.0000 lb

Dimensions L x W x H (in.)

78.75 x 138.0 x 5.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
