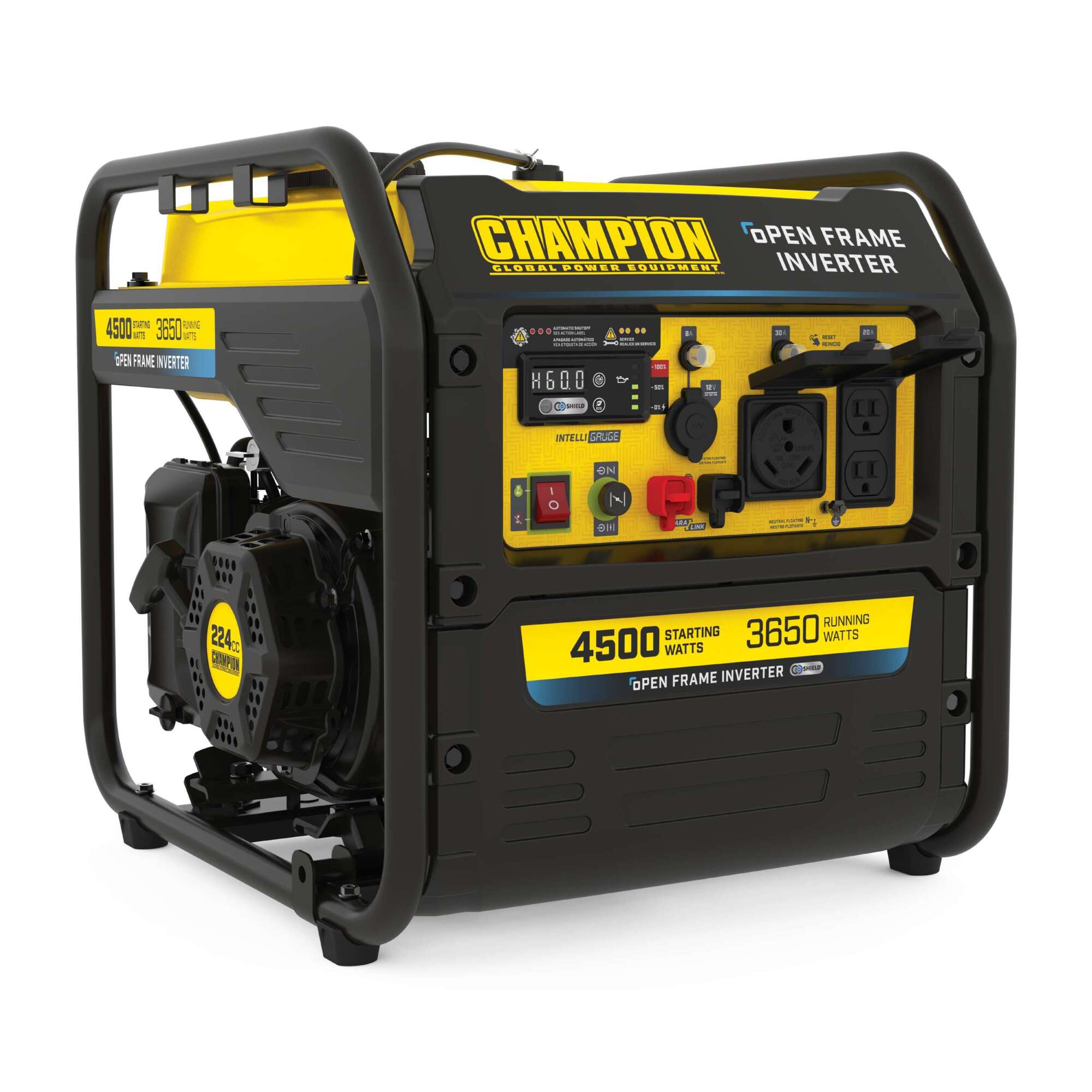

Champion Power Equipment 4500-Watt Open Frame Inverter Generator — 224cc, 64dBA, CO Shield, Quiet Technology, Model# 201320

Item# 6734857
6 of 523 reviewers received a sample product or took part in a promotion
Champion Power Equipment 4500-Watt Open Frame Inverter Generator — 224cc, 64dBA, CO Shield, Quiet Technology, Model# 201320

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Champion Power Equipment 4500-Watt Open Frame Inverter Generator — 224cc, 64dBA, CO Shield, Quiet Technology, Model# 201320

Click or Tap image to Zoom

$644.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • IntelliGauge Display
  • Quiet Operation - 64dBa @ 23'
  • Clean Inverter Power for sensitive electronics - <3% THD

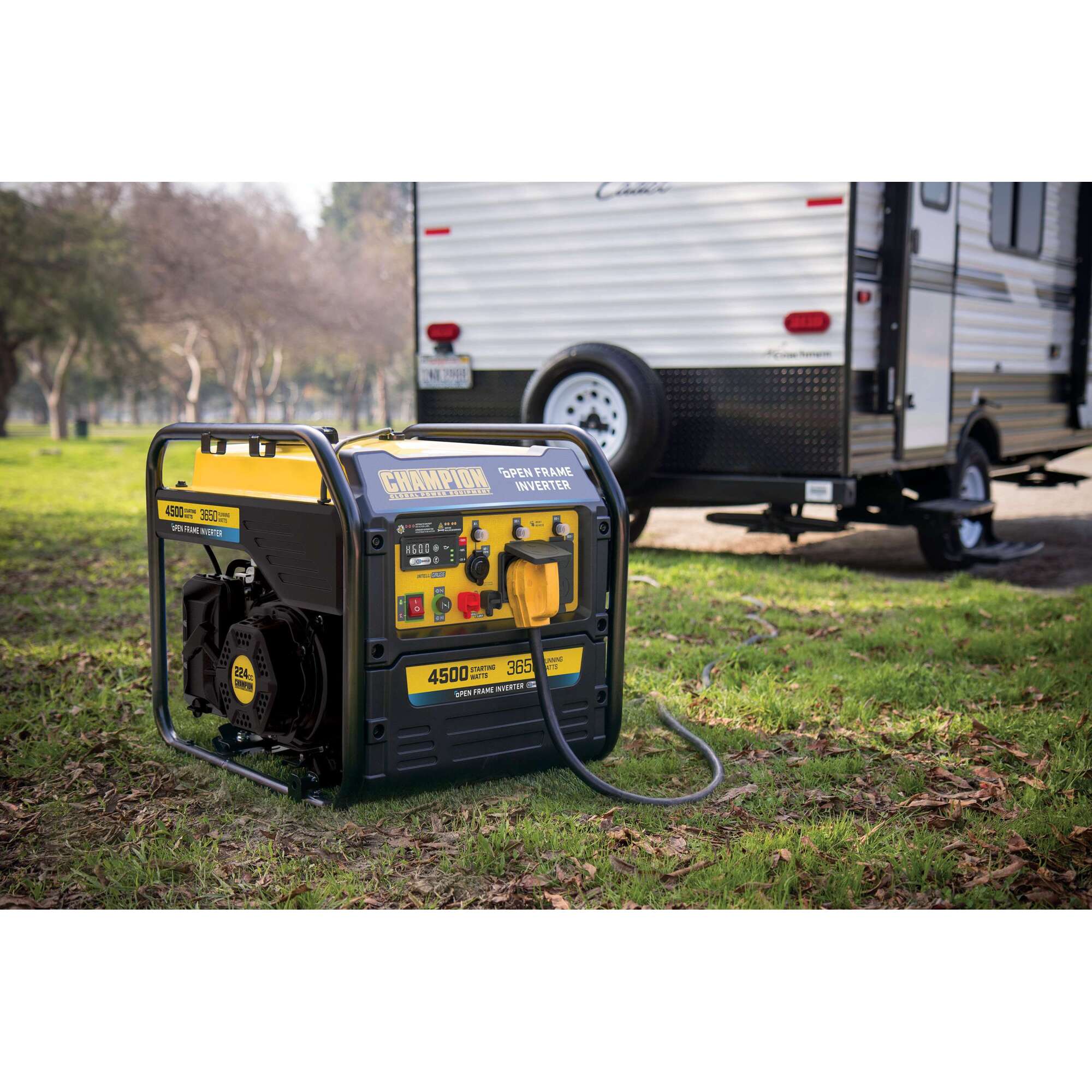

  • RV Ready
  • CO Shield Auto Shut Off

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Champion Power Equipment 4500-Watt Open Frame Inverter Generator with CO Shield® is one of the most innovative products on the market. Our advanced technology and innovative design will improve the way you power your life. First, we cut the noise level in half by integrating Quiet Technology digital components used in more advanced inverters. Then, we created an efficient mechanical design to decrease the overall footprint and weight by 20 percent. A quiet, lightweight addition to your RV and a cost-effective power solution, this Open Frame Inverter is smaller, quieter, lighter…BETTER! Champion’s recoil start features Cold Start Technology, plus the reliable 224cc Champion engine produces 4500 starting watts and 3650 running watts, and runs for 22 hours at 25% load when the 4.02-gallon fuel tank is full. With a 0.6-quart oil capacity (included 10W-30) and a low oil shut-off sensor, this inverter operates at 64 dBA from 23ft., which is a bit louder than normal speech. Confidently connect your sensitive electronics since this inverter produces Clean Power (less than 3% THD). Our Quick Touch Panel offers fast access to all your controls. The Intelligauge with Power Meter monitors voltage, frequency and operating hours with ease, while Economy Mode monitors power consumption in real time to reduce electrical load. As the electrical load is reduced, the engine idles lower, providing quieter operation, extended engine life and higher fuel economy. The covered outlets in this RV Ready inverter include a 120V 30A RV (TT-30R), a 120V 20A household duplex outlet (5-20R) plus a 12V automotive-style outlet. Buy this fully assembled EPA certified generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support. CO Shield technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield detects unsafe elevated levels of CO gas, it automatically shuts off the engine.

What's Included

    (1) Generator (1) Engine Oil, Funnel, Sparkplug Wrench

Features + Benefits

  • IntelliGauge Display
  • Quiet Operation - 64dBa @ 23'
  • Clean Inverter Power for sensitive electronics - <3% THD
  • RV Ready
  • CO Shield Auto Shut Off

Key Specs

AttributeSpecification

item#

6734857

Brand

Champion Power Equipment

Manufacturer's Warranty

3 year limited warranty

Ship Weight

87.0 LB

Surge Watts

4,500

Rated Watts

3,650

Voltage

120

Max. Amps

37.5

Fuel Type

Gasoline

Engine Brand

Champion

Engine Model

Champion 224

Engine Displacement

224 cc

Noise Level

64 dB

Enclosure Material

Steel

Start Type

Recoil

Fuel Capacity

4.02 Gal
AttributeSpecification

Half-Load Run Time

10 hr

Number of Outlets

4

Outlet Type

(1) 120V AC, 30A RV (NEMA TT-30R), (1) 120V AC, 20A (NEMA-5-20R), (1) 12v DC, 8A Automotive

Battery Required

Yes

Battery Included

Yes

Auto Shutdown

Yes

Overload Protection

Yes

Low Oil Shutdown

Yes

Hour Meter

Yes

Hertz

60

Engine Cooling

Air

Built-in Inverter

Yes

Total Harmonic Distortion

<3%

CARB Compliant

No

Product Weight

78.0000 lb

Dimensions L x W x H (in.)

20.9 x 18.3 x 19.4 in
