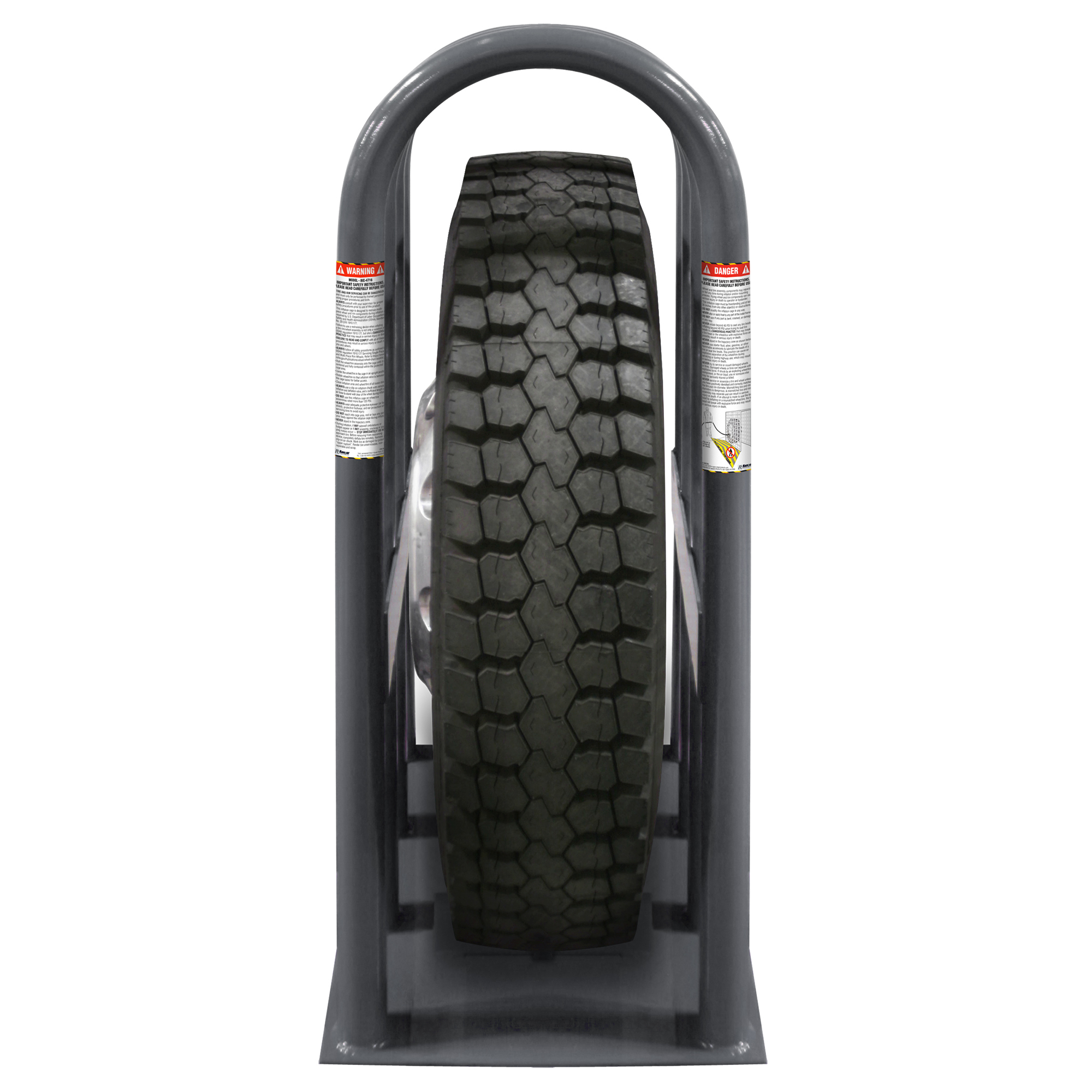

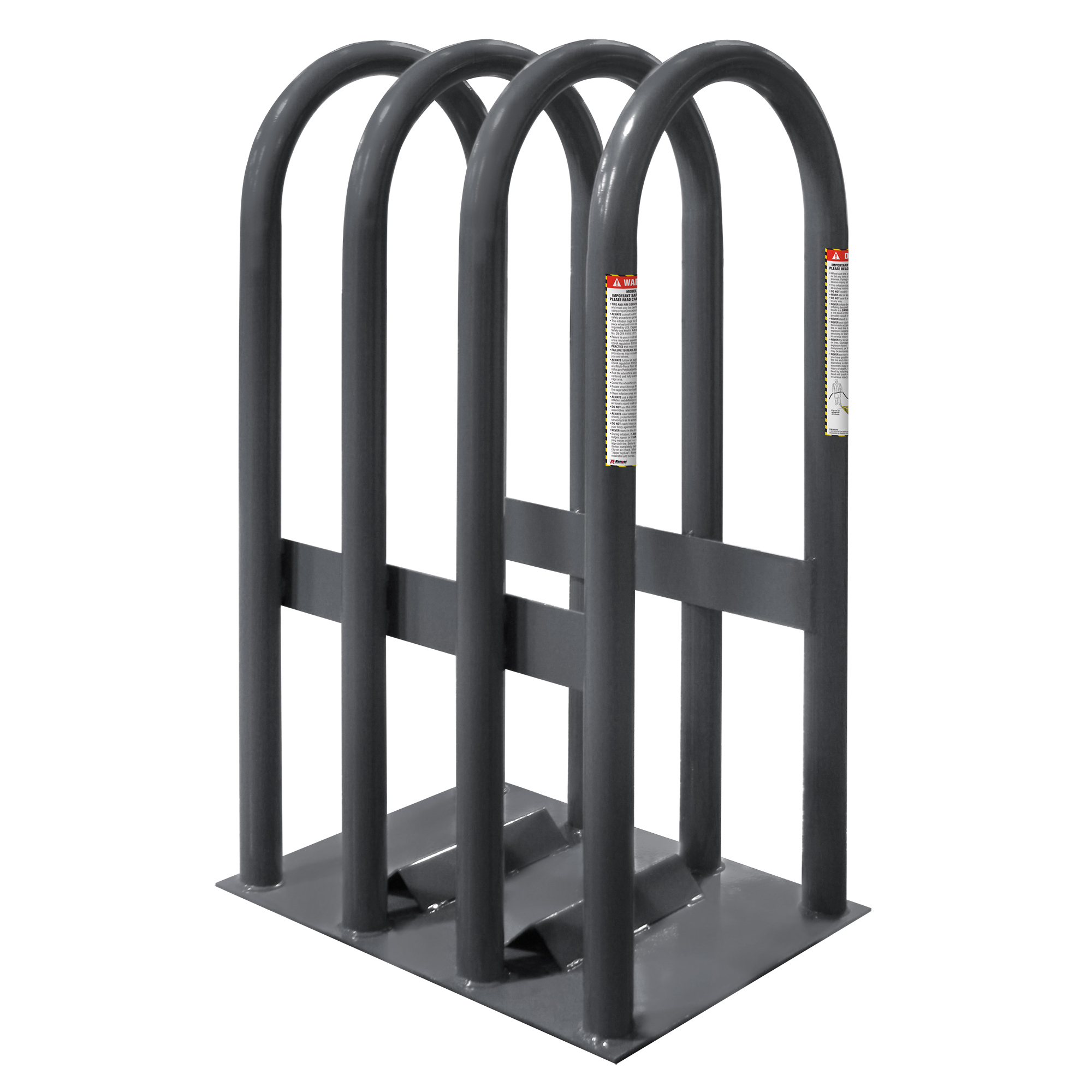

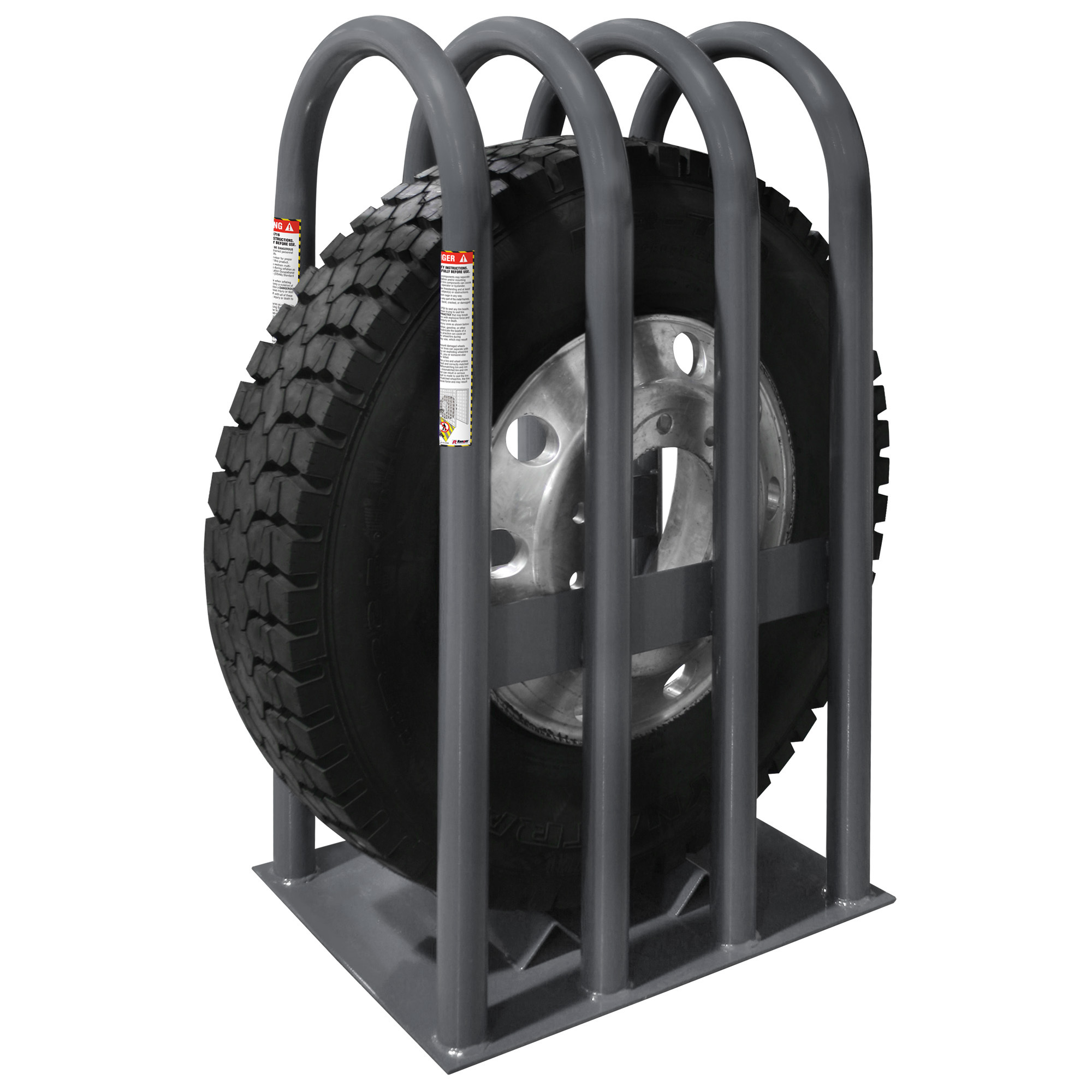

Ranger 4-Bar Tire Inflation Cage — 49.5in. Height, 21in. Width, 47in. Max Diameter, 16in. Max Width, Model# RIC-4716

Item# 6764731
Top Seller
Ranger 4-Bar Tire Inflation Cage — 49.5in. Height, 21in. Width, 47in. Max Diameter, 16in. Max Width, Model# RIC-4716

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ranger 4-Bar Tire Inflation Cage — 49.5in. Height, 21in. Width, 47in. Max Diameter, 16in. Max Width, Model# RIC-4716

Click or Tap image to Zoom

$1225.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • The RIC-4716 inflation cage is a crucial, life-saving piece of equipment that must be used during the inflation of a tire.
  • Accommodates hub assemblies up to 9.5” wide
  • Installs on all Ranger wheel balancers with a 36 mm shaft
  • Designed to balance wheels with a center-hole diameter from 5/8” to 1.25”
  • Kit comes with universal wheel clamp, shaft, centering cones, spacers and spin-on nut

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

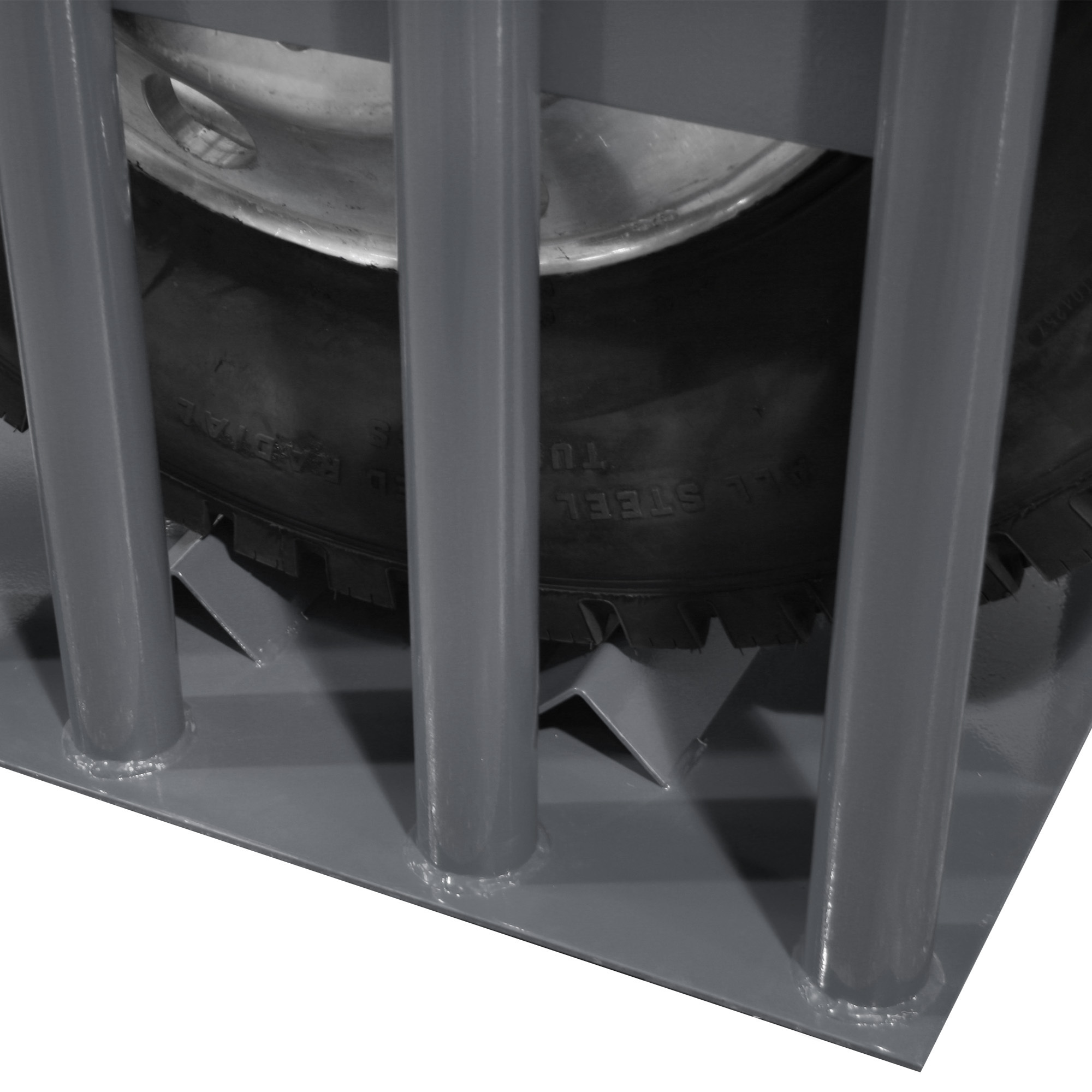

The Tire Inflation Cage You Trust The RIC-4716in.flation cage is designed using 2-3/8” diameter, high-yield, seamless steel tubing with expansion properties to ensure strength, durability and safety. The gradual upper-arched mandrel bent tube design yields maximum space and is engineered to withstand and contain wheel and tire projectiles under extreme tire ruptures, preventing potential injuries or deaths. The RIC-4716 stands 49.5in. tall and 21” wide and features four welded-steel bars in order to meet the demands of all wheel service shops. It can handle tires with a maximum width of 16in. and maximum diameter of 47in., delivering full-capability performance. A solid-steel welded-steel base features a full-width angle-iron wheel cradle to keep the wheel safely contained within the inflation cage during all inflation procedures. IMPORTANT NOTE: Exploding tires have a high potential for severe injury and death. Tire inflation safety cages are a mandatory precaution for safe tire inflation. Tire inflation cages provide valuable protection and exceed the OSHA Standard 29 CFR 1910.177 for servicing multi-piece and single-piece rim wheels. ALWAYS follow all warning and product instructions when using any inflation cage in order to prevent potential injuries or deaths.

What's Included

    (1) 1 Tire Inflation Cage

Features + Benefits

  • The RIC-4716 inflation cage is a crucial, life-saving piece of equipment that must be used during the inflation of a tire.
  • Accommodates hub assemblies up to 9.5” wide
  • Installs on all Ranger wheel balancers with a 36 mm shaft
  • Designed to balance wheels with a center-hole diameter from 5/8” to 1.25”
  • Kit comes with universal wheel clamp, shaft, centering cones, spacers and spin-on nut
  • 2-3/8” diameter, high-yield, seamless steel tubing

Key Specs

AttributeSpecification

item#

6764731

Brand

Ranger

Manufacturer's Warranty

1 year limited warranty

Ship Weight

256.0 LB

Max. Overall Tire Diameter

47 in

Max.Tire Width

16 in

Bars (qty.)

4

Max. Tire Inflation Pressure

120 PSI
AttributeSpecification

Attached Controls

No

Air Compressor Required

Yes

Material

Steel

Base Length

27 in

Base Width

21 in

OSHA Approved

No

Product Weight

245.0000 lb

Dimensions L x W x H (in.)

27.0 x 21.0 x 50.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
