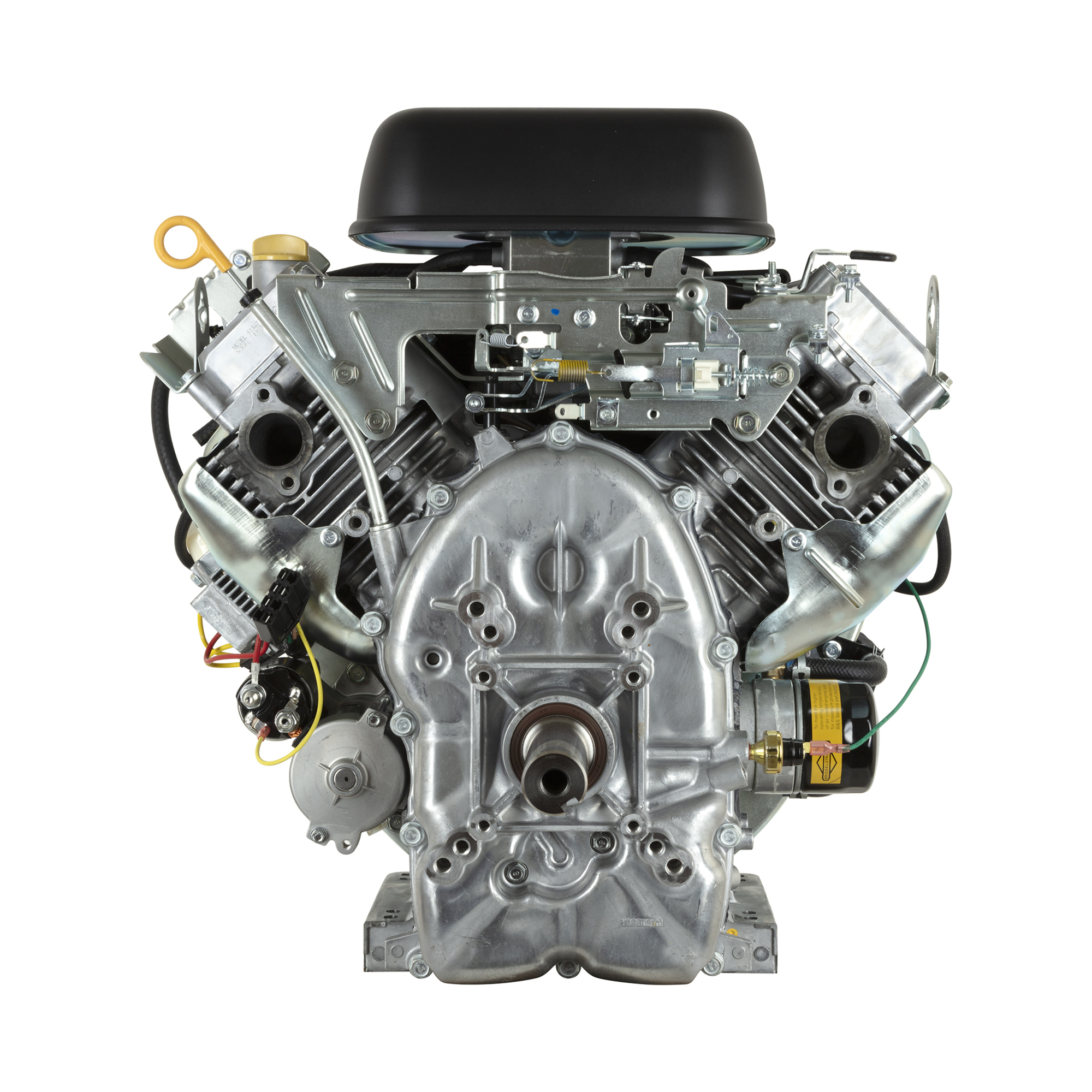

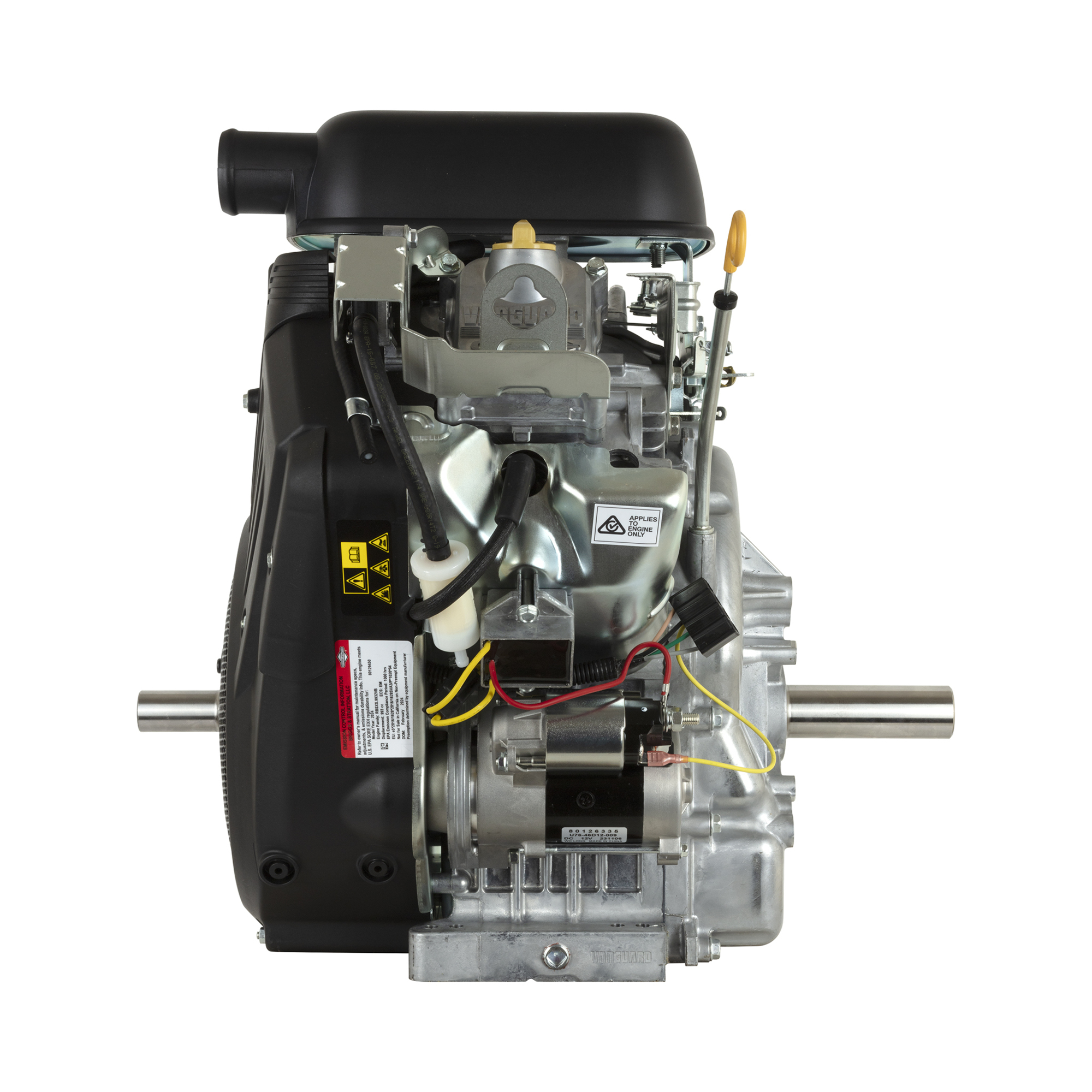

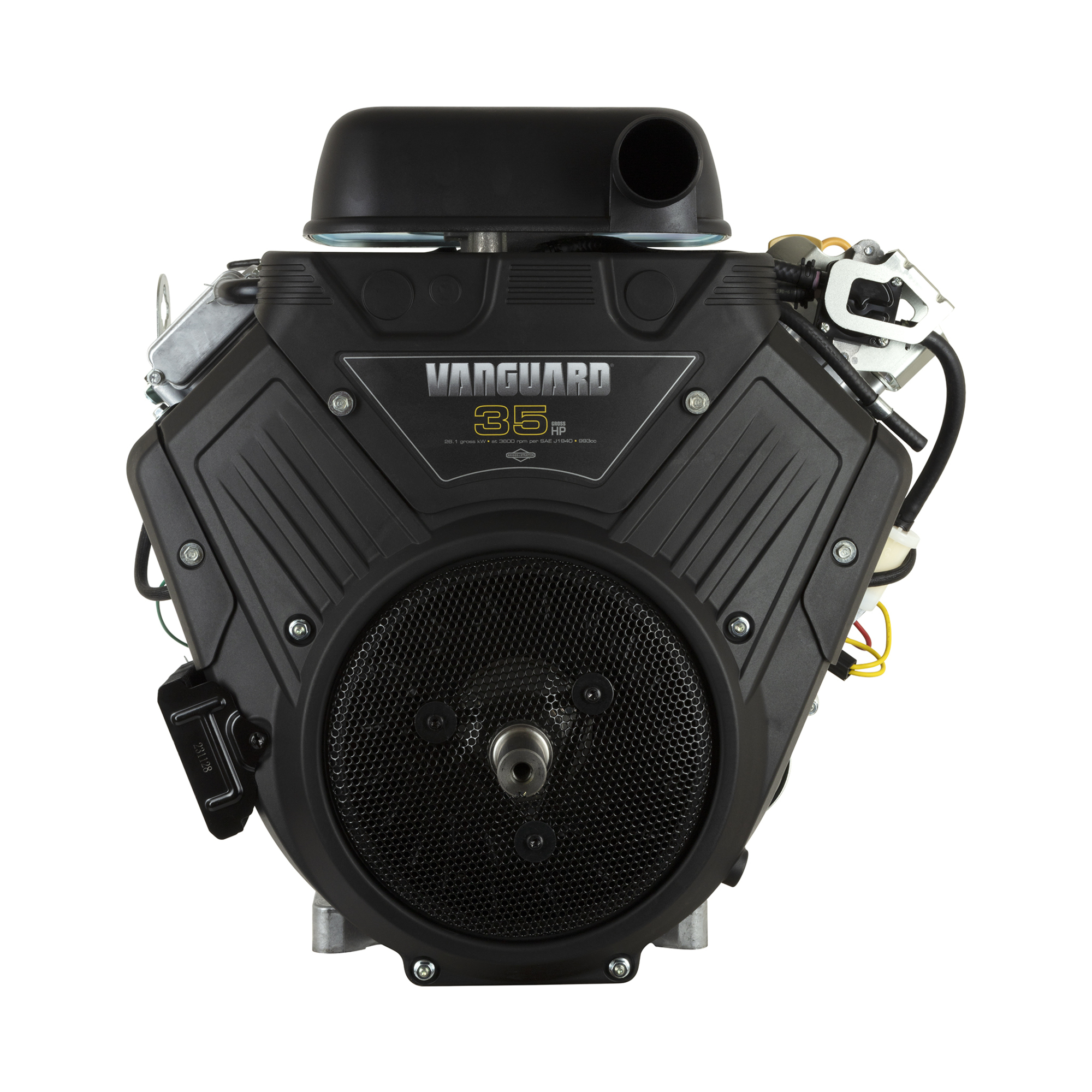

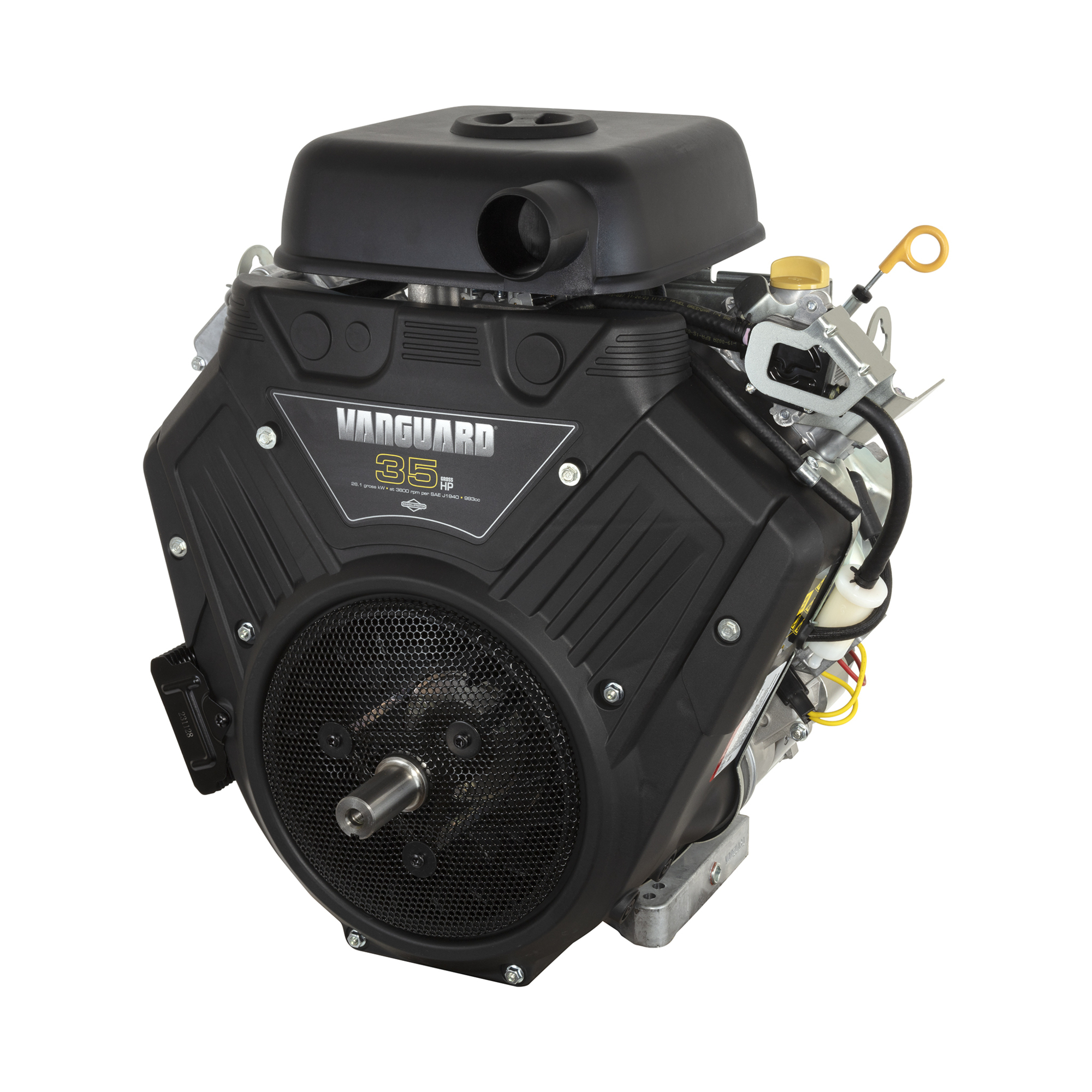

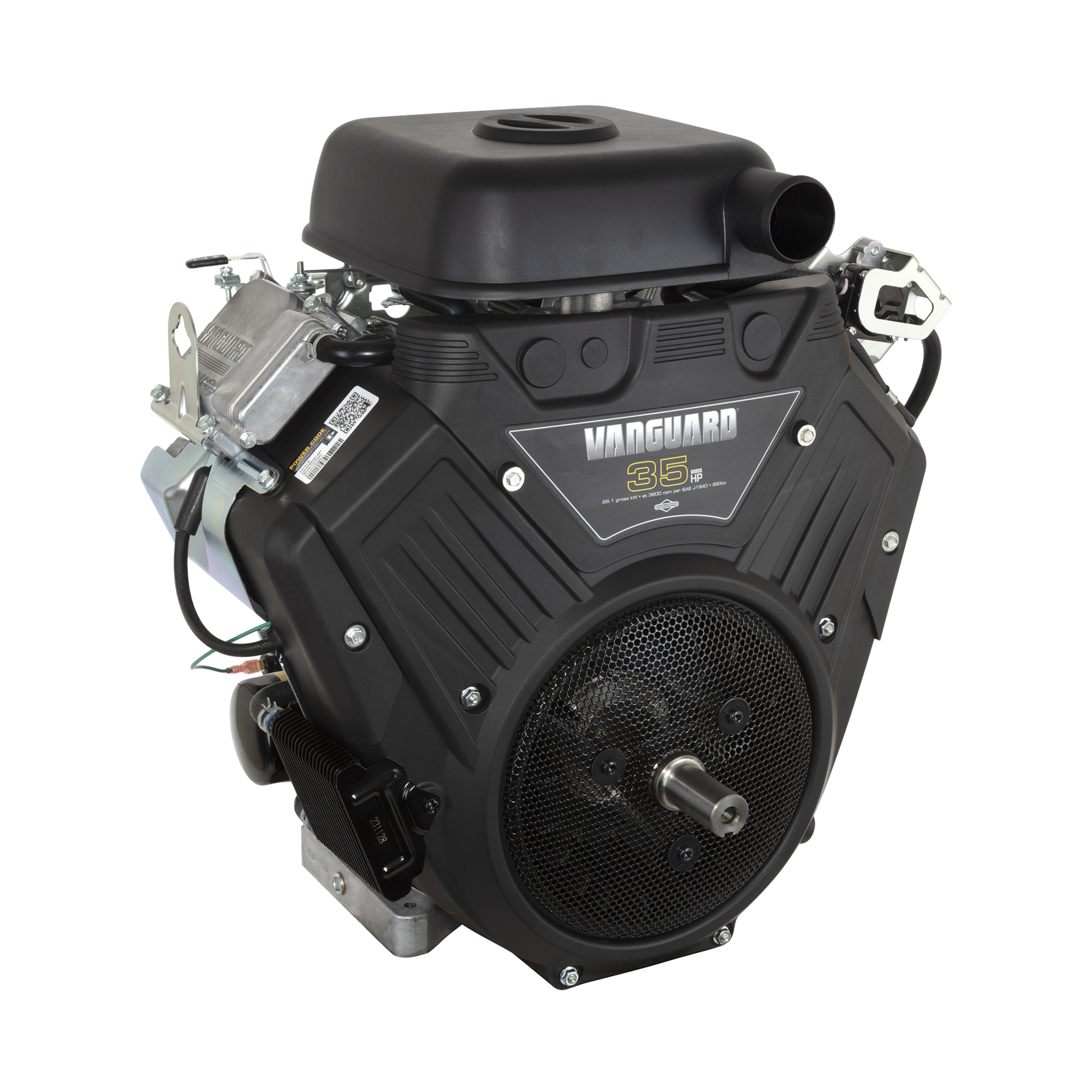

35.0 GHP Vanguard Horizontal Shaft Engine, 993cc, 1-7/16" x 4-1/2" Crankshaft, Tapped 5/8-18, 3/8" Keyway,12V Electric Start, 20A Alternator, Model# 613477-0250-J1

Item# 6865953
35.0 GHP Vanguard Horizontal Shaft Engine, 993cc, 1-7/16" x 4-1/2" Crankshaft, Tapped 5/8-18, 3/8" Keyway,12V Electric Start, 20A Alternator, Model# 613477-0250-J1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

35.0 GHP Vanguard Horizontal Shaft Engine, 993cc, 1-7/16" x 4-1/2" Crankshaft, Tapped 5/8-18, 3/8" Keyway,12V Electric Start, 20A Alternator, Model# 613477-0250-J1

Click or Tap image to Zoom

$2619.04

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Advanced Debris Management. Experience enhanced engine performance and durability, even in the toughest dusty and dirty conditions. The multi-stage air cleaner, chopper fan and clean out panels keeps the engine running smooth and cool, ensuring long-lasting reliability and peak performance.
  • High Efficiency Head Design. Stay productive even in the toughest conditions with new, improved cylinder heads designed to keep your engine cooler for longer. With a 30-degree temperature reduction†, our High-Efficiency Head Design enhances cooling performance, helping extend engine life and maintain peak productivity. Additional cooling features, including extra fins and increased aluminum, further boost durability and reliability when you need it most.
  • Magnetron® Electronic Ignition. Start your equipment quickly and reliably every time—no maintenance needed, so you can get to work without hassle. Start your equipment quickly and reliably every time—no maintenance needed, so you can get to work without hassle.
  • V-Twin OHV Technology. Experience a smoother, more efficient ride with superior balance and low vibration. Enjoy cleaner performance.
  • 35 GHP Vanguard Series 4-Cycle Gas Engine, 1-7/16" x 4-1/2” Crankshaft, Model# 613477-0250-J1

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Expertly engineered for one purpose: to get a lot more done throughout the day. Legendary, respected and proven, these BIG BLOCK™ V-Twins are built to never let you down.

What's Included

    (1) 1

Features + Benefits

  • Advanced Debris Management. Experience enhanced engine performance and durability, even in the toughest dusty and dirty conditions. The multi-stage air cleaner, chopper fan and clean out panels keeps the engine running smooth and cool, ensuring long-lasting reliability and peak performance.
  • High Efficiency Head Design. Stay productive even in the toughest conditions with new, improved cylinder heads designed to keep your engine cooler for longer. With a 30-degree temperature reduction†, our High-Efficiency Head Design enhances cooling performance, helping extend engine life and maintain peak productivity. Additional cooling features, including extra fins and increased aluminum, further boost durability and reliability when you need it most.
  • Magnetron® Electronic Ignition. Start your equipment quickly and reliably every time—no maintenance needed, so you can get to work without hassle. Start your equipment quickly and reliably every time—no maintenance needed, so you can get to work without hassle.
  • V-Twin OHV Technology. Experience a smoother, more efficient ride with superior balance and low vibration. Enjoy cleaner performance.
  • 35 GHP Vanguard Series 4-Cycle Gas Engine, 1-7/16" x 4-1/2” Crankshaft, Model# 613477-0250-J1
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

6865953

Brand

Vanguard

Manufacturer's Warranty

3 year limited warranty

Ship Weight

155.0 LB

Engine Displacement

993 cc

Engine Type

35.0 GHP Vanguard

Shaft Diameter

1-7/16 in

Shaft Length

4.5 in

Fuel Type

Gasoline
AttributeSpecification

Start Type

Electric

Shaft Keyway

3/8" in

Cylinders (qty.)

2

Cylinder Bore

Cast Iron

Net Power Output

35 HP

Oil Capacity

78 qt

CARB Approved

No

Product Weight

150.0000 lb

Dimensions L x W x H (in.)

33.0 x 32.0 x 32.0 in

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. What about exhaust pipes

    1 answer

    1. The muffler is not included. The muffler needed will depend on installation and application. Please contact the manufacturer for availability and pricing.

      Helpful?

  2. does this engine have 2 pto shafts ?

    1 answer

    1. The Vanguard 613477-0250-J1 horizontal shaft engine comes with a single PTO shaft configuration featuring a 1‑7/16″ diameter taper and a 5/8‑18 keyed setup.

      Helpful?

  3. Carburetor or fuel injection

    1 answer

    1. This engine uses a carburetor.

      Helpful?

  4. What is the rotation

    1 answer

    1. The crankshaft rotation for the Briggs & Stratton Model# 613477-0250-J1 engine is counterclockwise (CCW) when viewed from the Power Take-Off (PTO) side (the shaft side).

      Helpful?

  5. What is the torque at the output shaft?

    1 answer

    1. The torque at the output shaft is 51.06 lb·ft (69.3 N·m) based on 35 HP at 3600 RPM.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
