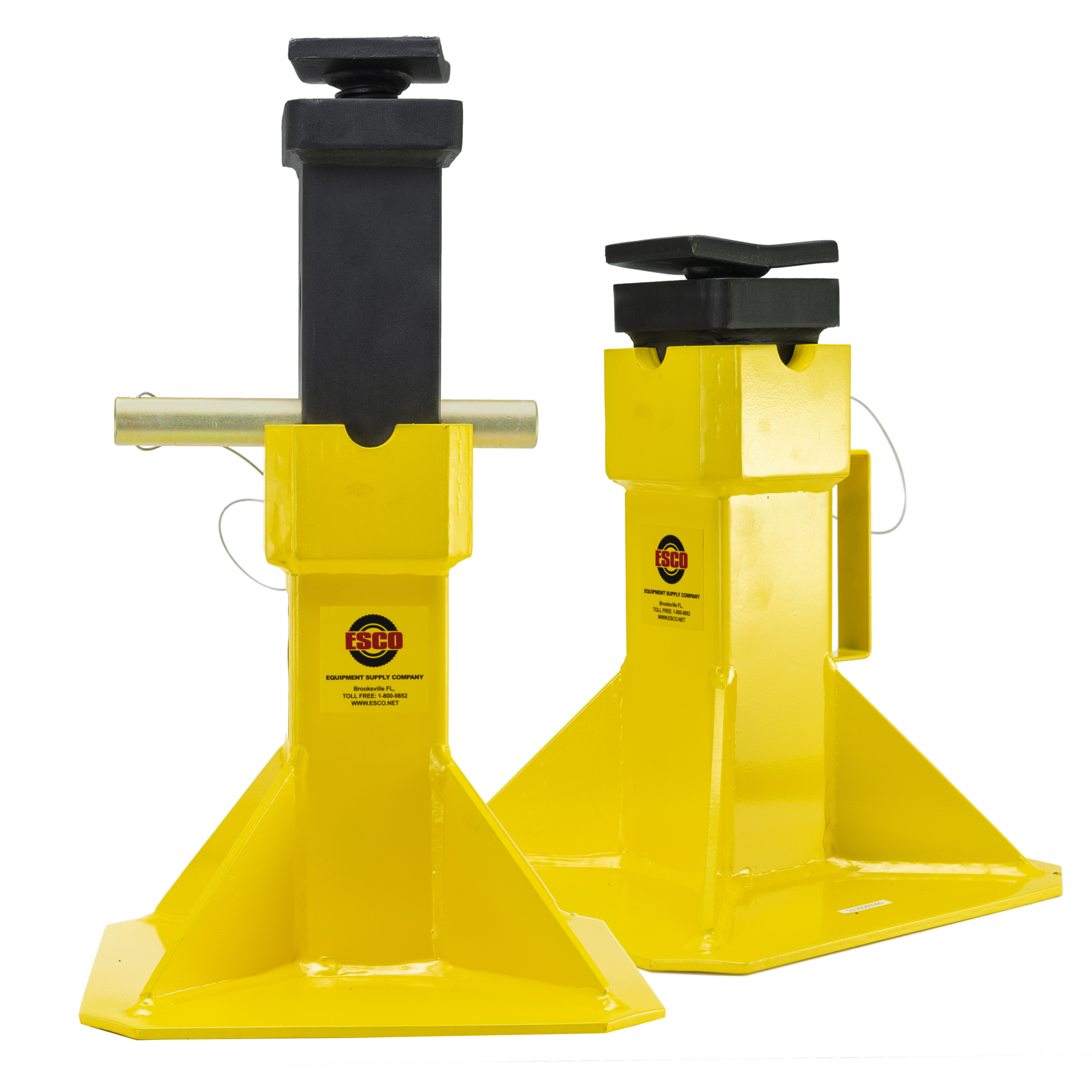

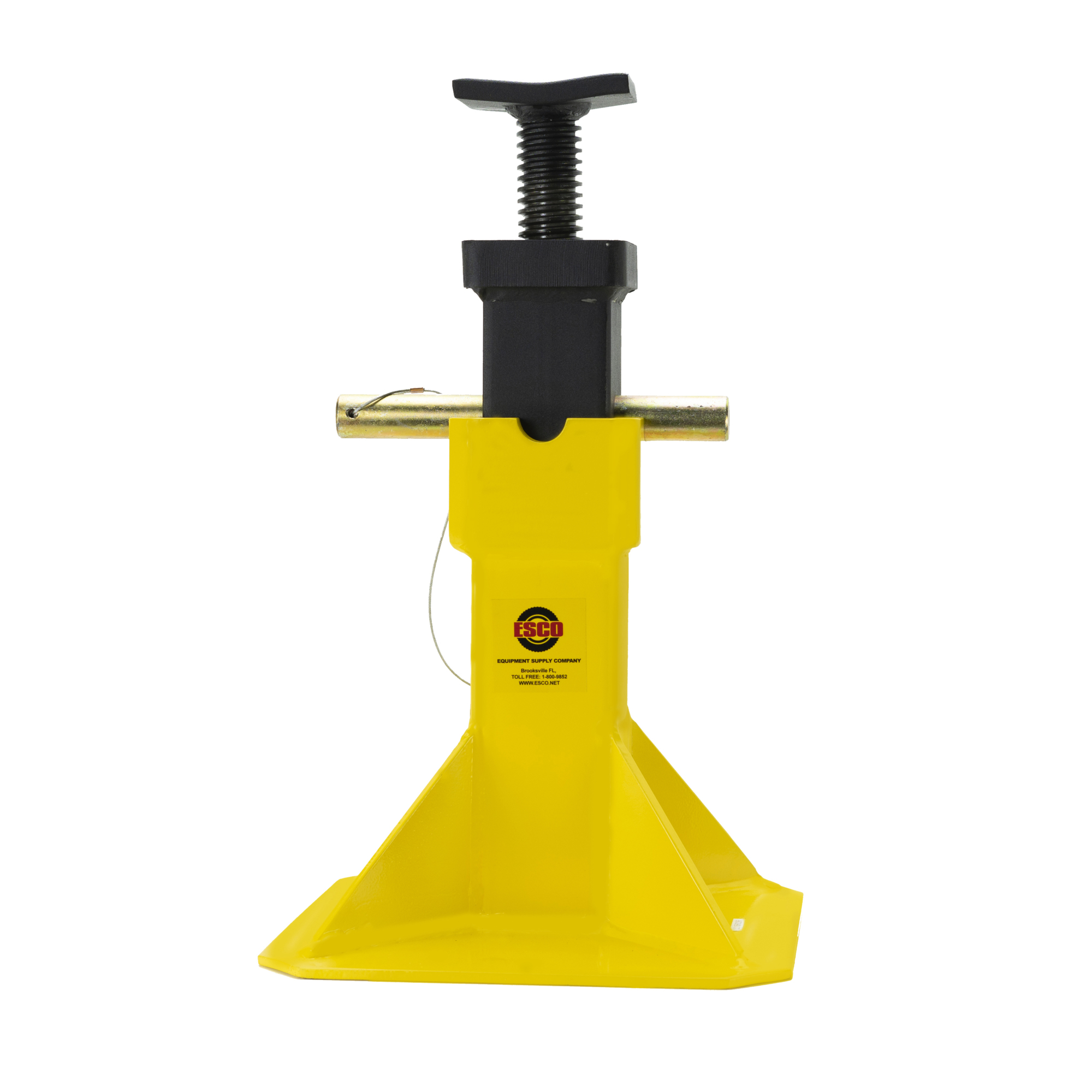

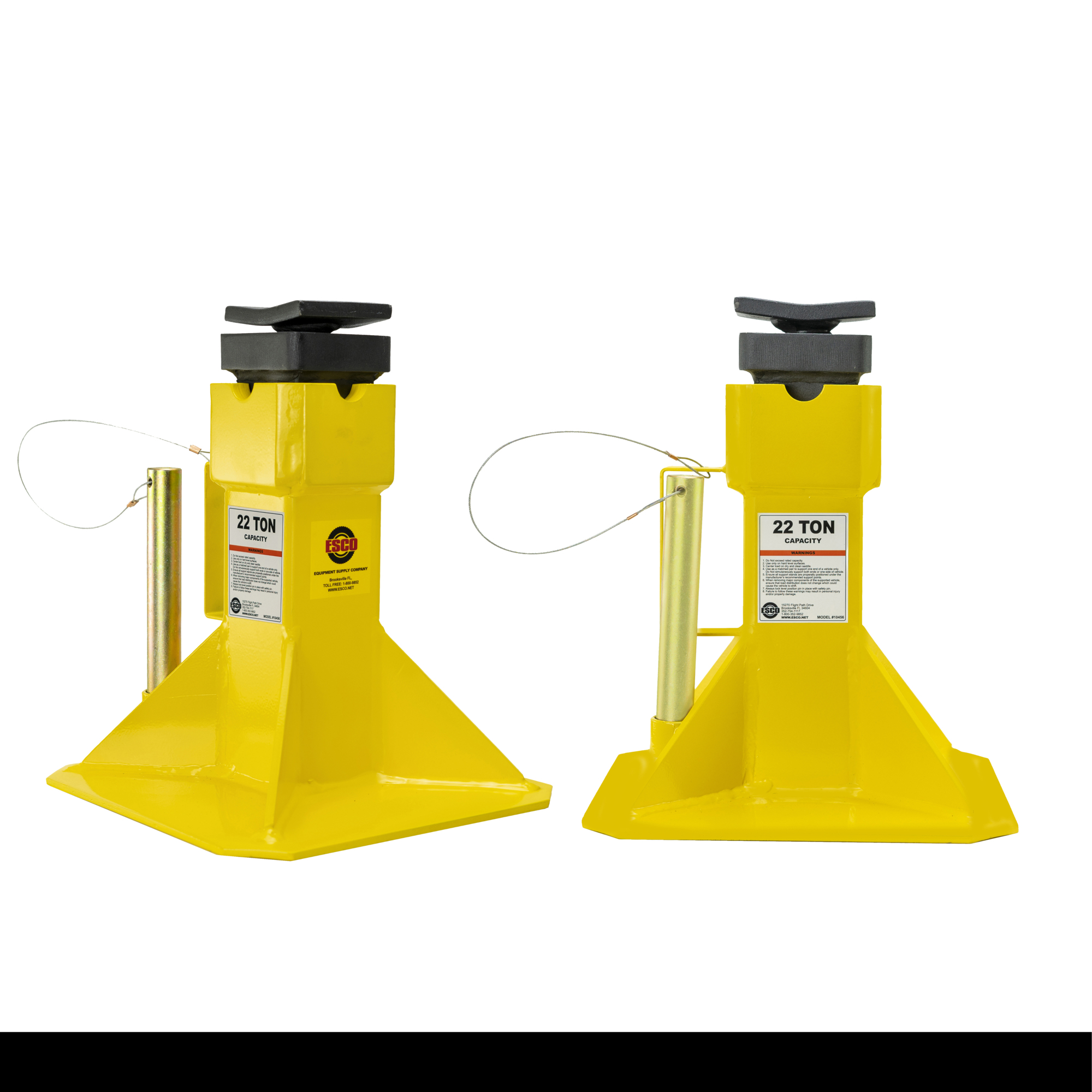

22 Ton Jack Stand Pair with Adjustable saddle

Item# 7482532
New2 Included
22 Ton Jack Stand Pair with Adjustable saddle

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

22 Ton Jack Stand Pair with Adjustable saddle

Click or Tap image to Zoom

$394.95

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

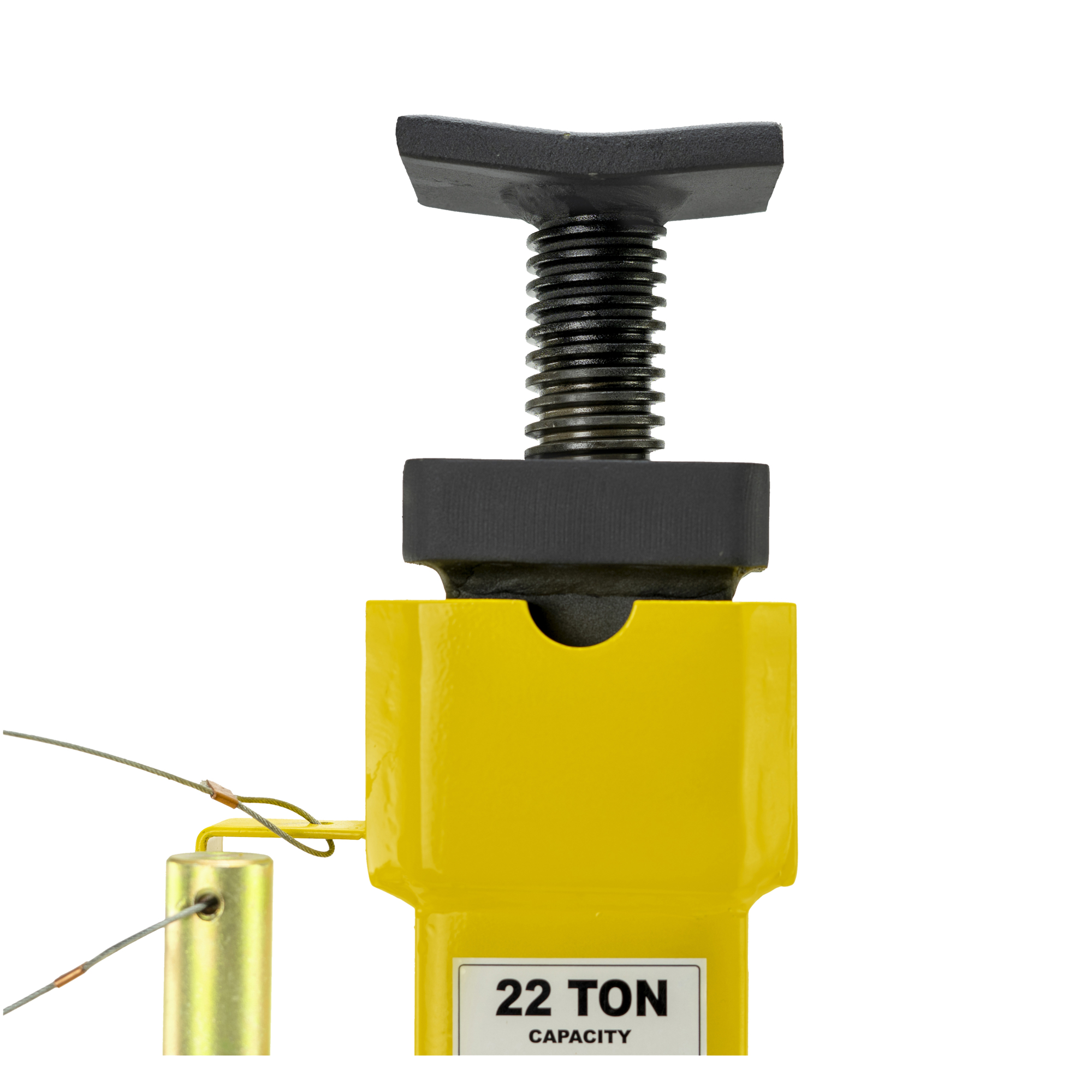

  • Support loads up to 22 Tons (44,000 lbs. per stand). Great for Construction, Fleet and Semi-Truck, Material Handling, Maintenance Garages, and more. Designed with an adjustable screw-style saddle that provides 2 inches of additional height for better accuracy while supporting the load. Pin Style Column adjusts to Three different Axle Height Positions. Adjustable pin is secured to stand to prevent loss. Handle provides ease of positioning and carrying. 1/4” thick solid steel base plate for added stability. Maximum Capacity of 22 Tons. Sold as a pair. 1-Year Warranty
  • Capacity 22 Tons | 44,000 lbs. Minimum Height (Position 1) 15.5 in. | 395 mm Middle Pin (Position 2) 17.5 in. | 444.5 mm Maximum Height (Position 3) 20.5 in. (22.5 in. with Extended Saddle) | 520.7 mm (572 mm) Saddle Extension 2 in. | 51 mm Base Length 11 in. | 279.5 mm Base Width 11 in. | 279.5 mm Warranty 1-Year Warranty Gross Weight 78 lbs. | 35.5 kg Net Weight 76 lbs. | 34.5 kg Package Dimensions 19 x 13 x 15 in. | 483 x 330 x 381 mm UPC (Universal Product Code) 816904025397

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

22 TON JACK STANDS WITH ADJUSTABLE SCREW TOP SADDLE (PAIR) Model #10456 The 22 Ton Jack Stands with Adjustable Screw Top Saddle (Pair) (MODEL 10456) are designed to support loads of up to 22 tons (44,000 lbs. per stand), making them ideal for a variety of industrial applications, including construction, semi-truck service/fleet, material handling, and any maintenance garage. Designed with an adjustable screw-style saddle that provides 2in. of additional height for better accuracy while supporting the load. The lifting column is easy to position and adjust, with three different axle height positions to choose from. Additionally, the stand features a locking pin holder to prevent loss and a 1/4in. thick solid steel base plate for added stability. With a one-year warranty included, the 22 Ton Jack Stands with Adjustable Screw Top Saddle (Pair) (MODEL 10456) are a reliable and versatile solution for heavy-duty lifting and support needs.

What's Included

    (2) 2

Features + Benefits

  • Support loads up to 22 Tons (44,000 lbs. per stand). Great for Construction, Fleet and Semi-Truck, Material Handling, Maintenance Garages, and more. Designed with an adjustable screw-style saddle that provides 2 inches of additional height for better accuracy while supporting the load. Pin Style Column adjusts to Three different Axle Height Positions. Adjustable pin is secured to stand to prevent loss. Handle provides ease of positioning and carrying. 1/4” thick solid steel base plate for added stability. Maximum Capacity of 22 Tons. Sold as a pair. 1-Year Warranty
  • Capacity 22 Tons | 44,000 lbs. Minimum Height (Position 1) 15.5 in. | 395 mm Middle Pin (Position 2) 17.5 in. | 444.5 mm Maximum Height (Position 3) 20.5 in. (22.5 in. with Extended Saddle) | 520.7 mm (572 mm) Saddle Extension 2 in. | 51 mm Base Length 11 in. | 279.5 mm Base Width 11 in. | 279.5 mm Warranty 1-Year Warranty Gross Weight 78 lbs. | 35.5 kg Net Weight 76 lbs. | 34.5 kg Package Dimensions 19 x 13 x 15 in. | 483 x 330 x 381 mm UPC (Universal Product Code) 816904025397

Key Specs

AttributeSpecification

item#

7482532

Brand

ESCO

Manufacturer's Warranty

1 year limited warranty

Ship Weight

79.0 LB

Lift Capacity

22 Tons

Max. Lift Height

22.5 in

Min. Lift Height

15.5 in
AttributeSpecification

Base Width

11 in

Material

Alloy Steel

Included (qty.)

2

Jack Type

Pin Type

Product Weight

79.0000 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 15.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
