22-LED RED LOW PROFILE MARINE TAIL LIGHT KIT

Item# 6702687
1 Included
22-LED RED LOW PROFILE MARINE TAIL LIGHT KIT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

22-LED RED LOW PROFILE MARINE TAIL LIGHT KIT

Click or Tap image to Zoom

$82.99

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • Waterproof, low profile design for marine applications
  • Hard wired (brown = tail/license, green = passenger side stop/turn, yellow = driver side stop/turn, white = ground)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

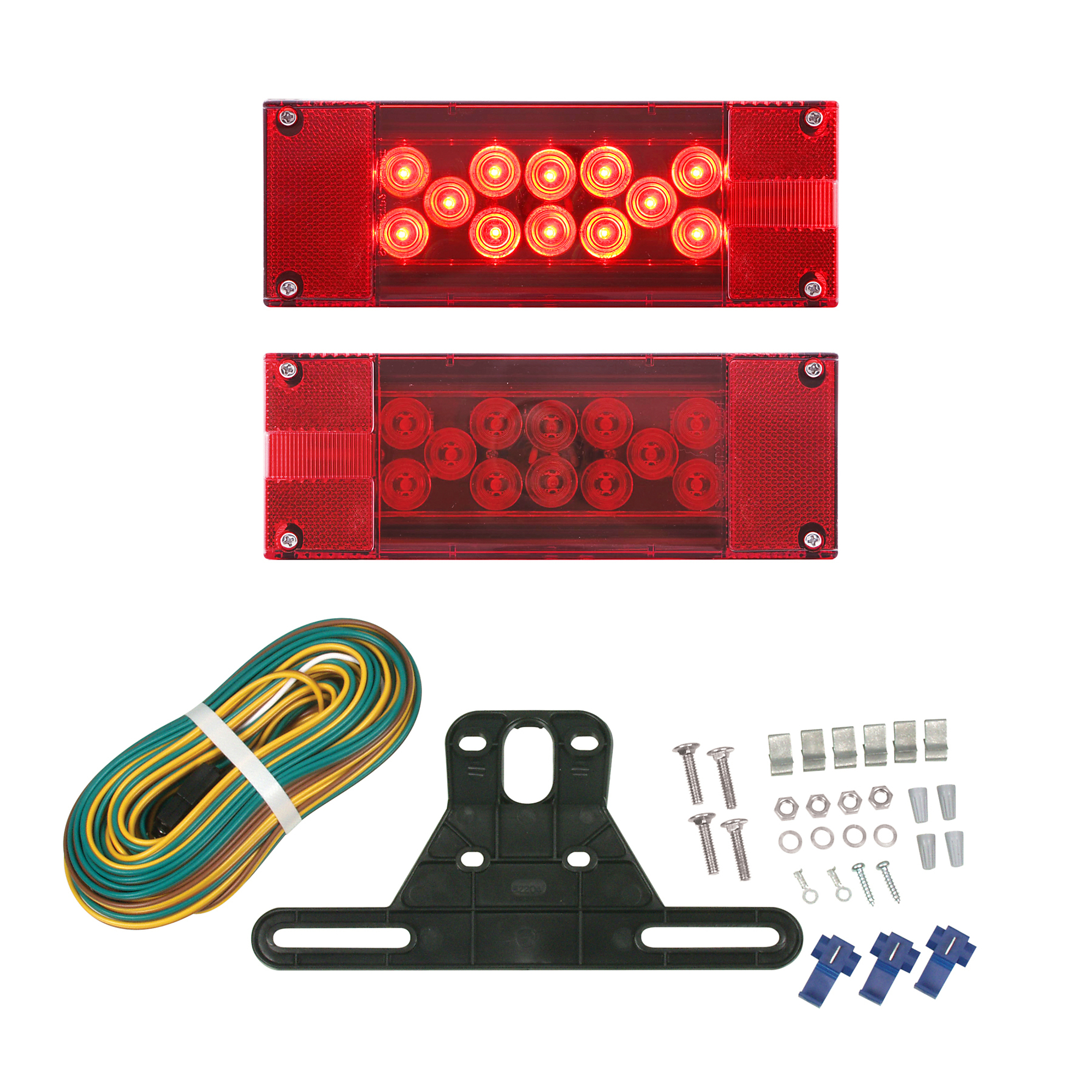

Optronics waterproof universal mount tail lights are original equipment on many marine trailers, and are easy to replace to keep your boat trailer highway legal and looking sharp. This kit includes a set of LED passenger side and driver side lights combining tail, stop, turn, rear clearance, rear reflex, side marker and side reflex into a single light that fits the traditional footprint on many marine trailers. The driver side light also includes an integrated license lamp. Also included in the kit are a license plate bracket and 25ft. wishbone style wiring harness. Installation is simple using included hardware. Lifetime LED Warranty.

What's Included

    (1) LIGHT KIT LED LOW SUBMERSIBLE

Features + Benefits

  • Waterproof, low profile design for marine applications
  • Hard wired (brown = tail/license, green = passenger side stop/turn, yellow = driver side stop/turn, white = ground)

Key Specs

AttributeSpecification

item#

6702687

Brand

Optronics

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

2.6 LB

Light Type

LED

Shape

Rectangle

Lens Color

Red

Housing Material

Plastic
AttributeSpecification

Mount Type

Bolt

Bulbs Per Light (qty.)

18

Included (qty.)

1

Mounting Hardware Included

Yes

Connector Type

Hardwire

License Plate Bracket Included

Yes

Product Weight

3.0000 lb

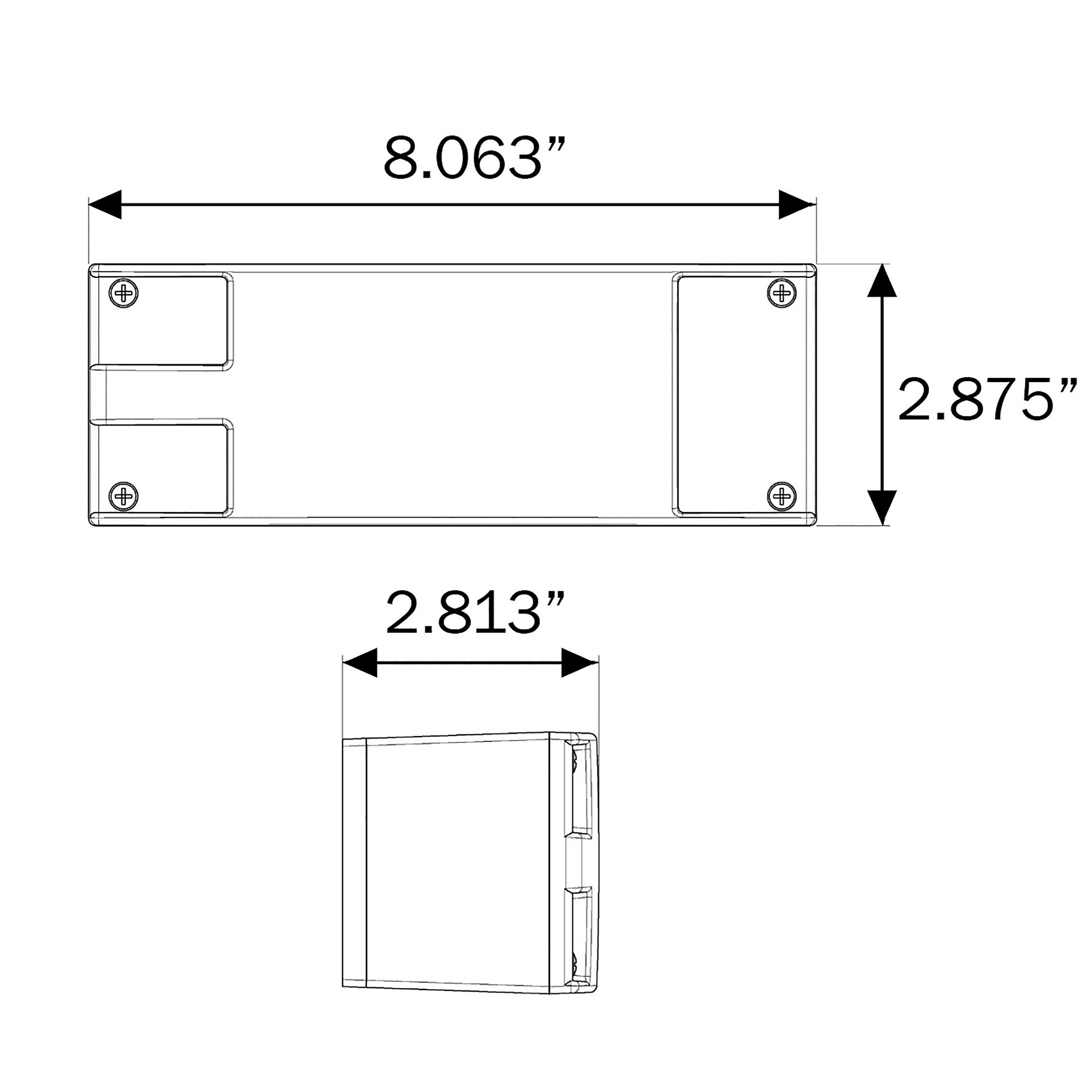

Dimensions L x W x H (in.)

8.063 x 2.813 x 2.875 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. Mounting studs? Mounting dimensions. Mounts located on back, bottom ?

    1 answer

    1. The light will include stainless steel hardware for mounting. Two of the carriage bolts will slide into the mounting tabs on the back of the light. The mounting distance for one slot will be 1 3/8" from the side and the other slot will be 2 5/8" from the side. There are three mounting slots that will allow you to mount the light in multiple mounting hole positions. The distance between each slot will be 2 inches. Some drilling may be required.

      Helpful?

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
