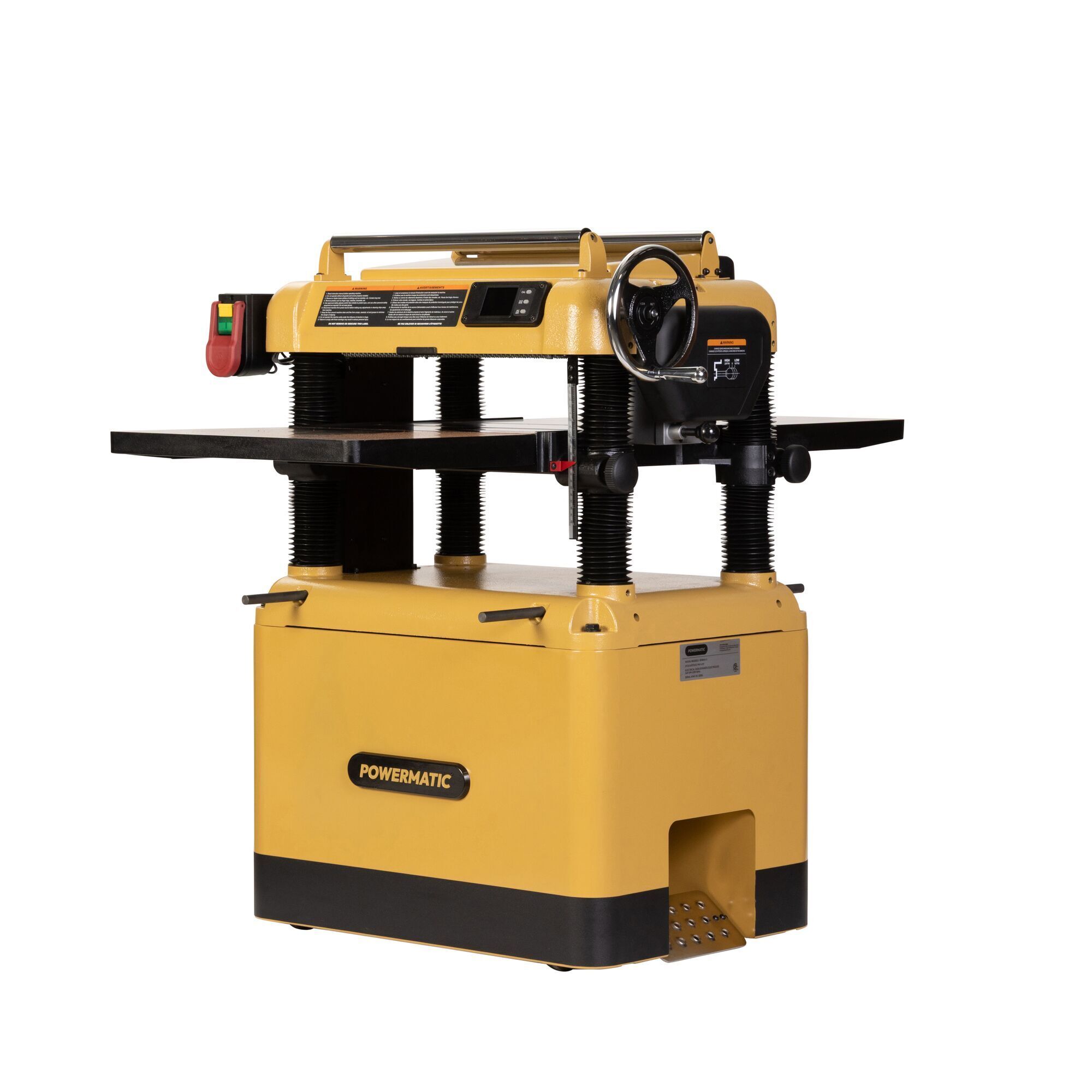

209BHH-4, 20-Inch Planer, Helical Cutterhead, 5 HP, 3PH, 460V

Item# 7321595
New
209BHH-4, 20-Inch Planer, Helical Cutterhead, 5 HP, 3PH, 460V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

209BHH-4, 20-Inch Planer, Helical Cutterhead, 5 HP, 3PH, 460V

Click or Tap image to Zoom

$6499.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Improved Large E Stop - Oversized, easy access emergency stop improves operator safety and visibility.
  • Solid Cast Iron Infeed and Outfeed Tables - Provides stability, reduces vibration, and supports long boards for consistent results.
  • True Helical Cutterhead - Delivers quieter operation, improved surface finish, and longer insert life.

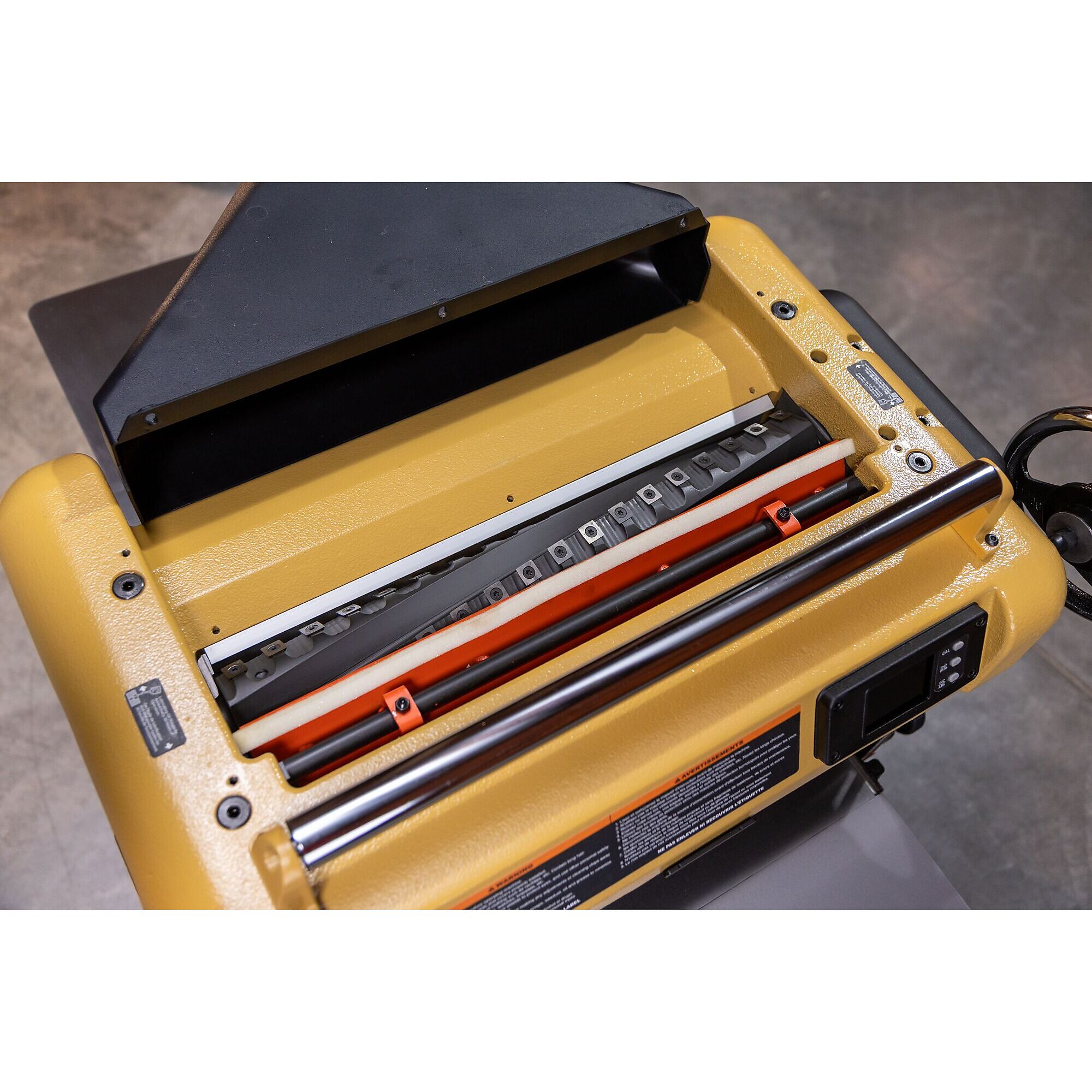

  • Cutterhead Access for Insert Change or Rotation - Simplifies maintenance and reduces downtime when rotating or replacing inserts.

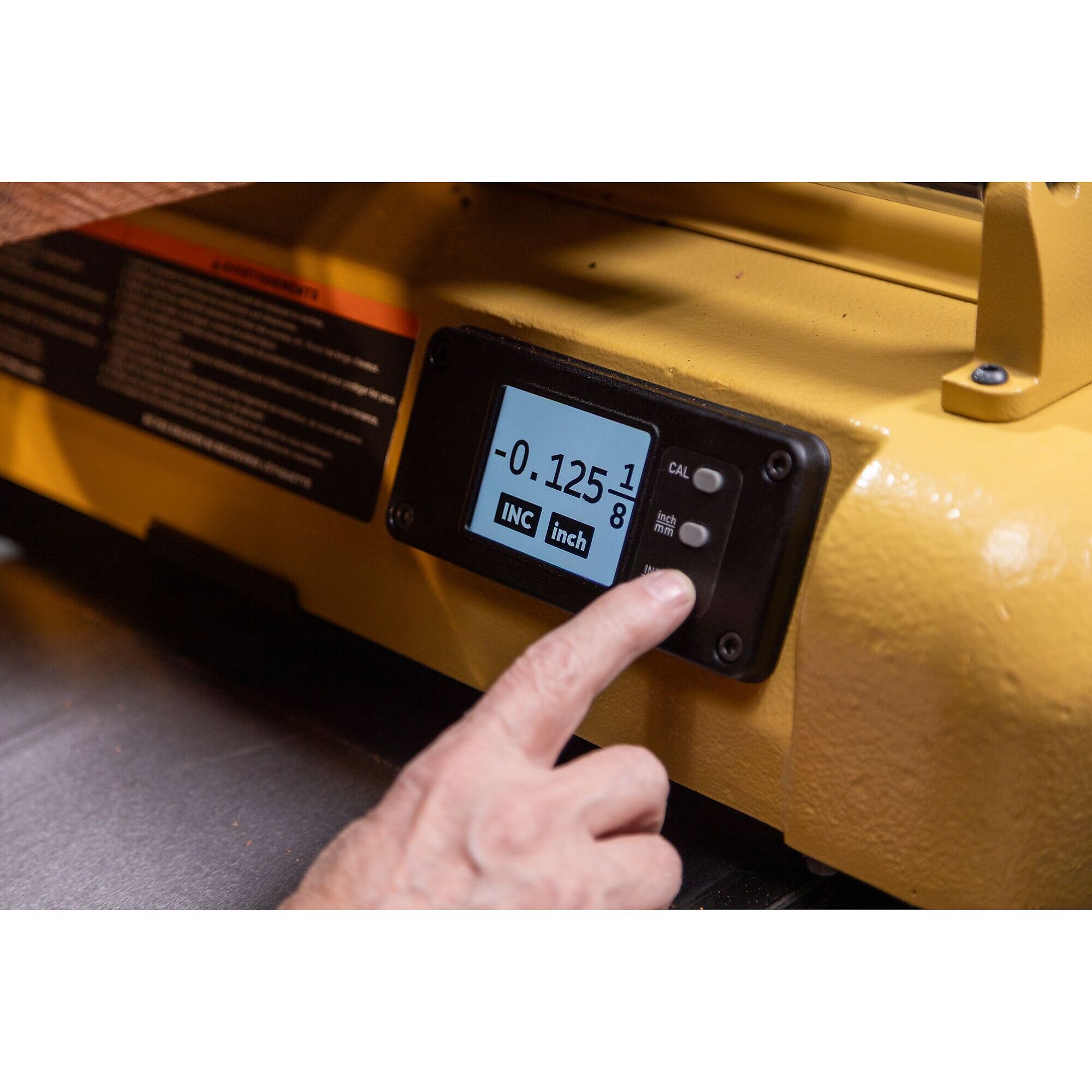

  • Digital Read Out (DRO) - Accurate, repeatable thickness adjustments for precision planing.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Powermatic, 209BHH-4, PM1-480, 20in. planer is built for shops operating on 460V, 3 PH Power. Driven by a 5 HP motor, it delivers the strength and reliability required for continuous production use. With a 20in. cutting width and 8in. maximum thickness capacity, this planer efficiently handles large panels and thick stock. A four row helical cutterhead equipped with 68 four sided inserts running at 5200 RPM ensures smooth, consistent finishes with reduced noise and simplified maintenance, while accessible cutterhead design minimizes downtime during insert changes. Dual feed speeds of 16 and 28 FPM and a built in digital readout support both precision finishing and efficient material removal. Heavy cast iron tables and a full 51-1/2in. table surface provide stability and vibration reduction, and a 4in. dust port with a 900 CFM requirement supports effective chip evacuation. The upgraded caster locking and braking system and oversized emergency stop further enhance usability and safety in demanding shop environments.

What's Included

    (1) Planer
Play Item Video

Features + Benefits

  • Improved Large E Stop - Oversized, easy access emergency stop improves operator safety and visibility.
  • Solid Cast Iron Infeed and Outfeed Tables - Provides stability, reduces vibration, and supports long boards for consistent results.
  • True Helical Cutterhead - Delivers quieter operation, improved surface finish, and longer insert life.
  • Cutterhead Access for Insert Change or Rotation - Simplifies maintenance and reduces downtime when rotating or replacing inserts.
  • Digital Read Out (DRO) - Accurate, repeatable thickness adjustments for precision planing.

Key Specs

AttributeSpecification

item#

7321595

Brand

Powermatic

Manufacturer's Warranty

60 months parts/60months labor

Ship Weight

704.0 LB

Product Type

Planers

Max. Cutting Width

0.9 in

Cutters (qty.)

68
AttributeSpecification

Max. RPM

5,200

Volts

460

Amps

13.5

Helical Head

Yes

Product Weight

606.0000 lb

Dimensions L x W x H (in.)

52.0 x 38.0 x 44.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

60 months parts/60months labor
