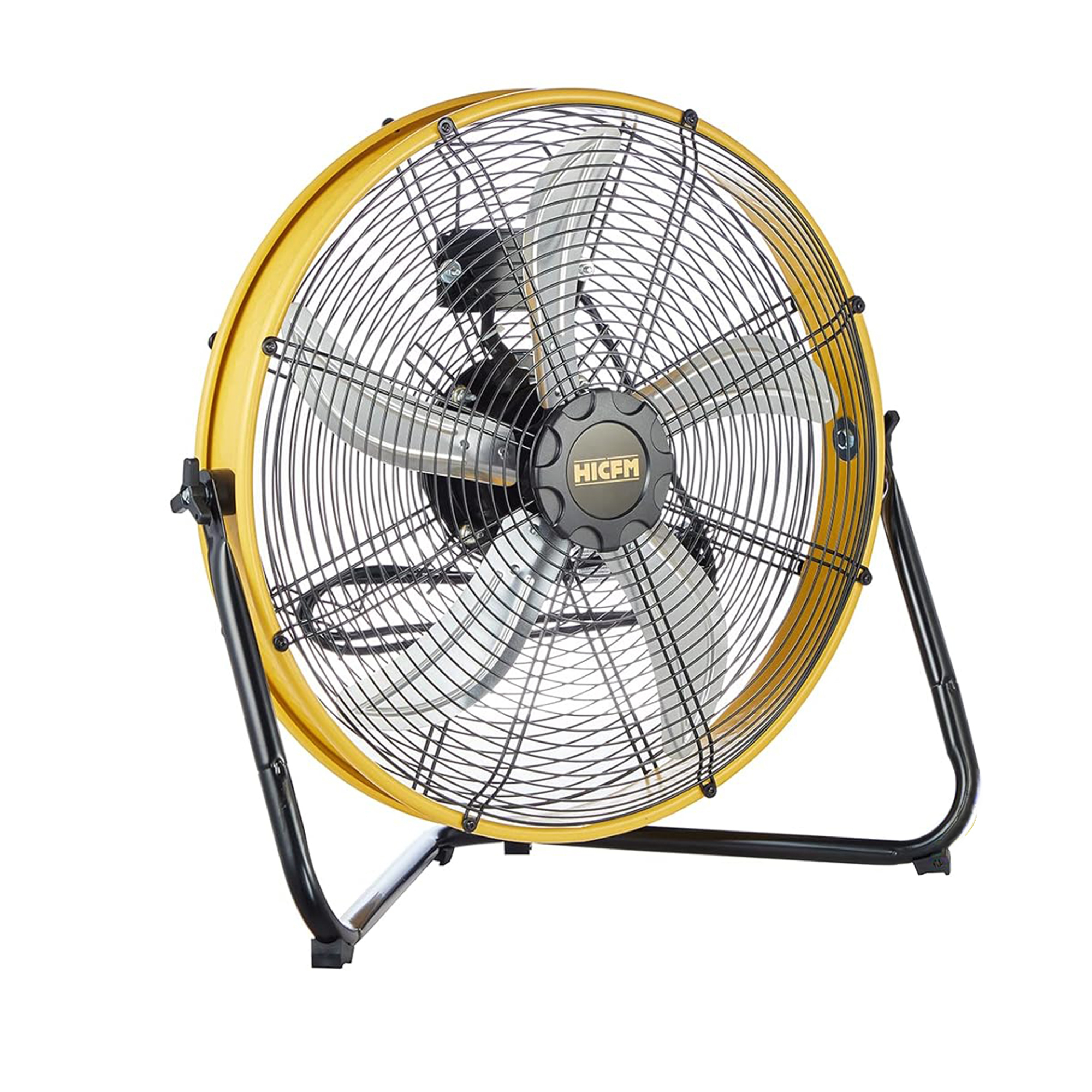

EdenDirect Heavy-Duty Shroud Fan — 20in., 6300 CFM, IP44 Enclosed 1/4 HP Motor, Model# FAN-D20

Item# 6599632
EdenDirect Heavy-Duty Shroud Fan — 20in., 6300 CFM, IP44 Enclosed 1/4 HP Motor, Model# FAN-D20

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EdenDirect Heavy-Duty Shroud Fan — 20in., 6300 CFM, IP44 Enclosed 1/4 HP Motor, Model# FAN-D20

Click or Tap image to Zoom

$114.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

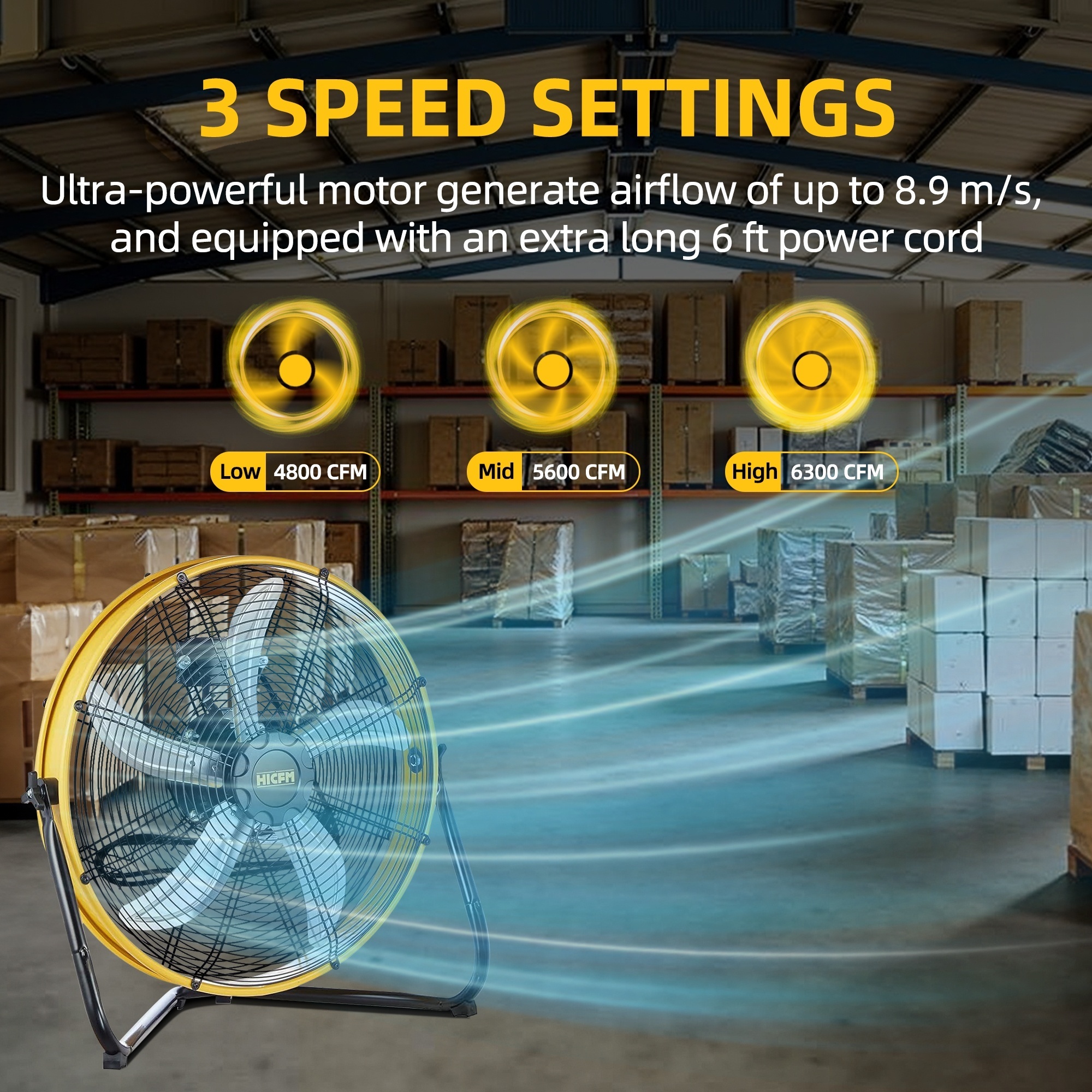

  • Equipped with an industrial-grade motor and turbine aluminum blades, it delivers 6300 CFM (high), 5600 CFM (medium), and 4800 CFM (low) for large-space cooling.
  • Advanced tech achieves 11 m/s air velocity at high speed, with noise levels of 76dB/73dB/70dB at 1/2/3 meters, quieter than comparable industrial fans.
  • Features a fully sealed, permanently lubricated IP44 1/4HP motor with thermal overload protection, ideal for high humidity, dusty, and debris-filled workspaces.

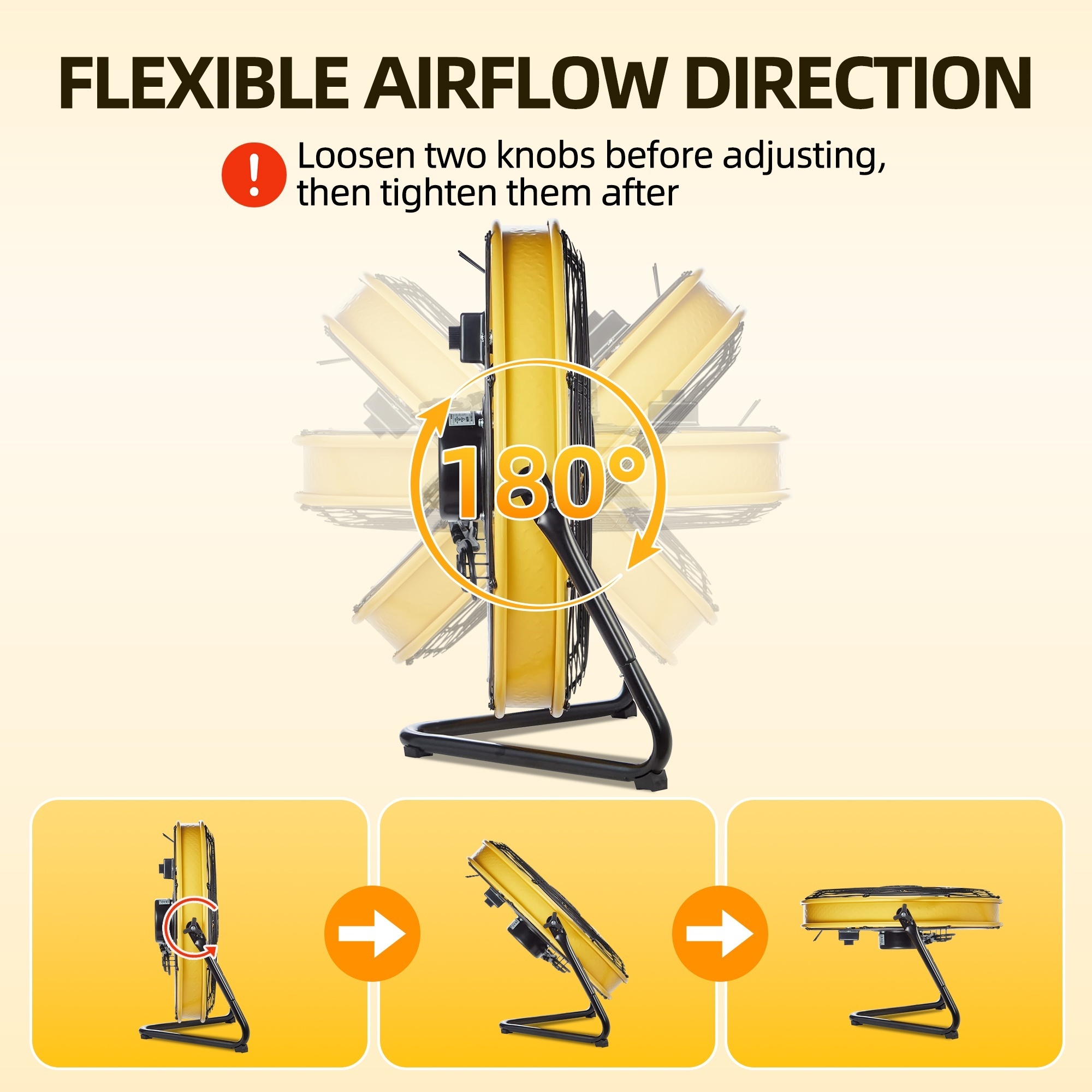

  • Boasts a 180° adjustable tilt angle with 2 locking knobs for precise airflow control, plus a wall bracket for space-saving overhead ventilation.
  • UL safety listed with a 100% copper wiring motor, ensuring reliable performance with specs: 120V/60Hz, 1.6 amps, 180-Watt, 1580 RPM.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Built with Industrial Grade Motor and Turbo Aluminum Blades, this heavy duty floor fan provides refreshing breeze for large spaces. High speed 6300 CFM / Medium speed 5600 CFM / Low speed 4800 CFM. It is ideal for Warehouse, Workshop, Factory, Garage, Basement, Industrial, Commercial and Covered Patio.

What's Included

    (1) Fan

Features + Benefits

  • Equipped with an industrial-grade motor and turbine aluminum blades, it delivers 6300 CFM (high), 5600 CFM (medium), and 4800 CFM (low) for large-space cooling.
  • Advanced tech achieves 11 m/s air velocity at high speed, with noise levels of 76dB/73dB/70dB at 1/2/3 meters, quieter than comparable industrial fans.
  • Features a fully sealed, permanently lubricated IP44 1/4HP motor with thermal overload protection, ideal for high humidity, dusty, and debris-filled workspaces.
  • Boasts a 180° adjustable tilt angle with 2 locking knobs for precise airflow control, plus a wall bracket for space-saving overhead ventilation.
  • UL safety listed with a 100% copper wiring motor, ensuring reliable performance with specs: 120V/60Hz, 1.6 amps, 180-Watt, 1580 RPM.
  • Built with a sturdy metal housing, safety yellow powder-coated steel, and turbo aluminum blades, delivering long-lasting durability in demanding environments.
  • Equipped with OSHA-compliant safety grilles and a 6ft SJT power cord, guaranteeing safe, worry-free operation in warehouses, workshops, and factories.

Key Specs

AttributeSpecification

item#

6599632

Brand

EdenDirect

Manufacturer's Warranty

3 month limited warranty

Ship Weight

16.5 LB

Fan Diameter

20 in

Air Delivery

6,300 cfm

Volts

120

Drive Type

Direct

Watts

180

Amps

1.6

Speeds (qty.)

3

Max. Fan Speed

1,580 rpm
AttributeSpecification

Outdoor Rated

Yes

Phase

Three-phase

Noise Level

76 dB

Hardwired

Yes

Power Cord Length

6 ft

Primary Color

Yellow

Secondary Color

Black

Assembly Required

Yes

Horsepower

0.25 HP

Product Weight

16.2038 lb

Dimensions L x W x H (in.)

23.0 x 10.0 x 24.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 month limited warranty
