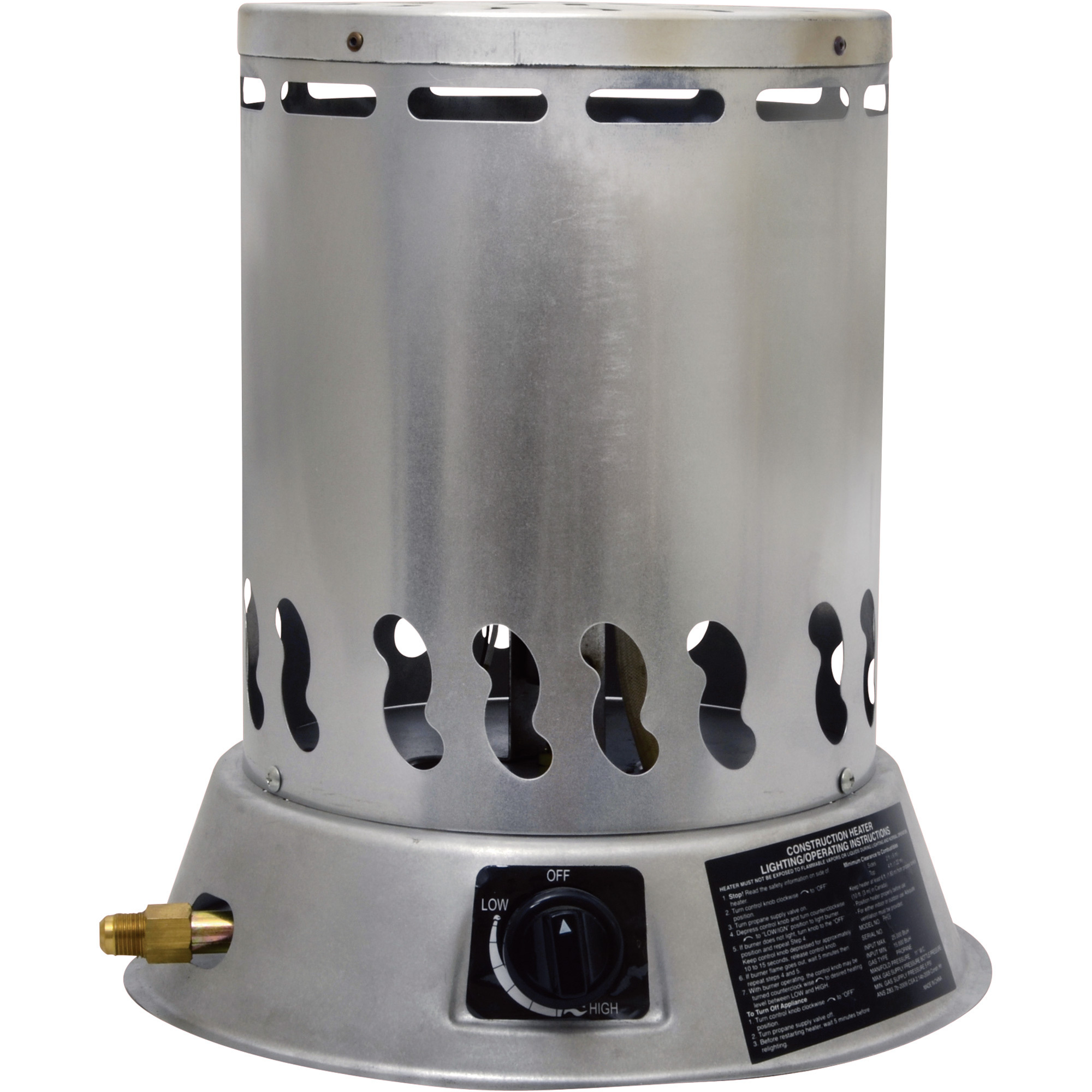

Mr. Heater Liquid Propane Convection Heater, 25,000 BTU, Model# MH25CVX

Item# 52557
Clearance
Mr. Heater Liquid Propane Convection Heater, 25,000 BTU, Model# MH25CVX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Mr. Heater Liquid Propane Convection Heater, 25,000 BTU, Model# MH25CVX

Click or Tap image to Zoom

  • Uses the natural act of warm air rising to quickly heat up to 625 sq. ft.
  • Thermo-electric safety valve shuts the gas flow off if the flame goes out
  • Connect the heater to a 20 lb. propane tank with the included 10ft. propane hose and regulator assembly
  • Light the heater with the factory-installed Piezo igniter
  • No electricity required

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Mr. Heater Liquid Propane Convection Heater packs a big punch in a small package. It utilizes the natural act of warm air rising to quickly heat up to 625 sq. ft. Equipped with a thermo-electric safety valve to shut the gas flow off if the flame ever goes out. Just hook up the supplied 10ft. propane hose and regulator assembly to a 20-lb. propane tank, and easily light the heater with the factory-installed Piezo igniter to enjoy the comforts of up to 17 hours of warmth tailgating or on the jobsite. No electricity required.

What's Included

    (1) Mr. Heater Liquid Propane Convection Heater -- 25,000 BTU, Model# MH25CVX

Downloads

Product Manual

Features + Benefits

  • Uses the natural act of warm air rising to quickly heat up to 625 sq. ft.
  • Thermo-electric safety valve shuts the gas flow off if the flame goes out
  • Connect the heater to a 20 lb. propane tank with the included 10ft. propane hose and regulator assembly
  • Light the heater with the factory-installed Piezo igniter
  • No electricity required

Key Specs

AttributeSpecification

item#

52557

Brand

Mr. Heater

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.0 LB

Max. Heat Output

25,000 Btu/hour

Heat Type

Convection

Heating Capacity

625 ft²

Indoor-Outdoor Use

Outdoor

Heat Settings

1
AttributeSpecification

Thermostat Included

No

Needs Direct Venting

Yes

Blower Included

No

Remote Included

No

Oxygen Depletion Sensor

No

Fuel Consumption

0.274 GPH

Product Weight

lb

Dimensions L x W x H (in.)

13.0 x 13.0 x 14.0 in

Reviews

Questions & Answers

87 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. Can this heater be attached to a 1/2” stubbed out connection intended for propane grill plumbed to the propane supply for the house?  Will this heater switch to pilot only once at a certain room temp based on the output adjustment?

    1 answer

    1. This is only recommended to be used with a portable LP tank. The maximum size tank that should be used with this heater is a 40 lb tank. This heater is not thermostatically controlled. It will continue to run until it is manually turned off.

      Helpful?

  2. Can I use this heater on a wooden deck?

    1 answer

    1. The heater can be used on a wooden deck.

      Helpful?

  3. Can I hook this mr. Heater up to 100 lb tank of propane gas?

    1 answer

    1. The heater can be connected to a 100 pound cylinder.

      Helpful?

  4. is this heater output adjustable, if so, how adjustable BTU wise?

    1 answer

    1. This heater has a knob which allows the user to adjust the output from low to high. The output ranges from 15,000 BTU to 25,000 BTU.

      Helpful?

  5. What is direct venting?

    1 answer

    1. Direct venting means the heater requires outside air for combustion instead of air from with in the home. The model number MH25CVX is not direct vent heater. It does not require the heater to be vented out the wall or ceiling. The heater will require adequate ventilation of at least 2ft square opening near the floor and ceiling.

      Helpful?

  6. Is this heater adjustable from 25k to 50k btus?

    1 answer

    1. This is not adjustable to 50,000 BTU's. The max BTU rating is 25,000.

      Helpful?

  7. How do I order a hose

    1 answer

    1. This heater includes a 10 foot propane hose and regulator. Replacement parts can be purchased directly through the manufacturer.

      Helpful?

  8. how to light

    1 answer

    1. The manual states the following to light this heater:
      1. WARNING: BEFORE LIGHTING PILOT, turn main burner
      valve (turn knob fully clockwise) to low/light position.
      2. Fully open the valve on the propane cylinder and wait 15
      seconds before Step 3.
      3. Push knob in and hold for 5 seconds, allowing gas to emit
      from burner orifice.
      4. Rotate the knob counterclockwise until the piezo igniter
      clicks. Continue to rotate and activate the igniter until the
      burner lights.
      5. Once the burner lights hold the knob in, on the low
      position for 30 seconds. Then release. The burner should
      stay lit. If it does not repeat steps 4&5 until the burner
      stays lit.
      6. Turn main burner valve to regulate heat output.

      Helpful?

  9. What is the Mac tank size safe to hook up to this specific model?

    1 answer

    1. The maximum size propane tank that is recommended for this heater would be a 40 pound tank.

      Helpful?

  10. Can this be used as an outdoors patio heater

    1 answer

    1. The can be used outside as a patio heater.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
