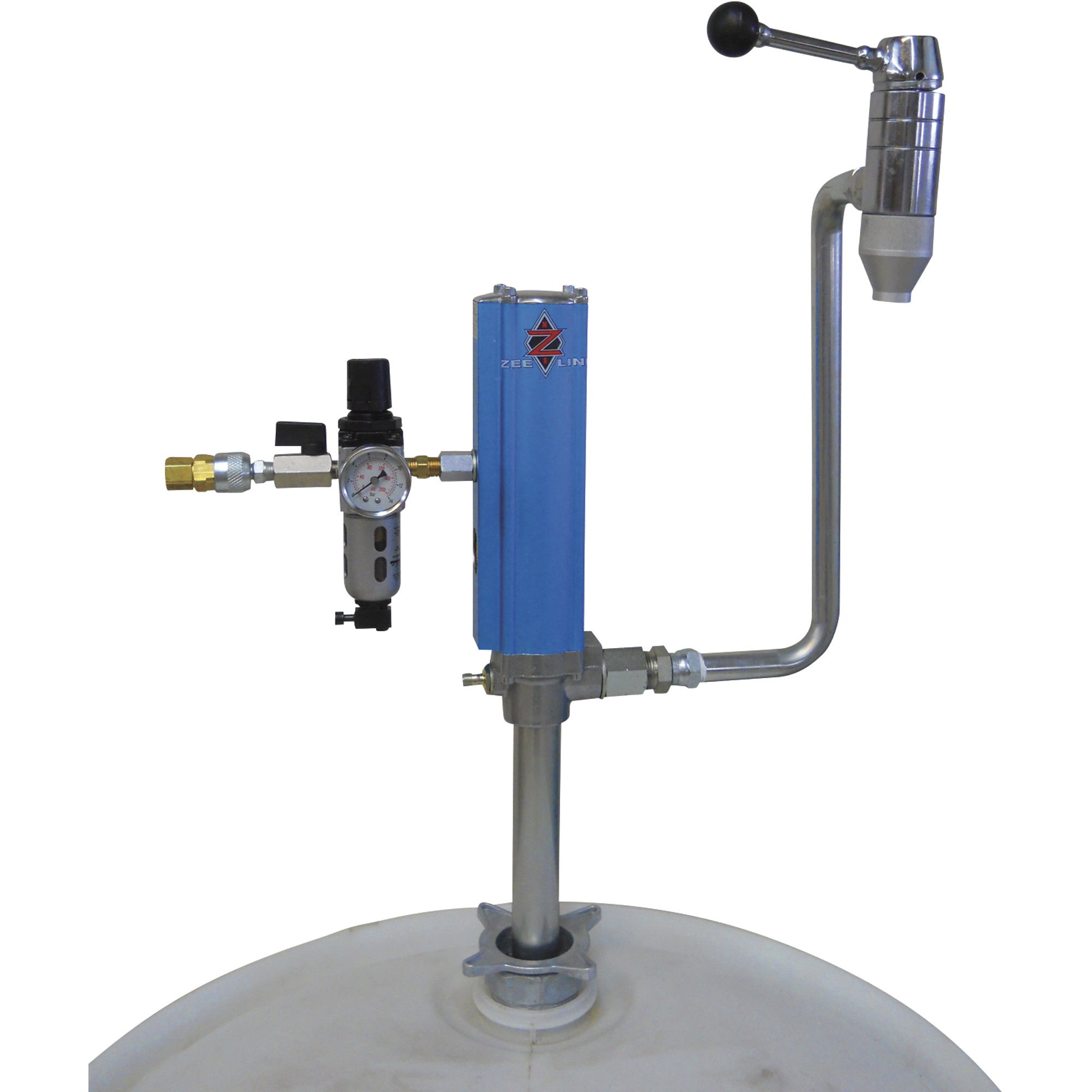

Zee Line Pneumatic Oil Pump with Power Valve for 55-Gallon Drums — 5 GPM, Model# ZE1722

Item# 109638
Zee Line Pneumatic Oil Pump with Power Valve for 55-Gallon Drums — 5 GPM, Model# ZE1722

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Zee Line Pneumatic Oil Pump with Power Valve for 55-Gallon Drums — 5 GPM, Model# ZE1722

Click or Tap image to Zoom

  • Power valve greatly reduces risk of spills and waste
  • Uses 1/4in. NPT air inlet (17.02 CFM @ 100 PSI; 145 PSI max.)
  • 3/4in. NPT fluid inlet and outlet
  • Includes air line filter with nighttime drain, regulator, gauge, ball valve and quick disconnects and a 4-ft. air hose
  • Fluid travels through 22 1/2in. extension tube that eliminates need for bulky hoses and reels

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Zee Line pneumatic oil dispensing system is designed for use with 55-gallon drums and includes a 3:1 ratio air pump along with a power pump valve with auto-closing spigot. Provides a clean, compact user-friendly means to control dispensing of oil while keeping work environment clean.

What's Included

  • (1) Pump

Features + Benefits

  • Power valve greatly reduces risk of spills and waste
  • Uses 1/4in. NPT air inlet (17.02 CFM @ 100 PSI; 145 PSI max.)
  • 3/4in. NPT fluid inlet and outlet
  • Includes air line filter with nighttime drain, regulator, gauge, ball valve and quick disconnects and a 4-ft. air hose
  • Fluid travels through 22 1/2in. extension tube that eliminates need for bulky hoses and reels

Key Specs

AttributeSpecification

item#

109638

Brand

Zee Line

Manufacturer's Warranty

5 year limited warranty

Ship Weight

13.0 LB
AttributeSpecification

Flow Rate

5 GPM

Inlet Port

0.75 in

Outlet Port

0.75 in

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. Will this work for automotive coolant?

    1 answer

    1. The Zee Line Oil Pump could not be used with automotive coolant. It would cause the pump to rust.

      Helpful?

  2. Your product description says this is for oil. Is there any reason it wouldn't work for other liquids of similar viscosity?

    We manufacture a water-based urethane and are looking for a way to pump it directly from a 55-gallon drum into 1-gallon pails. We already have a decent sized air compressor. Would this pump work for us or do you have other recommendations? Thanks

    1 answer

    1. This pump is only designed for oil. Other liquids of similar viscosity could cause rust and the seals on this pump are only designed to handle oil. I would suggest a chemical pump and will list one possible solution below.

      Helpful?

  3. OK, great. Now what is a "Power Valve", and why would I need it?

    1 answer

    1. The power valve greatly reduces risk of spills and waste if you were pumping oil into a container before putting it into a vehicle. Opposed to model number 1712 which would pump directly into a vehicle from the pump.

      Helpful?

  4. What is the difference between this and your #1090561?

    1 answer

    1. The difference between the 2 pumps is item number 1090561 is the pump only where as item number 109638 is the pump plus the power valve.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
