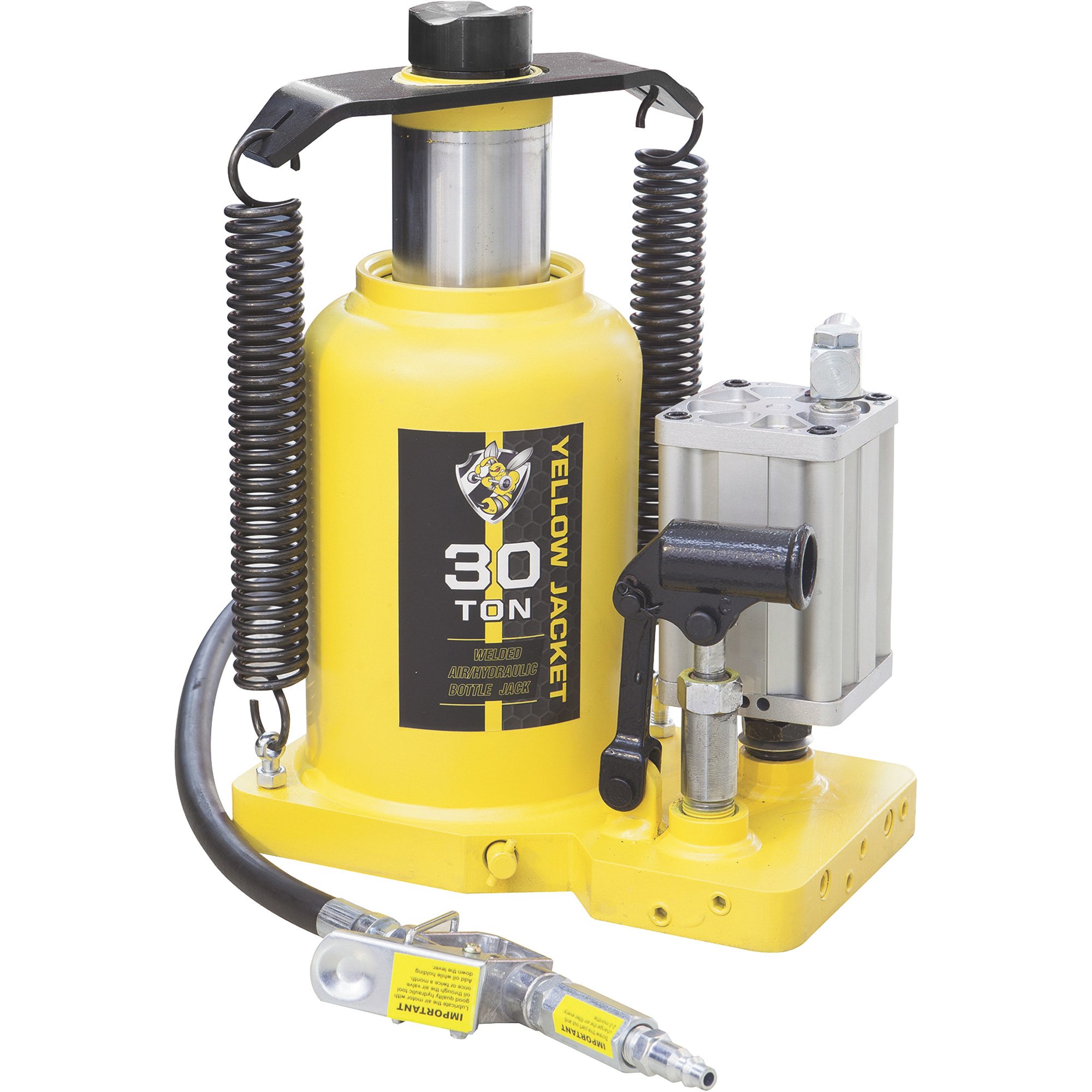

Yellow Jacket Air/Hydraulic Bottle Jack — 30-Ton Capacity, Model# NT30007B

Item# 107861
Yellow Jacket Air/Hydraulic Bottle Jack — 30-Ton Capacity, Model# NT30007B
Clearance
Yellow Jacket Air/Hydraulic Bottle Jack — 30-Ton Capacity, Model# NT30007B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Yellow Jacket Air/Hydraulic Bottle Jack — 30-Ton Capacity, Model# NT30007B

Click or Tap image to Zoom

  • Grade-A quality large diameter hydraulic steel cylinder
  • Piston-ram is treated, hardened and polished to resist skiving
  • Y-Style polyurethane sealing ring with backup ring prevents load from falling slowly or bypassing oil drift
  • Easy-to-remove oil plug
  • Double spring return lowers piston-ram quickly with no load

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Yellow Jacket Air/Hydraulic Bottle Jack The heavy-duty jack is ideal for lifting farm vehicles, heavy-duty machinery, industrial construction equipment and more. High-quality glide-action pressure pump lifts with minimal muscle and effort. Built tough with drop-forged steel construction to keep the fully welded structure leak free. Use it with a 100-120 PSI rated air pressure supply for fast, strong lifting power or manually for normal operation just about anywhere. The 10 1/2in. to 19 5/8in. lift range positions the load to the desired height. Built-in oil-bypass and overload valve protects the hydraulic system from extending beyond its travel limits. This unit is 100% factory tested for reliability and safety to meet ASME safety standards.

What's Included

  • (1) Air/hydraulic bottle jack
  • (1) Handle

Features + Benefits

  • Grade-A quality large diameter hydraulic steel cylinder
  • Piston-ram is treated, hardened and polished to resist skiving
  • Y-Style polyurethane sealing ring with backup ring prevents load from falling slowly or bypassing oil drift
  • Easy-to-remove oil plug
  • Double spring return lowers piston-ram quickly with no load
  • Wide, rugged base adds stability and strength
  • Knurled heat-treated pad
  • Lead-free paint ensures a long-lasting finish and to help prevent rust and resist oil, grease and dirt
  • Built in ISO certified facilities and engineered using the same systems as Aerospace Technologies and the Automotive OEM sector

Key Specs

AttributeSpecification

item#

107861

Brand

Yellow Jacket

Manufacturer's Warranty

1 year Limited Warranty

Ship Weight

50.0 LB

Lift Capacity

30 Tons

Max. Lift Height

19.69 in
AttributeSpecification

Min. Lift Height

10.43 in

Ram Travel

9.26 in

Screw Top Adjustment

3.94 in

Handle Included

Yes

Product Weight

51.76 lb

Dimensions L x W x H (in.)

6.3 x 9.65 x 10.43 in

Reviews

Questions & Answers

10 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. where is this made ?

    1 answer

    1. This bottle jack is manufactured in China.

      Helpful?

  2. Will work inverted for shop press

    1 answer

    1. The bottle jack does not work in a shop press. The unit needs to be operated in the upright position.

      Helpful?

Warranty

Manufacturer's Warranty

1 year Limited Warranty
