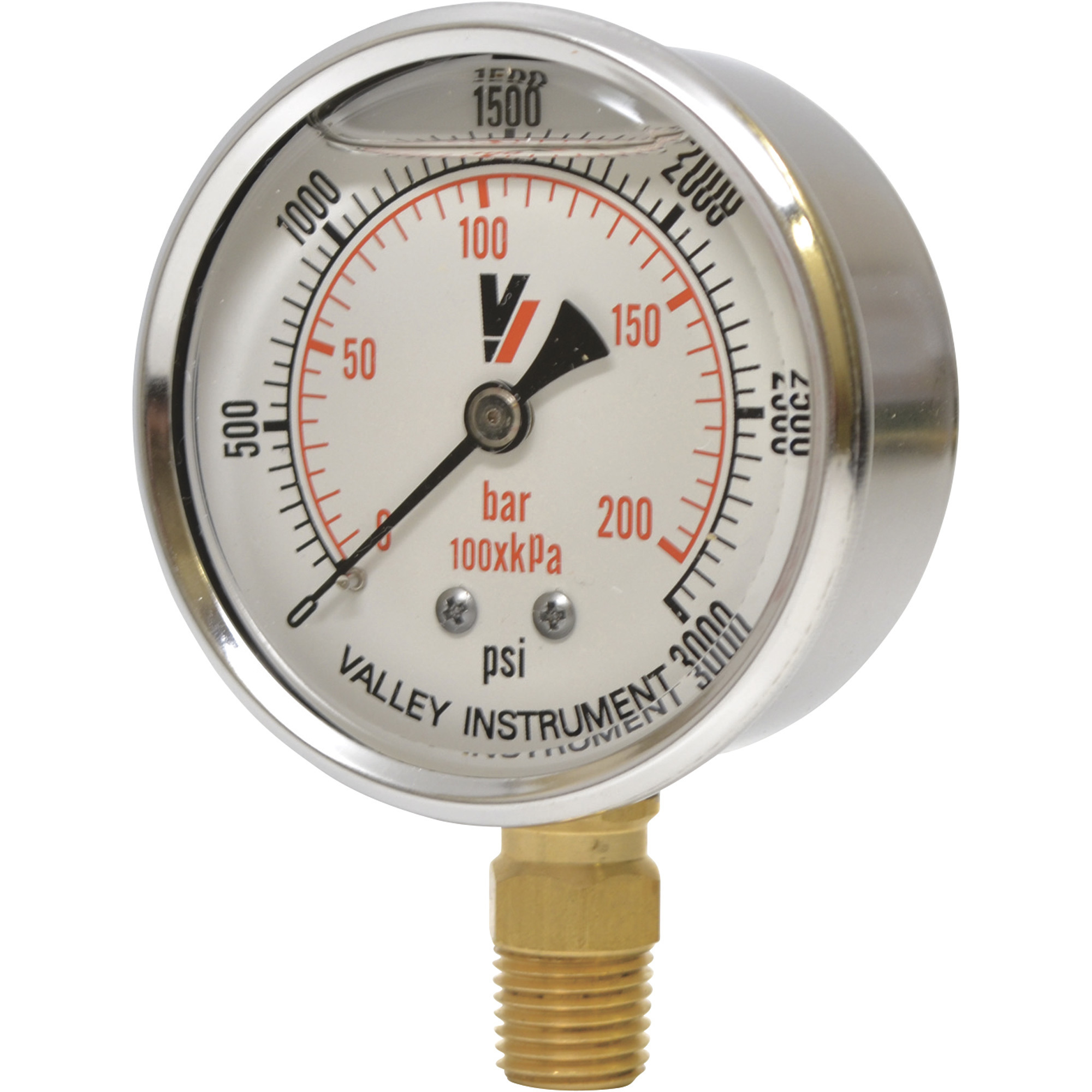

Valley Industries, 2.5in. Bottom Mt Gauge 3000PSI, Case Material Stainless Steel, Min. Operating Pressure 0 PSI, Max. Operating Pressure 3000 PSI, Model# 2140GXB3000

Item# 53678
"Valley Industries, 2.5in. Bottom Mt Gauge 3000PSI, Case Material Stainless Steel, Min. Operating Pressure 0 PSI, Max. Operating Pressure 3000 PSI, Model# 2140GXB3000"
Valley Industries, 2.5in. Bottom Mt Gauge 3000PSI, Case Material Stainless Steel, Min. Operating Pressure 0 PSI, Max. Operating Pressure 3000 PSI, Model# 2140GXB3000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Valley Industries, 2.5in. Bottom Mt Gauge 3000PSI, Case Material Stainless Steel, Min. Operating Pressure 0 PSI, Max. Operating Pressure 3000 PSI, Model# 2140GXB3000

Click or Tap image to Zoom

$37.99

  • Shipping:

    Available now

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Ideal for gas, oil, hydraulics, utility, and more
  • Accurately measures pressure from 0-3000PSI
  • Dual scale PSI & bar face for versatile measurement needs
  • Meets ASME/ANSI B40.1 Grade A standards with an accuracy of ±2-1-2% of full scale, ensuring precise pressure measurements
  • Glycerin-filled setup that provides vibration damping, reduces wear and tear, & improves accuracy

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Brass movement with C shaped Boudon tube. 1/4in. NPT male connection. For use with air, gas, oil or water. Black enameled aluminum pointer, white aluminum dial and temperature compensating polycarbonate window. Glycerin filled to dampen pulse and vibration. Accuracy: ASME/ANSI B40.1 Grade A (2-1-2%).

What's Included

    (1) Pressure Gauge

Features + Benefits

  • Ideal for gas, oil, hydraulics, utility, and more
  • Accurately measures pressure from 0-3000PSI
  • Dual scale PSI & bar face for versatile measurement needs
  • Meets ASME/ANSI B40.1 Grade A standards with an accuracy of ±2-1-2% of full scale, ensuring precise pressure measurements
  • Glycerin-filled setup that provides vibration damping, reduces wear and tear, & improves accuracy
  • Stainless steel casing for long-lasting durability in harsh environments
  • Helical bourdon tube made from phosphor bronze, providing excellent durability & corrosion resistance
  • IP65 rated for protection against dust and water, ensuring reliability in tough conditions
  • Operates efficiently between 32°F to 150°F, ensuring reliable performance in cold and hot environments
  • 1/4” brass bottom mount stem for effortless installation
  • Compact 2.5" diameter face that is clear and easy-to-read pressure measurements
  • Simple to clean and maintain, with a durable design that minimizes the need for frequent service
  • Backed by a one-year manufacturer warranty

Key Specs

AttributeSpecification

item#

53678

Brand

Valley Industries

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.48 LB

Case Material

Stainless Steel

Min. Operating Pressure

0 PSI

Max. Operating Pressure

3,000 PSI

Gauge Diameter

2.5 in

Connection Size

0.25 in

Bourdon Tube

Phosphor Bronze

Pointer Material

Aluminum
AttributeSpecification

Connection Type

Male

Connection Material

Brass

Dial Material

Aluminum

Window Material

Polycarbonate

Fill Material

Glycerin

Movement

Clockwise

Accuracy

Meets ASME/ANSI B40.1 Grade A standards with an accuracy of ±2-1-2% of full scale, ensuring precise pressure measurements

Gauge Application

Ideal for gas, oil, hydraulics, utility, and more

Mounting Type

Stem

Product Weight

0.5000 lb

Dimensions L x W x H (in.)

2.62 x 1.17 x 3.5 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. can i use this with oxygen

    1 answer

    1. The unit could not be used with Oxygen.

      Helpful?

  2. This gauge will be placed in an oven, will it be able to handle a high temperature up to 250 Degrees Fahrenheit and have accurate readings?

    1 answer

    1. The gauge could not be used inside an oven. They have a plastic cover and would melt.

      Helpful?

  3. Is the measure how much propane would be in 100 gallon tank?

    1 answer

    1. The gauge would not work for propane. This model would be for use with hydraulic applications.

      Helpful?

  4. What is the T-connection fitting needed

    My inlet and outlet could be 1/2 to 3/4, but what would be the connection to receive the gauge? Assuming it to be a T-connection needed.

    1 answer

    1. The stem on this gauge is a 1/4" Male NPT fitting. A 1/4" Female NPT connection would be needed to connect to this gauge.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
