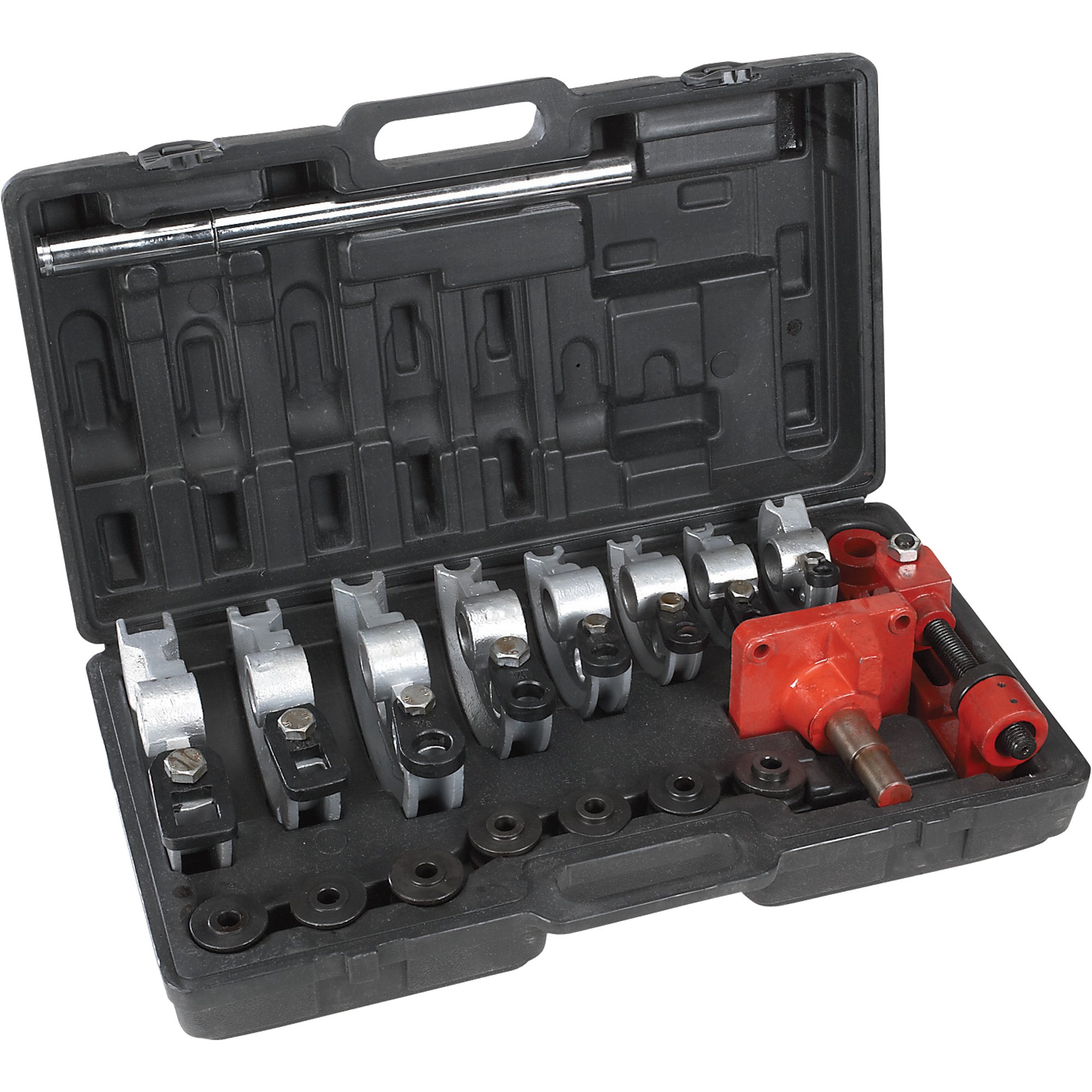

Tubing and Conduit Bender

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
This item is no longer available.
- Minimum wall thickness of 0.4mm; maximum of 1.2mm
- Bolt-mounts to any work surface
- Telescopic handle provides leverage on larger tubing
- Stores in plastic carry case
Prop 65 Warning: See Details
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) Tubing and conduit bender
- (1) Case
Features + Benefits
- Minimum wall thickness of 0.4mm; maximum of 1.2mm
- Bolt-mounts to any work surface
- Telescopic handle provides leverage on larger tubing
- Stores in plastic carry case
Key Specs
| Attribute | Specification |
|---|---|
item# | 144214 |
Brand | Wel-Bilt |
Manufacturer's Warranty | 1 year Limited Warranty |
| Attribute | Specification |
|---|---|
Ship Weight | 53.0 LB |
Dies Included | Yes |
Reviews
Questions & Answers
Questions
-
· 14 years ago
will this work on 1/8-inch thickness tubing?
I'm looking for a bender that will bend 1" square and round tubing up to 1/8 inch thick.
-
EricJergensen· 11 years ago
Helpful?
-
WelBiltExpert11· 14 years ago
This bender can handle 1" square tubing, but the max wall thickness it's capable of bending is 1.2mm or 3/64". The largest diameter round tubing it will bend is 7/8" with the same max wall thickness of 1.2mm or 3/64".
Helpful?
-
-
· 11 years ago
will this bender bend 3/4" IMC?
1 answer-
WelBiltExpert13· 11 years ago
This bender will bend 3/4" IMC.
Helpful?
-
-
· 11 years ago
What material are dies and rollers made of?
1 answer-
WelBiltExpert13· 11 years ago
The dies and the rollers are made of metal.
Helpful?
-
-
· 11 years ago
Can I bend small flat bar with this bender?
1 answer-
WelBiltExpert13· 11 years ago
This tubing and conduit bender is not designed to bend flat bar. Listed below is a bender that will is designed for flat bar.
Helpful?
-
-
· 13 years ago
can you purchase additional square dies?
1 answer-
WelBiltExpert29· 13 years ago
We do not offer additional square dies for the Wel-Bilt Tubing and Conduit Bender. The bender is equipped with two square tube bending dies measuring 3/4 and 1 inch
Helpful?
-
-
· 14 years ago
Can you provide dimensions of the mounting base, mounting holes, and hole spacing? Thanks.
1 answer-
WelBiltExperts· 14 years ago
The mounting base is 5 1/8" square with 7/16" in diameter mounting holes that are 4 1/8" apart center of hole to center of hole square.
Helpful?
-
-
· 14 years ago
Are there kinks when bending?
Have users reported kinks when using this product?
1 answer-
WelBiltExpert29· 14 years ago
The Wel-Bilt Tubing and Conduit Bender produces kink-free bends for tubing with an outside diameter of 3/8",1/2",9/16",5/8",3/4",7/8", minimum wall thickness of .4mm, and a maximum of 1.2mm.
Helpful?
-
-
· 15 years ago
Will this tool bend 3/4" thinwall electrical metal tubing (emt)?
1 answer-
NITExpert11· 15 years ago
Yes, this Northern Industrial tubing and conduit bender is capable of bending tubing from 3/8 inch to 7/8 inch, and bends a wall thickness from .4 millimeters to 1.2 millimeters.
Helpful?
-
-
· 15 years ago
can you tell me what dies are included and the rad. of each? thanks
1 answer-
NITExpert13· 15 years ago
The dies that are included and their respective radii are as follows.
round:
7/8 :4.33"
3/4: 3.54"
5/8: 3.14"
9/16: 2.75"
1/2: 2.36"
3/16: 1.96"
Square:
1: 5.12"
3/4: 3.54"Helpful?
-
-
· 15 years ago
Will this bend square tubing?
1 answer-
WelBiltExperts· 12 years ago
Yes, this bender is equipped with two square tube bending dies measuring 3/4 and 1 inch.
Helpful?
-
Warranty
Manufacturer's Warranty
1 year Limited Warranty
