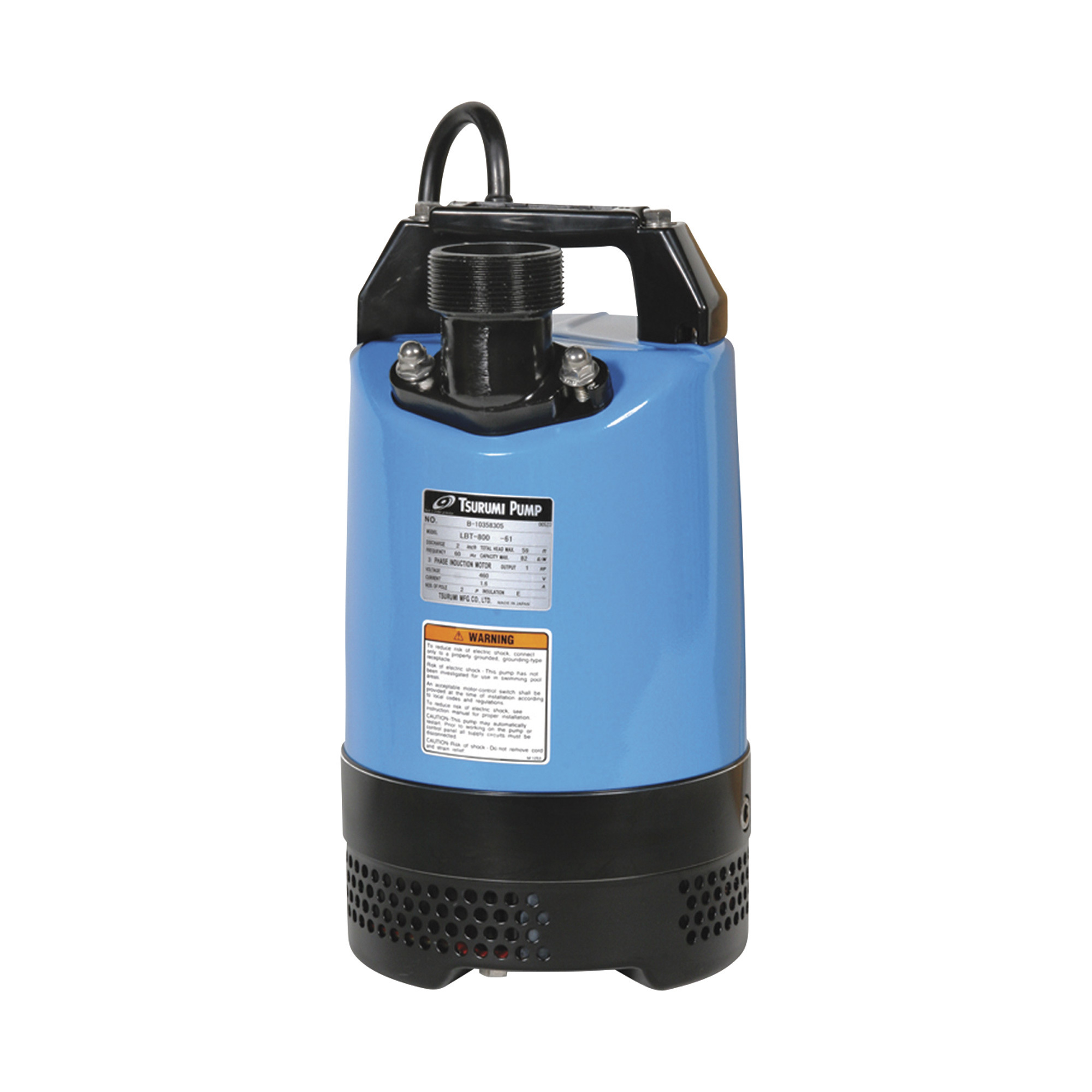

Tsurumi Submersible Water Pump, 4,920 GPH, 1 HP, 2in. Port, Model# LB-800

Item# 29603
"Tsurumi Submersible Water Pump, 4,920 GPH, 1 HP, 2in. Port, Model# LB-800"
Tsurumi Submersible Water Pump, 4,920 GPH, 1 HP, 2in. Port, Model# LB-800

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tsurumi Submersible Water Pump, 4,920 GPH, 1 HP, 2in. Port, Model# LB-800

Click or Tap image to Zoom

$708.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Top discharge design provides maximum motor cooling efficiency for continuous duty work at low water levels and extended dry run capacity
  • Patented oil lifter provides seal face lubrication down to 1/3 of the normal level and extends seal life by ten times
  • Urethane rubber-coated impeller is more abrasion-resistant and lasts up to 3 times longer than a cast iron impeller
  • Double inside mechanical seal with SIC faces provides a long operational life
  • V-ring seal protector protects mechanical seal from abrasive particles

See full description

Complete Your Solution

  • Tsurumi Submersible Water Pump, 4,920 GPH, 1 HP, 2in. Port, Model# LB-800
  • JGB Enterprises Water Pump Discharge Hose, 2in. x 25ft., Model# A008-0321-1625
  • NorthStar Water Pump Suction Hose, 2in. x 20ft. Max. PSI 60, PVC, Industrial-Grade Aluminum Couplings
Price for all three:

$882.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Tsurumi Submersible Water Pump is compact with excellent motor cooling efficiency. Allows continuous duty operation at low water levels, plus extended dry run capability. V-ring system protects shaft seal from abrasives. Silicon carbide-faced mechanical seal. 2in. discharge bore. Includes 50ft. cable. Not for use in fish ponds.

What's Included

    (1) Pump (1) Cable

Downloads

Product Manual

Features + Benefits

  • Top discharge design provides maximum motor cooling efficiency for continuous duty work at low water levels and extended dry run capacity
  • Patented oil lifter provides seal face lubrication down to 1/3 of the normal level and extends seal life by ten times
  • Urethane rubber-coated impeller is more abrasion-resistant and lasts up to 3 times longer than a cast iron impeller
  • Double inside mechanical seal with SIC faces provides a long operational life
  • V-ring seal protector protects mechanical seal from abrasive particles
  • Motor has built-in protector

Key Specs

AttributeSpecification

item#

29603

Brand

Tsurumi Pump

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

36.0 LB

Max. Flow

4,920 GPH

Volts

110

Amps

9.6
AttributeSpecification

Power Cord Length

600 in

Housing Material

Diecast Aluminum

Max. PSI

25.54

Horsepower

1

Product Weight

lb

Dimensions L x W x H (in.)

13.43 x 7.56 x 13.43 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Does this pump have auto on/off when water gets hi/low?

    1 answer

    1. This pump does not have an auto on/off option. You would need to purchase the float switch, item #29073 for it to have that option.

      Helpful?

  2. Does it have a built-in switch to keep if from running if dry?

    1 answer

    1. The pump would have a thermal protector to keep it from overheating if it were to run dry. Once the pump cools down it would allow it to continue pumping. If it were to keep tripping the thermal protector, it would eventually burn out the motor. You can purchase a float switch, item #29073 for this pump that would allow it to come on at a certain water level and shut off when goes below that level.

      Helpful?

  3. Good morning- is this pump continuous duty ?

    1 answer

    1. The pump would be a continuous duty pump.

      Helpful?

  4. Can this be used as a black water pump in a septic system?

    The pump in our black water tank failed. The replacement needs to be able to exist unattended at the bottom of the black water tank and pump against a head of about 25 feet.

    1 answer

    1. This Tsurumi Pump is designed to pump water, rain water and ground water. It cannot be used for black water. For a black water pump for that head distance we have a Sewage Pump available, item #105760.

      Helpful?

  5. What's the highest water temperature that this pump can operate at?

    1 answer

    1. This pump can operate from 32 degrees Fahrenheit to a maximum of 104 degrees Fahrenheit.
      In Celsius this would be 0 to 40 degrees.

      Helpful?

  6. Can this pump be used as a fountian pump?

    1 answer

    1. This Tsurumi pump can run continuously and may be used as a fountain pump.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

24 months parts/24months labor
