Product Summary

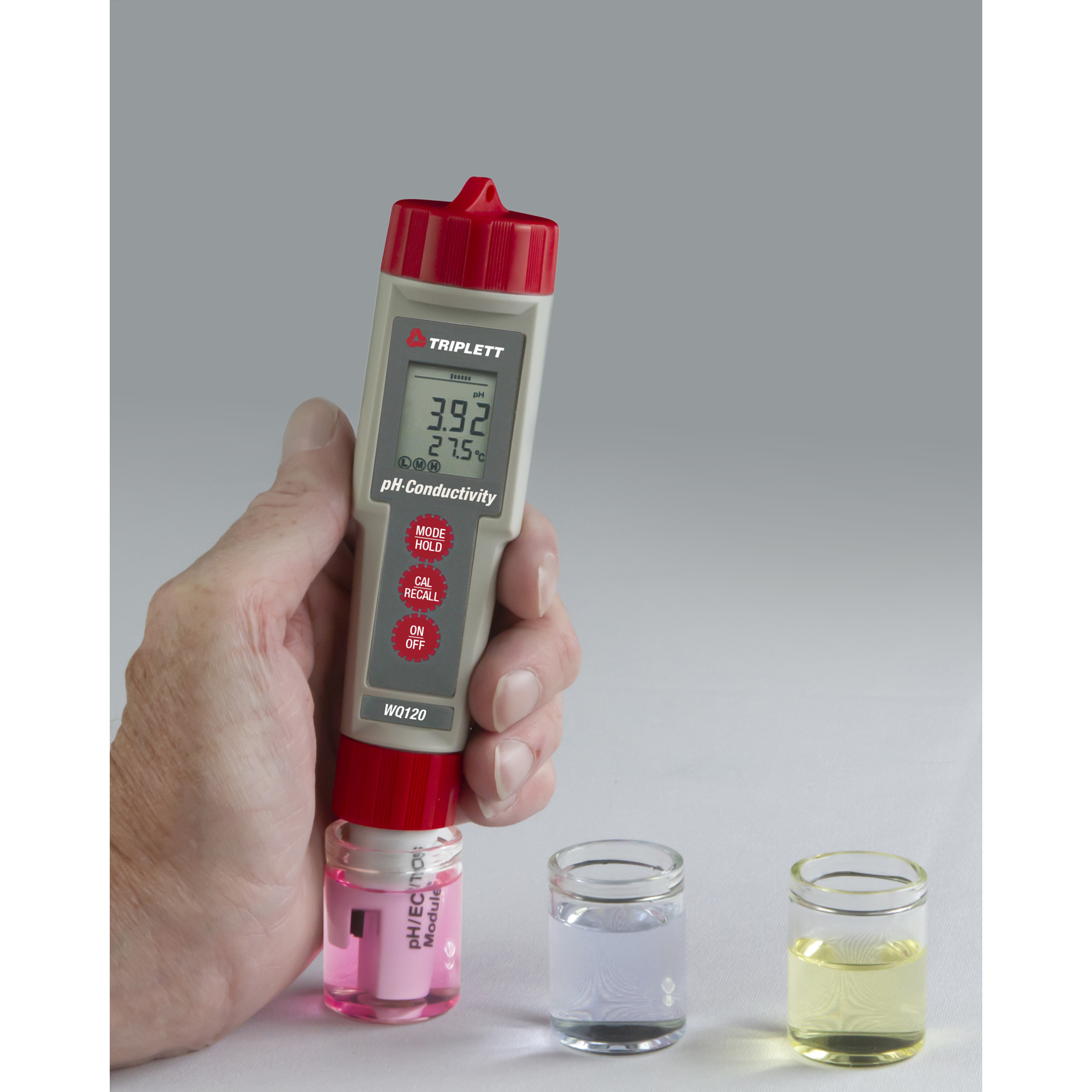

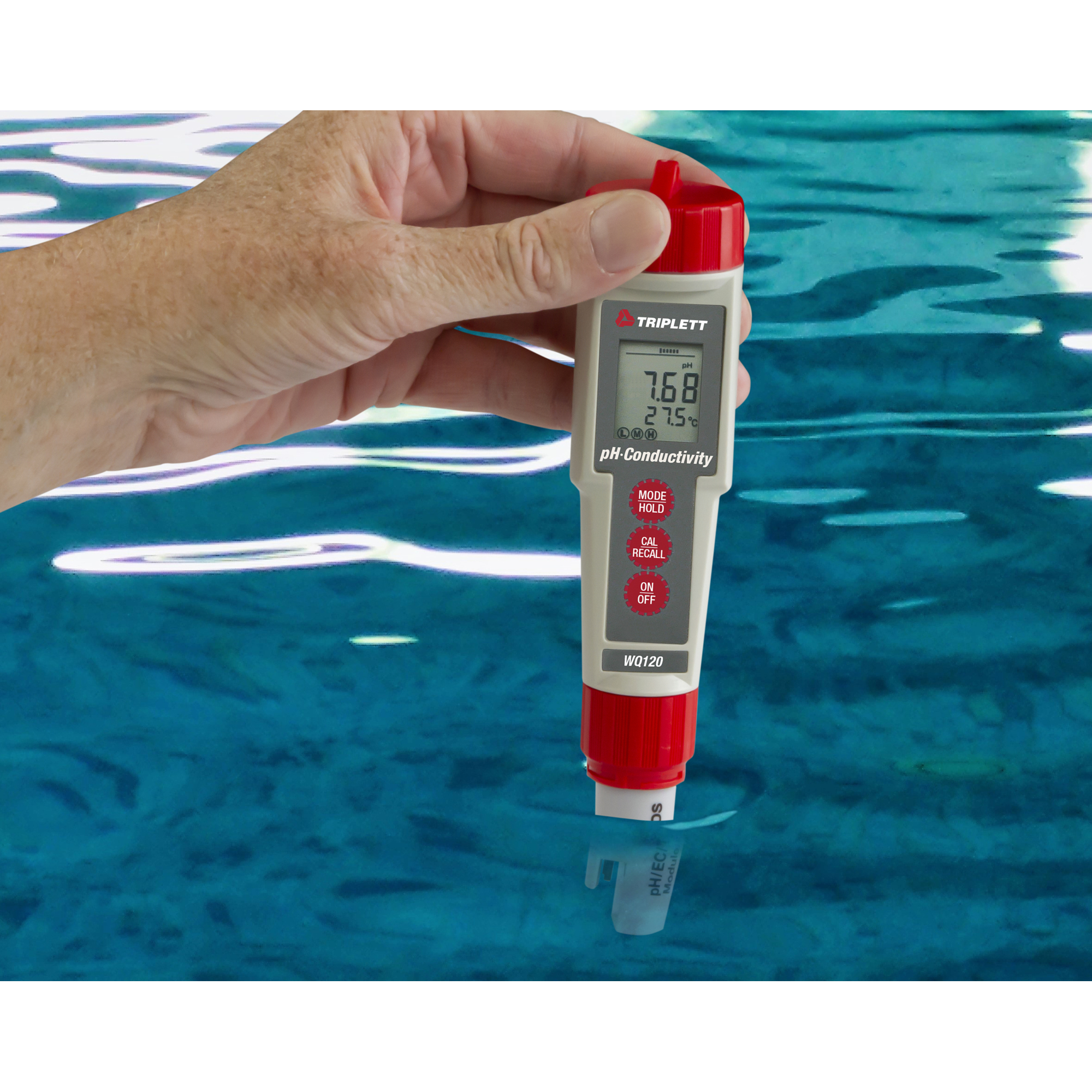

The Triplett Model WQ120 waterproof (IP57) PH/TDS/Conductivity/Salinity Pen combines a flat surface pH electrode with a multi-range conductivity cell to measure pH, TDS, Conductivity, Salinity and Temperature. The flat surface electrode for pH can measure solids, semi-solids, and liquids. It simultaneously displays pH, TDS, Conductivity, or Salinity and Temperature and has an analog bargraph for viewing trends. It features ATC (Automatic Temperature Control) that compensates for temperature changes, adjustable TDS compensation ratio, 1-, 2-, or 3-point pH and Conductivity calibration, and a RENEW warning when probe needs cleaning or replacement. Additional features include the ability to store/recall 25 readings, a Hold function that "freezes" the reading on the display, and Auto power off (after 10 minutes) with disable conserves battery life. Includes protective cap, (4) CR2032 batteries, sample cup with cap, and neckstrap.

What's Included

    (1) PH/TDS/Conductivity/Salinity Pen

Features + Benefits

  • Measures pH, TDS, Conductivity, Salinity and Temperature
  • Flat surface electrode for pH can measure solids, semi-solids, and liquids
  • ATC (Automatic Temperature Control) compensates for temperature changes
  • Dual display for pH, TDS, Conductivity, or Salinity and Temperature plus analog bargraph for trends
  • Adjustable TDS compensation ratio
  • Store/recall 25 readings
  • 1-, 2-, or 3-point pH and Conductivity calibration
  • RENEW warning when probe needs cleaning or replacement
  • Auto power off (after 10 minutes) with disable
  • Waterproof (IP57)

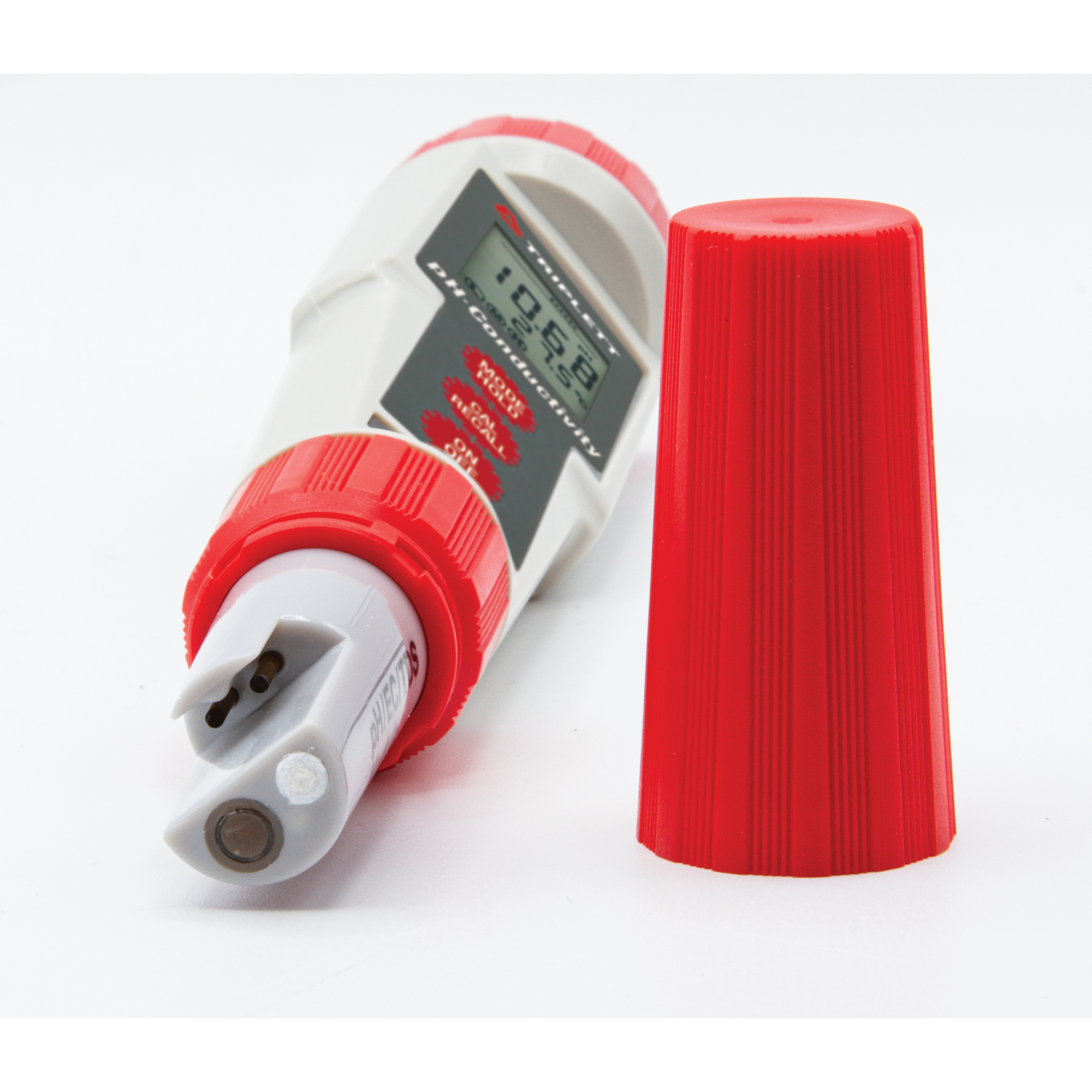

  • Includes meter electrode with protective cap, (4) CR2032 batteries, sample cup with cap, and neckstrap

Key Specs

AttributeSpecification

item#

5852229

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.05 LB

Functions (qty.)

5

Display Type

LCD

Battery Size

Other

Low Battery Indicator

Yes

Battery Type

Other
AttributeSpecification

Battery Included

Yes

Water Resistant

No

Power Source

Battery

Calibration Certificate Included

No

Application

Measures pH, TDS, Conductivity, Salinity and Temperature

Includes

Includes meter electrode with protective cap, (4) CR2032 batteries, sample cup with cap, and neckstrap

Product Weight

1.0500 lb

Dimensions L x W x H (in.)

4.75 x 2.75 x 10.5 in

Warranty

Manufacturer's Warranty

1 year limited warranty
