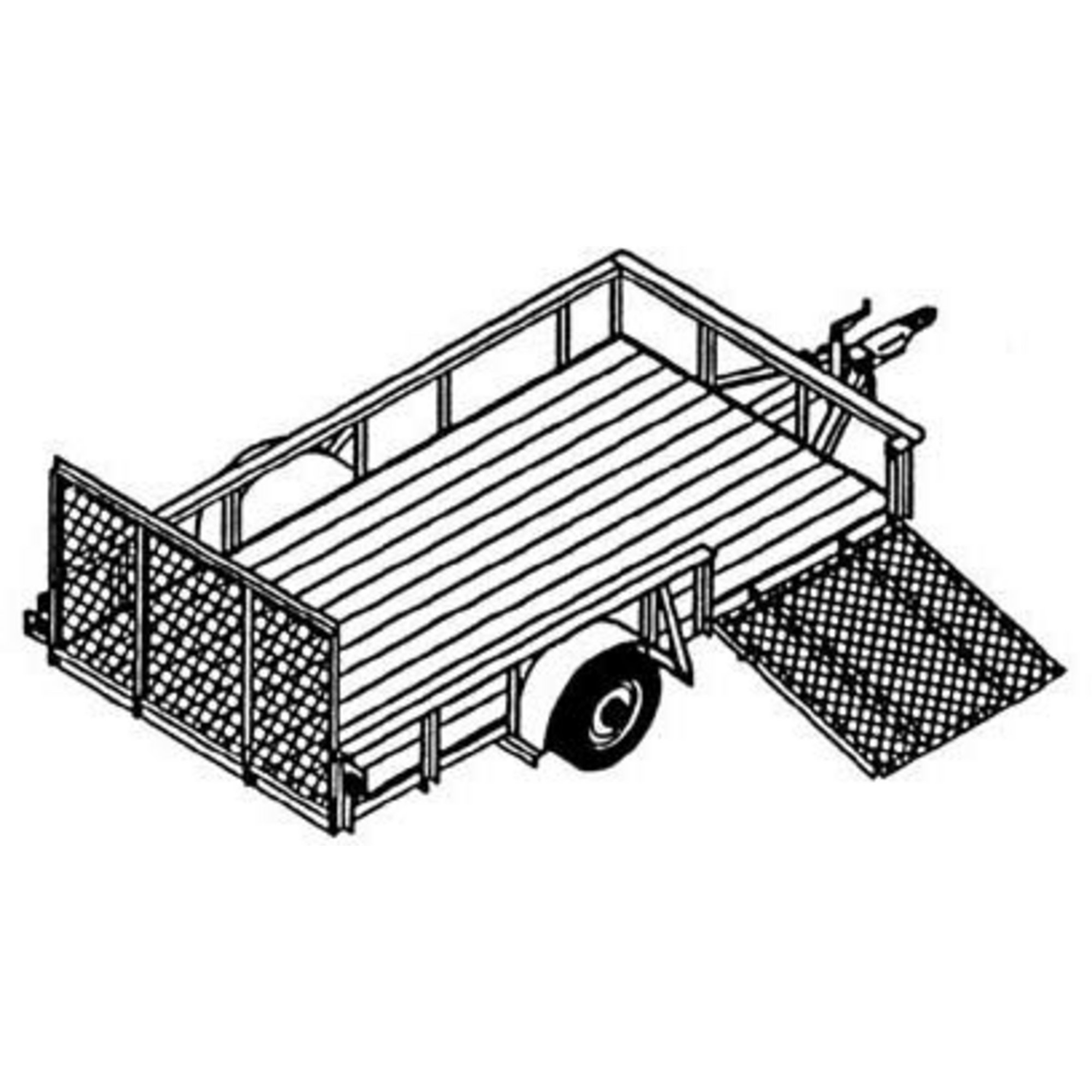

Trailer Blueprints, Model# 1112 — 6ft.6in. x 12ft. Single Axle 3.5k or 5.2k Utility Trailer DIY Master Plan — 16 How-to Steps with Blueprint

Item# 128532
Trailer Blueprints, Model# 1112 — 6ft.6in. x 12ft. Single Axle 3.5k or 5.2k Utility Trailer DIY Master Plan — 16 How-to Steps with Blueprint

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Trailer Blueprints, Model# 1112 — 6ft.6in. x 12ft. Single Axle 3.5k or 5.2k Utility Trailer DIY Master Plan — 16 How-to Steps with Blueprint

Click or Tap image to Zoom

  • Blueprint for a trailer with these features:
  • Box Size: 6ft.6in. x 12ft.
  • Gross Capacity: 3500 lbs. or 5200 lbs.
  • Empty Weight: 1525 lbs.
  • Empty Tongue Weight: 175 Lbs.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

This Blueprint for a 3.5K or 5.2K utility Trailer features engineer approved and stamped, full-sized 24in. x 36in. blueprints. This plan is ideal for high school shop and agriculture classes, industry and do-it-yourselfers. It includes a cut list with a full bill of materials and welding tips. For a custom tailored part kit search for item number: 96953 (3.5K) or 96954 (5.2K). U.S.A

Note: This item can NOT be returned..

Features + Benefits

  • Blueprint for a trailer with these features:
  • Box Size: 6ft.6in. x 12ft.
  • Gross Capacity: 3500 lbs. or 5200 lbs.
  • Empty Weight: 1525 lbs.
  • Empty Tongue Weight: 175 Lbs.
  • Frame: Angle Steel
  • Deck: Wood

Key Specs

AttributeSpecification

item#

128532

Brand

TK Trailer Parts

Ship Weight

0.4 LB

Trailer Size Length

12 ft
AttributeSpecification

Trailer Size Width

6.5 ft

Capacity

5,200 lb

DOT Approved

Yes

Blueprint Scale

1:20

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. that is the frame made of

    what is the frame of this trailer made of Angle, tubing , or c channel

    1. the frame is made of angle

      Helpful?

    2. The frame of the trailer that these blueprints will help you construct will mainly be made of angle iron.

      Helpful?

  2. Can you use aluminum instead?

    1 answer

    1. Aluminum can be used to construct the trailer; however, the manufacturer does not offer instructions for assembly with aluminum.

      Helpful?

  3. second tailgate

    Can you build it with out the second tailgate

    1 answer

    1. You can build this trailer without the second tailgate. You would continue with the side rail.

      Helpful?

  4. What are the dimensions of the trailer

    1 answer

    1. These are blueprints for building a trailer with 12 foot length x 6 1/2 foot wide dimensions.

      Helpful?

  5. Do you sell an axel that fits this trailers blueprints?

    1 answer

    1. Northern has two axles that will work with this trailer, Item number 124252 which is a straight axle or item number 124253 that has a 4 inch drop.

      Helpful?
