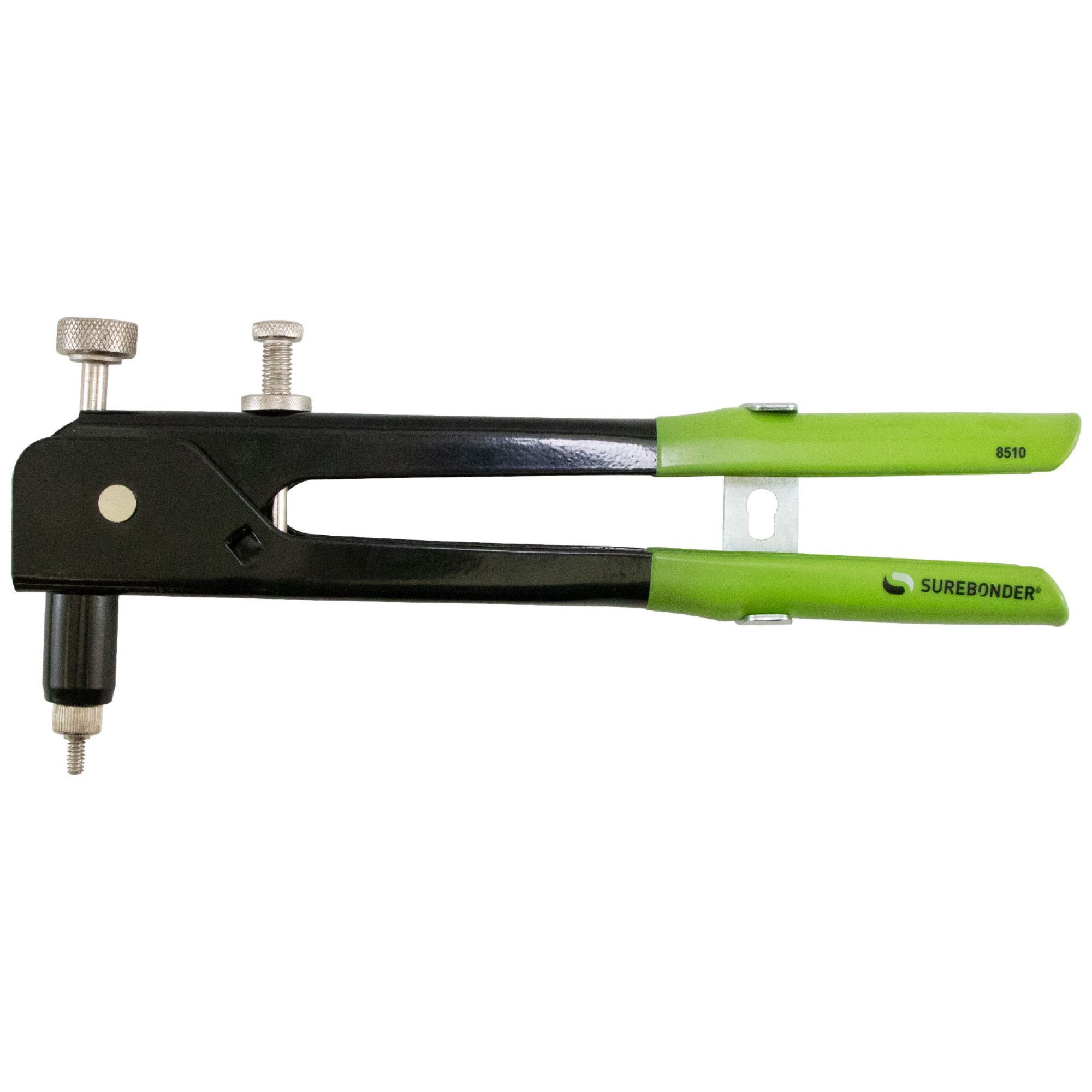

Surebonder Threaded Insert Tool

Item# 55868
Surebonder Threaded Insert Tool
Surebonder Threaded Insert Tool

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Surebonder Threaded Insert Tool

Click or Tap image to Zoom

  • Multi-Size Compatibility: Works with 5 popular insert sizes from 6-32 to 1/4-20
  • Comfort grip, spring-loaded handle, and weighs less than 1.8 lbs. making it easy for long-term use
  • Depth-stop dial on handle prevents thread damage that could occur from over-squeezing
  • Recommended for use with steel Surebonder Quik-Threads Threaded Rivets or other aluminum rivet nuts

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

Sets 6-32, 8-32, 10-24, and 1/4-20 sized rivets. Use Surebonder threaded inserts Quick-thread rivet insert tool sets threaded rivets into sheet metal, plastic and fiberglass (for example, screen door repair). Chrome-moly steel for long life.

What's Included

    (5) Threaded mandrels and nosepieces (6-32, 8-32, 10-24, 10-32, 1/4-20)

Features + Benefits

  • Multi-Size Compatibility: Works with 5 popular insert sizes from 6-32 to 1/4-20
  • Comfort grip, spring-loaded handle, and weighs less than 1.8 lbs. making it easy for long-term use
  • Depth-stop dial on handle prevents thread damage that could occur from over-squeezing
  • Recommended for use with steel Surebonder Quik-Threads Threaded Rivets or other aluminum rivet nuts

Key Specs

AttributeSpecification

item#

55868

Brand

Surebonder

Ship Weight

1.95 LB
AttributeSpecification

Product Type

Insert Tool

Fasteners Included

No

Fasteners Included (qty.)

0

Reviews

Questions & Answers

19 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. I would like to know if you stock 1/4-20 sized threaded inserts for this tool

    1. the northern-tool by me stocks all the inserts that the tool will install.

      Helpful?

    2. We offer a 12 piece set of 1/4 - 20 threaded inserts, they are our item # 55872. They currently are not shown on our website. Please call us at 1-800-221-0516 to order.

      Helpful?

    3. Yes, my local Northern Tool stocks them.

      Helpful?

  2. can you get more options

    can you get more sizes for the tool? Like 5/16-18 & 5/16-24?

    1. I'm sure you can, you have to find the same size threaded head for that rivet tool, that will fit that rivet size.

      Helpful?

    2. Northern only carries the replacement set that come with the tool. Item numbers 55869, 55870, 55871 and 55872 are all available by calling the sales phone # 800-221-0516.

      Helpful?

  3. Can steel inserts, ie. 1/4-20, be used with this tool?

    1 answer

    1. Steel inserts can be used with this Surebonder threaded insert tool. It sets 6-32, 8-32, 10-24, and 1/4-20 sized rivets. Please see my recommendation below for 1/4-20 steel threaded inserts that we offer for this tool:

      Helpful?

  4. Thickness of material.

    How thick of the material can these be installed in?

    1 answer

    1. Item # 55868 includes the 6-32, 8-32, 10-24, and 1/4-20 sized rivets. The 10-24 handles 0.027-0.130 thickness, 6-32 handles 0.027-0.080 thickness, the 8-32 handles 0.027-0.080 thickness, and the 1/4-20 sized rivets handle 0.27-0.165 thickness.

      Helpful?

  5. where can I get replacement inserts for the threaded insert tool? Need all sizes such as 6-32, 8-32, 10-24, and 1/4 20.

    1 answer

    1. We do offer additional rivets that are compatible with the Surebonder Threaded Insert Tool. The item numbers are shown below are the threaded inserts that are available through our Sales department by calling 1-800-221-0516.

      55869 10-24 threaded inserts 21 pieces.
      55870 6-32 threaded inserts 25 pieces.
      55871 8-32 threaded inserts 24 pieces.
      55872 1/4-20 threaded inserts 12 pieces.

      Please contact them direct for pricing and availability

      Helpful?

  6. Can u buy more rivets

    1/4-20

    1 answer

    1. We do offer additional rivets that are compatible with the Surebonder Threaded Insert Tool. The item numbers are shown below are the threaded inserts that are available through our Sales department by calling 1-800-221-0516.

      55869 10-24 threaded inserts 21 pieces.
      55870 6-32 threaded inserts 25 pieces.
      55871 8-32 threaded inserts 24 pieces.
      55872 1/4-20 threaded inserts 12 pieces.

      Please contact them direct for pricing and availability.

      Helpful?

  7. What material are the insert made from?

    Are the inserts aluminum or steel? Is it OK to use stainless fasteners? Should I use carbon steel screws?

    1 answer

    1. The Surebonder Threaded Insert Tool does not include the inserts. It can be used to set 6-32, 8-32, 10-24, and 1/4-20 sized rivets into sheet metal, plastic, and fiberglass.

      Helpful?

  8. What is the warrenty on this product?

    1 answer

    1. The warranty is against defects. We have a 30 day return policy.

      Helpful?
