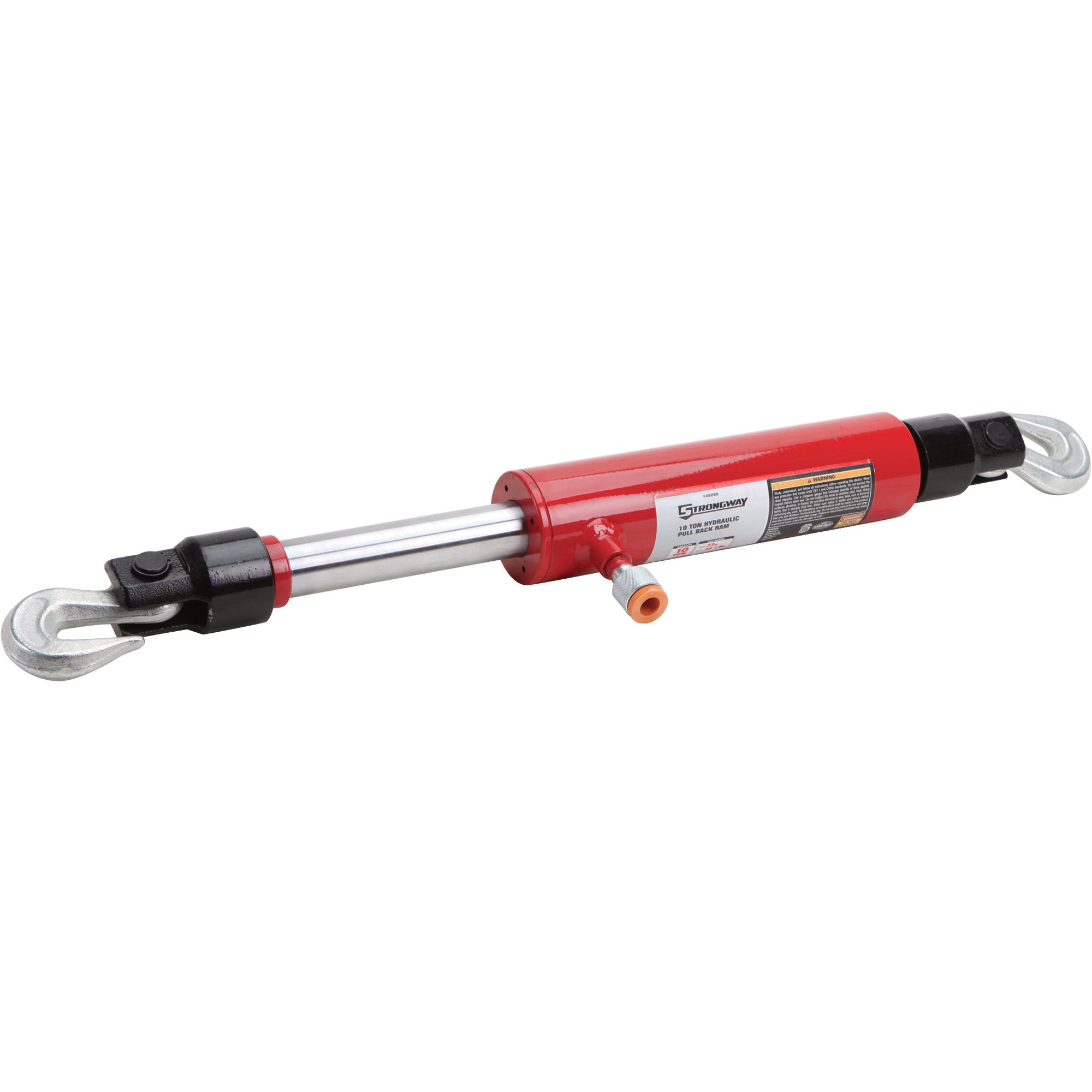

Strongway Hydraulic Pull Back Ram — 10-Ton Capacity

Item# 46266
Strongway Hydraulic Pull Back Ram — 10-Ton Capacity
Strongway Hydraulic Pull Back Ram — 10-Ton Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Strongway Hydraulic Pull Back Ram — 10-Ton Capacity

Click or Tap image to Zoom

  • Constructed of high-grade steel and built to exacting standards for quality and durability
  •  Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
  • Paint is oil, grease and dirt-resistant for easy cleanup
  • High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load, which helps to reduce wear and extend service life
  • Piston-ram is treated and polished to resist skiving

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This general-purpose Strongway™ Hydraulic Pull Back Ram is perfect for pulling items into place with critical positioning. The single-acting cylinder is ideal for high force applications. Attaches with a ZG 1/4in. half coupler fitting. Easy installation. Optional use with a 10-ton hydraulic pump (sold separately). Tested for reliability and safety to meet ASME ASP 2010 standards.

What's Included

  •  (1) Pull back ram

Downloads

Product Manual

Features + Benefits

  • Constructed of high-grade steel and built to exacting standards for quality and durability
  •  Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
  • Paint is oil, grease and dirt-resistant for easy cleanup
  • High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load, which helps to reduce wear and extend service life
  • Piston-ram is treated and polished to resist skiving
  • Piston-ram utilizes a Y-Style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift
  • High/low temperature flexibility which allows unit to operate at temperatures between 40°F and 105°F
  • Easily adapts to optional 10-ton hydraulic pumps – Item#s 46274 or 46278 (sold separately)
  • Designed for use in all positions
  • 5 1/8in. stroke for quick lifting
  • Automatic return spring retracts ram quickly with no load
  • High-performance wiper seal reduces contamination, extending cylinder life
  • Built in ISO certified facilities and engineered using the same systems as Aerospace Technologies in the Automotive OEM sector
  • Meets strict and crucial ASME ASP 2010 safety requirements

Key Specs

AttributeSpecification

item#

46266

Brand

Strongway

Manufacturer's Warranty

1 year Limited Warranty

Ship Weight

17.4 LB

Capacity

10 Tons
AttributeSpecification

Operating Pressure

8,939 PSI

Stroke

5.125 in

Case Included

No

Dimensions L x W x H (in.)

23 x 5 x 2.75 in

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. what are the dimensions of the clevis and pins?

    1 answer

    1. The Strongway Hydraulic Pull Back Ram has an overall diameter of 18 mm on the clevis and a pin diameter of 17 mm.

      Helpful?

  2. Will this work with 15618 or 144424 or 153849 ?

    Will this work with 15618 or 144424 or 153849 ?

    1 answer

    1. This Strongway Hydraulic Pull Back Ram attaches with a ZG 1/4" half coupler fitting and is compatible with our item numbers 144424 and 153849 shown below.

      Helpful?
