Strongway Air/Hydraulic Service Floor Jack, 22-Ton Capacity, Quick-Lift, Heavy-Duty Automotive Jack

Item# 46248
Strongway 22-Ton Quick-Lift Air/Hydraulic Service Floor Jack
Strongway Air/Hydraulic Service Floor Jack, 22-Ton Capacity, Quick-Lift, Heavy-Duty Automotive Jack

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Strongway Air/Hydraulic Service Floor Jack, 22-Ton Capacity, Quick-Lift, Heavy-Duty Automotive Jack

Click or Tap image to Zoom

$419.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • 22-Ton Capacity: Supports lifting of heavy-duty vehicles, equipment and machinery
  • Quick-Lift Air/Hydraulic System: Pneumatic motor and trigger control reduce lifting time
  • Compact Low-Access Design: Fits between dual tandem axles for service access
  • Hydraulic Cylinder + Pump: Large-diameter cylinder reduces pressure and wear; QT450 nodular iron pump increases durability
  • Polished Ram + Seal System: Treated piston with Y-style polyurethane sealing ring and backup ring helps prevent drift and oil bypass

See full description

Complete Your Solution

  • Strongway Air/Hydraulic Service Floor Jack, 22-Ton Capacity, Quick-Lift, Heavy-Duty Automotive Jack
  • Ame International Non-Skid Jack Plate, 30-Ton Capacity, Model# 14464
  • Blackhawk Automotive 22-Ton Heavy-Duty Jack Stands, Pair, Model# BH5220
Price for all three:

$835.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Strongway Service Floor Jack is built for lifting heavy-duty equipment with a 22-ton capacity and a quick-lift system that brings the ram into contact with the load faster for improved efficiency. A pneumatic air motor powers lifting for demanding applications, while the compact design fits between dual tandem axles for service access. The hydraulic system features a large-diameter steel cylinder to reduce operating pressure and wear, along with a treated piston and polyurethane seal system to maintain load control and prevent drift. Constructed of high-grade steel with a lead-free, oil-, grease- and dirt-resistant finish, this jack is designed for durability in tough environments. A mechanical spring return resets the ram to minimum height, and a built-in bypass system helps prevent overloading. Designed for heavy equipment, farm and industrial use, the Strongway Service Floor Jack meets ASME PASE 2019 safety standards.

What's Included

    (1) Strongway 22-Ton Quick-Lift Air/Hydraulic Service Floor Jack (1) Handle (1) 3/4in. height adapter (1) 2-1/4in. height adapter (1) 4in. height adapter

Downloads

Product Manual
Play Item Video

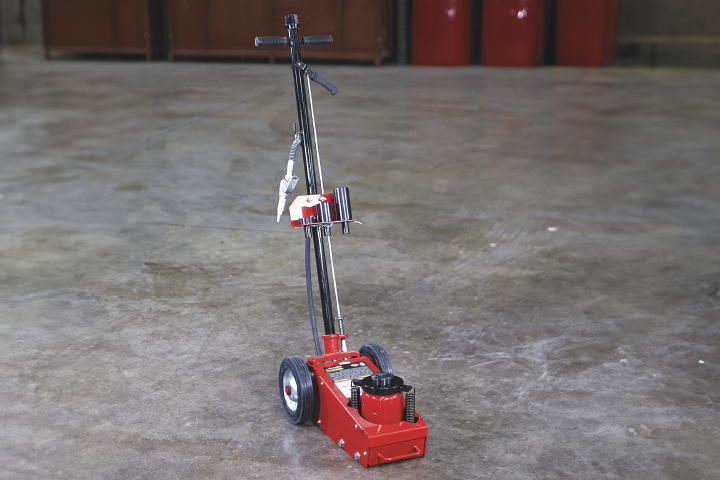

SECURE AND STURDY

Features a comprehensive safety system including a hydraulic bypass and a Y-STYLE POLYURETHANE SEALING RING with a backup ring that enhances the safety and longevity of the jack

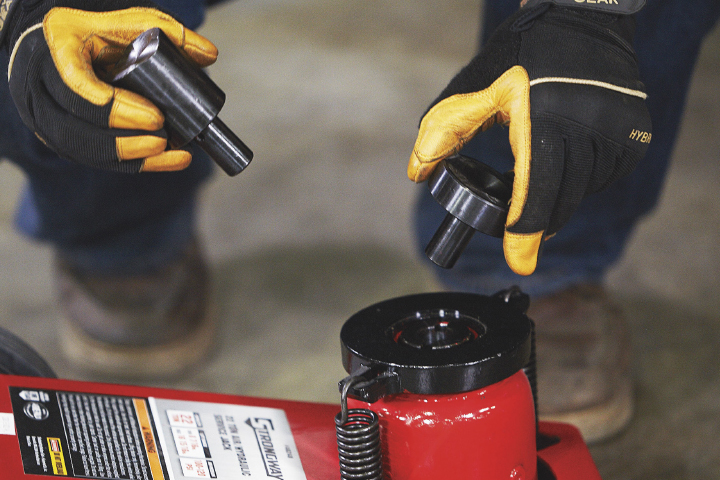

SUPERIOR BUILD QUALITY

Constructed from robust materials with a LEAD-FREE PAINT FINISH that is oil, grease and dirt resistant, this jack is built to last and is easy to maintain

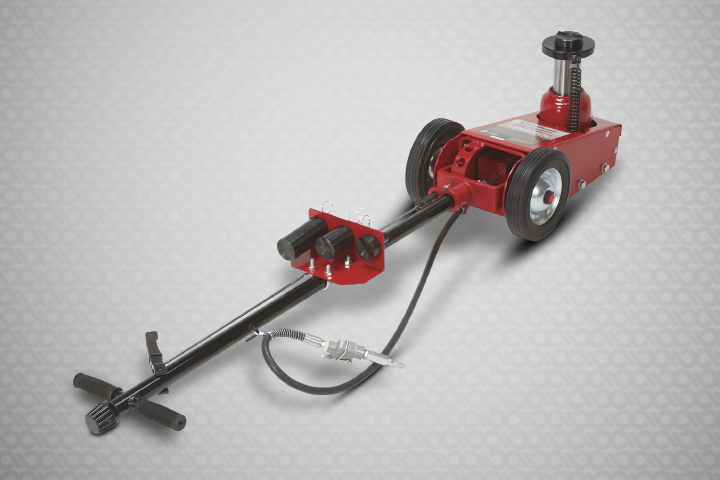

TEMPERATURE RESILIENT

Operates effectively within a WIDE TEMPERATURE RANGE, making it suitable for use in varying climates and conditions

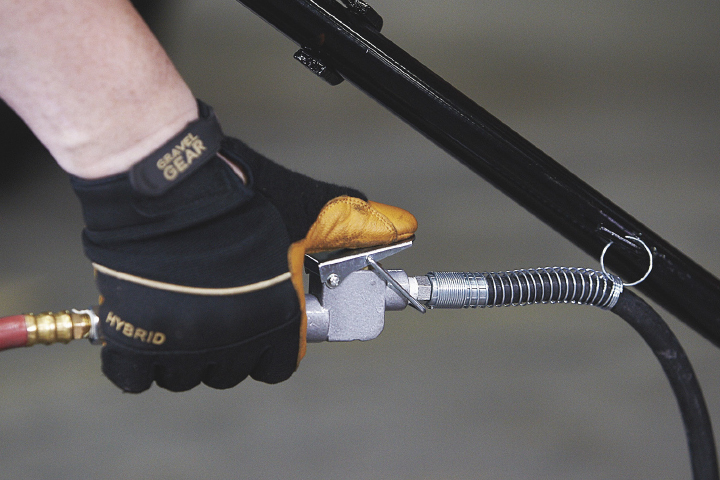

EASY HANDLING AND OPERATION

The THREE-POSITION PUMPING HANDLE and the trigger pushbutton control provide ergonomic and convenient operation, allowing precise control with minimal effort

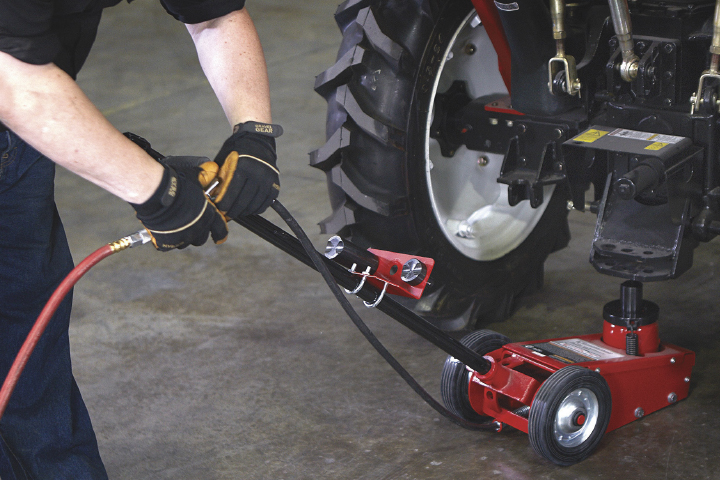

ROBUST DESIGN FOR HEAVY LOADS

Perfect for lifting heavy-duty machinery and industrial equipment, the 22-TON CAPACITY ensures high performance under tough conditions

Features + Benefits

  • 22-Ton Capacity: Supports lifting of heavy-duty vehicles, equipment and machinery
  • Quick-Lift Air/Hydraulic System: Pneumatic motor and trigger control reduce lifting time
  • Compact Low-Access Design: Fits between dual tandem axles for service access
  • Hydraulic Cylinder + Pump: Large-diameter cylinder reduces pressure and wear; QT450 nodular iron pump increases durability
  • Polished Ram + Seal System: Treated piston with Y-style polyurethane sealing ring and backup ring helps prevent drift and oil bypass
  • Hydraulic Oil Performance: High-quality oil supports corrosion resistance and operation from 40°–105°F
  • Spring Return + Overload Protection: Mechanical return resets ram; bypass system helps prevent overloading
  • Mobility + Control: 8in. rear wheels and extra-long T-handle support positioning and movement
  • Stable Base: 21.73in. x 12.44in. footprint provides support under load
  • Air Requirements: 100–120 PSI operating pressure; 8–12 CFM @ 90 PSI required
  • Included Height Adapters: 3/4in., 2-1/4in. and 4in. adapters support varied lifting heights
  • Manufacturing + Safety Standards: Built in ISO-certified facilities and meets ASME PASE 2019 requirements

Key Specs

AttributeSpecification

item#

46248

Brand

Strongway

Manufacturer's Warranty

1 year limited warranty

Ship Weight

101.0 LB

Lift Capacity

22 Tons

Max. Lift Height

16.94 in
AttributeSpecification

Low Profile

Yes

Product Type

Axle Jack

Min. Lift Height

8.44 in

Safety Valve

Yes

Product Weight

103.5 lb

Dimensions L x W x H (in.)

21.75 x 12.43 x 9.875 in

Reviews

Questions & Answers

88 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. What is the amount of ram travel?

    1. eight and one half inches

      Helpful?

    2. This floor jack has 8-1/2" of ram travel.

      Helpful?

  2. Is max lift height measured with or without 4 inch adapter? Would max lift height with 4 inch adapter be 20 15/16 inches?

    1. yes , with the adapter

      Helpful?

    2. The max lift height for this unit is 16-15/16" with the 4" adapter.

      Helpful?

  3. The handle works as the pump??

    1 answer

    1. This jack can be raised and lowered manually with the handle. It can also be raised and lowered by connecting an air supply.

      Helpful?

  4. What is the minimum height of the Jack with no adapter install? The minimum height listed, is that with the shortest adapter installed?

    1 answer

    1. The minimum lifting height is 8.44". This is without any of the adapters installed.

      Helpful?

  5. How do you purge the air from jack prior to use

    1 answer

    1. The System Air Purge Procedure, as found on pages 9-11 in the manual, goes as follows:
      1. Connect air supply inlet to air source.
      2. Close the release valve by turning the handle knob clockwise until firm resistance is felt.
      3. When the saddle reaches Max. lift height, turn the handle knob counter-clockwise.
      4. When the saddle reaches Min. lift height, with a flat blade screwdriver, push the oil fill plug slightly to the side to purge trapped air from system.
      5. Close the release valve by turning the handle knob clockwise until firm resistance is felt.
      6. Jack is now ready for use. Check for proper pump action.

      Helpful?

  6. how do you use the jack manually

    1 answer

    1. This jack is operated manually by pumping the handle to raise the load. To lower the load, the release valve at the top of the handle is opened.

      Helpful?

  7. Will this jack hold the load if the air is disconnected?

    1 answer

    1. This jack will not hold the load if the load was raised using air and then the air is disconnected. It will hold a load manually (using the pump handle alone) when no air has been used to raise it.

      Helpful?

  8. What compressor flow rate do you need, ie CFM?

    My portable compressor will achieve 125 psi however its specifications indicate the SCFM drops to 3.5 at 90 psi, and I would guess continues to drop as pressures increase. Will this jack work with my portable compressor?

    1 answer

    1. This service jack requires a minimum of 7.8 CFM (SCFM) at 100 PSI. Your compressor doesn't provide enough CFM to operate this jack. Please see items 164049 or 75711 for air compressor recommendations that would work for your application.

      Helpful?

  9. Wher was the Jack Manufactured?

    Country of Origin?

    1 answer

    1. This quick lift service jack is made in China.

      Helpful?
