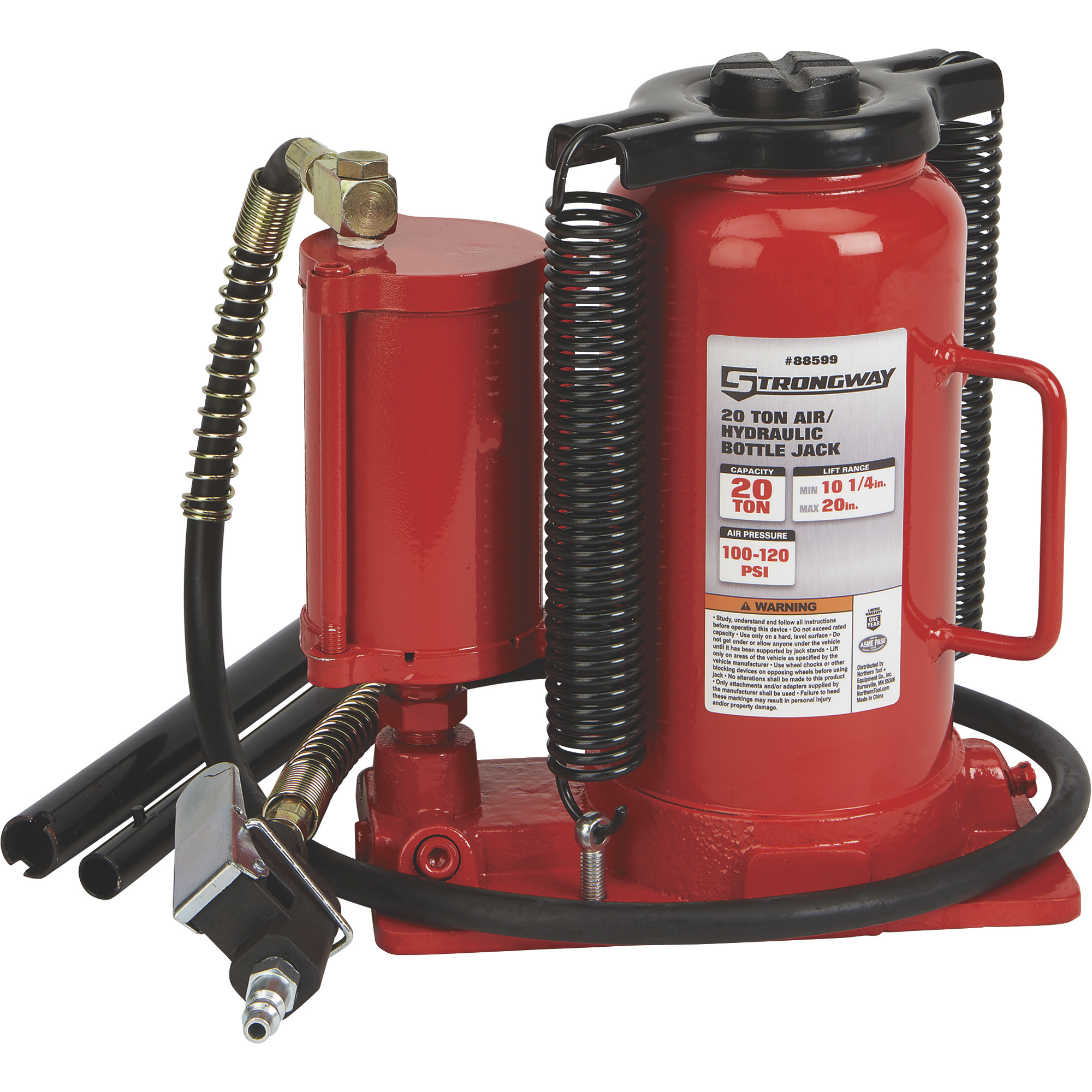

Strongway 20-Ton Air/Hydraulic Bottle Jack
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- 10 1/4in. minimum lift height; 20in. maximum lift height
- 20-ton maximum lift capacity handles heavy loads
- 1/4in. quick-connect feature allows for easy mobility and remote operation
- Built-in bypass device protects the hydraulic system from over-pumping damage
- Self-returning springs provide easier operation
See full description
$234.94
What's Included
- (1) Air/hydraulic bottle jack (1) Handle
Downloads

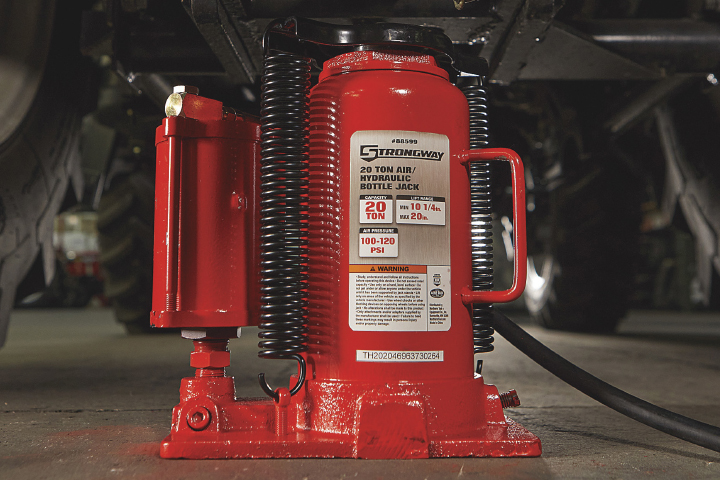

EFFICIENT OPERATION
Optimized for QUICK AND EFFICIENT LIFTING, this jack’s AIR/HYDRAULIC SYSTEM reduces manual labor and speeds up the lifting process, making it ideal for busy workshops and sites

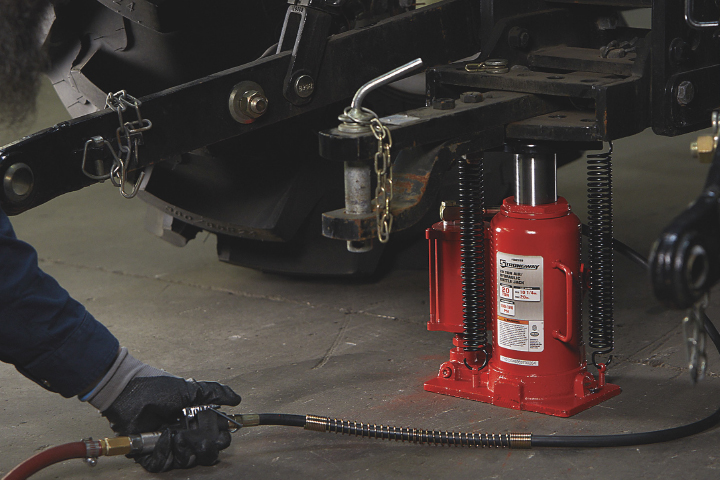

DURABLE MATERIAL CONSTRUCTION
The piston ram is treated and polished to enhance RESISTANCE AGAINST SKIVING, ensuring that the jack maintains its INTEGRITY EVEN UNDER TOUGH CONDITIONS

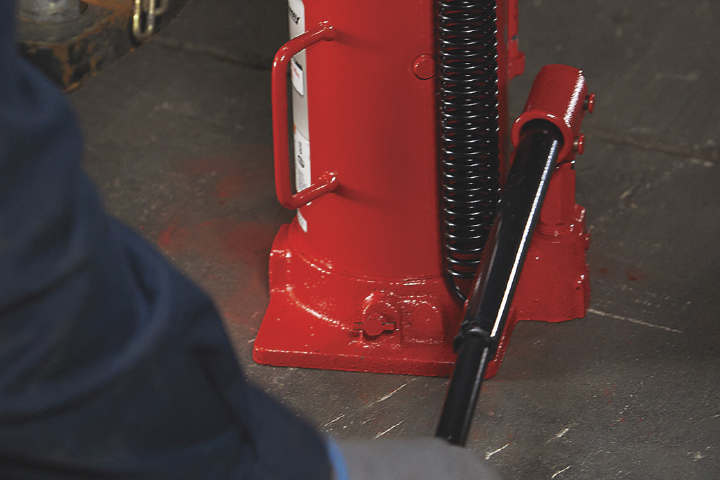

ADAPTABLE AND VERSATILE
The jack’s COMPACT DESIGN and VARIABLE HEIGHT ADJUSTMENT CAPABILITY make it suitable for a wide range of lifting tasks, from heavy machinery to vehicles

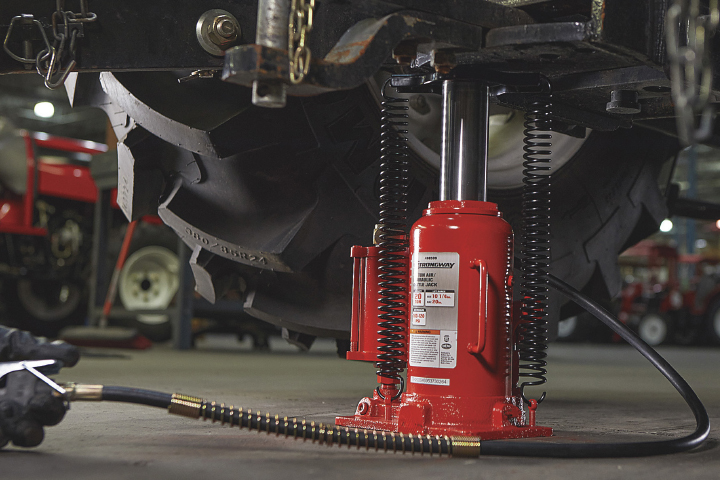

RELIABLE PERFORMANCE
Operates seamlessly with BOTH AIR POWER and MANUAL CONTROL, offering flexibility in environments where compressed air may not be available

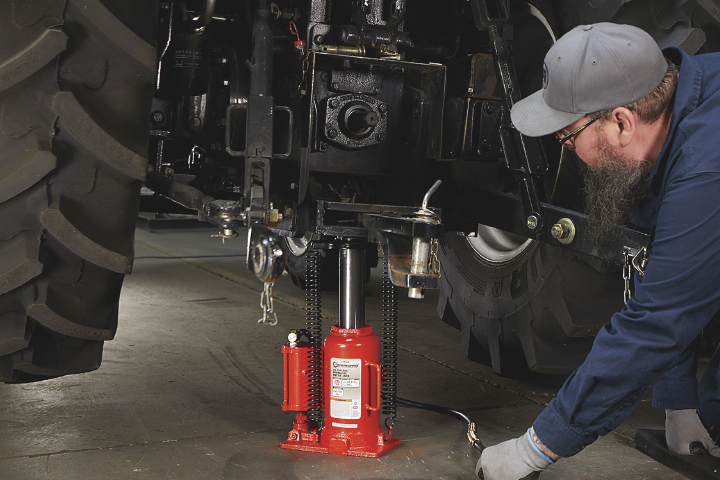

BUILT TO LAST
Engineered in ISO-CERTIFIED facilities using AEROSPACE TECHNOLOGY SYSTEMS, this jack is built to meet rigorous safety and performance standards
Features + Benefits
- 10 1/4in. minimum lift height; 20in. maximum lift height
- 20-ton maximum lift capacity handles heavy loads
- 1/4in. quick-connect feature allows for easy mobility and remote operation
- Built-in bypass device protects the hydraulic system from over-pumping damage
- Self-returning springs provide easier operation
- Large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
- High-grade steel construction with a lead-free paint finish to ensure durability and help prevent rust and corrosion
- Paint is oil-, grease- and dirt-resistant for easy cleanup
- Piston ram is treated and polished to resist skiving
- Screw top provides up to 3 1/8in. additional height adjustment
- Carbon black with durable powder-coated finish
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Bottle Jacks
See All Strongway Bottle Jacks
Currently Viewing This Product
Specifications
20 Tons
-
20 Tons
20 Tons
20 in
-
15.5 in
18.75 in
10.25 in
-
8.13 in
10 in
6.63 in
-
-
-
3.13 in
-
-
-
Yes
-
-
-
33.0600 lb
-
-
-
9.06 x 6.875 x 10.25 in
-
-
-
