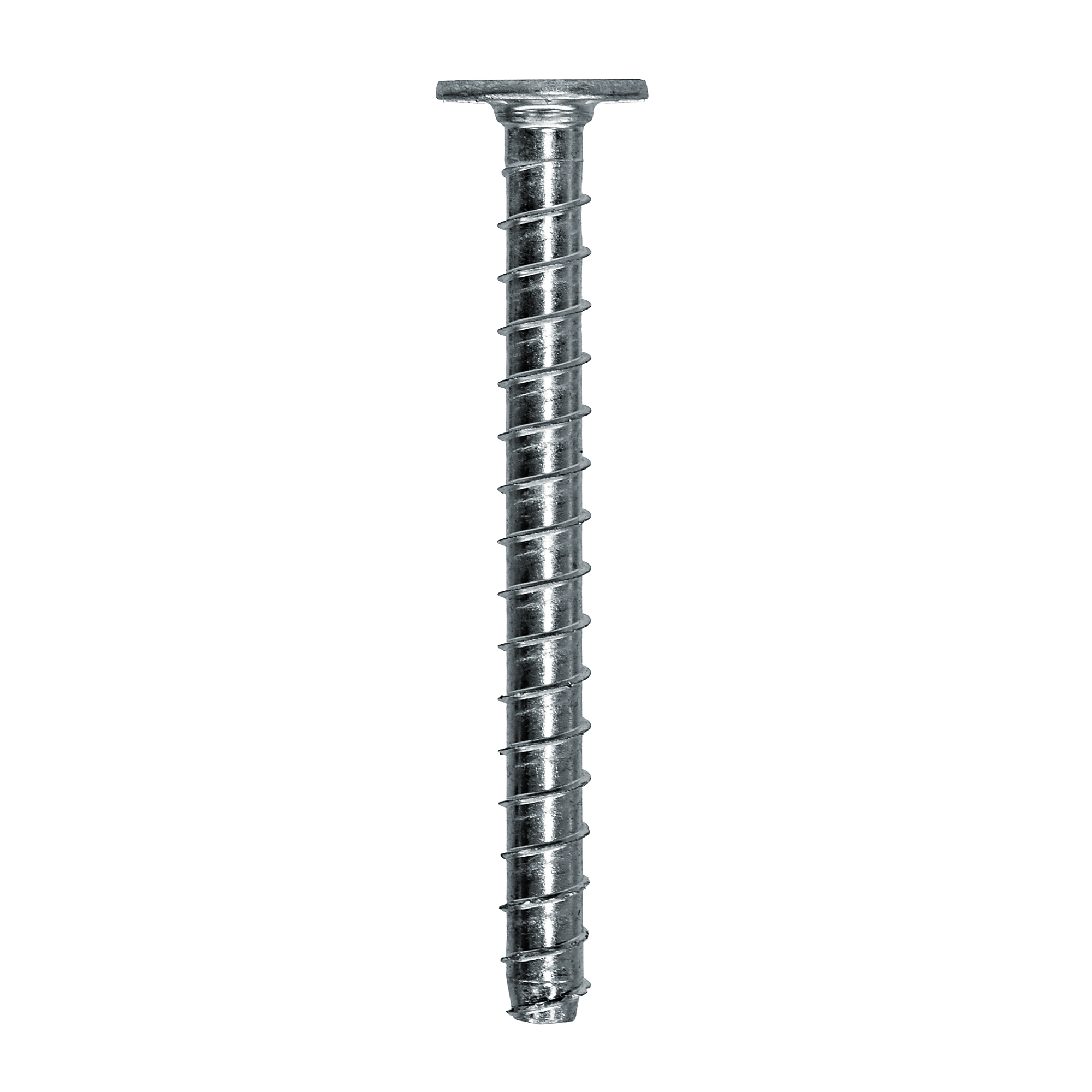

SIMPSON Strong-Tie, 5/8in.8in. Washer-Head HD Screw Anchor 10-Qty, Model# THDB62800WH

Item# 5254579
SIMPSON Strong-Tie, 5/8in.8in. Washer-Head HD Screw Anchor 10-Qty, Model# THDB62800WH

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SIMPSON Strong-Tie, 5/8in.8in. Washer-Head HD Screw Anchor 10-Qty, Model# THDB62800WH

Click or Tap image to Zoom

  • Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind and seismic loading conditions. Standard fractional sizes — the hole size matches the anchor size
  • No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits. Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
  • Washer head allows screw anchor applications incompatible with a hex head. For added convenience, a 1/2-in. socket adapter and (2) T-drive bits are included in each box
  • Serrated teeth on the tip of the Titen HD screw anchor facilitate cutting and reduce installation torque. Zinc plated; not recommended for permanent exterior use or highly corrosive environments
  • Anchor size: 5/8 in. x 8 in. Quantity: 10

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

The Titen HD with washer head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a minimal head profile is necessary. The model is offered in sizes suitable for use in sill plate applications, and the washer head's low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor. The anchor's 6-lobe drive eases driving and is less prone to stripping.

What's Included

    (10) Concrete Anchors

Features + Benefits

  • Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind and seismic loading conditions. Standard fractional sizes — the hole size matches the anchor size
  • No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits. Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
  • Washer head allows screw anchor applications incompatible with a hex head. For added convenience, a 1/2-in. socket adapter and (2) T-drive bits are included in each box
  • Serrated teeth on the tip of the Titen HD screw anchor facilitate cutting and reduce installation torque. Zinc plated; not recommended for permanent exterior use or highly corrosive environments
  • Anchor size: 5/8 in. x 8 in. Quantity: 10

Key Specs

AttributeSpecification

item#

5254579

Brand

Simpson Strong-Tie

Ship Weight

8.13 LB

Length

8 in.

Material

Steel
AttributeSpecification

Product Type

Anchors

Concrete Use

Yes

Product Weight

8.1300 lb

Dimensions L x W x H (in.)

3.54 x 3.54 x 12.63 in
