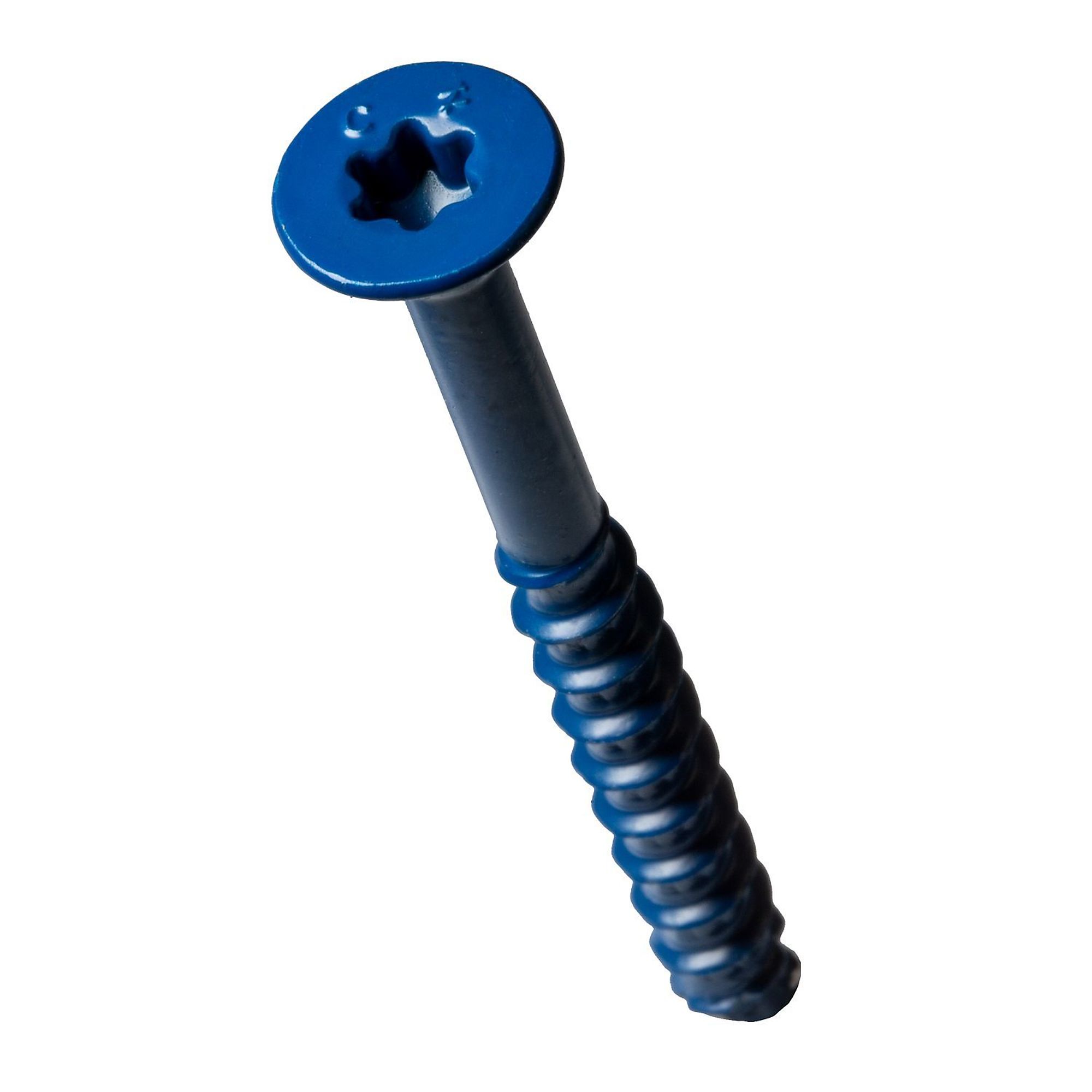

SIMPSON Strong-Tie, 1/4in. x 1-3/4in. Flat-Head Concrete Screw, Blue, Included (qty.) 100, Model# TNT25134TF

Item# 5016757
"SIMPSON Strong-Tie, 1/4in. x 1-3/4in. Flat-Head Concrete Screw, Blue, Included (qty.) 100, Model# TNT25134TF"
100 Included
SIMPSON Strong-Tie, 1/4in. x 1-3/4in. Flat-Head Concrete Screw, Blue, Included (qty.) 100, Model# TNT25134TF

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SIMPSON Strong-Tie, 1/4in. x 1-3/4in. Flat-Head Concrete Screw, Blue, Included (qty.) 100, Model# TNT25134TF

Click or Tap image to Zoom

  • Torque Reduction Channel that traps dust where it can’t obstruct the thread action, reducing the likelihood of binding in the hole (patent pending)
  • Code listed in accordance with ICC-ES AC193 for concrete applications without cleaning dust from predrilled holes (IAPMO UES ER-712)
  • Serrated screw point for easier starts when fastening wood
  • Matched-tolerance bit not required; use a standard ANSI drill bit for installation
  • Zinc plated with a baked-on ceramic coating

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Titen Turbo screw anchor is fast and easy to install, and incredibly reliable in its performance. The secret behind the performance of the Titen Turbo lies in a thread design that lowers driving torque while providing superior holding power. The revolutionary Torque Reduction Channel between the threads gives drilling dust a place to go, thereby significantly reducing torque-related issues like binding, stripping and snapping. This screw anchor delivers consistently trouble-free installation and fastening strength you can depend on.

What's Included

    (100) Concrete Screw

Features + Benefits

  • Torque Reduction Channel that traps dust where it can’t obstruct the thread action, reducing the likelihood of binding in the hole (patent pending)
  • Code listed in accordance with ICC-ES AC193 for concrete applications without cleaning dust from predrilled holes (IAPMO UES ER-712)
  • Serrated screw point for easier starts when fastening wood
  • Matched-tolerance bit not required; use a standard ANSI drill bit for installation
  • Zinc plated with a baked-on ceramic coating

Key Specs

AttributeSpecification

item#

5016757

Brand

Simpson Strong-Tie

Manufacturer's Warranty

3 month limited warranty

Ship Weight

1.6 LB

Included (qty.)

100

Length

1.75 in
AttributeSpecification

Material

Carbon Steel

Size

1-3/4 in

Product Type

Anchors

Concrete Use

Yes

Product Weight

1.8400 lb

Dimensions L x W x H (in.)

0.48 x 0.48 x 1.75 in
