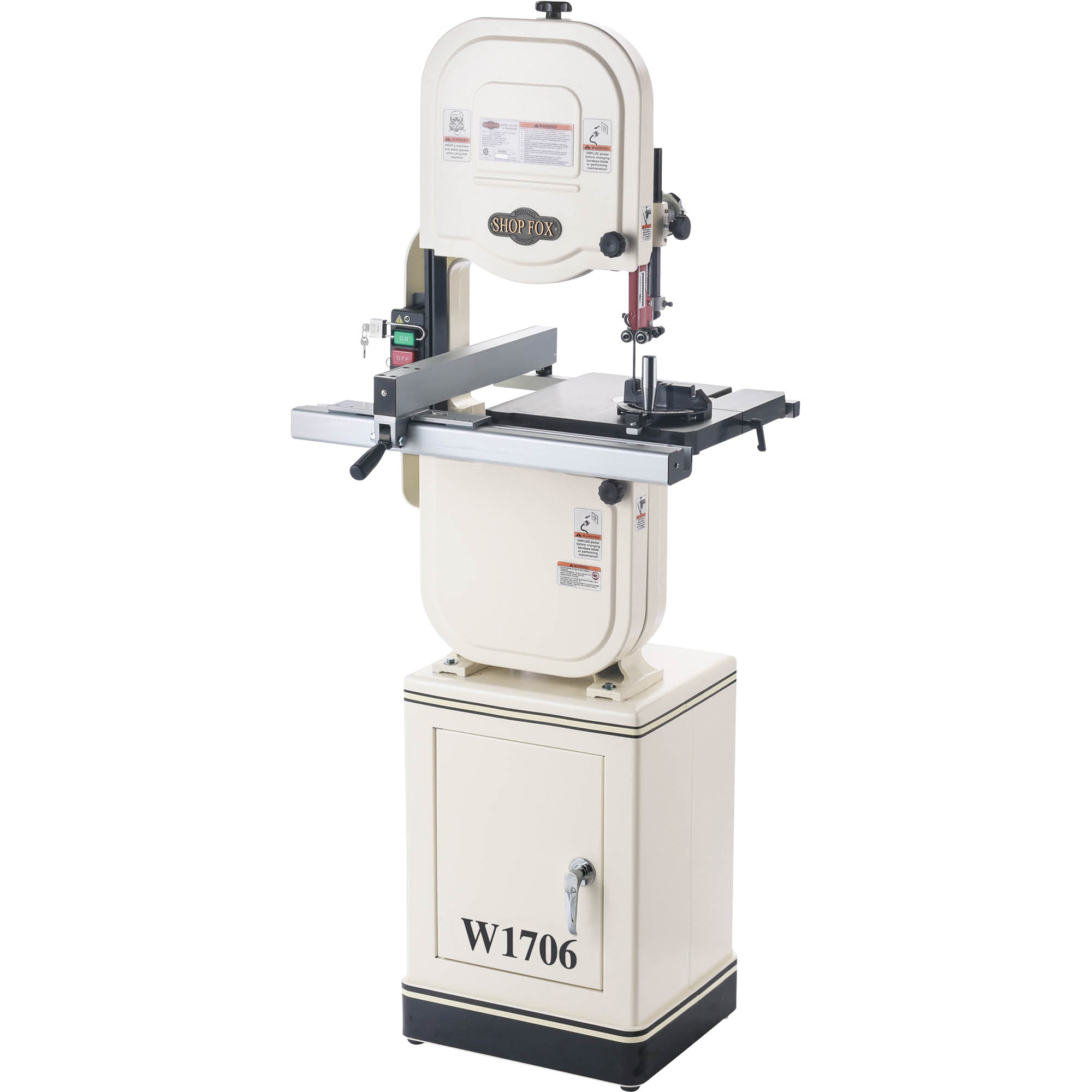

Shop Fox Band Saw - 14in., 1 HP, Cast Iron Frame, Model# W1706

Item# 21694
"Shop Fox Band Saw - 14in., 1 HP, Cast Iron Frame, Model# W1706"
Shop Fox Band Saw - 14in., 1 HP, Cast Iron Frame, Model# W1706

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Shop Fox Band Saw - 14in., 1 HP, Cast Iron Frame, Model# W1706

Click or Tap image to Zoom

  • 1 HP 110V/220V TEFC motor; 1725 RPM
  • 13 1/2in.W x 6in.H cutting capacity for sawing wood
  • Two cutting speeds: 1800 and 3100 FPM
  • Includes 93 1/2in. x 3/8in. 6 TPI woodworking blade
  • 14in. x 14in. cast iron table with 43in. floor to table height

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Shop Fox 14in. Band Saw is the most popular size and is loaded with features usually found on larger, more expensive machines. Features such as extruded aluminum fence and rails, quick-release blade tensioning, miter gauge, upper and lower blade guides, enclosed stand, hinged wheel covers, dust port and powerful 1 HP motor, all standard. Cast iron frame and table ensures that this band saw will serve you for many years to come. _*Cannot ship to AK, CA or HI.

What's Included

    (1) Band saw (1) Cabinet stand (1) Miter gauge assembly (1) Trunnion assembly (1) Fence assembly (1) Saw blade (1) Instruction manual

Downloads

Product Manual

Features + Benefits

  • 1 HP 110V/220V TEFC motor; 1725 RPM
  • 13 1/2in.W x 6in.H cutting capacity for sawing wood
  • Two cutting speeds: 1800 and 3100 FPM
  • Includes 93 1/2in. x 3/8in. 6 TPI woodworking blade
  • 14in. x 14in. cast iron table with 43in. floor to table height
  • Table tilts 45 degrees right and 10 degrees left
  • Durable cast iron frame
  • Extruded aluminum fence and rails

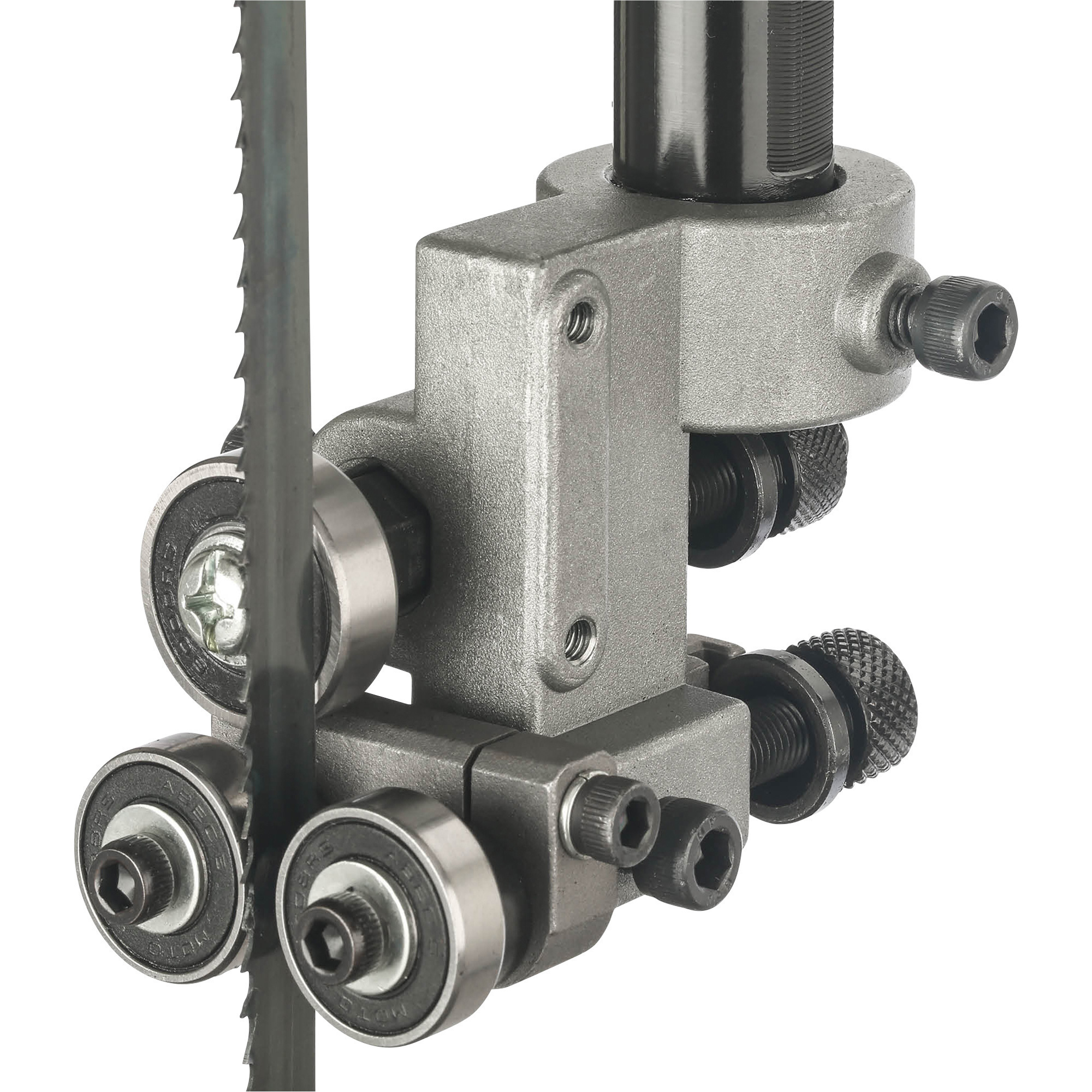

  • Upper & lower ball bearing blade guides
  • Dependable belt drive system
  • Quick-release blade tensioning; miter gauge
  • Enclosed cabinet stand with shelf, door and latching handle
  • 4in. dust port
  • Overall 15 1/2in.L x 18in.W x 73in.H

Key Specs

AttributeSpecification

item#

21694

Brand

Shop Fox

Manufacturer's Warranty

2 year limited warranty
AttributeSpecification

Ship Weight

270.0 LB

Volts

110/220

Max. Cutting Capacity

3,100 SFPM

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. Wood and metal bandsaw

    I work mostly in metal, will this saw work on metal? Is there some sort of rheostat I could use to slow the blade speed down?

    Thanks

    R Grosser

    1. metal cutting runs at much lower speed than 1800
      I talked to the tech and there is a component in the motor which will not allow you to slow it down. if you do it will burn out the motor.
      however if you use a bi-metal blade and cut thin material it will work. you also have to clean the wheels the blade spins on to keep the metal shavings off. the wheels have a rubber coating.

      Helpful?

    2. This Shop Fox band saw will not work with metal and you can not use a rheostat to slow the blade down.

      Helpful?

  2. Do this come with a blade or blades? If so, what are they? TPI, width, ect. ect,

    1 answer
    Originally posted on grizzly.com

    1. We appreciate your inquiry. The bandsaw includes a PX1706060 Blade, measuring 6 TPI, 93‑1/2" in length, and 3/8" in width.

  3. Will this model accept a riser block?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for your inquiry! Yes, the W1706 1 HP 14" Bandsaw is compatible with a riser block. The correct accessory is the D3348 6" Extension Block Kit, which can be found under the "Accessories" tab on the product webpage. We hope this helps!

  4. Saw base dimensions to use with mobile base

    1 answer
    Originally posted on grizzly.com

    1. We appreciate your inquiry. The saw's footprint measures 17-1/4 x 16 inches (length x width), making it compatible with the T28922 Mobile Base.

  5. Is the fence adjustable for blade drift correction?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for your inquiry. You can adjust the fence to align perfectly with both the blade and the miter slot.

  6. Does the blade guide have a rotating bearing for the back edge of the blade as well as the normal two bearing on the sides of the blade?

    1 answer

    1. The band saw will have adjustable upper and lower blade support and guide bearings.

      Helpful?

  7. What is blade width capacity

    1 answer

    1. This band saw accepts 93-1/2" blades from 1/8" to 3/4" wide.

      Helpful?
