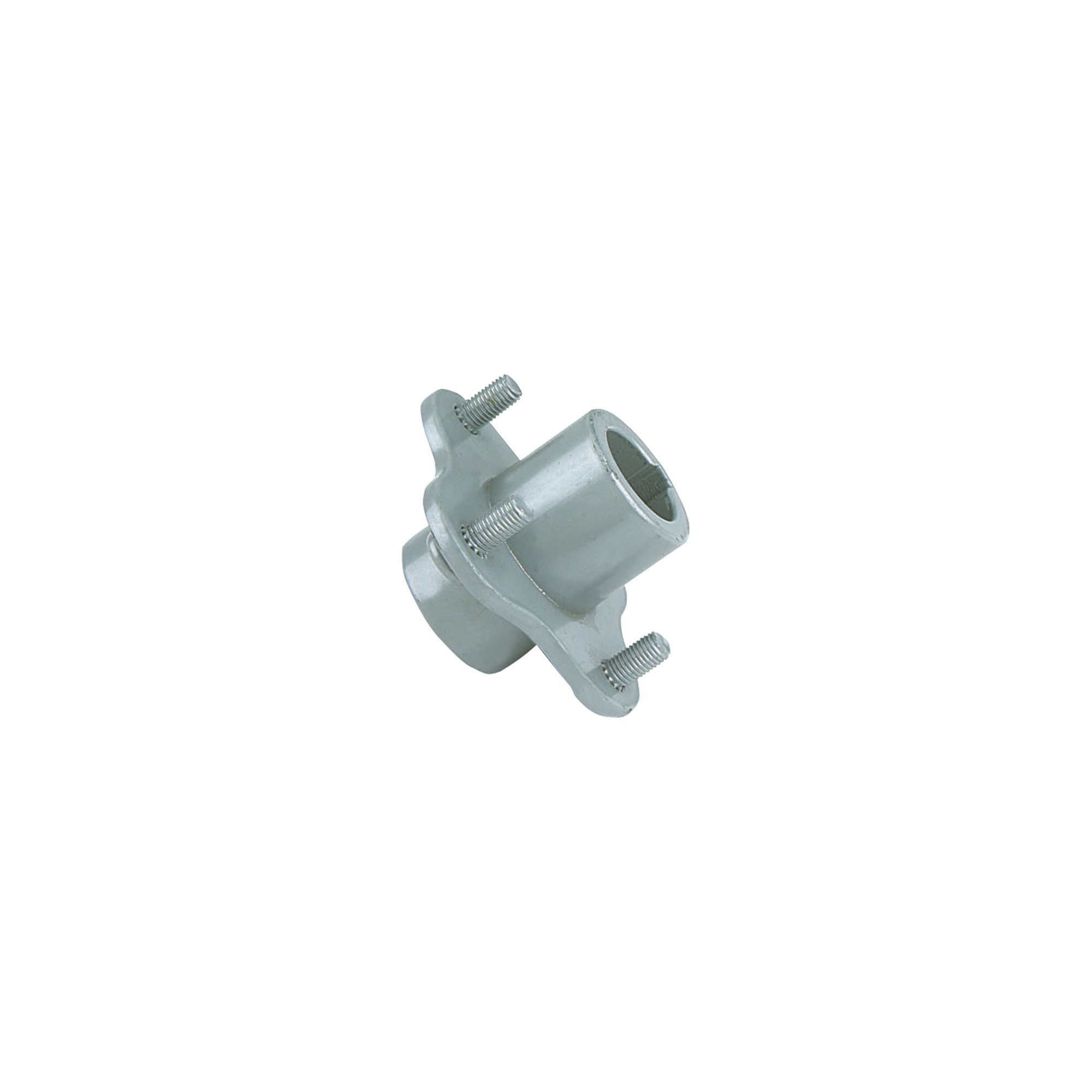

SGL FL Kart Hub 4H 1in. Bore

Item# 138291
SGL FL Kart Hub 4H 1in. Bore

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SGL FL Kart Hub 4H 1in. Bore

Click or Tap image to Zoom

  • Hub Length: 3in.
  • Sold Individually
  • 1.11in. length of screw thread
  • 0.30in. diameter of screw thread

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

Four-holes; 1 in. bore with 1/4 in. keyway. Use with our sprockets on live axles. Standard 2 13/16 in. bolt kart spacing. Fits rims #1340-1341

Features + Benefits

  • Hub Length: 3in.
  • Sold Individually
  • 1.11in. length of screw thread
  • 0.30in. diameter of screw thread

Key Specs

AttributeSpecification

item#

138291

Brand

Northern Industrial Tools

Ship Weight

1.45 LB
AttributeSpecification

Bore Diameter

1

Keyway

1/4 in

Product Type

Go-Kart

Reviews

Questions & Answers

17 Reviews This action will navigate to reviews.

Questions

1–10 of 14 Questions
Sort by:

  1. about the key way ?

    Is there a set screw to hold the 1/4 in. key from moving ?

    1. Yes

      Helpful?

    2. Yes, one set screw is over the keyway.

      Helpful?

    3. There is one setscrew that uses the keyway in the axle to lock the hub in place. My keyway is 1/4 in. wide as well

      Helpful?

    4. Yes

      Helpful?

    5. Yes it's 1/4" x 20 with a length of about 1/4" give or take 1/16".

      Helpful?

  2. Is the 1" bore all the way through

    is there a step down to 3/4" on the end

    1. NO Step, 1" all the way through

      Helpful?

    2. 1.00" thru the entire bore. No Step down.
      Has 1/4" keyway.

      Helpful?

    3. It is 1" all the way through

      Helpful?

    4. No step down, 1" all the way through.

      Helpful?

    5. The bore on this hub is 1" all the way through.

      Helpful?

  3. Are these hubs made out of steel?

    1. Yes

      Helpful?

    2. Yes, they are made out of steel

      Helpful?

    3. yes these hubs are made out of steel

      Helpful?

    4. The Kart Hubs are made of steel.

      Helpful?

  4. Will these work on an axle That has no slots for key ways

    My axle does not have key ways. It look like the hub would be held on with one bolt.

    1. you would need a keyed axle. they would spin on the axle fore sure with out one.

      Helpful?

    2. It relies on a keyway in the axle in order for the "one bolt" (setscrew) to lock it into place

      Helpful?

    3. These kart hubs only work with a 1/4 inch keyway.. You would need an axle that has 1/4 inch keyways.

      Helpful?

  5. will this work for wheel hubs

    1. Use these for the rear live axel hubs and driven sprocket. You want to use Item# 13830 for the front wheels... Remember, they sell them in sets of two's so don't over order. Those have a bearing bore diameter of 3/4".

      Helpful?

    2. yes just make sure the keyway and bore is the same

      Helpful?

    3. Yes, this is a Kart Hub, 4 Hole, 1 in. Bore. with a 1/4in. keyway, Fits our rims Item #1340-1341

      Helpful?

  6. Does this piece fit on the 60 tooth drive sprocket?

    1. Yes, you can use this hub to fit wheels or sprockets.

      Helpful?

    2. yes it does

      Helpful?

    3. The SGL FL Kart Hub will work with the 60 tooth drive sprocket for live axles.

      Helpful?

  7. what size are the bolts?

    1. 5/16

      Helpful?

    2. The bolts are 5/16 of an inch in diameter, a 1/2 inch long, and 20 threads per inch.

      Helpful?

  8. Where can I buy the lug nuts for these?

    they don't seem to exist anywhere

    1 answer

    1. The lug nuts have a 5/16" 20 TPI thread. Northern Tool does not currently offer these lug nuts separate from the hub. They would have to be purchase locally.

      Helpful?

  9. So this just screws on to the axle and bolt the tires on?

    1 answer

    1. This hub slides onto a 1" axle with a 1/4" key and one set screw secures it to the axle. The tires bolt onto the hub. The inside of the hub is not threaded, it has a 1/4" keyway.

      Helpful?

  10. What is the outside diameter of the whole thing?

    What is the "spinning" diameter of this hub - i.e. what is the diameter as measured from the outside to the outside of the 4 "petals". This is a different question than the bolt center distance.

    1 answer

    1. The outside diameter would be 3 5/16"

      Helpful?
