Service Caster, 8in. x 2 1/2in. Plate Caster, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-100S280-PNB
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- The Series 100 pneumatic casters come in 6” (mounting height 7.5”), 8” (mounting height 10”), 8” gray, 10” (mounting height 12.1875”) and 12” (mounting height 13.75”) and are made of pneumatic tread and an inner core filled with pressurized air which remains inflated even with the weight of a vehicle resting on it.
- Weight capacity ranges from 200 lbs on the 6” caster, 300 lbs on the 8”, 350 lbs on the 10” and 450 lbs. on the 12”.

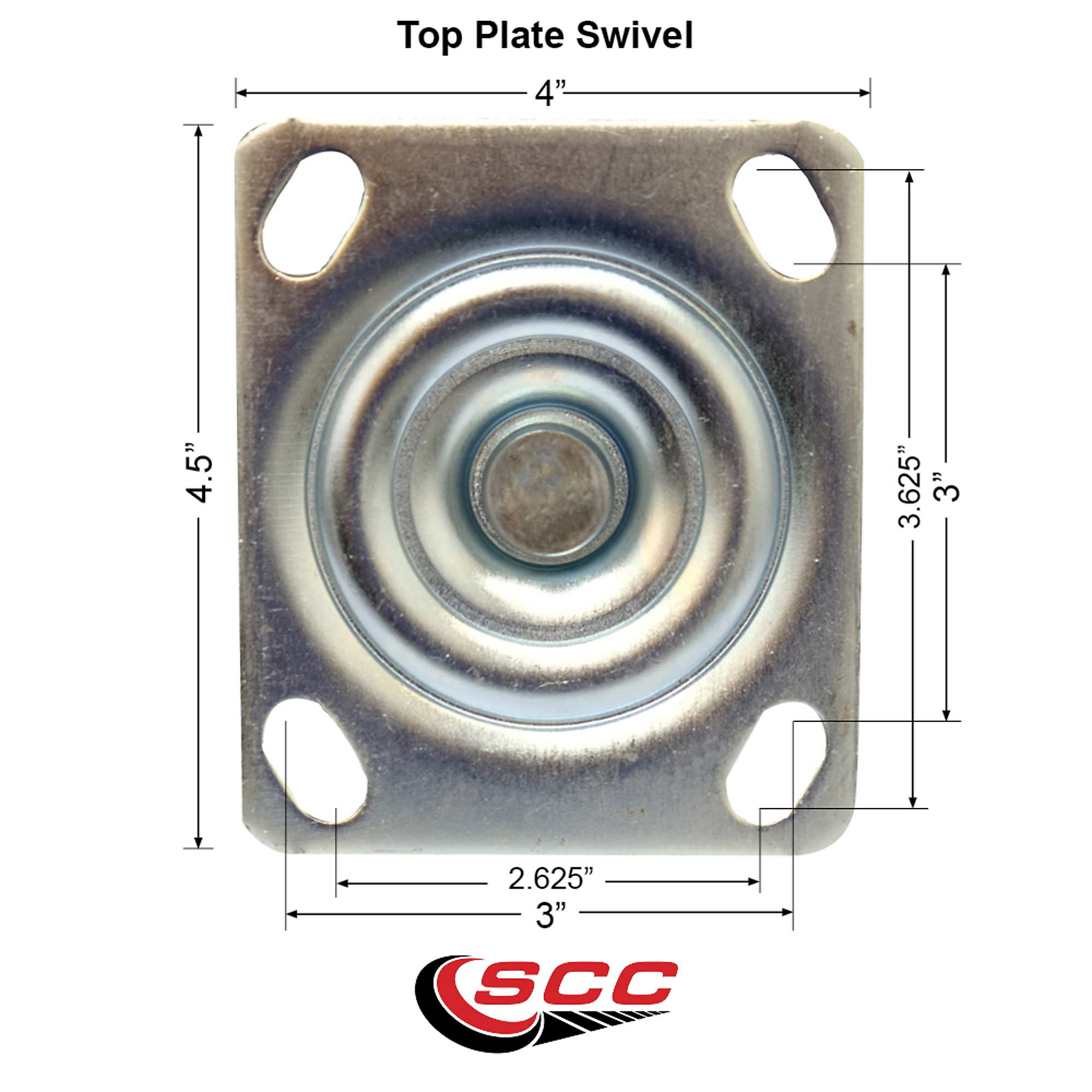

- Top plate measures at 4" x 4 1/2" with a bolt hole pattern of 2.625" x 3.625" to 3" x 3" and can either be bolted or welded on.
- Brake options include top lock brake (TLB), side lock brake (SLB), bolt-on swivel lock (BSL), or combinations of each. The TLB (6, 8, and 10” casters) places a positive locking force against the wheel top, whereas the SLB (12” caster) places the force against the wheel side. The bolt-on swivel lock (BSL) is field installable and converts a swivel caster to rigid for straight-line tracking at any 90 degree angle via a spring-loaded bolt inserted into one of 4 notches found on the swivel raceway.
See full description
See All 300 - 499 Lbs.
See All Service Caster 300 - 499 Lbs.
Currently Viewing This Product
Specifications
8 in
4 in
5 in
4 in
Swivel
Swivel
Swivel
Swivel
1
1
1
1
Rubber
Thermoplastic Rubber
Rubber
Rubber
Plate
Plate
Plate
Plate
300 lb
485 lb
440 lb
396 lb
2.5 in
4 in
5 in
4 in
Bright Zinc Plated Finish
Zinc Plated
Zinc Plated
Zinc Plated
4 x 4.5
4 X 4 1/2
4 X 4 1/2
4 X 4 1/2
2.625 x 3.625 to 3 x 3
-
-
-
No
No
No
No
10 in
5.5 in
6.5 in
6.5 in
Sealed
Ball
Roller
Roller
9.0000 lb
5.0000 lb
7.0000 lb
5.0000 lb
12.0 x 12.0 x 7.5 in
5.625 x 4.0 x 5.5 in
6.5 x 4.0 x 6.5 in
5.0 x 4.0 x 6.5 in
-
No
No
No
-
No
No
No
