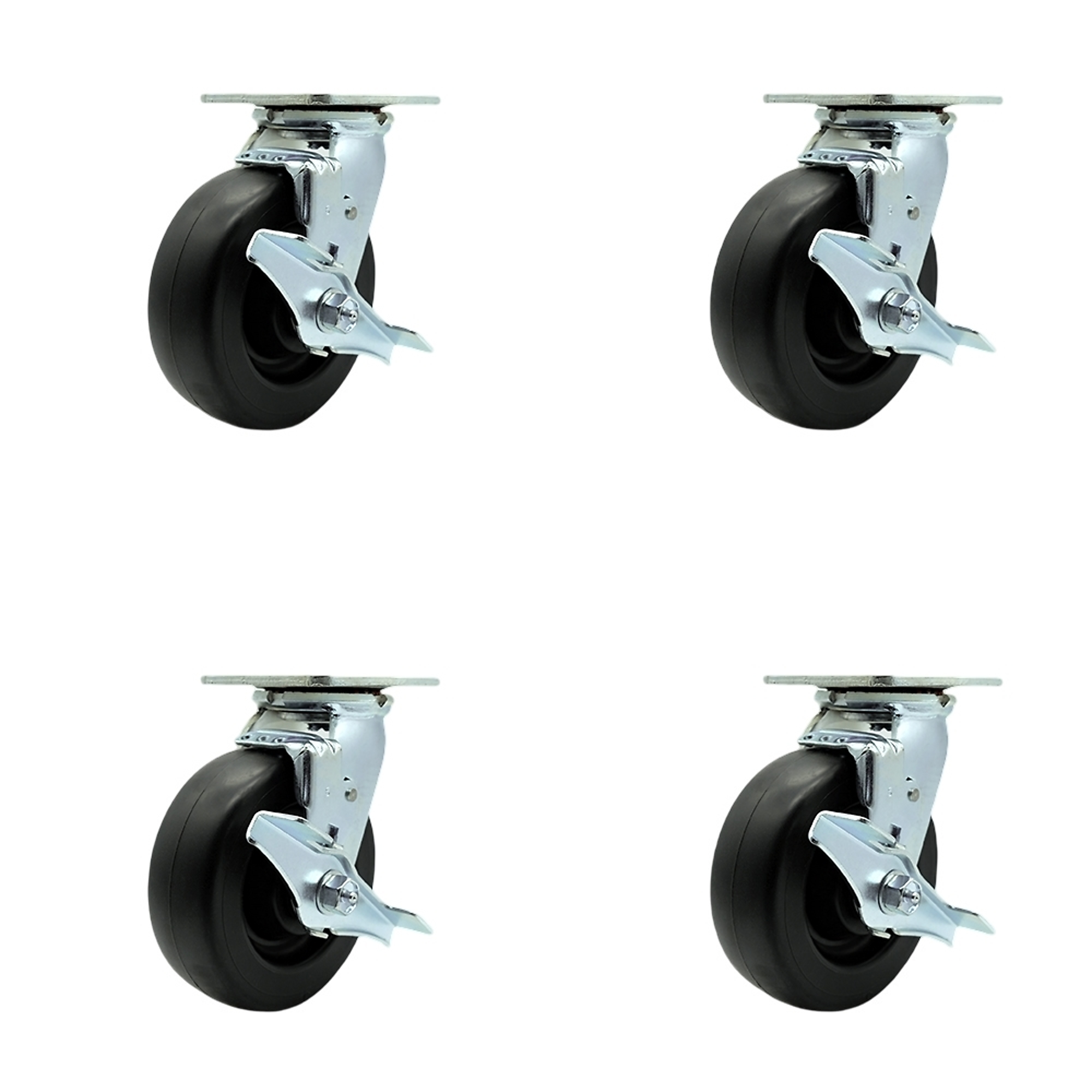

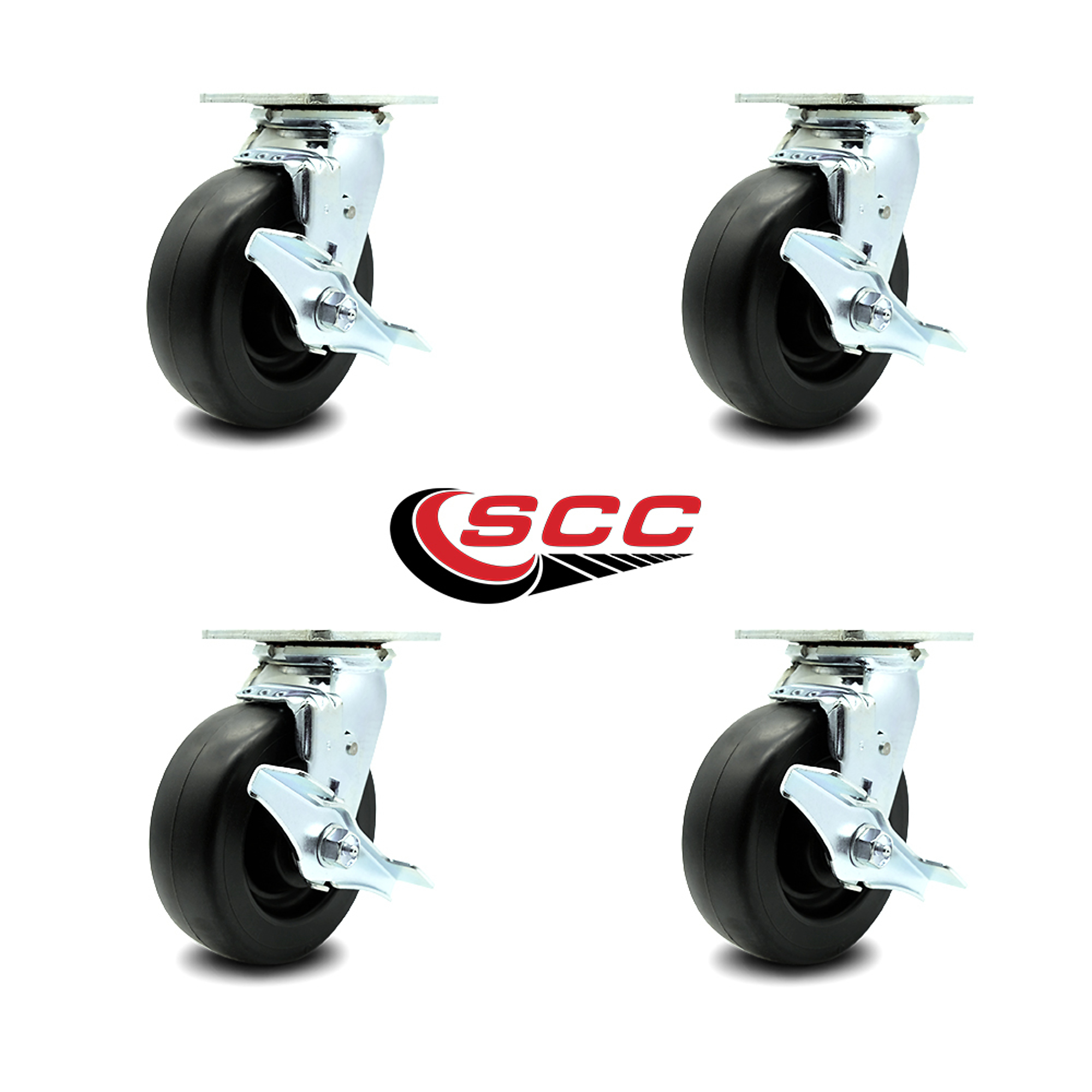

Service Caster, 6in. x 2in. Plate Casters, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS620-POB-TLB-4

Item# 5408689
Service Caster, 6in. x 2in. Plate Casters, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS620-POB-TLB-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 6in. x 2in. Plate Casters, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS620-POB-TLB-4

Click or Tap image to Zoom

$259.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • These Service Caster Series #30 Polyolefin casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 4": 500 lbs Capacity/Caster, 5": 650 lbs Capacity/Caster, 6": 700 lbs. Capacity/Caster, and 8": 900 lbs Capacity/Caster

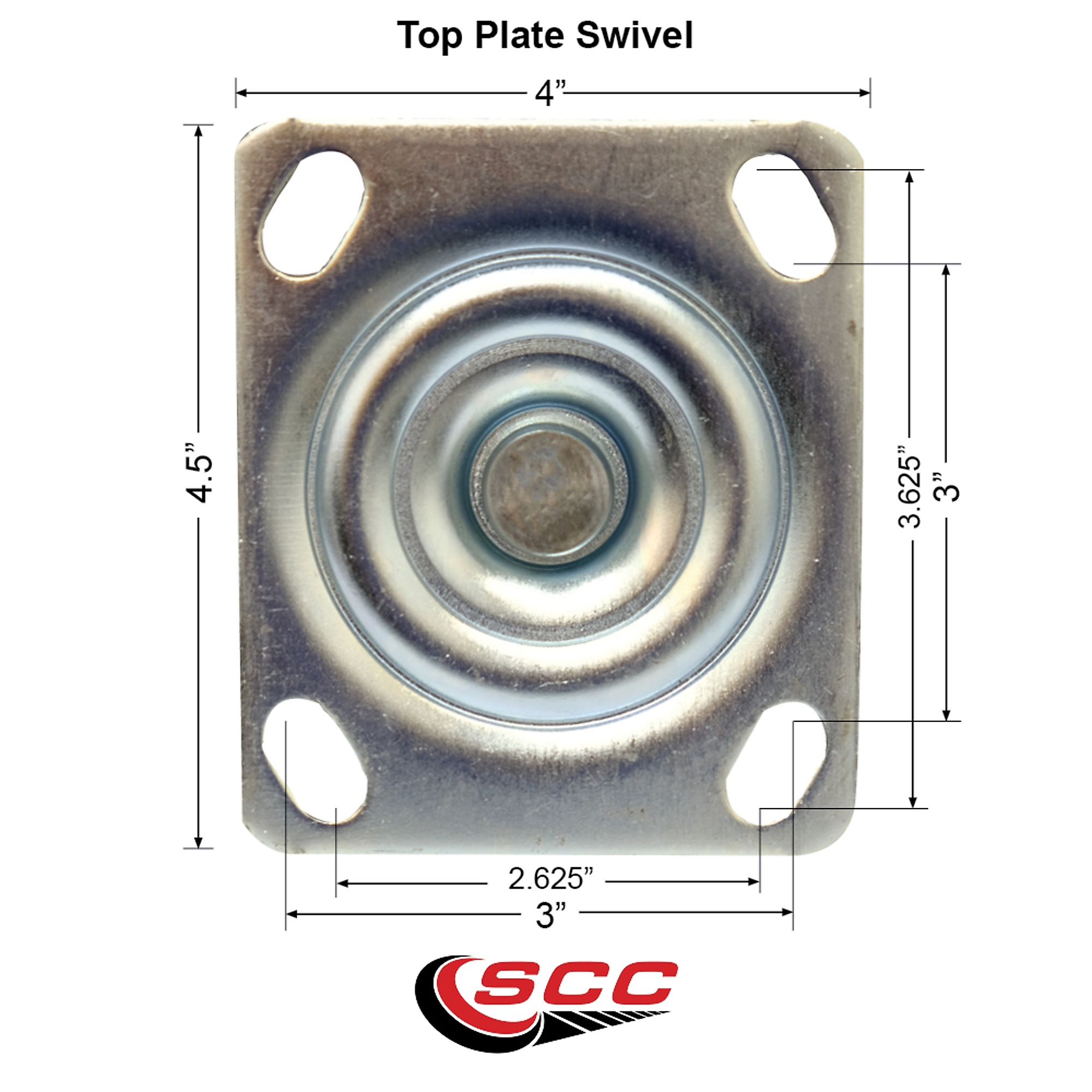

  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.

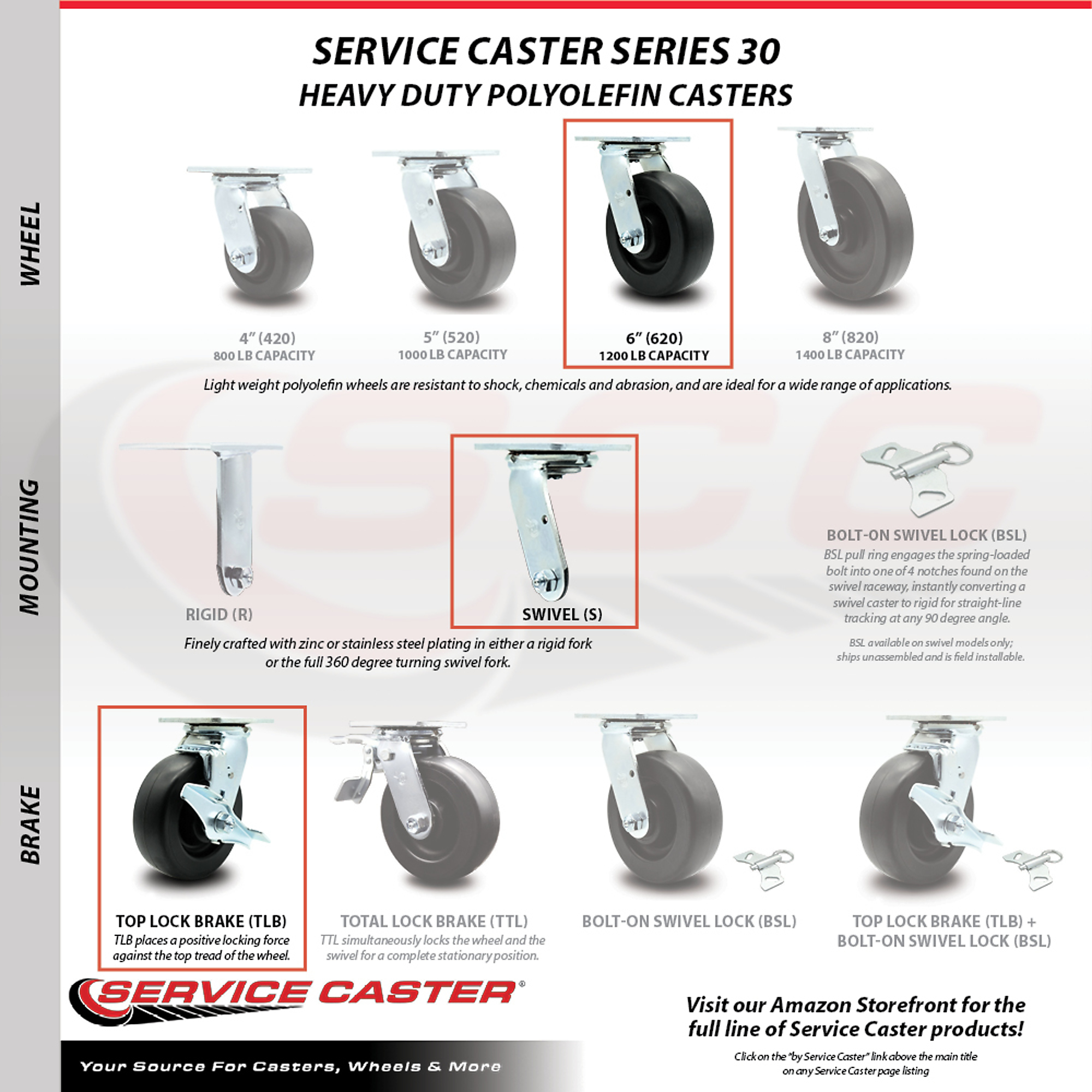

  • Brake options include a top lock brake (TLB) and a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

Listing is for a set of four (4) Service Caster Series #30 swivel casters with 6in. diameter by 2in. wide polyolefin wheel and maintenance free precision ball wheel bearings with top lock brakes capable of supporting a total weight of 2800 lbs. (700 lbs. per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 30 top plate polyolefin wheel casters. The Service Caster Series #30 features light weight polyolefin wheels that are resistant to shock, chemicals and abrasion, and finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway. These versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Plate Casters

Features + Benefits

  • These Service Caster Series #30 Polyolefin casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 4": 500 lbs Capacity/Caster, 5": 650 lbs Capacity/Caster, 6": 700 lbs. Capacity/Caster, and 8": 900 lbs Capacity/Caster
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB) and a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5408689

Brand

Service Caster

Ship Weight

31.0 LB

Wheel Diameter

6 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Polyolefin

Mount Type

Plate

Load Capacity per Caster

700 lb
AttributeSpecification

Wheel Width

2 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

4 x 4.5

Bolt Hole Spacing

2.625 x 3.625 to 3 x 3

Foot Brake

Yes

Overall Height

7.5 in

Bearing Type

Sealed

Product Weight

23.2000 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 7.5 in
