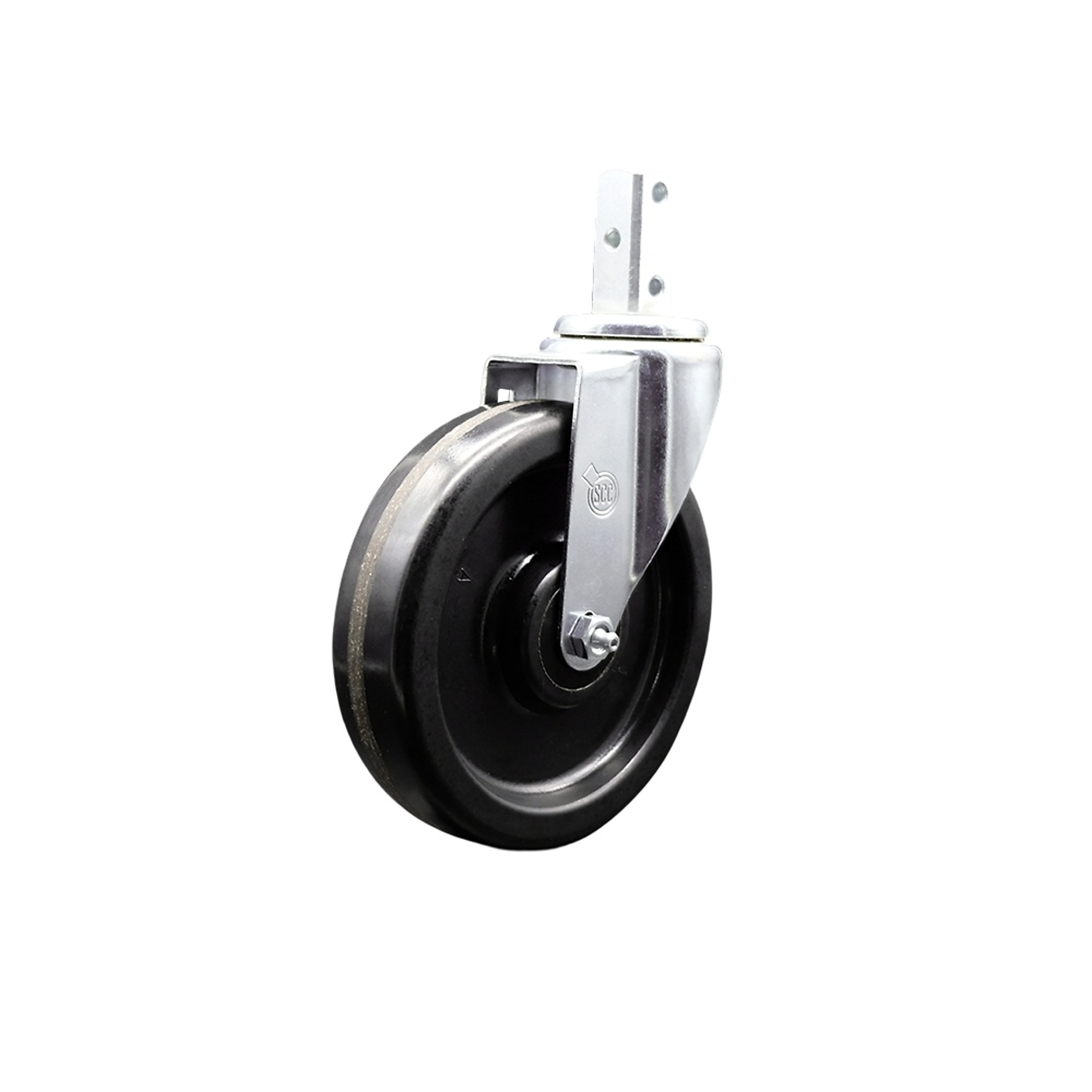

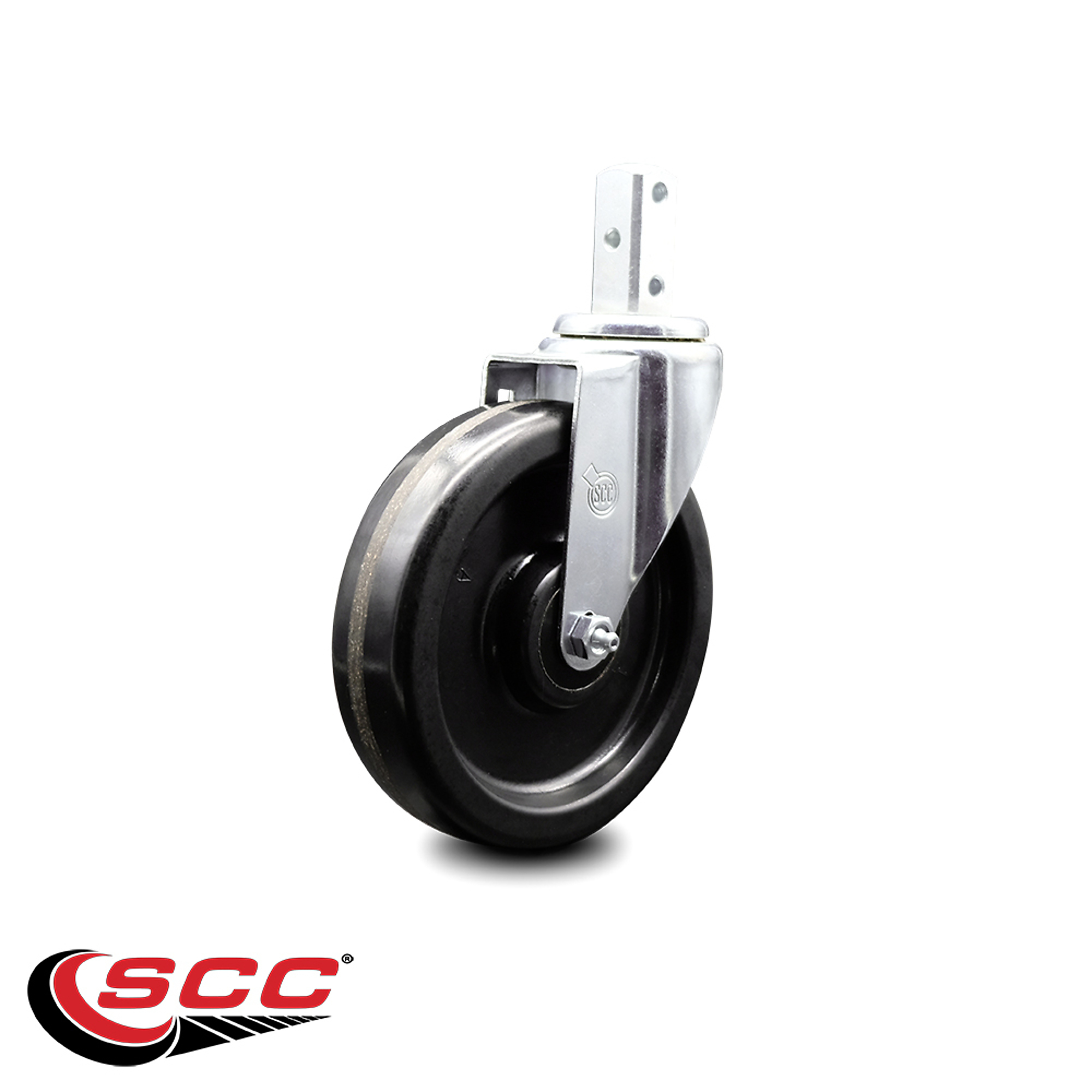

Service Caster, 6in. x 1 1/2in. Stem Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-SQ20S615-PHS-34

Item# 5449165
Service Caster, 6in. x 1 1/2in. Stem Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-SQ20S615-PHS-34

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 6in. x 1 1/2in. Stem Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-SQ20S615-PHS-34

Click or Tap image to Zoom

$39.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

  • These Service Caster Series #20 Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6" wheel: 7-1/8" mounting height.
  • Weight Capacity: 3",3.5", 4", 5", and 6": 300 lbs Capacity/Caster
  • All casters feature a 3/4” x 2” square stem with (3) 17/64” diameter mounting holes. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

Listing is for one (1) Service Caster Series #20 swivel caster with a 6” diameter by 1-1/2” wide black phenolic wheel and a 3/4in. square stem capable of supporting 300lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 square stem phenolic casters. The Service Caster Series 20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the phenolic resin wheels are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. The square stems are designed to be bolted or riveted onto the inside of angled iron legs or against any flat surface. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (1) Stem Caster

Features + Benefits

  • These Service Caster Series #20 Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6" wheel: 7-1/8" mounting height.
  • Weight Capacity: 3",3.5", 4", 5", and 6": 300 lbs Capacity/Caster
  • All casters feature a 3/4” x 2” square stem with (3) 17/64” diameter mounting holes. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5449165

Brand

Service Caster

Ship Weight

11.0 LB

Wheel Diameter

6 in

Caster Type

Swivel

Package (qty.)

1

Wheel Material

Phenolic

Mount Type

Stem

Load Capacity per Caster

300 lb
AttributeSpecification

Wheel Width

1.5 in

Finish Type

Bright Zinc Plated Finish

Foot Brake

No

Overall Height

7.125 in

Stem Length

2 in

Stem Diameter

0.75 in

Bearing Type

Plain

Product Weight

2.2000 lb

Dimensions L x W x H (in.)

5.0 x 5.0 x 5.0 in

Reviews

Questions & Answers

Questions

Compare with Most Popular in 300 - 499 Lbs.

See All 300 - 499 Lbs.

See All Service Caster 300 - 499 Lbs.

Specifications

Specifications
Service Caster, 6in. x 1 1/2in. Stem Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-SQ20S615-PHS-34
Vestil Rubber Swivel Caster - 4in. x 2in., 485-Lb. Capacity, Thermoplastic Rubber, Gray, Model# CST-VE-4X2TPR-S
Vestil Rubber Swivel Caster - 5in. x 2in., 440-Lb. Capacity, Molded Rubber, Aluminum Core, Model# CST-VE-5X2MR-S
Vestil Mold On Rubber Caster - 4in. Wheel Diameter, Aluminum Core, Zinc Plated, Model# CST-VE-4X2MR-S
Wheel Diameter
Same

6 in

4 in

5 in

4 in

Caster Type
Same

Swivel

Swivel

Swivel

Swivel

Package (qty.)
Same

1

1

1

1

Wheel Material
Same

Phenolic

Thermoplastic Rubber

Rubber

Rubber

Mount Type
Same

Stem

Plate

Plate

Plate

Load Capacity per Caster
Same

300 lb

485 lb

440 lb

396 lb

Wheel Width
Same

1.5 in

4 in

5 in

4 in

Finish Type
Same

Bright Zinc Plated Finish

Zinc Plated

Zinc Plated

Zinc Plated

Foot Brake
Same

No

No

No

No

Overall Height
Same

7.125 in

5.5 in

6.5 in

6.5 in

Stem Length
Same

2 in

-

-

-

Stem Diameter
Same

0.75 in

-

-

-

Bearing Type
Same

Plain

Ball

Roller

Roller

Product Weight
Same

2.2000 lb

5.0000 lb

7.0000 lb

5.0000 lb

Dimensions L x W x H (in.)
Same

5.0 x 5.0 x 5.0 in

5.625 x 4.0 x 5.5 in

6.5 x 4.0 x 6.5 in

5.0 x 4.0 x 6.5 in

Plate Dimensions
Same

-

4 X 4 1/2

4 X 4 1/2

4 X 4 1/2

Non-Marking
Same

-

No

No

No

Includes Thread Guards
Same

-

No

No

No
