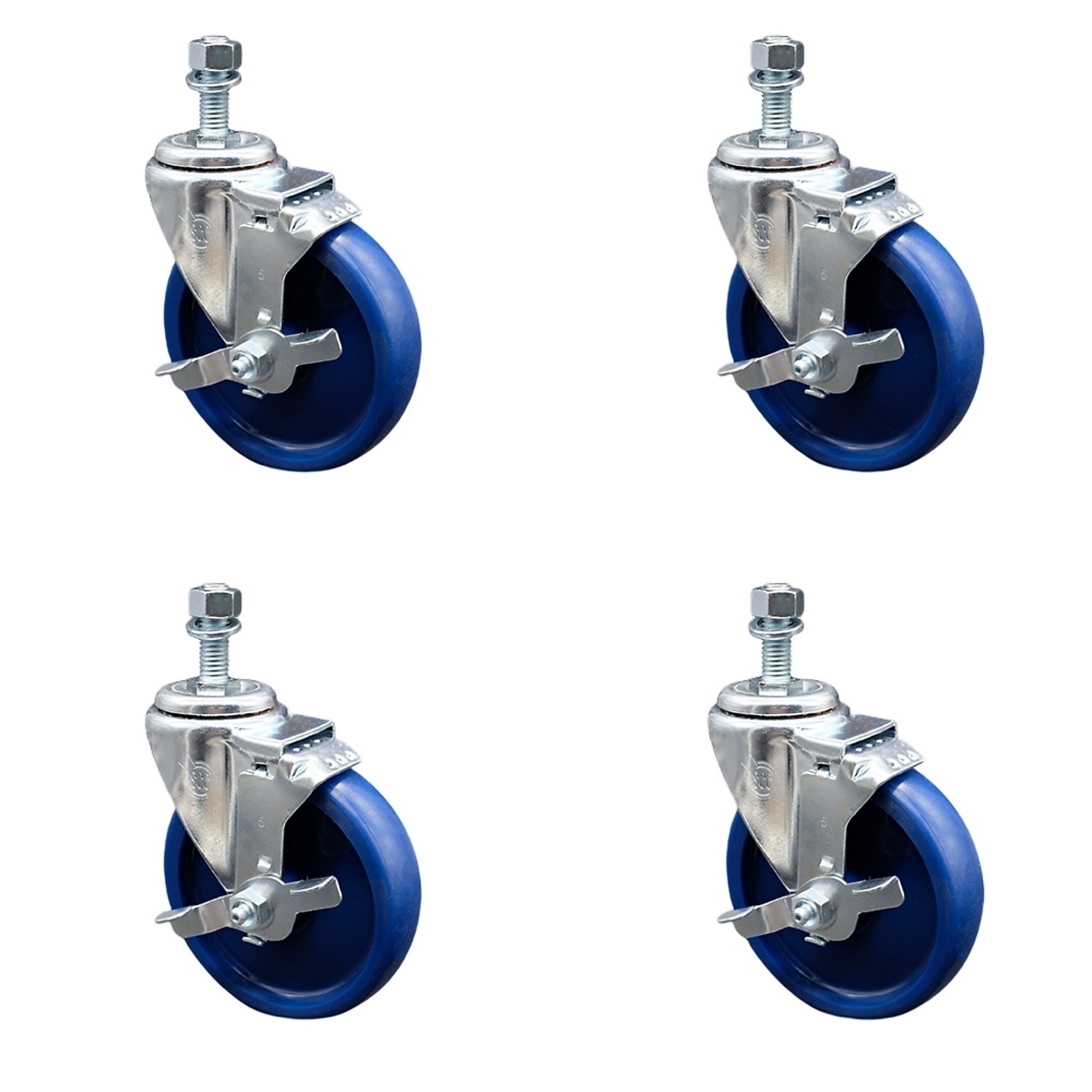

Service Caster, 5in. x 1 1/4in. Stem Casters, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TS20S514-SPUS-TLB-381615-4

Item# 5379574
Service Caster, 5in. x 1 1/4in. Stem Casters, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TS20S514-SPUS-TLB-381615-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 5in. x 1 1/4in. Stem Casters, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TS20S514-SPUS-TLB-381615-4

Click or Tap image to Zoom

$224.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

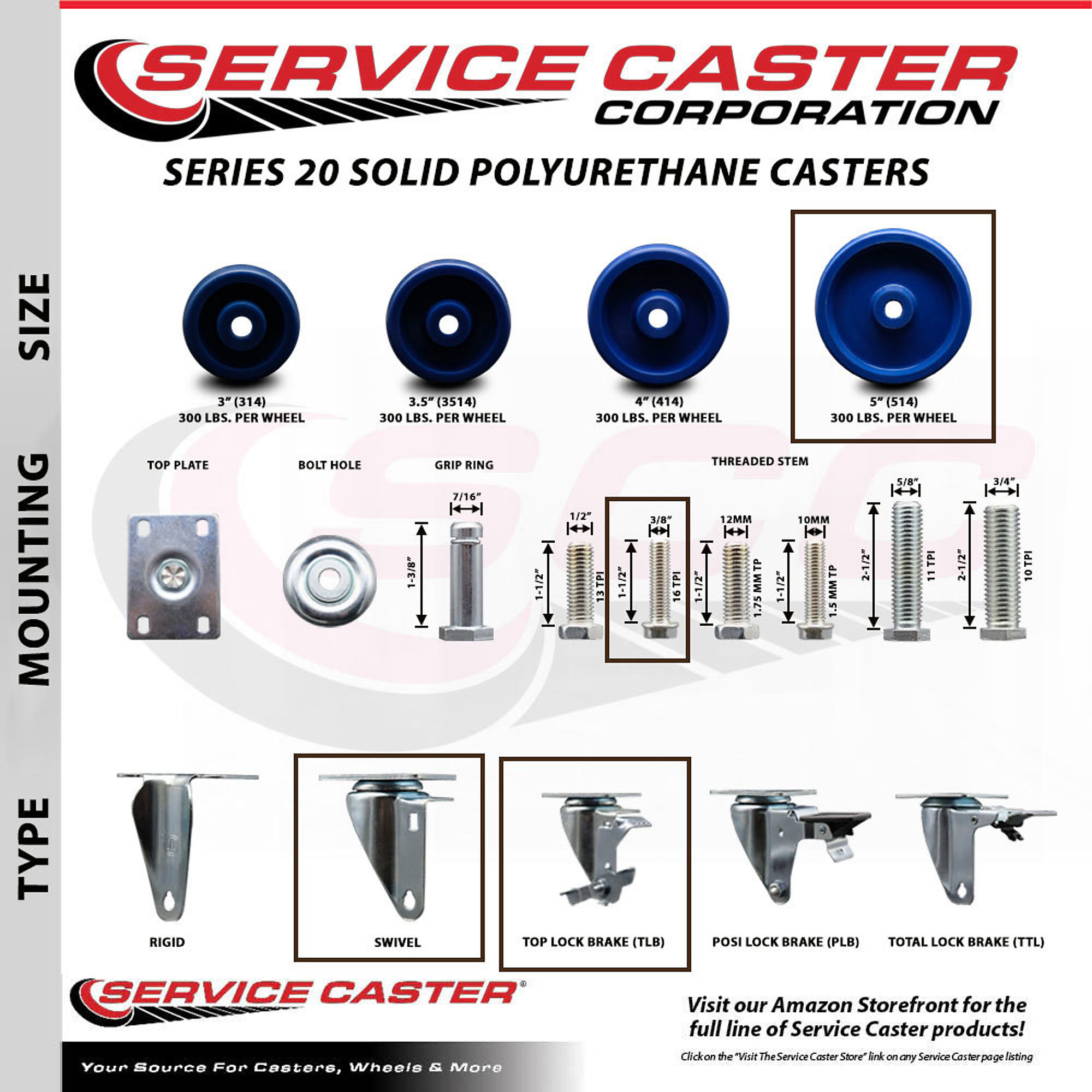

  • These Service Caster Series #20 Solid Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 3", 3.5", 4",and 5": 300 lbs Capacity/Caster
  • All casters feature a 3/8” diameter (16 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

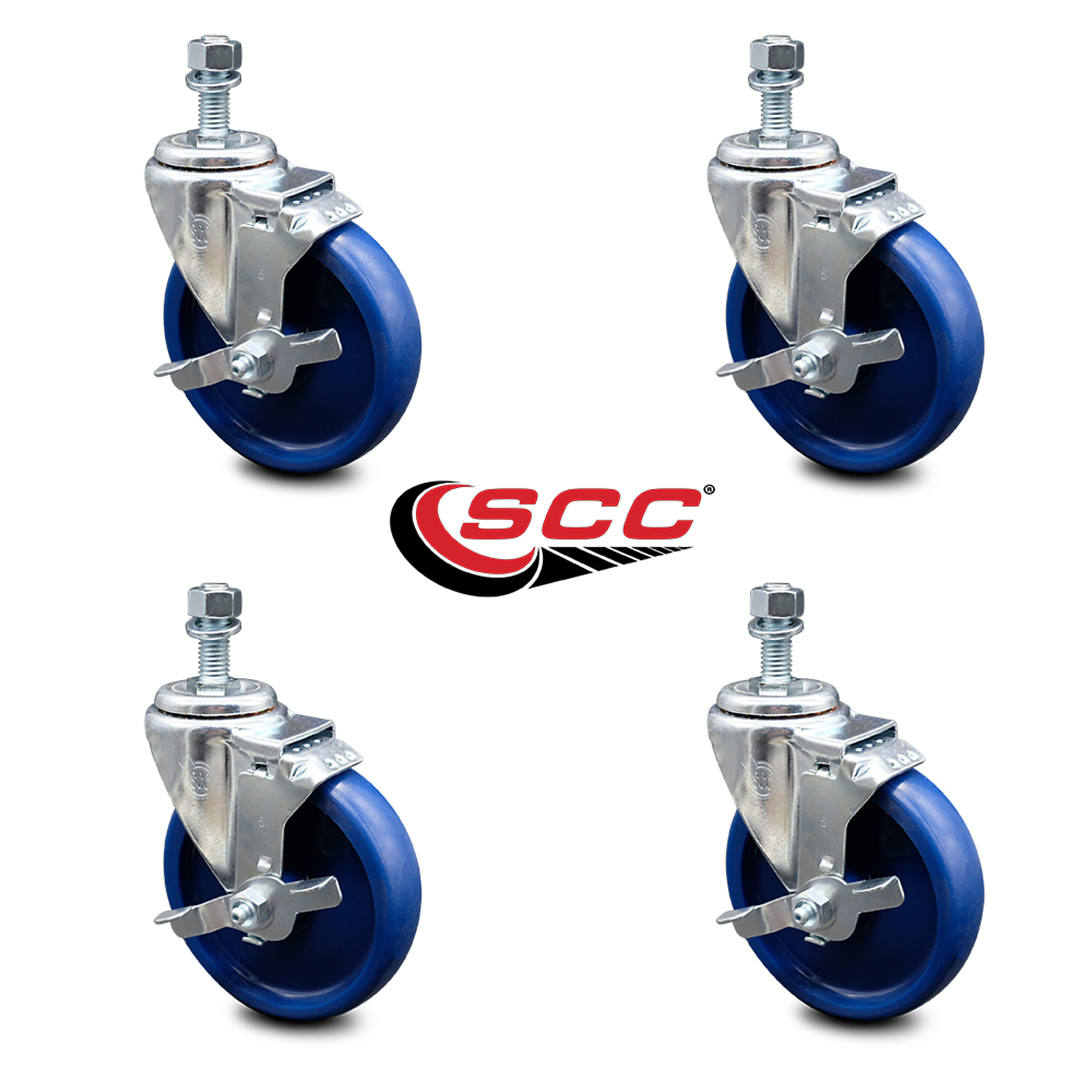

Listing is for a set of four (4) Service Caster Series #20 swivel casters, four (4) Swivel 3/8in. threaded stem casters with top lock brakes, 5” diameter by 1-1/4” wide solid polyurethane wheels. Supports a total weight of 1200lbs (300lbs/per caster). The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition. And the non-marking, non-marring polyurethane wheel is molded as one solid piece, making it free from debonding. This ensures the wheel will not flat spot, as can occur with comparable polyurethane wheels, resulting in a smooth and solid roll over long periods of time. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Stem Casters

Features + Benefits

  • These Service Caster Series #20 Solid Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 3", 3.5", 4",and 5": 300 lbs Capacity/Caster
  • All casters feature a 3/8” diameter (16 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5379574

Brand

Service Caster

Ship Weight

10.0 LB

Wheel Diameter

5 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Polyurethane

Mount Type

Stem

Load Capacity per Caster

300 lb
AttributeSpecification

Wheel Width

1.25 in

Finish Type

Bright Zinc Plated Finish

Foot Brake

Yes

Overall Height

6.125 in

Stem Length

1.5 in

Stem Diameter

0.375 in

Bearing Type

Plain

Product Weight

8.0000 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in

Reviews

Questions & Answers

Questions

Compare with Most Popular in 300 - 499 Lbs.

See All 300 - 499 Lbs.

See All Service Caster 300 - 499 Lbs.

Specifications

Specifications
Service Caster, 5in. x 1 1/4in. Stem Casters, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TS20S514-SPUS-TLB-381615-4
Service Caster, 6in. x 1 1/2in. Stem Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-TS20S615-PHSHT-121315
Service Caster, 6in. x 1 1/2in. Stem Casters, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TSTTL20S615-PHSHT-381615-2-S-2
Service Caster, 6in. x 1 1/2in. Stem Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-BHTTL20S615-PHSHT
Wheel Diameter
Same

5 in

6 in

6 in

6 in

Caster Type
Same

Swivel

Swivel

Swivel

Swivel

Package (qty.)
Same

4

1

4

1

Wheel Material
Same

Polyurethane

Phenolic

Phenolic

Phenolic

Mount Type
Same

Stem

Stem

Stem

Bolt-hole

Load Capacity per Caster
Same

300 lb

300 lb

300 lb

300 lb

Wheel Width
Same

1.25 in

1.5 in

1.5 in

1.5 in

Finish Type
Same

Bright Zinc Plated Finish

Bright Zinc Plated Finish

Bright Zinc Plated Finish

Bright Zinc Plated Finish

Foot Brake
Same

Yes

No

Yes

Yes

Overall Height
Same

6.125 in

7.125 in

7.125 in

7.125 in

Stem Length
Same

1.5 in

1.5 in

1.5 in

-

Stem Diameter
Same

0.375 in

0.5 in

0.375 in

-

Bearing Type
Same

Plain

Plain

Plain

Plain

Product Weight
Same

8.0000 lb

3.1500 lb

13.0000 lb

3.1500 lb

Dimensions L x W x H (in.)
Same

8.0 x 8.0 x 8.0 in

8.0 x 8.0 x 8.0 in

8.0 x 8.0 x 8.0 in

8.0 x 8.0 x 8.0 in
