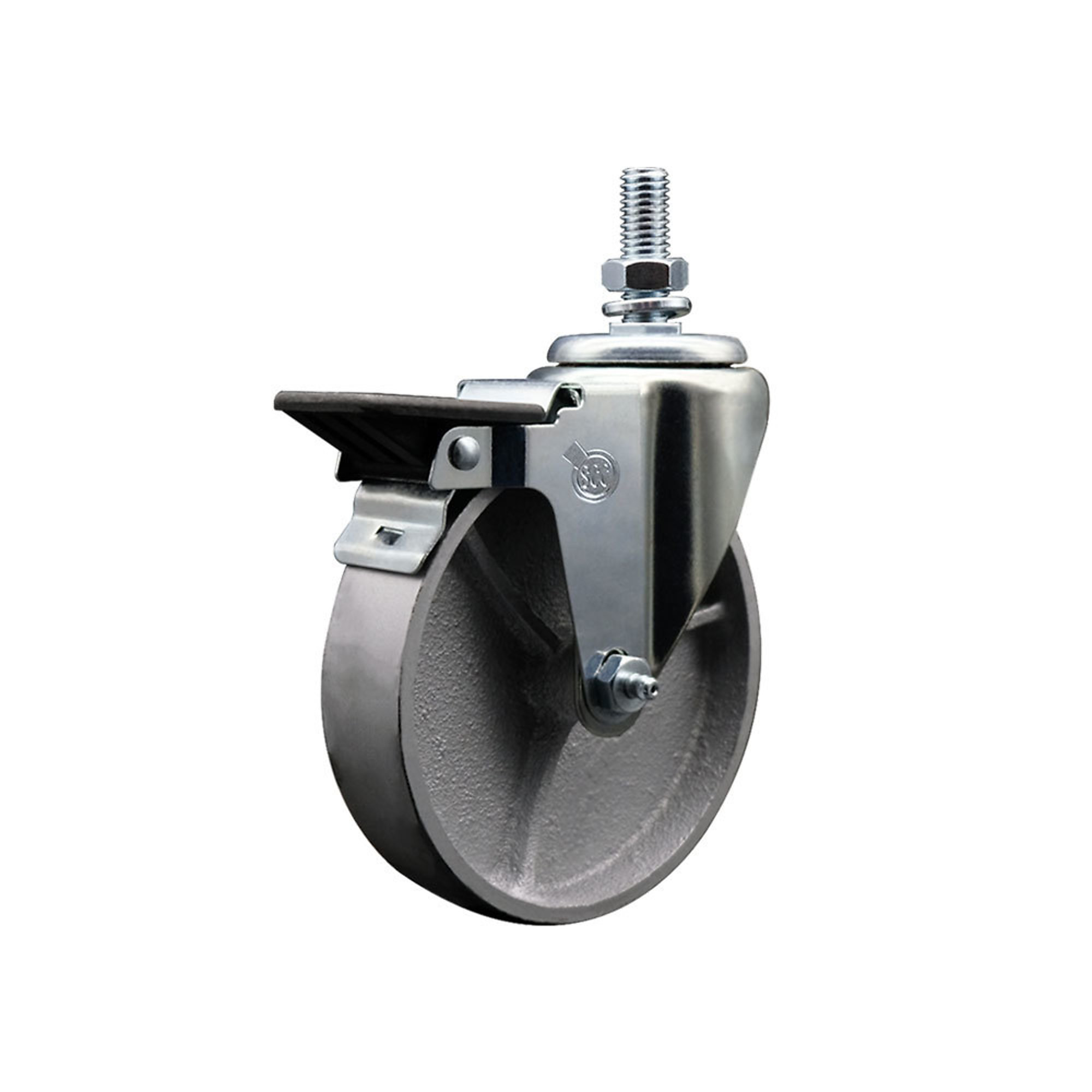

Service Caster, 5in. x 1 1/4in. Stem Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-TS20S514-SSS-PLB-M1015

Item# 5650117
Service Caster, 5in. x 1 1/4in. Stem Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-TS20S514-SSS-PLB-M1015

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 5in. x 1 1/4in. Stem Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-TS20S514-SSS-PLB-M1015

Click or Tap image to Zoom

$67.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

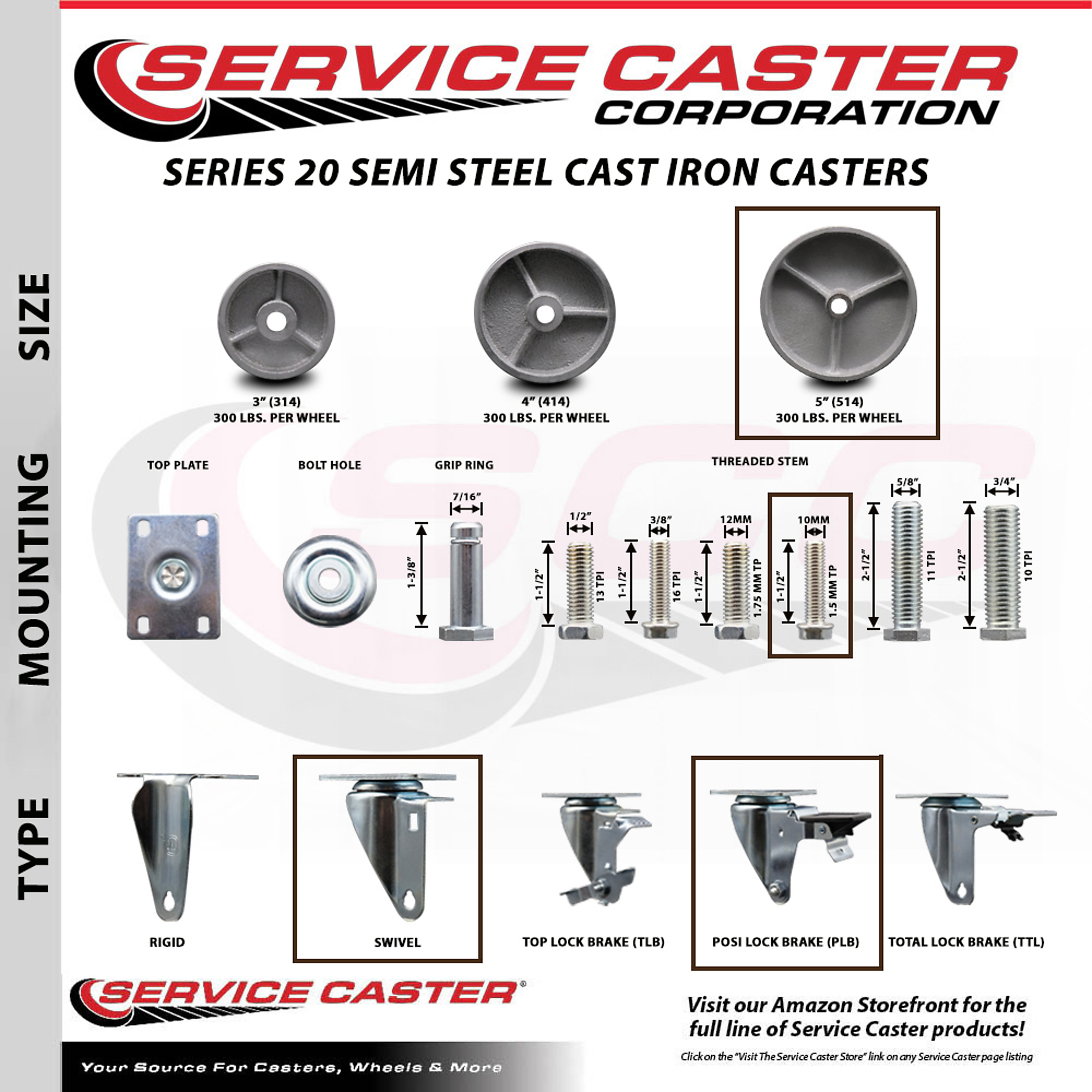

  • These Service Caster Series #20 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” Wheel: 5-1/8” mounting height; 5” Wheel: 6-1/8” mounting height.
  • Weight Capacity: 3", 4", and 5": 300 lbs Capacity/Caster

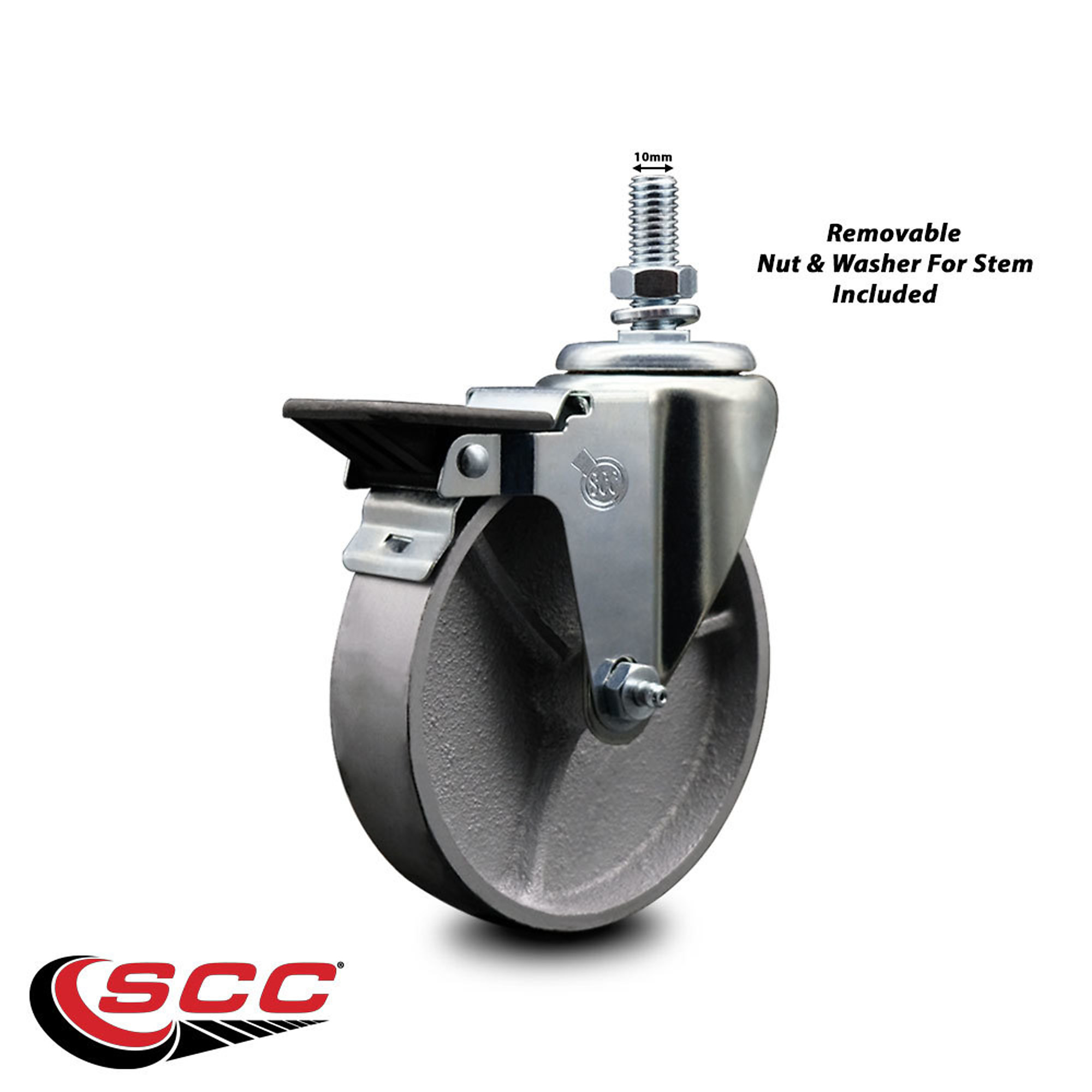

  • All casters feature a 10mm diameter (1.50 TPI x 2-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

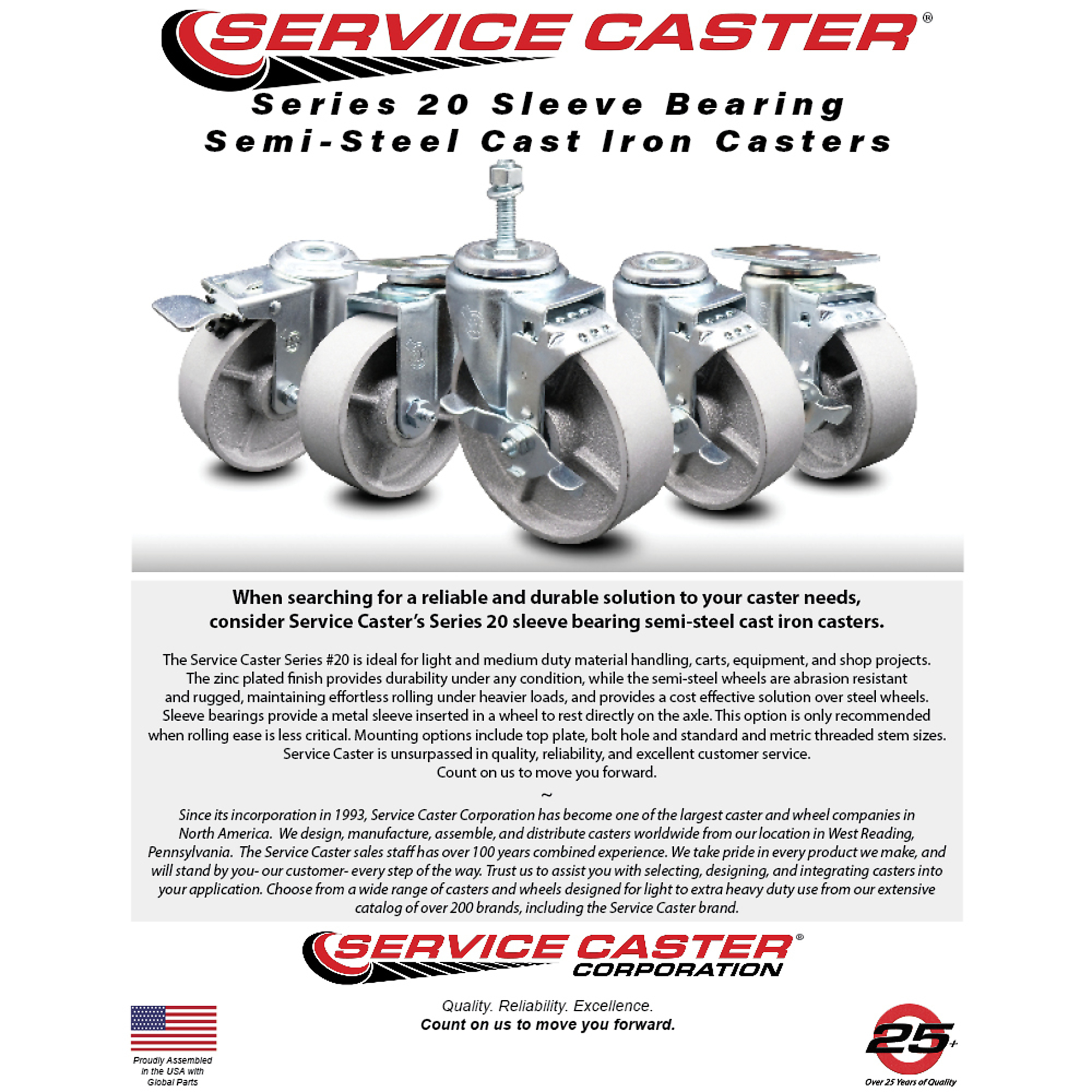

Listing is for one (1) Service Caster Series #20 swivel caster with a 5in. diameter by 1-1/4in. wide semi steel cast iron wheel and a 10MM threaded stem with brake capable of supporting 300 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 sleeve bearing semi-steel cast iron casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the semi-steel wheels are abrasion resistant and rugged, maintaining effortless rolling under heavier loads, and provides a cost-effective solution over steel wheels. Sleeve bearings provide a metal sleeve inserted in a wheel to rest directly on the axle. This option is only recommended when rolling ease is less critical. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (1) Stem Caster

Features + Benefits

  • These Service Caster Series #20 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” Wheel: 5-1/8” mounting height; 5” Wheel: 6-1/8” mounting height.
  • Weight Capacity: 3", 4", and 5": 300 lbs Capacity/Caster
  • All casters feature a 10mm diameter (1.50 TPI x 2-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.

Key Specs

AttributeSpecification

item#

5650117

Brand

Service Caster

Ship Weight

4.0 LB

Wheel Diameter

4 in

Caster Type

Swivel

Package (qty.)

1

Wheel Material

Cast Iron

Mount Type

Stem

Load Capacity per Caster

300 lb
AttributeSpecification

Wheel Width

1.25 in

Finish Type

Bright Zinc Plated Finish

Foot Brake

No

Overall Height

6.125 in

Stem Length

1.5 in

Stem Diameter

10MM in

Bearing Type

Plain

Product Weight

2.0000 lb

Dimensions L x W x H (in.)

5.0 x 5.0 x 5.0 in

Reviews

Questions & Answers

Questions

Compare with Most Popular in 300 - 499 Lbs.

See All 300 - 499 Lbs.

See All Service Caster 300 - 499 Lbs.

Specifications

Specifications
Service Caster, 5in. x 1 1/4in. Stem Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-TS20S514-SSS-PLB-M1015
Vestil Rubber Swivel Caster - 4in. x 2in., 485-Lb. Capacity, Thermoplastic Rubber, Gray, Model# CST-VE-4X2TPR-S
Vestil Rubber Swivel Caster - 5in. x 2in., 440-Lb. Capacity, Molded Rubber, Aluminum Core, Model# CST-VE-5X2MR-S
Vestil Mold On Rubber Caster - 4in. Wheel Diameter, Aluminum Core, Zinc Plated, Model# CST-VE-4X2MR-S
Wheel Diameter
Same

4 in

4 in

5 in

4 in

Caster Type
Same

Swivel

Swivel

Swivel

Swivel

Package (qty.)
Same

1

1

1

1

Wheel Material
Same

Cast Iron

Thermoplastic Rubber

Rubber

Rubber

Mount Type
Same

Stem

Plate

Plate

Plate

Load Capacity per Caster
Same

300 lb

485 lb

440 lb

396 lb

Wheel Width
Same

1.25 in

4 in

5 in

4 in

Finish Type
Same

Bright Zinc Plated Finish

Zinc Plated

Zinc Plated

Zinc Plated

Foot Brake
Same

No

No

No

No

Overall Height
Same

6.125 in

5.5 in

6.5 in

6.5 in

Stem Length
Same

1.5 in

-

-

-

Stem Diameter
Same

10MM in

-

-

-

Bearing Type
Same

Plain

Ball

Roller

Roller

Product Weight
Same

2.0000 lb

5.0000 lb

7.0000 lb

5.0000 lb

Dimensions L x W x H (in.)
Same

5.0 x 5.0 x 5.0 in

5.625 x 4.0 x 5.5 in

6.5 x 4.0 x 6.5 in

5.0 x 4.0 x 6.5 in

Plate Dimensions
Same

-

4 X 4 1/2

4 X 4 1/2

4 X 4 1/2

Non-Marking
Same

-

No

No

No

Includes Thread Guards
Same

-

No

No

No
