Service Caster, 3in. x 1 1/4in. Stem Casters, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TS20S314-TPRB-58212-2-TLB-2

Item# 5651013
"Service Caster, 3in. x 1 1/4in. Stem Casters, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TS20S314-TPRB-58212-2-TLB-2"
Service Caster, 3in. x 1 1/4in. Stem Casters, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TS20S314-TPRB-58212-2-TLB-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 3in. x 1 1/4in. Stem Casters, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TS20S314-TPRB-58212-2-TLB-2

Click or Tap image to Zoom

$114.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

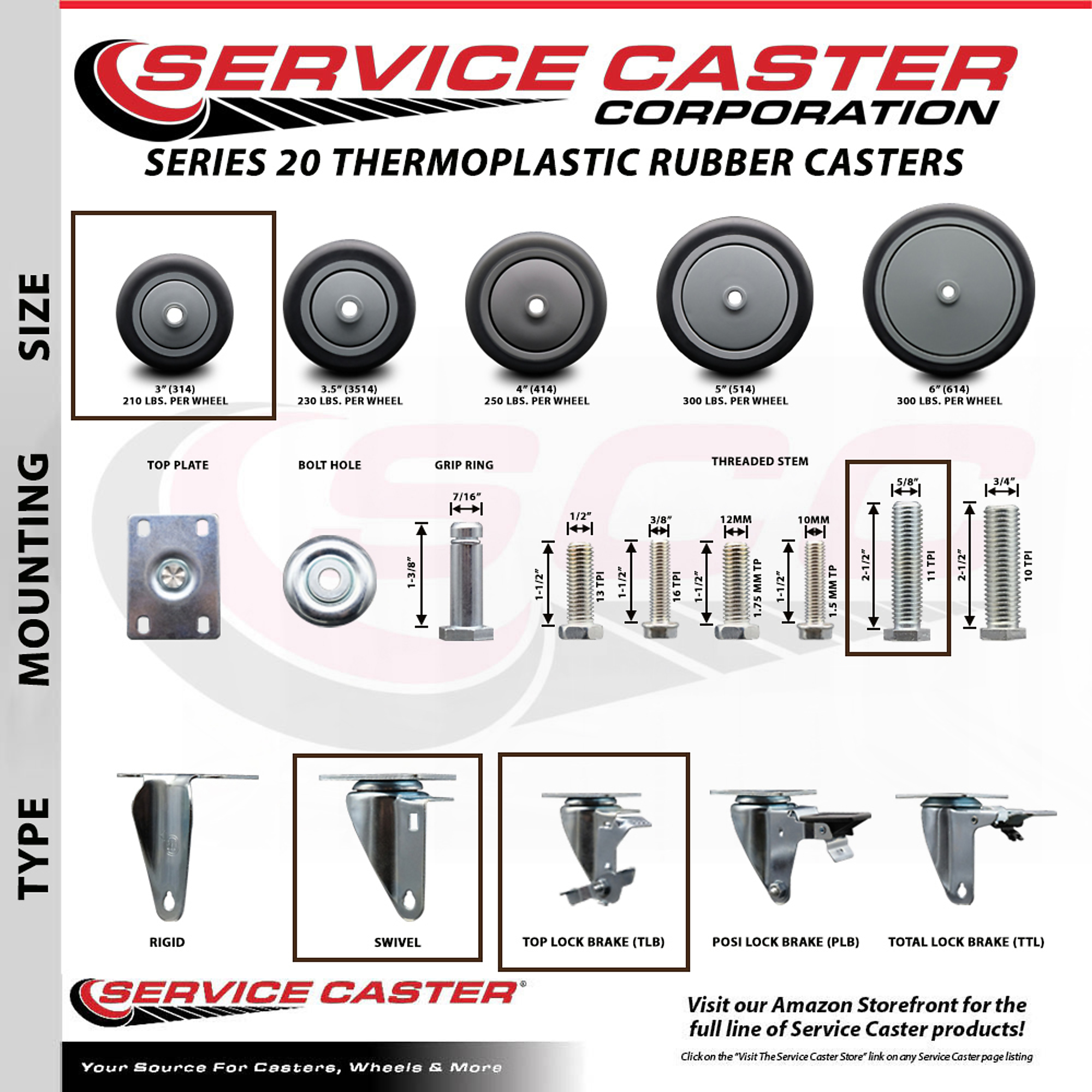

  • These Service Caster Series #20 Thermoplastic Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height.
  • Weight Capacity: 3": 210 lbs Capacity/Caster, 3.5": 230 lbs Capacity/Caster, 4": 250 lbs Capacity/Caster, and 5" & 6": 300 lbs Capacity/Caster
  • All casters feature a 5/8" diameter (11 TPI x 2-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

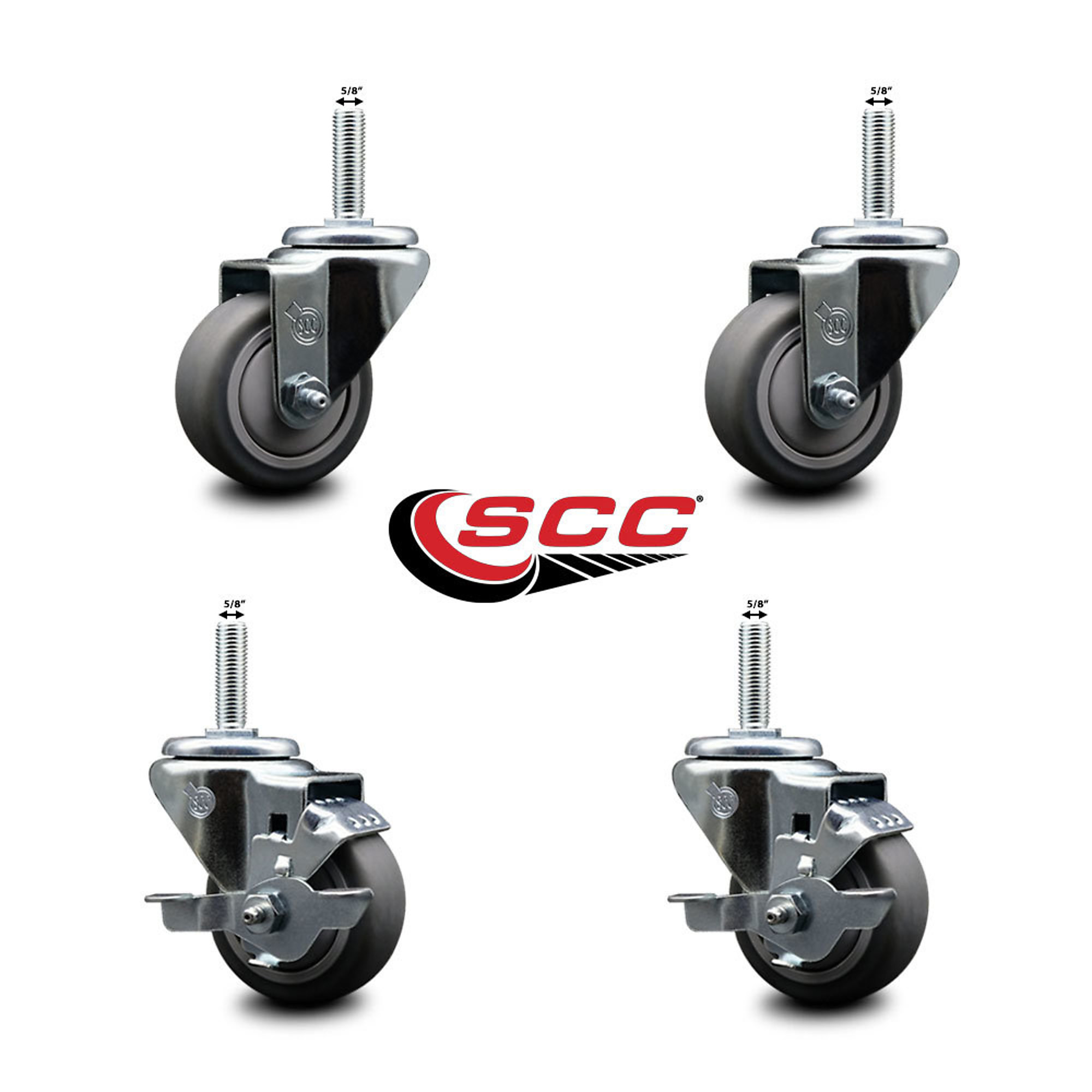

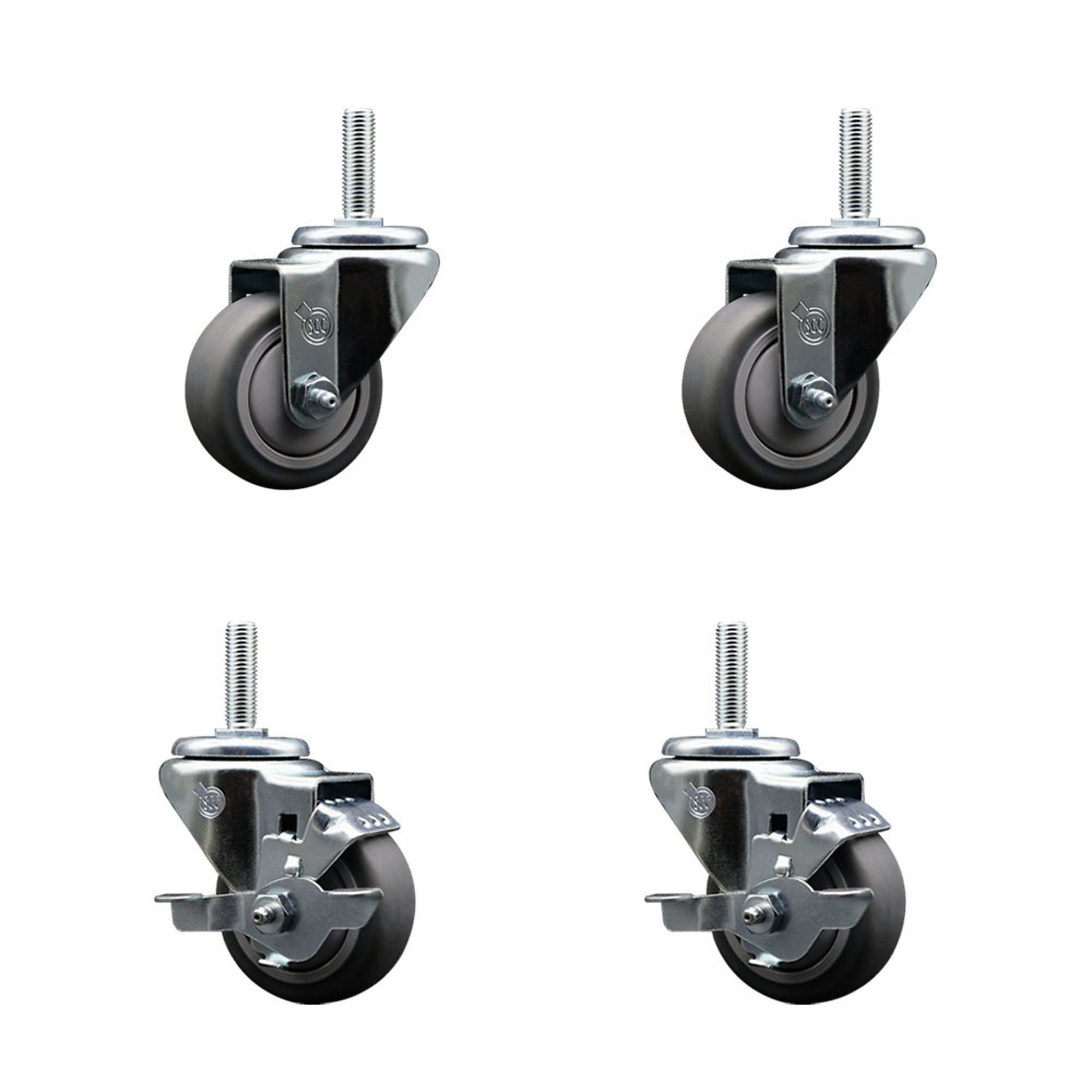

Listing is for a set of four (4) Service Caster Series #20 casters, two (2) Swivel 5/8in. threaded stem with brake casters and two (2) Swivel casters, with 3” diameter by 1-1/4” wide thermoplastic rubber wheels. Supports a total weight of 840lbs (210lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s 316 stainless steel thermoplastic rubber casters. SS316 casters are ideal for light and medium duty material handling, carts, equipment, and shop projects. Built withv316 stainless steel, which contains additional molybdenum and nickel content, making it more corrosion resistant than standard 304 stainless steel. The soft, quiet and non-marking thermoplastic rubber wheels perform especially well on hard surfaces such as concrete, tile, and wood. They are resistant to water, oil, and grease and will keep you safely moving forward. Mounting options include top plate, bolt hole, expanding stem and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Stem Casters

Features + Benefits

  • These Service Caster Series #20 Thermoplastic Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height.
  • Weight Capacity: 3": 210 lbs Capacity/Caster, 3.5": 230 lbs Capacity/Caster, 4": 250 lbs Capacity/Caster, and 5" & 6": 300 lbs Capacity/Caster
  • All casters feature a 5/8" diameter (11 TPI x 2-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.

Key Specs

AttributeSpecification

item#

5651013

Brand

Service Caster

Ship Weight

8.0 LB

Wheel Diameter

3 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Thermoplastic Rubber

Mount Type

Stem

Load Capacity per Caster

840 lb
AttributeSpecification

Wheel Width

1.25 in

Finish Type

Bright Zinc Plated Finish

Foot Brake

Yes

Overall Height

4.125 in

Stem Length

2.5 in

Stem Diameter

0.625 in

Bearing Type

Sealed

Product Weight

5.5000 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in
