Service Caster, 3in. x 1 1/4in. Plate Casters, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TTL20S314-PHSHT-2-R-2

Name: Service Caster, Plate Casters, Caster Type 2 Swivel, Caster Type 2 Rigid, 2 Total Lock Brake, Wheel Material High Temp Phenolic, Wheel Width 1.25 in, Package (qty.) 4, Finish Type Bright Zinc Plated Finish, Bearing Type Plain
Brand: Service Caster
SKU: 72757100000

Item# 5525535

NewOn Sale

Service Caster, 3in. x 1 1/4in. Plate Casters, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TTL20S314-PHSHT-2-R-2

Click or Tap image to Zoom

$219.99

Choose Options for complete product description, reviews and purchasing.

Wheel Diameter

Load Capacity per Caster

Quantity

Save to List

Shipping:
Free shipping (lower 48 states) - Factory shipped
Store Pickup:
Not available - online only

These Service Caster Series #20 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6" wheel: 7-1/8" mounting height.
Weight Capacity: 3", 4", 5", and 6": 300 lbs Capacity/Caster

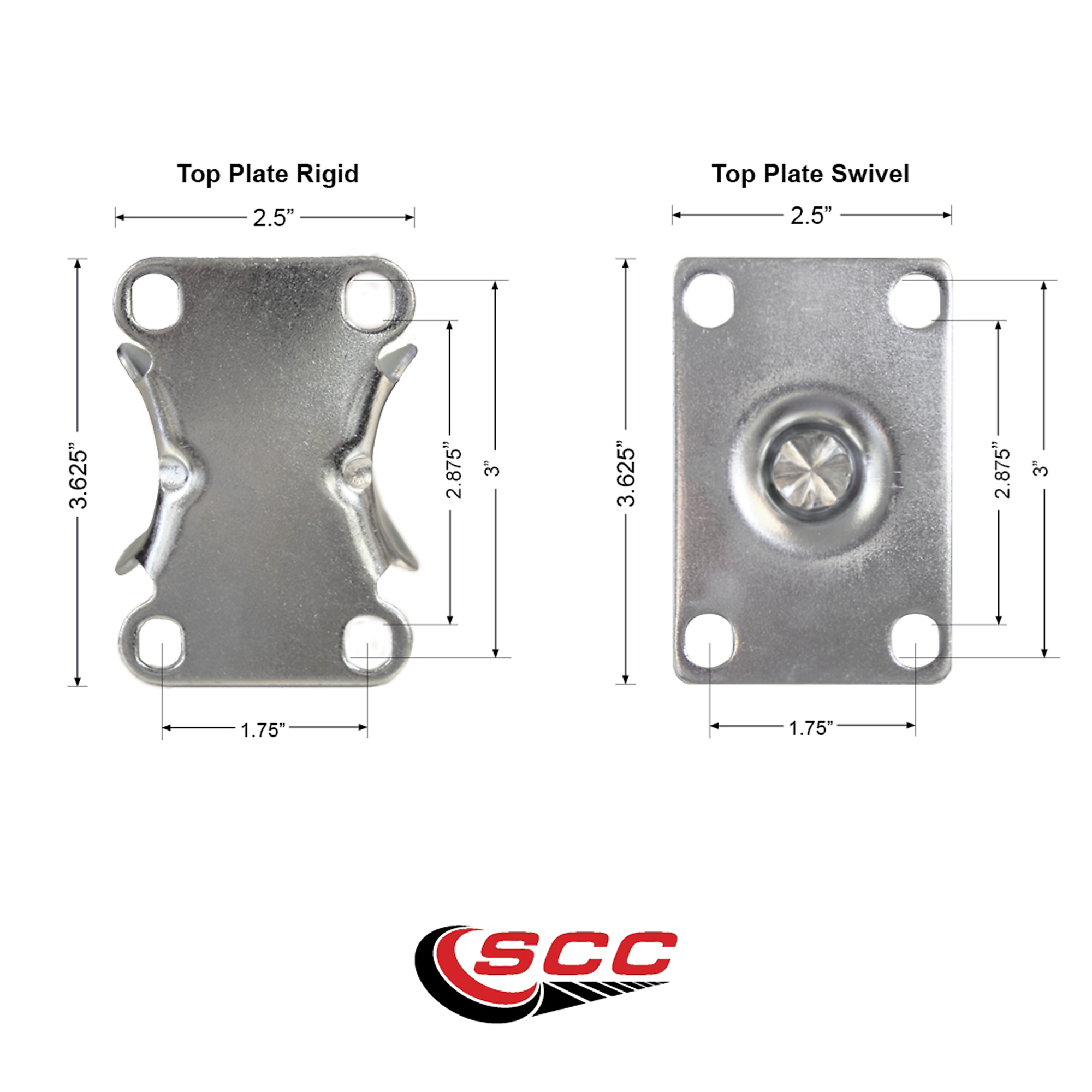

Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on.
Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

Description
Key Specs
Reviews
Q & A
Compare

Product Summary

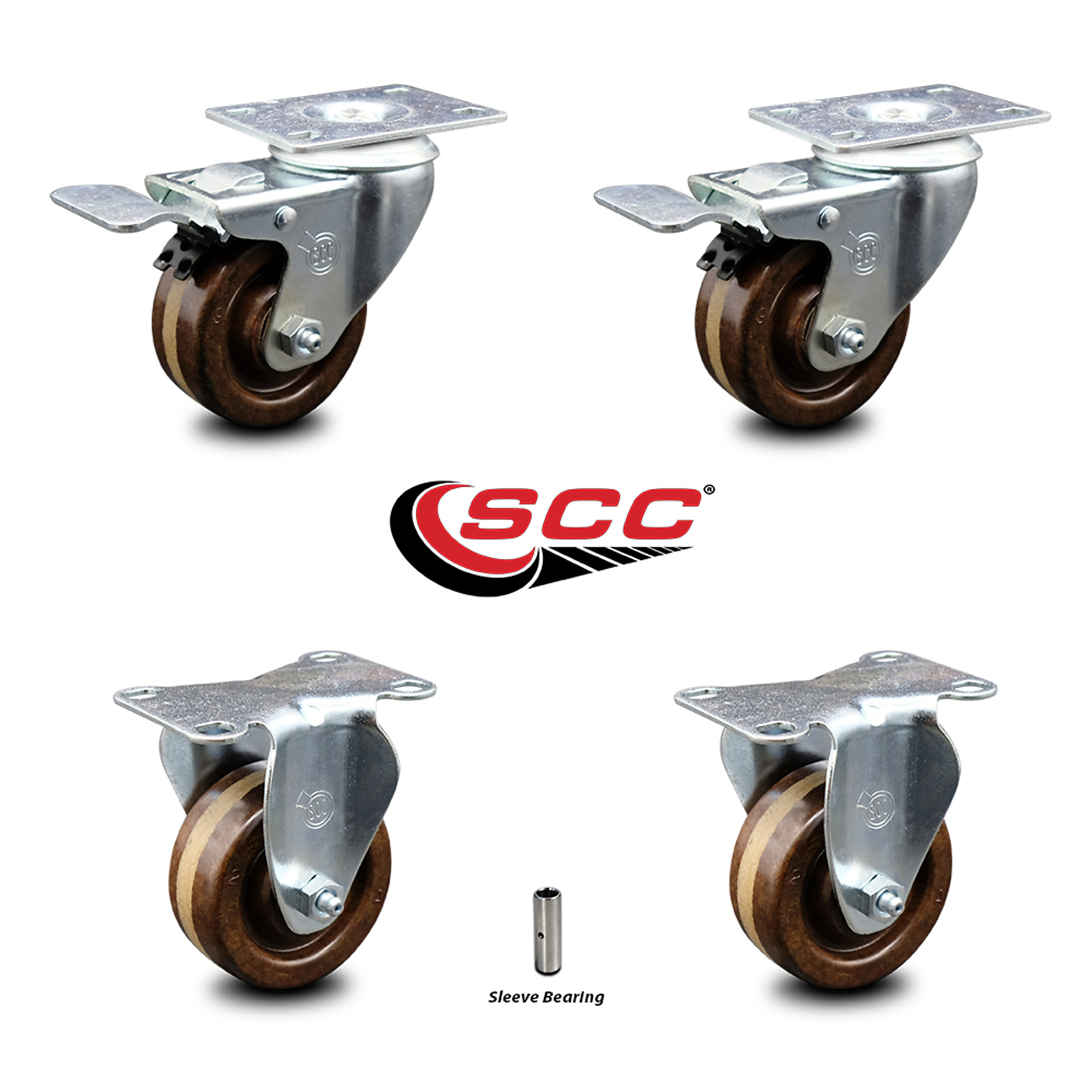

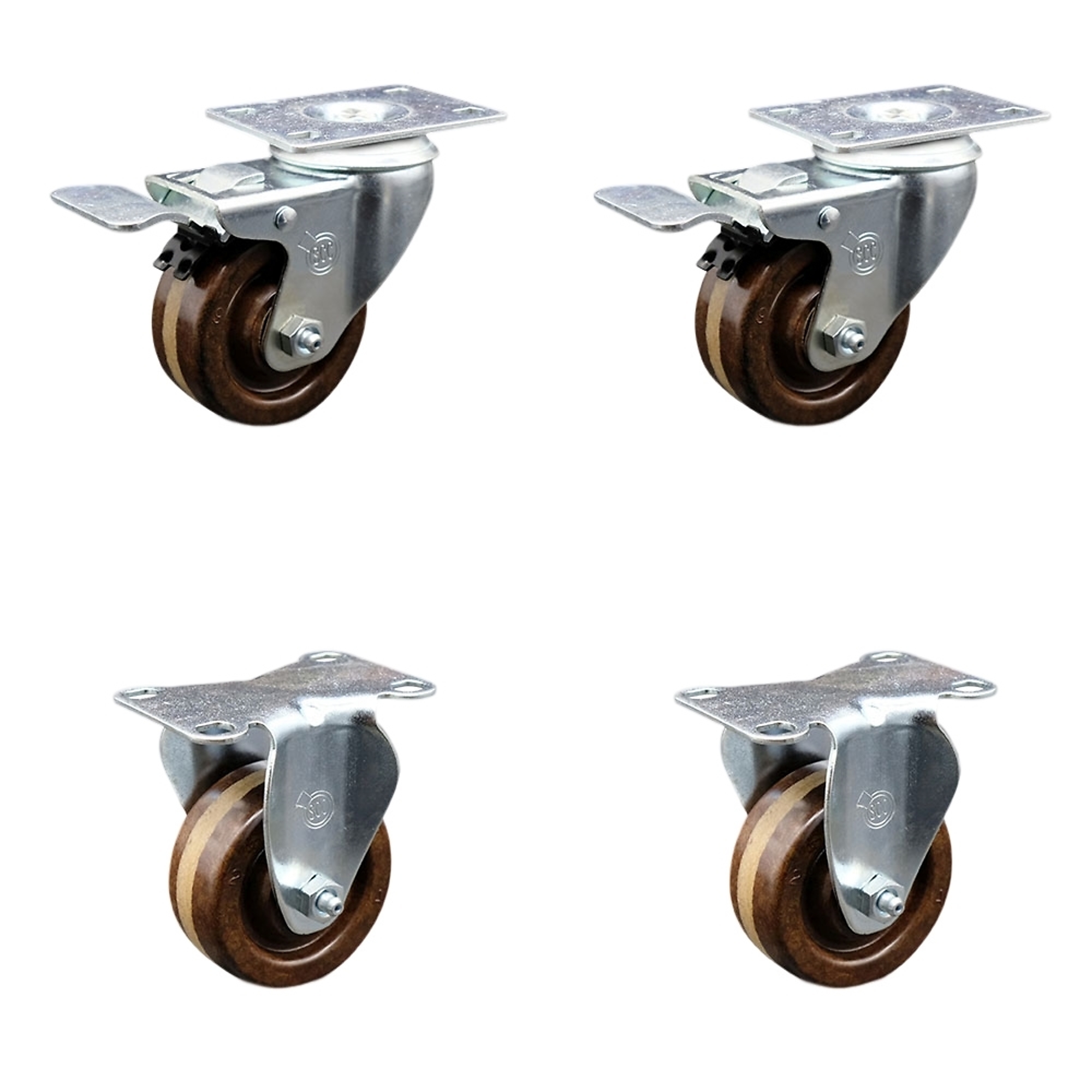

Listing is for a set of four (4) Service Caster Series #20 casters, two (2) Swivel total lock brake casters and two (2) Rigid casters, with 3” diameter by 1-1/4” wide high temperature phenolic wheels. Supports a total weight of 1200lbs (300lbs/per caster).When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 sleeve bearing high temperature phenolic casters. The Service Caster Series #20 is ideal for bakery racks, light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. Sleeve bearings provide a metal sleeve inserted in a wheel to rest directly on the axle. This option is only recommended when rolling ease is less critical. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

(4) Plate Casters

Key Specs

Attribute	Specification
item#	5525535
Brand	Service Caster
Ship Weight	5.0 LB
Wheel Diameter	3 in
Caster Type	Swivel
Package (qty.)	4
Wheel Material	Phenolic
Mount Type	Plate
Load Capacity per Caster	300 lb

Attribute	Specification
Wheel Width	1.25 in
Finish Type	Bright Zinc Plated Finish
Plate Dimensions	2.5 x 3.625
Bolt Hole Spacing	1.75 x 2.875 to 3
Foot Brake	Yes
Overall Height	4.125 in
Bearing Type	Plain
Product Weight	5.0000 lb
Dimensions L x W x H (in.)	8.0 x 8.0 x 8.0 in
