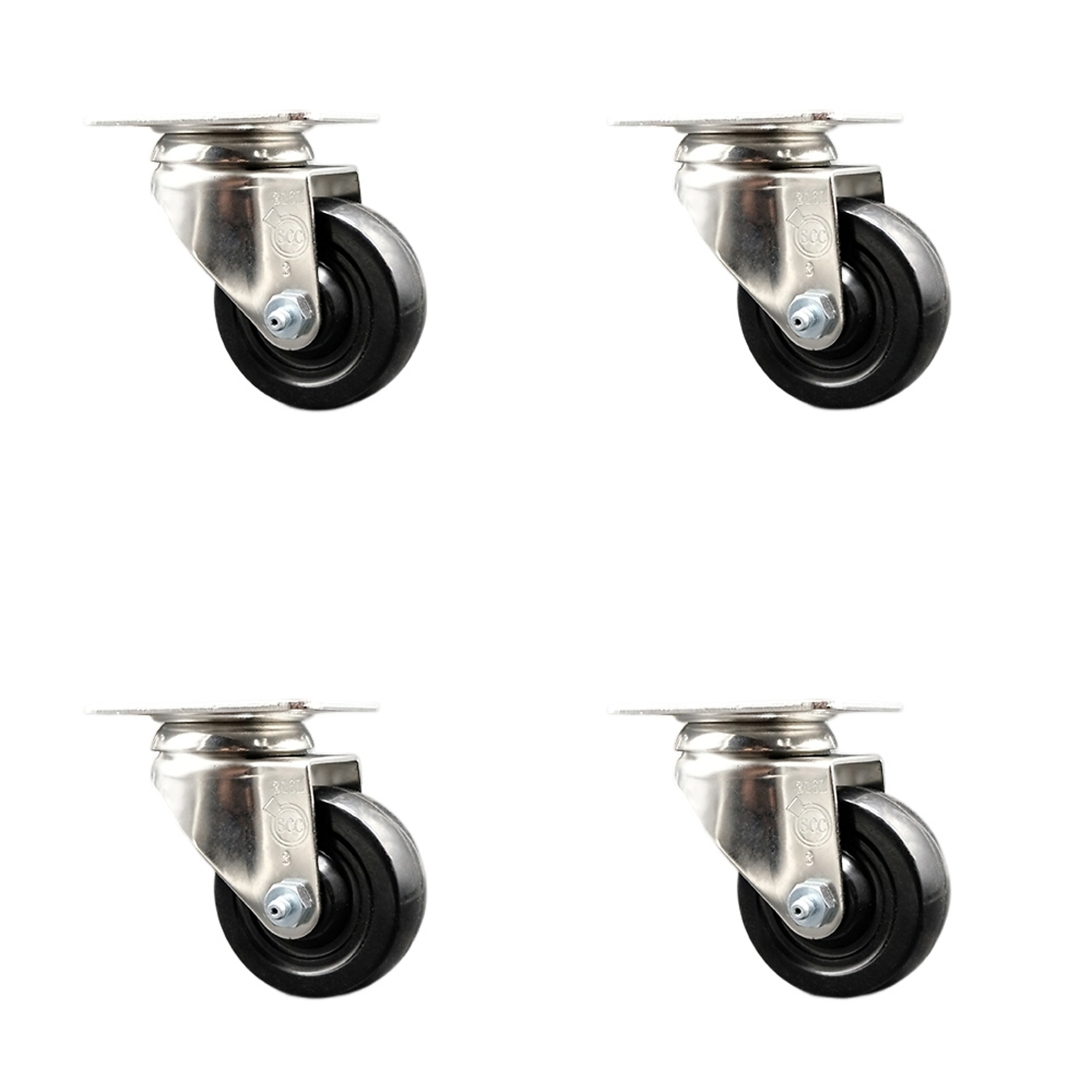

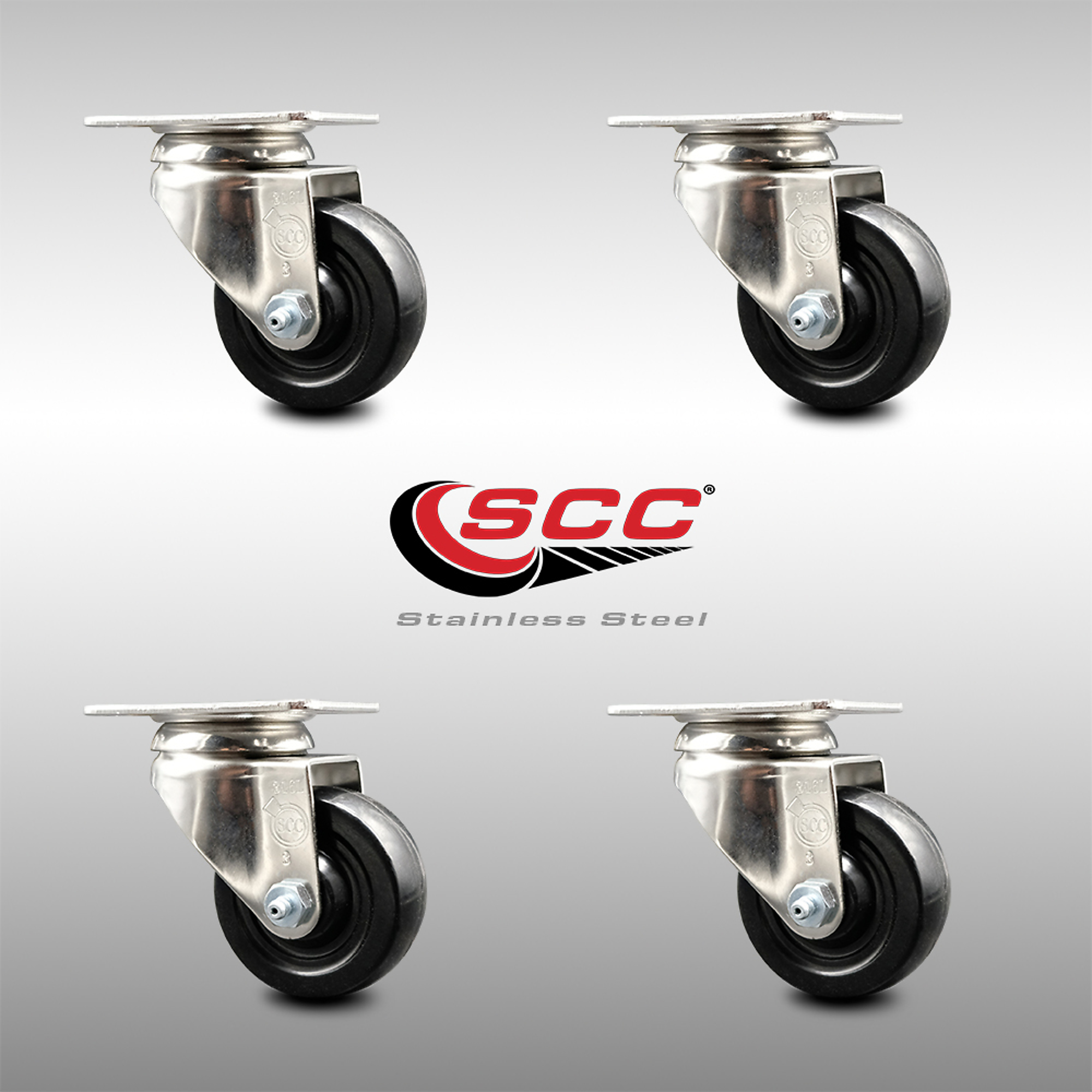

Service Caster, 3in. x 1 1/4in. Plate Casters, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SS31620S314-SRS-4

Item# 5452840
Service Caster, 3in. x 1 1/4in. Plate Casters, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SS31620S314-SRS-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 3in. x 1 1/4in. Plate Casters, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SS31620S314-SRS-4

Click or Tap image to Zoom

$229.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • These Service Caster Series #20 316 Stainless Steel Soft Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 3": 175 lbs, 3.5" & 4": 200 lbs, and 5": 275 lbs Capacity/Caster

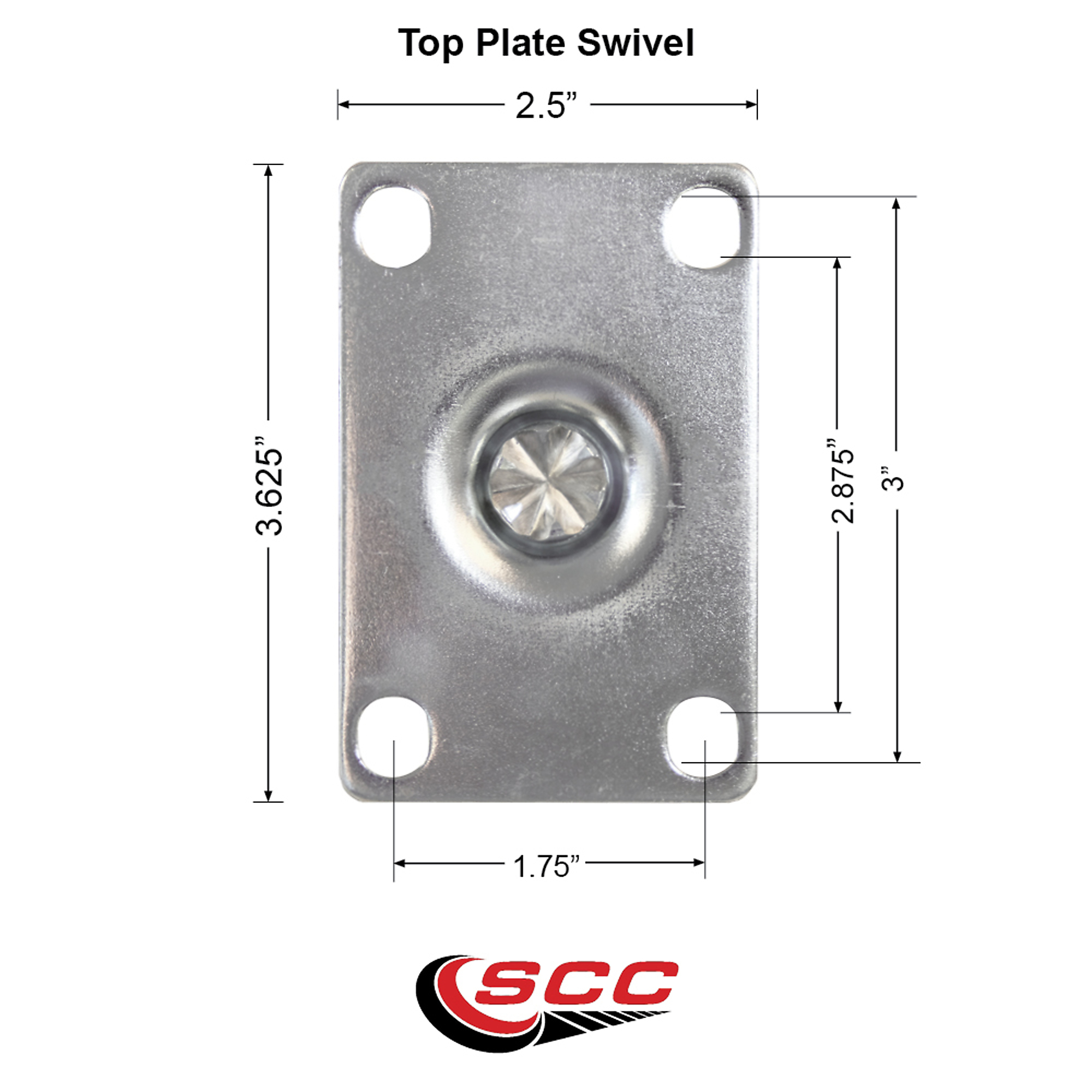

  • Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

Listing is for a set of four (4) Service Caster Series #20 316 stainless steel swivel casters, four (4) Swivel casters with 3” diameter by 1-1/4” wide black soft rubber wheels. Supports a total weight of 700lbs (175lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s 316 stainless steel soft rubber casters. SS316 casters are ideal for light and medium duty material handling, carts, equipment, and shop projects. Built with 316 stainless steel, which contains additional molybdenum and nickel content, making it more corrosion resistant than standard 304 stainless steel. The soft rubber wheels- resistant to most chemicals and oils- combine a soft tread on a hard rubber core, offering quiet movement and a cushioned ride. Mounting options include top plate, bolt hole, expanding stem and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Plate Casters

Features + Benefits

  • These Service Caster Series #20 316 Stainless Steel Soft Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 3": 175 lbs, 3.5" & 4": 200 lbs, and 5": 275 lbs Capacity/Caster
  • Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5452840

Brand

Service Caster

Ship Weight

8.0 LB

Wheel Diameter

3 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Rubber

Mount Type

Plate

Load Capacity per Caster

700 lb
AttributeSpecification

Wheel Width

1.25 in

Finish Type

316 Polished Stainless Steel

Plate Dimensions

2.5 x 3.625

Bolt Hole Spacing

1.75 x 2.875 to 3

Foot Brake

No

Overall Height

4.125 in

Bearing Type

Plain

Product Weight

6.2000 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in
