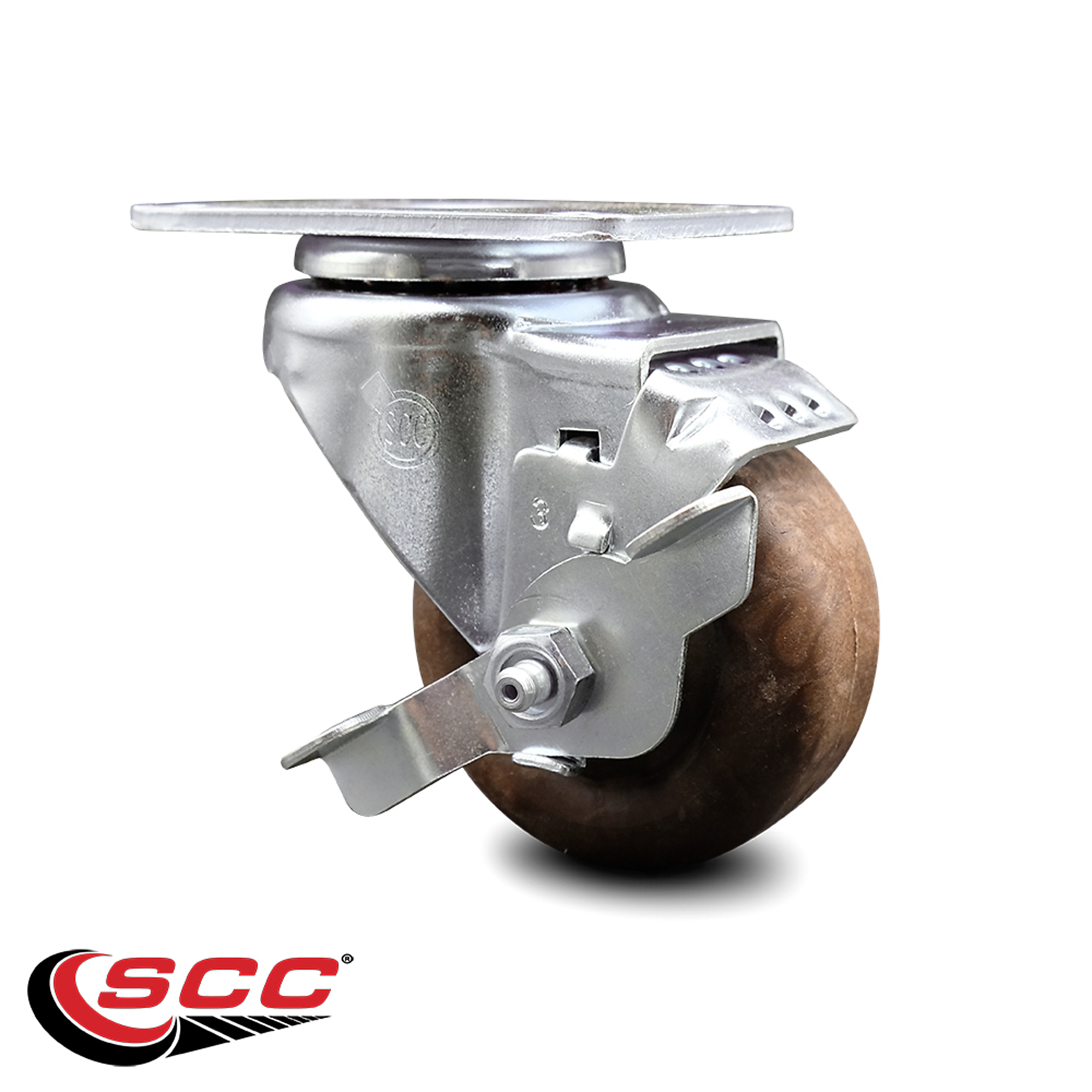

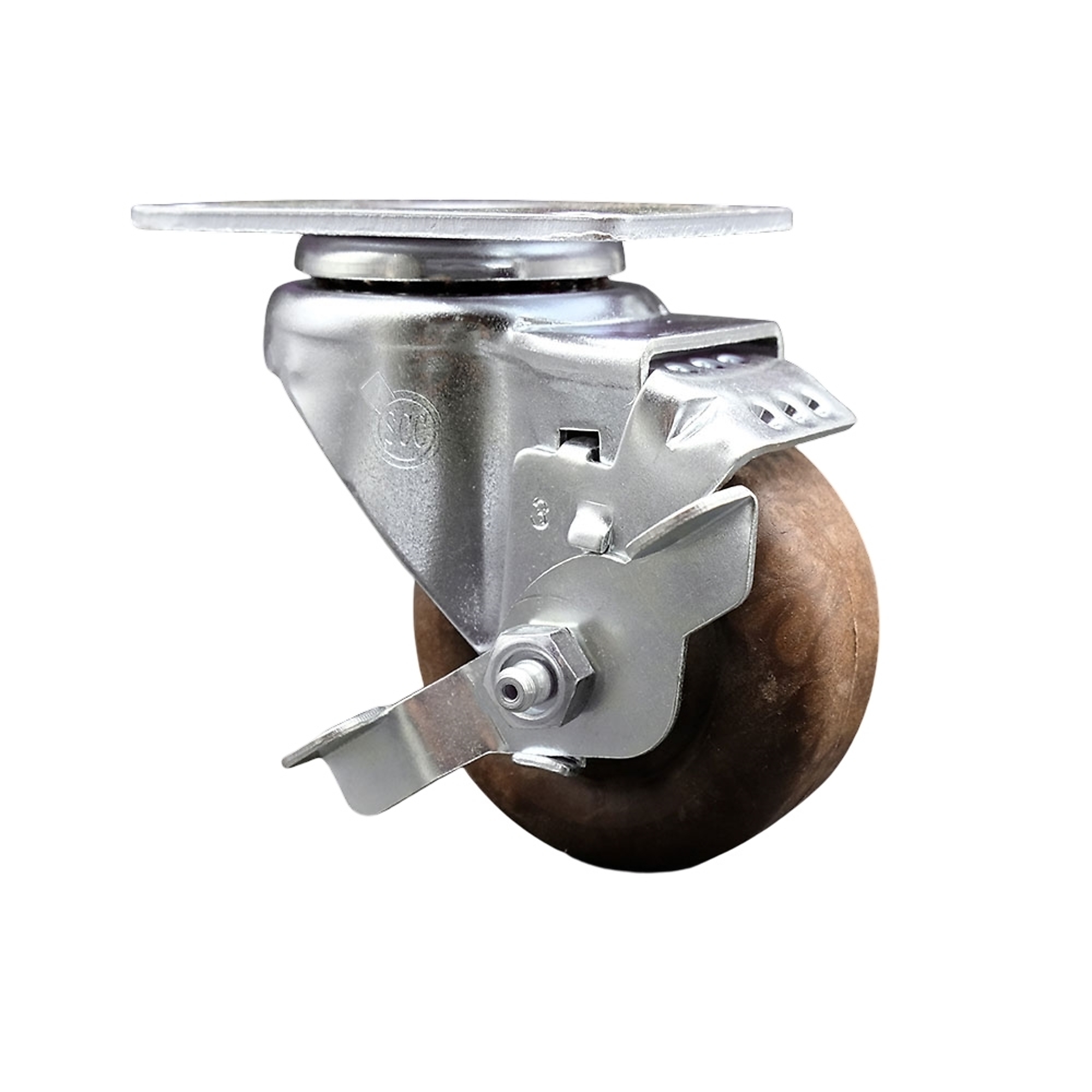

Service Caster, 3in. x 1 1/4in. Plate Caster, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-20S314-GFNSHT-TLB-TP3

Item# 5598136
Service Caster, 3in. x 1 1/4in. Plate Caster, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-20S314-GFNSHT-TLB-TP3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 3in. x 1 1/4in. Plate Caster, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-20S314-GFNSHT-TLB-TP3

Click or Tap image to Zoom

$47.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

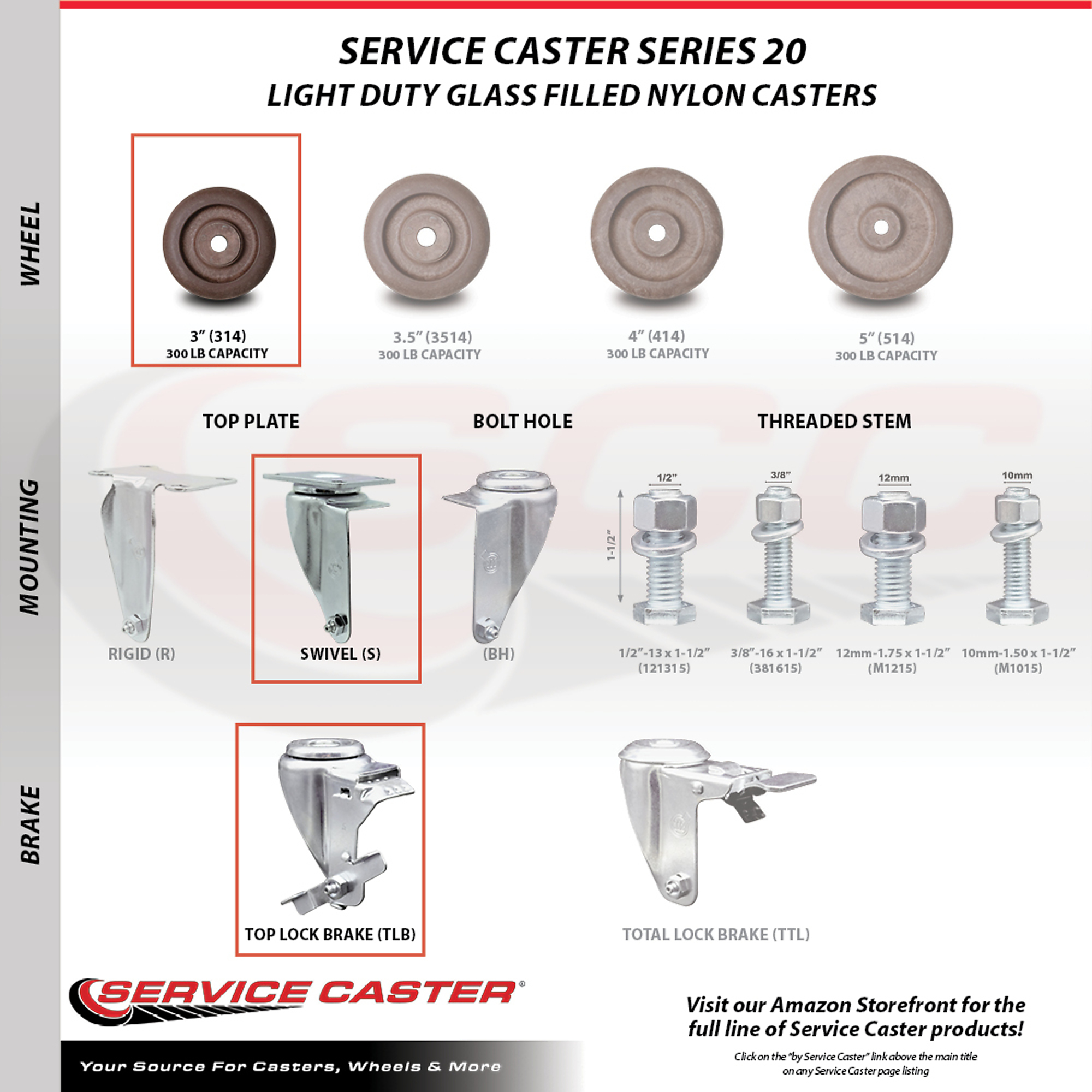

  • These Service Caster Series #20 High Temperature Glass Filled Nylon casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 350 lbs Capacity/Caster

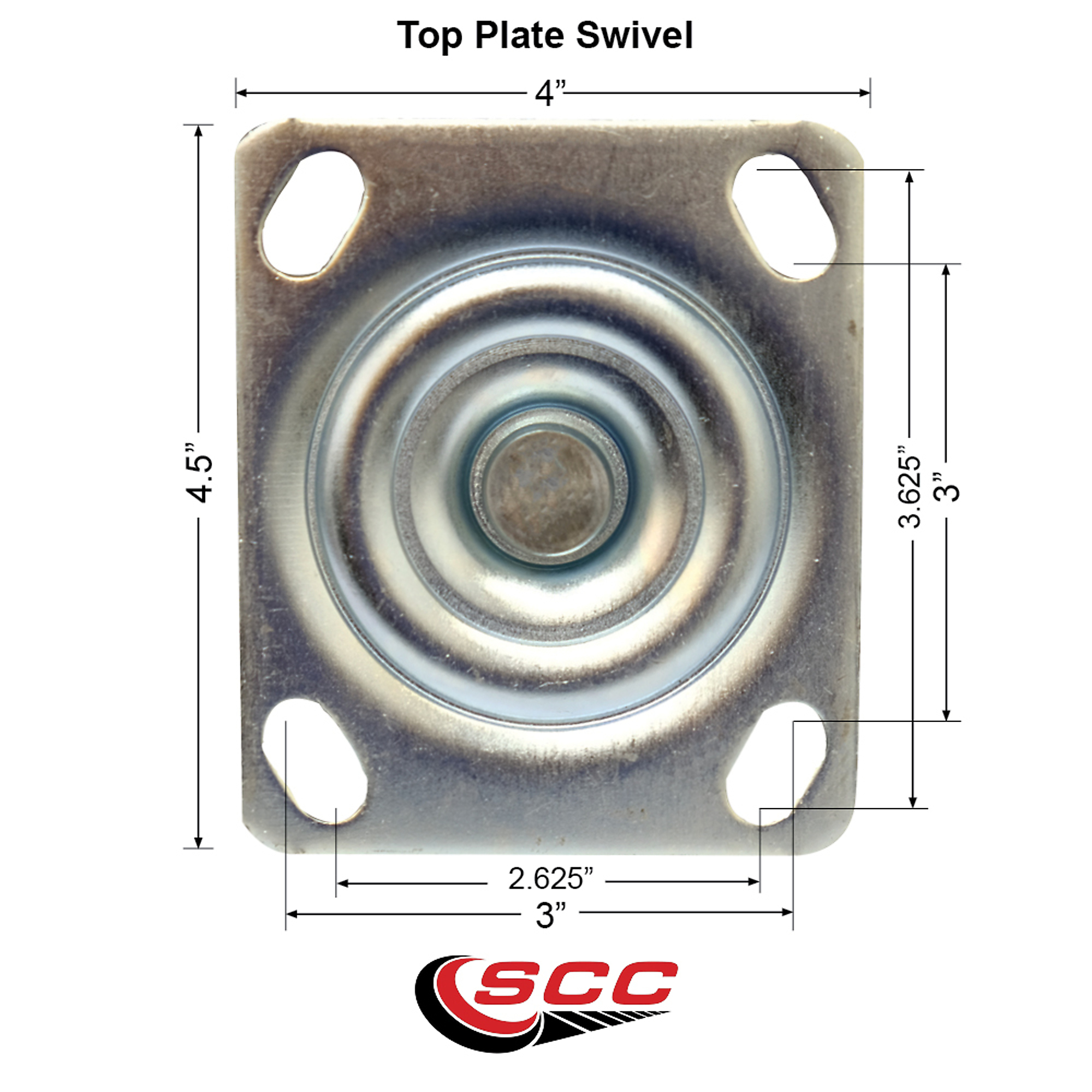

  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

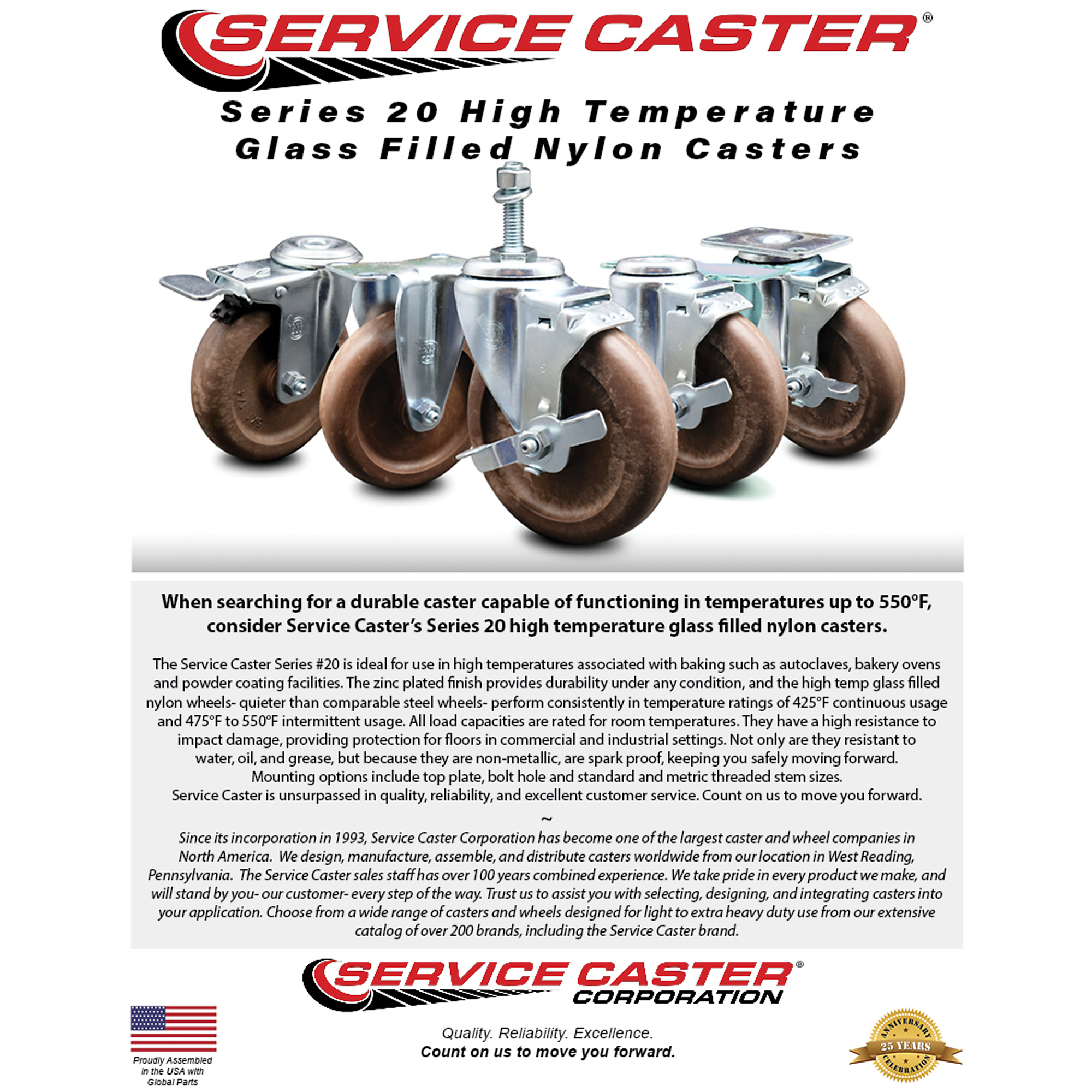

Listing is for one (1) Service Caster Series #20 swivel caster with a 3in. diameter by 1-1/4in. wide high temp glass filled nylon wheel and a top locking brake capable of supporting 350 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 20 top plate high temp glass filled nylon wheel casters. The Service Caster Series #20 is ideal for autoclaves, bakery ovens and powder coating facilities. The zinc plated finish provides durability under any condition, and the high temp glass filled nylon wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 550°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (1) Plate Caster

Features + Benefits

  • These Service Caster Series #20 High Temperature Glass Filled Nylon casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 350 lbs Capacity/Caster
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only.

Key Specs

AttributeSpecification

item#

5598136

Brand

Service Caster

Ship Weight

4.0 LB

Wheel Diameter

3 in

Caster Type

Swivel

Package (qty.)

1

Wheel Material

Glass Filled Nylon

Mount Type

Plate

Load Capacity per Caster

350 lb
AttributeSpecification

Wheel Width

1.25 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

4 x 4.5

Bolt Hole Spacing

2.625 x 3.625 to 3 x 3

Foot Brake

Yes

Overall Height

4.125 in

Bearing Type

Plain

Product Weight

2.0000 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in

Reviews

Questions & Answers

Questions

Compare with Most Popular in 300 - 499 Lbs.

See All 300 - 499 Lbs.

See All Service Caster 300 - 499 Lbs.

Specifications

Specifications
Service Caster, 3in. x 1 1/4in. Plate Caster, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-20S314-GFNSHT-TLB-TP3
Vestil Polyurethane Swivel Caster 6 In. Diameter x 1-3/4 In. Width 308-550 Lb. Capacity Yellow/Black
Vestil Polyurethane Rigid Caster 6 In. Diameter x 1-3/4 In. Width 308-550 Lb. Capacity Yellow/Black

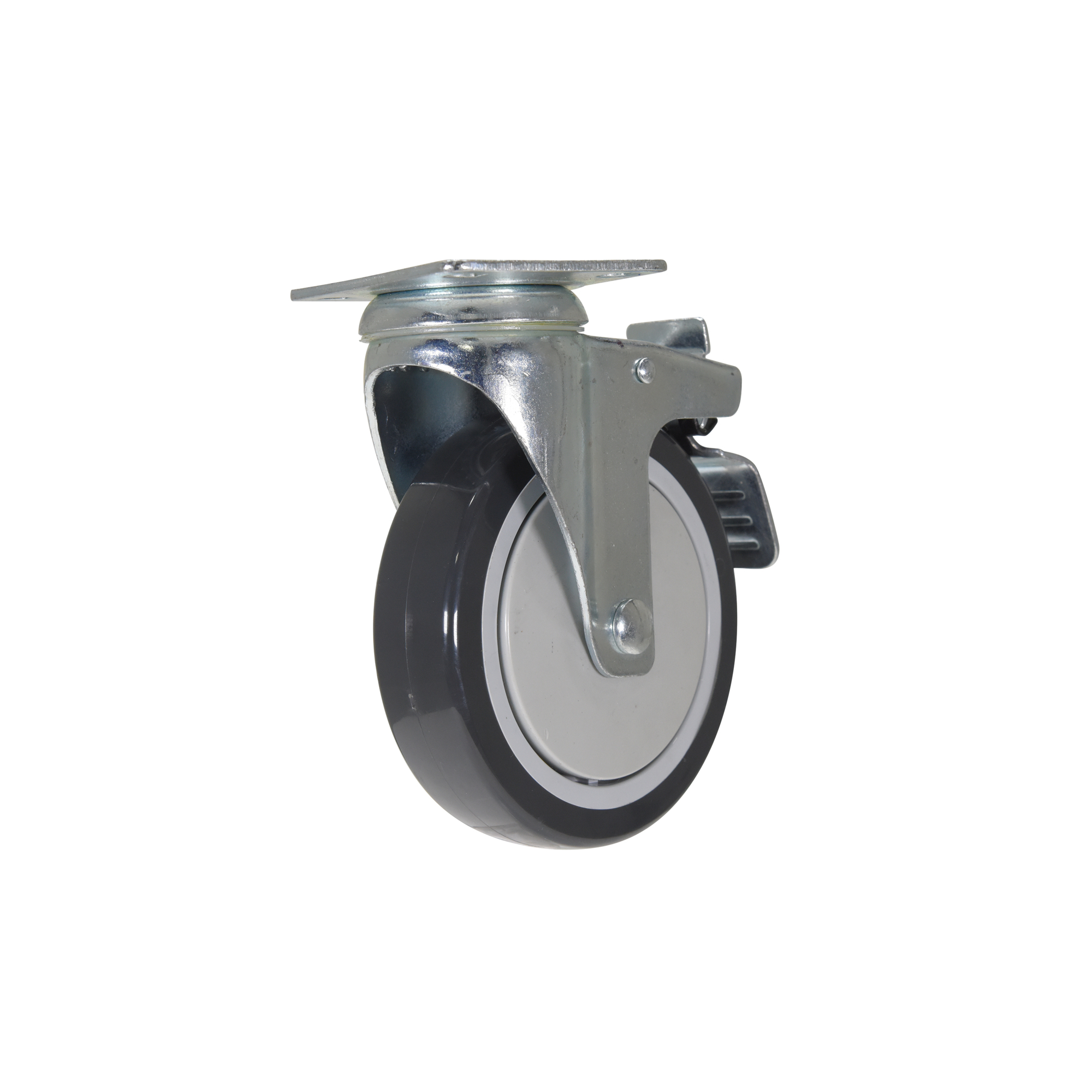

Vestil Polyurethane Swivel Total Brake Caster - 5in. x 1in., Gray, Model# CST-B28-5X1PUP-SWTB
