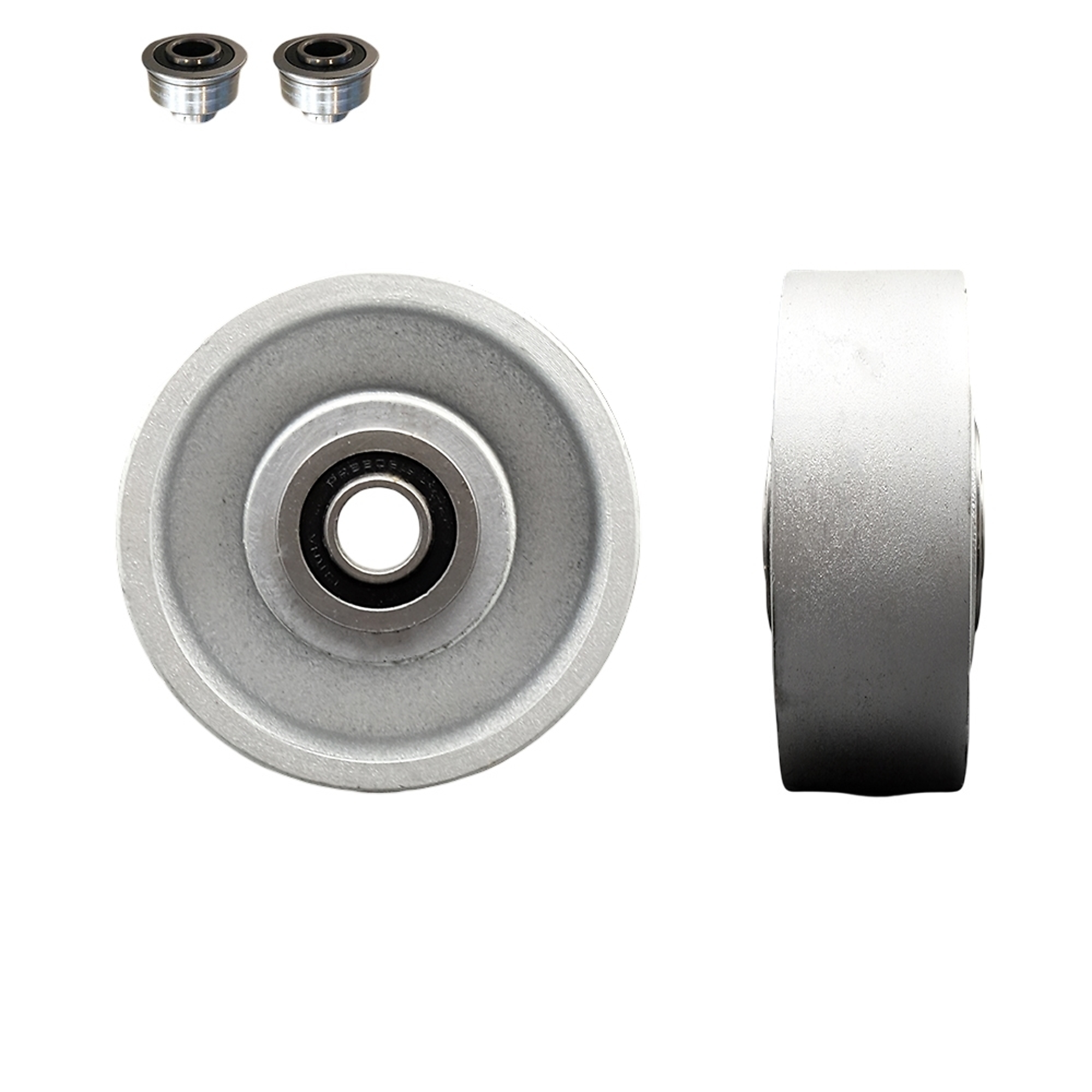

Service Caster, 3 1/4in. x 2in. Hardware Wheel, Wheel Diameter 3.25 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-SSB3420
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Service Caster’s Semi Steel Cast Iron wheels come in five sizes – 3-1/4" x 2", 4” x 2", 5” x 2", 6” x 2", and 8” x 2".
- Weight capacity ranges from 700 lbs. on the 3-1/4" wheel, 700 lbs. on the 4”, 1000 lbs. on the 5”, 1200 lbs. on the 6”, and 1400 lbs. on the 8”.
- All wheel sizes have a 1/2" axle bore and a 2-7/16" hub length. The hub length is the widest point of the wheel, so it is important to ensure you can accommodate this width before purchasing.
- Semi Steel Cast Iron wheels are great for new applications or as a replacement wheel for casters and dollies. Service Caster’s Semi Steel Cast Iron wheels offer a long lasting, high capacity option capable of rolling easily under heavy loads. An economic choice over steel, semi-steel cast iron wheels provide rugged abrasion resistant service. Service Caster’s Semi Steel Cast Iron wheels will keep Moving You Forward.
See full description
See All 500 - 999 Lbs.
See All Service Caster 500 - 999 Lbs.
Currently Viewing This Product
Specifications
3.25 in
8 in
5 in
8 in
Rigid
Swivel
Swivel
Swivel
1
1
1
1
Cast Iron
Rubber
Thermoplastic Rubber
Thermoplastic Rubber
Bolt-hole
Plate
Plate
Plate
700 lb
881 lb
551 lb
705 lb
2 in
8 in
5 in
8 in
Semi Steel Cast Iron
Zinc Plated
Zinc Plated
Zinc Plated
No
Yes
No
No
Sealed
Ball
Ball
Ball
5.0000 lb
9.0900 lb
5.0000 lb
7.0000 lb
5.0 x 5.0 x 5.0 in
7.875 x 5.0 x 9.5 in
6.5 x 4.0 x 6.5 in
8.25 x 4.0 x 9.5 in
-
4 X 4 1/2
4 X 4 1/2
4 X 4 1/2
-
9.5 in
6.5 in
9.5 in
-
No
No
Yes
-
No
No
No
