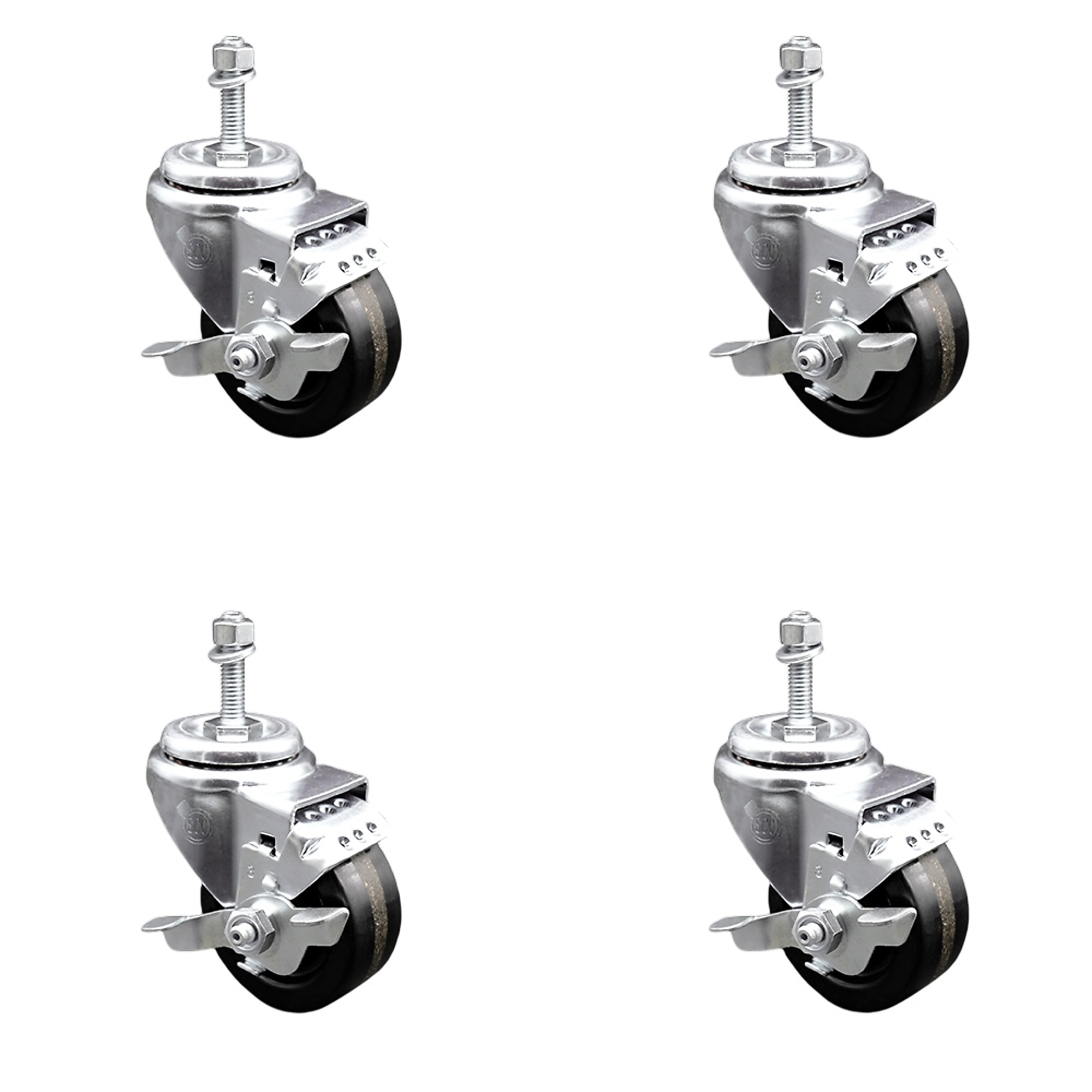

Service Caster, 3 1/2in. x 1 1/4in. Stem Casters, Wheel Diameter 3.5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TS20S3514-PHR-TLB-381615-4

Item# 5370844
"Service Caster, 3 1/2in. x 1 1/4in. Stem Casters, Wheel Diameter 3.5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TS20S3514-PHR-TLB-381615-4"
Service Caster, 3 1/2in. x 1 1/4in. Stem Casters, Wheel Diameter 3.5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TS20S3514-PHR-TLB-381615-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 3 1/2in. x 1 1/4in. Stem Casters, Wheel Diameter 3.5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TS20S3514-PHR-TLB-381615-4

Click or Tap image to Zoom

$169.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

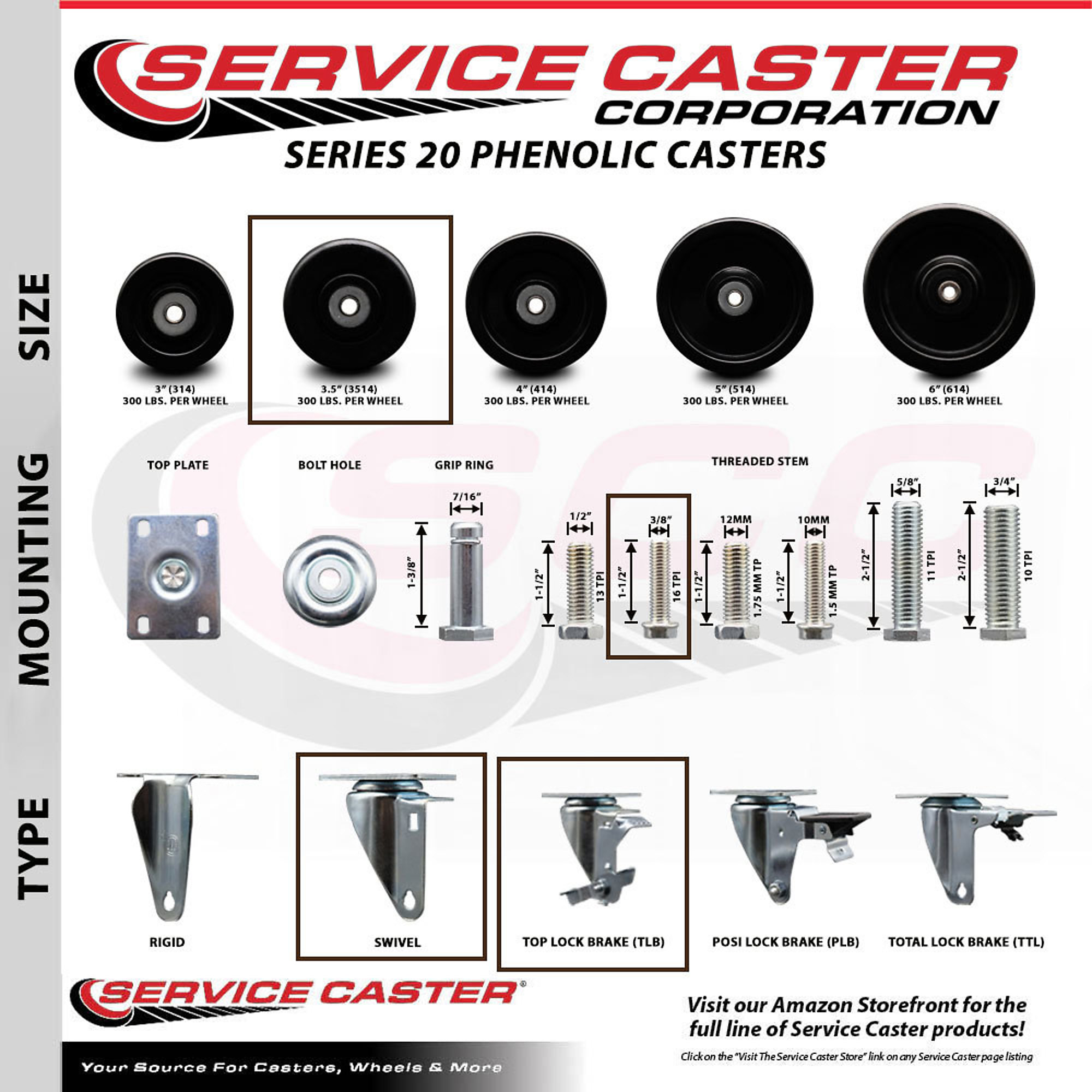

  • These Service Caster Series #20 Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6" wheel: 7-1/8" mounting height.
  • Weight Capacity: 3",3.5", 4", 5", and 6": 300 lbs Capacity/Caster
  • All casters feature a 3/8” diameter (16 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a posi lock brake (PLB) or a total lock brake (TTL). The posi lock brake (PLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

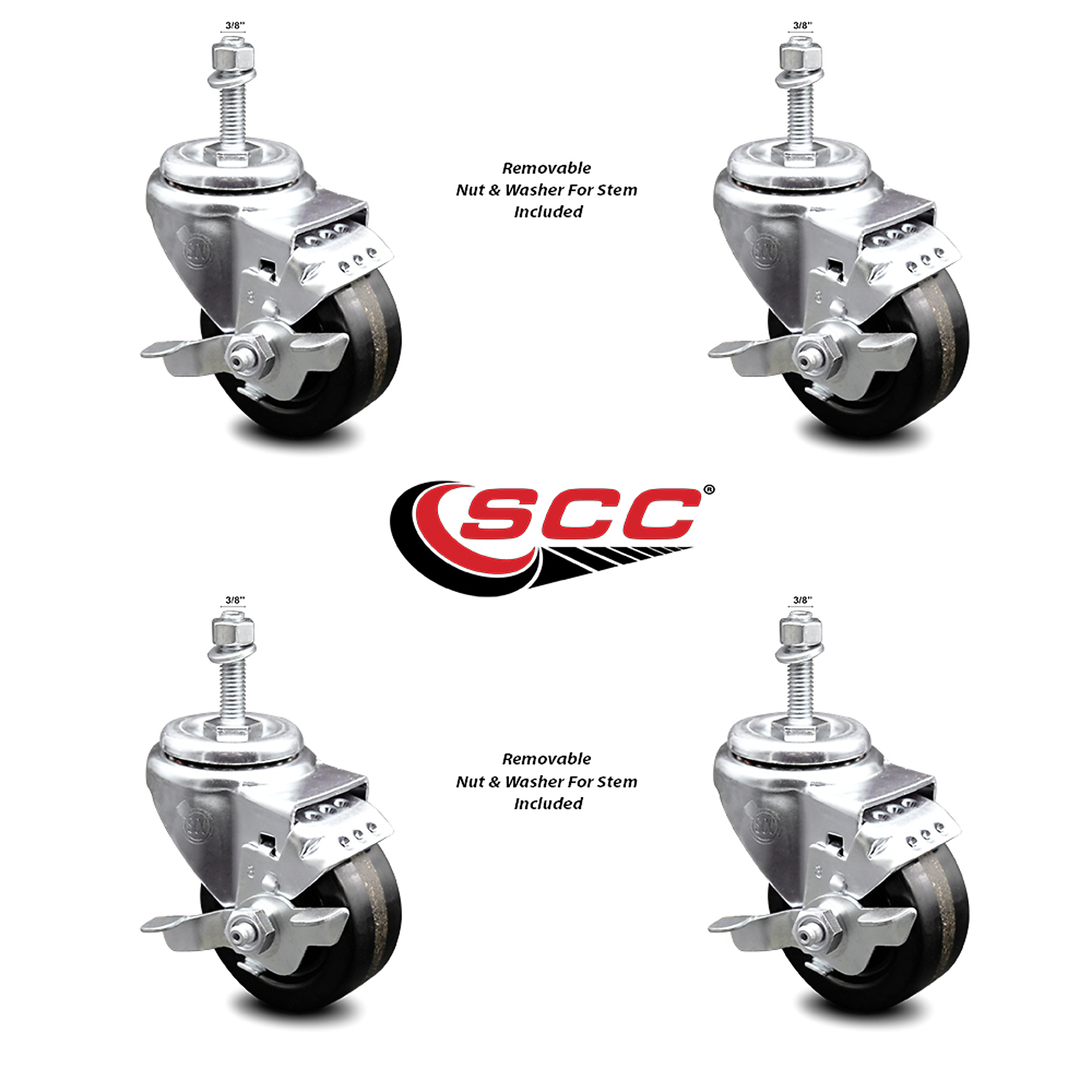

Listing is for a set of four (4) Service Caster Series #20 swivel casters, four (4) Swivel 3/8in. threaded stem casters with top lock brakes, 3.5” diameter by 1-1/4” wide phenolic wheels. Supports a total weight of 1200lbs (300lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 phenolic casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The phenolic wheels have a high resistance to impact damage while providing protection for floors in commercial and industrial settings. Phenolic wheels not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. All rolling on a finely crafted ball bearing design and zinc plated finish that provides durability under any condition and keeps you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Stem Casters

Features + Benefits

  • These Service Caster Series #20 Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6" wheel: 7-1/8" mounting height.
  • Weight Capacity: 3",3.5", 4", 5", and 6": 300 lbs Capacity/Caster
  • All casters feature a 3/8” diameter (16 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a posi lock brake (PLB) or a total lock brake (TTL). The posi lock brake (PLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5370844

Brand

Service Caster

Ship Weight

8.0 LB

Wheel Diameter

3.5 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Phenolic

Mount Type

Stem

Load Capacity per Caster

300 lb
AttributeSpecification

Wheel Width

1.25 in

Finish Type

Bright Zinc Plated Finish

Foot Brake

Yes

Overall Height

4.625 in

Stem Length

1.5 in

Stem Diameter

0.375 in

Bearing Type

Roller

Product Weight

6.2000 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in
