Service Caster, 3 1/2in. x 1 1/4in. Stem Casters, Wheel Diameter 3.5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SSBH20S3514-PPUB-BLK-4

Item# 5664682
"Service Caster, 3 1/2in. x 1 1/4in. Stem Casters, Wheel Diameter 3.5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SSBH20S3514-PPUB-BLK-4"
Service Caster, 3 1/2in. x 1 1/4in. Stem Casters, Wheel Diameter 3.5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SSBH20S3514-PPUB-BLK-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 3 1/2in. x 1 1/4in. Stem Casters, Wheel Diameter 3.5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SSBH20S3514-PPUB-BLK-4

Click or Tap image to Zoom

$264.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • These Service Caster Series #20 Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height. Wheels are offered in five different colors – Gray, Blue, Black, Maroon, and Red.
  • Weight Capacity: 3" and 3.5": 300 lbs Capacity/Caster; 4", 5", and 6": 350 lbs Capacity/Caster

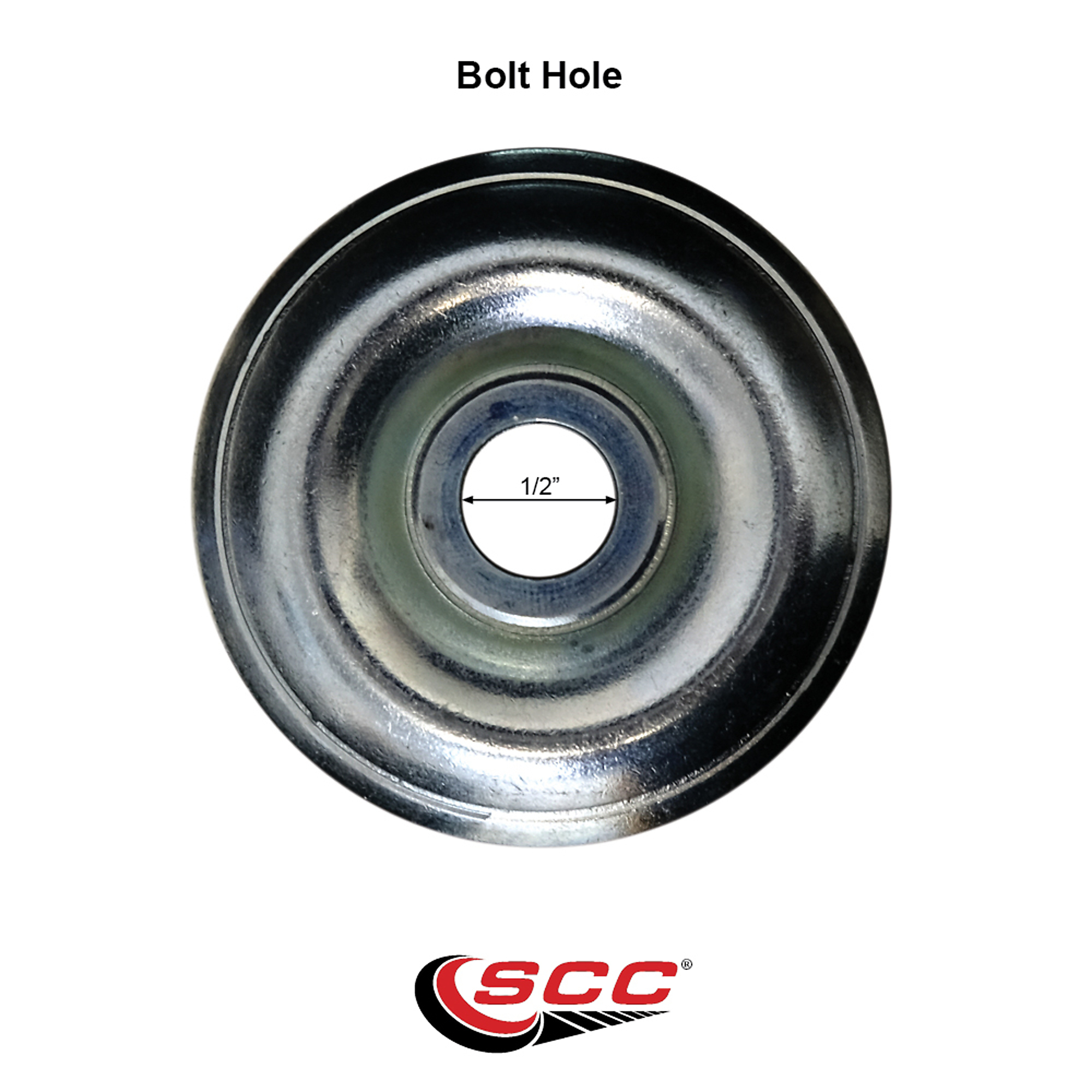

  • All casters feature a 1/2” diameter bolt hole. Bolt hole casters have a hole in the rivet which can accept a bolt or a customized stem for any type of mounting requirement.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

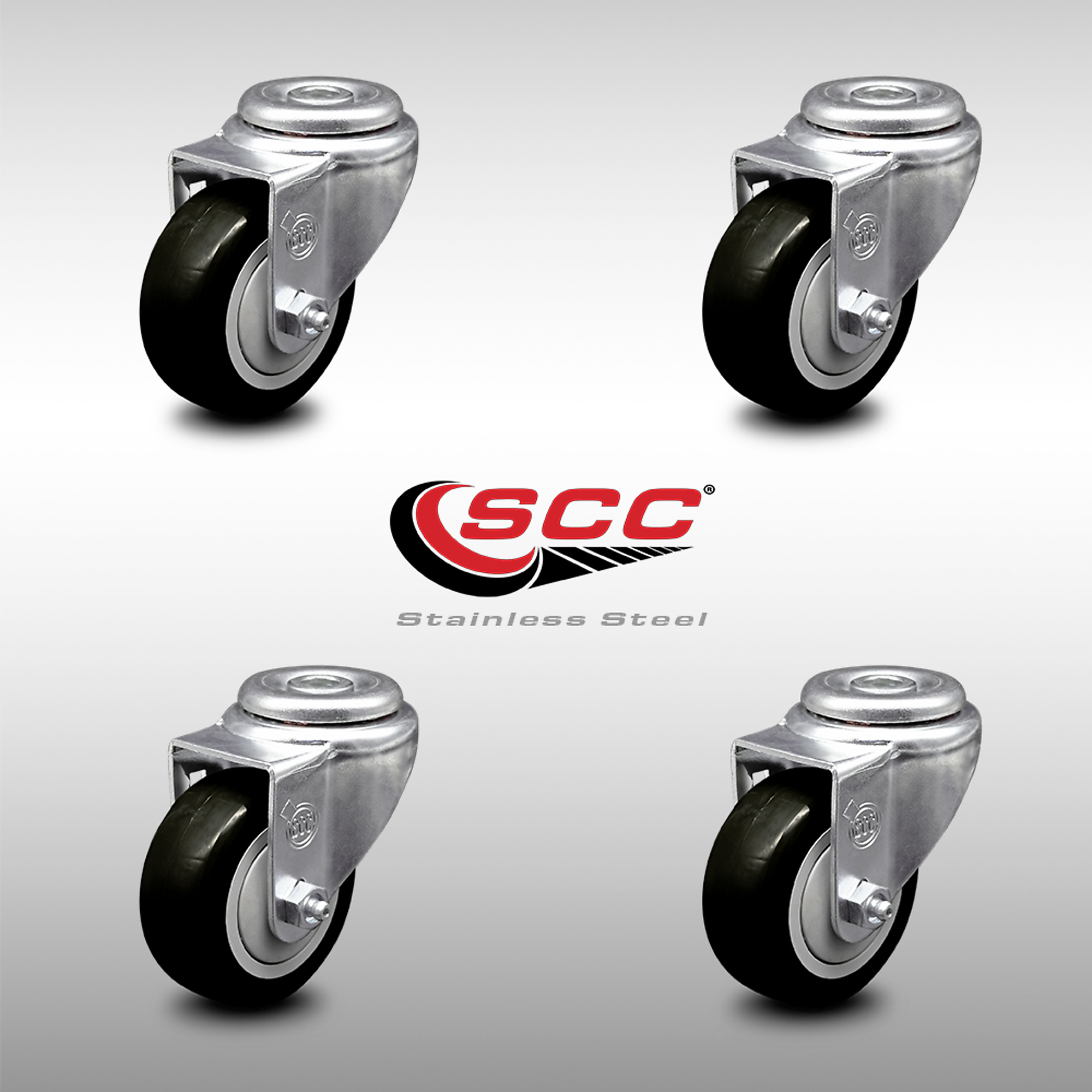

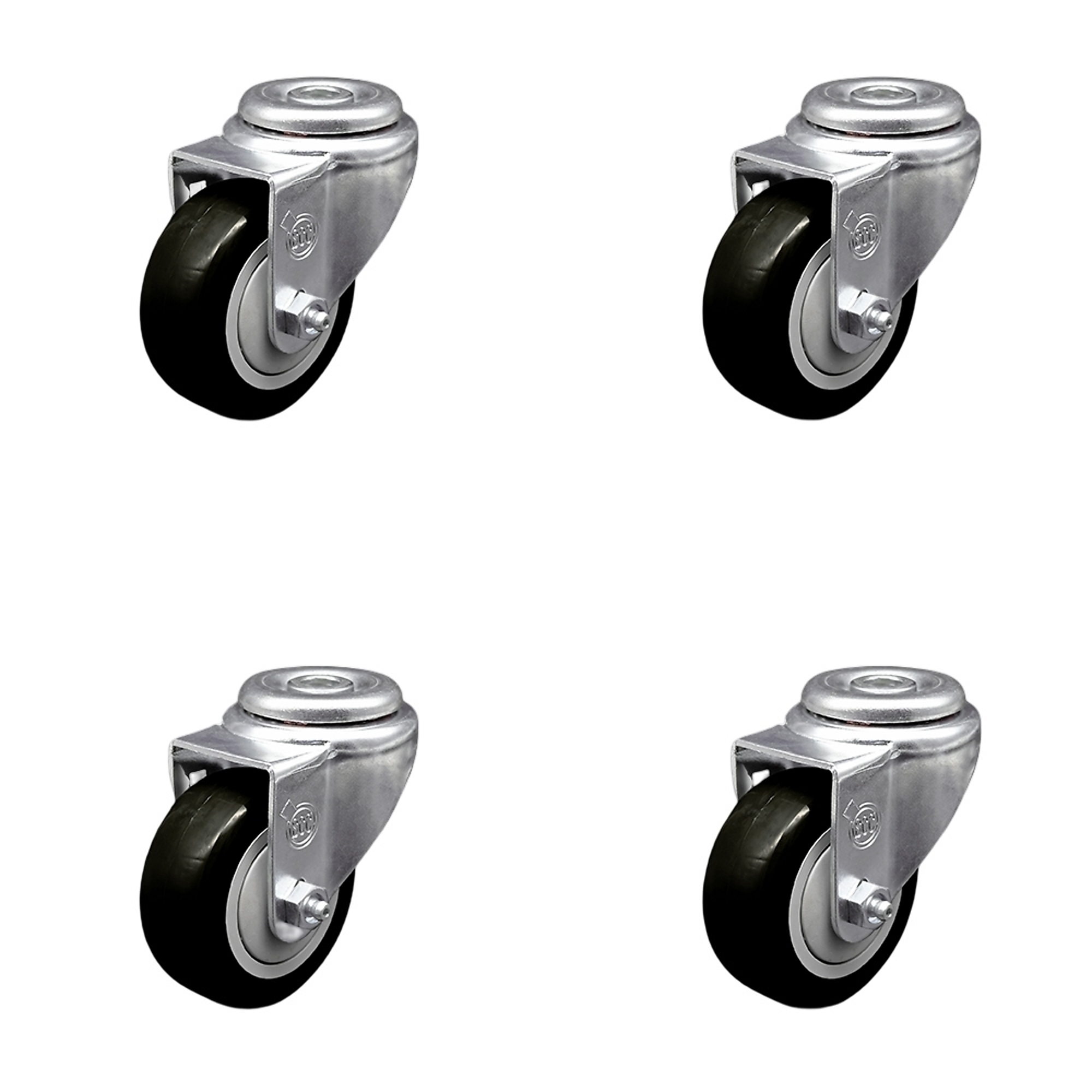

Listing is for a set of four (4) Service Caster Series #20 stainless steel casters, four (4) Swivel bolt hole casters with 3.5” diameter by 1-1/4” wide black polyurethane wheels. Supports a total weight of 1000lbs (250lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 stainless steel bolt hole polyurethane casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The bolt hole can accept a bolt or a customized stem, allowing for any type of mounting requirement. The polished stainless steel finish provides durability under any condition, while the non-marking, non-marring polyurethane wheels perform especially well on hard surfaces such as concrete, tile, and wood. All rolling via a finely crafted ball bearing design that will keep you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Stem Casters

Features + Benefits

  • These Service Caster Series #20 Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height. Wheels are offered in five different colors – Gray, Blue, Black, Maroon, and Red.
  • Weight Capacity: 3" and 3.5": 300 lbs Capacity/Caster; 4", 5", and 6": 350 lbs Capacity/Caster
  • All casters feature a 1/2” diameter bolt hole. Bolt hole casters have a hole in the rivet which can accept a bolt or a customized stem for any type of mounting requirement.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5664682

Brand

Service Caster

Ship Weight

7.0 LB

Wheel Diameter

3.5 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Non-Marking Poly-on-Poly

Mount Type

Bolt-hole
AttributeSpecification

Load Capacity per Caster

300 lb

Wheel Width

1.25 in

Finish Type

Polished Stainless Steel

Foot Brake

No

Overall Height

4.625 in

Bearing Type

Sealed

Product Weight

4.8000 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

Compare with Most Popular in 300 - 499 Lbs.

See All 300 - 499 Lbs.

See All Service Caster 300 - 499 Lbs.

Specifications

Specifications
Service Caster, 3 1/2in. x 1 1/4in. Stem Casters, Wheel Diameter 3.5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SSBH20S3514-PPUB-BLK-4
Service Caster, 6in. x 1 1/2in. Stem Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-TS20S615-PHSHT-121315
Service Caster, 6in. x 1 1/2in. Stem Casters, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TSTTL20S615-PHSHT-381615-2-S-2
Service Caster, 6in. x 1 1/2in. Stem Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-BHTTL20S615-PHSHT
Wheel Diameter
Same

3.5 in

6 in

6 in

6 in

Caster Type
Same

Swivel

Swivel

Swivel

Swivel

Package (qty.)
Same

4

1

4

1

Wheel Material
Same

Non-Marking Poly-on-Poly

Phenolic

Phenolic

Phenolic

Mount Type
Same

Bolt-hole

Stem

Stem

Bolt-hole

Load Capacity per Caster
Same

300 lb

300 lb

300 lb

300 lb

Wheel Width
Same

1.25 in

1.5 in

1.5 in

1.5 in

Finish Type
Same

Polished Stainless Steel

Bright Zinc Plated Finish

Bright Zinc Plated Finish

Bright Zinc Plated Finish

Foot Brake
Same

No

No

Yes

Yes

Overall Height
Same

4.625 in

7.125 in

7.125 in

7.125 in

Bearing Type
Same

Sealed

Plain

Plain

Plain

Product Weight
Same

4.8000 lb

3.1500 lb

13.0000 lb

3.1500 lb

Dimensions L x W x H (in.)
Same

8.0 x 8.0 x 8.0 in

8.0 x 8.0 x 8.0 in

8.0 x 8.0 x 8.0 in

8.0 x 8.0 x 8.0 in

Stem Length
Same

-

1.5 in

1.5 in

-

Stem Diameter
Same

-

0.5 in

0.375 in

-
