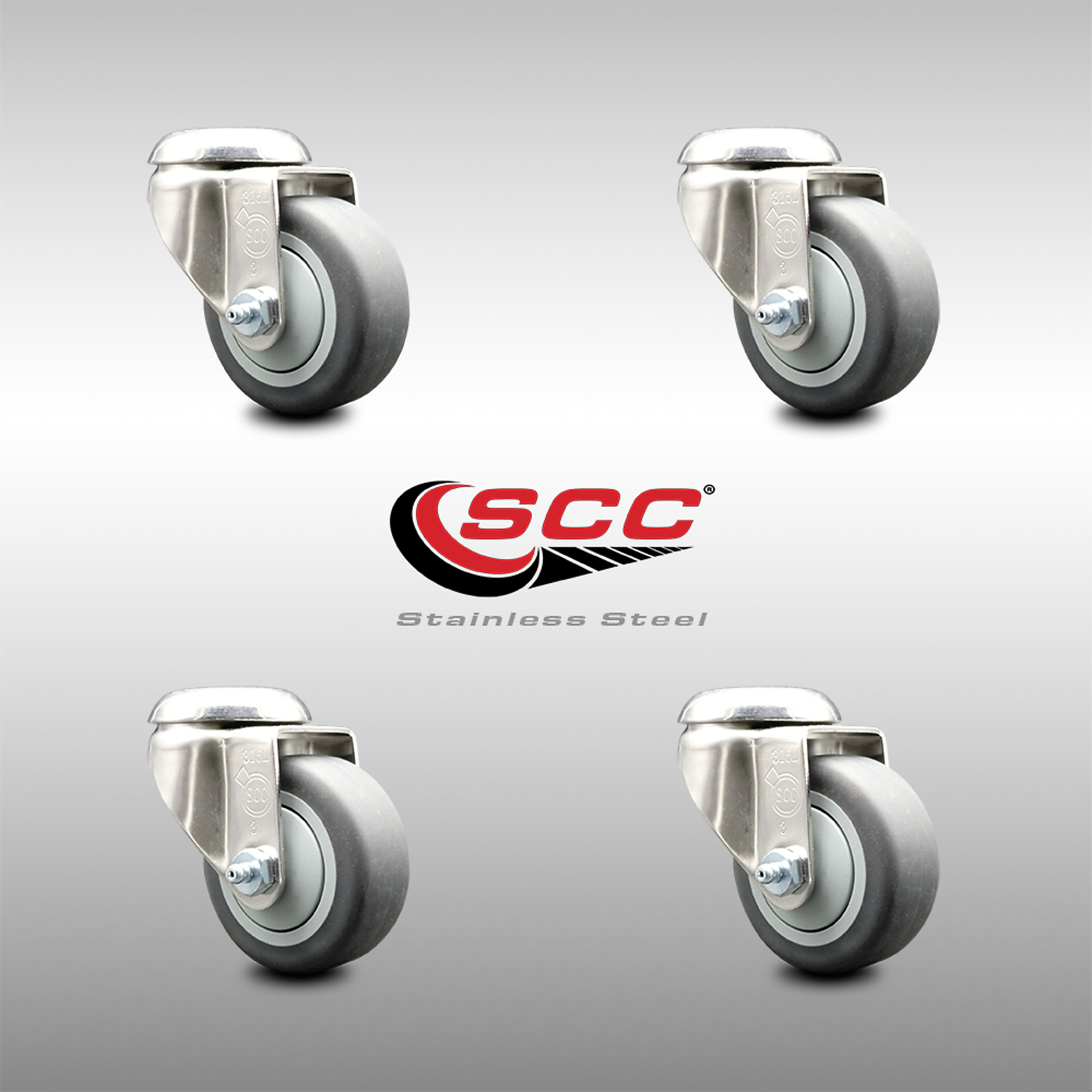

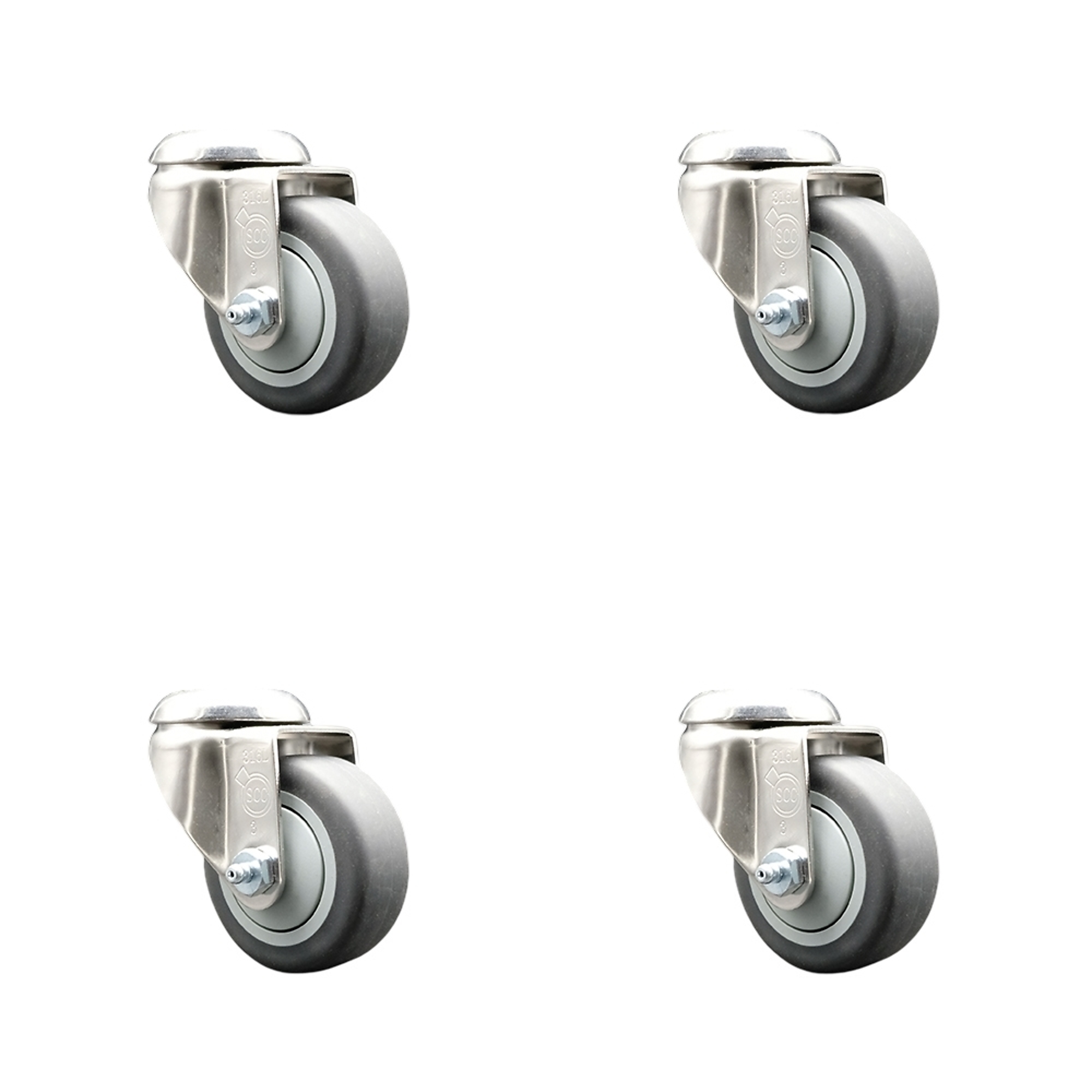

Service Caster, 3 1/2in. x 1 1/4in. Stem Casters, Wheel Diameter 3.5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SS316BH20S3514-TPRB-4
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$259.99

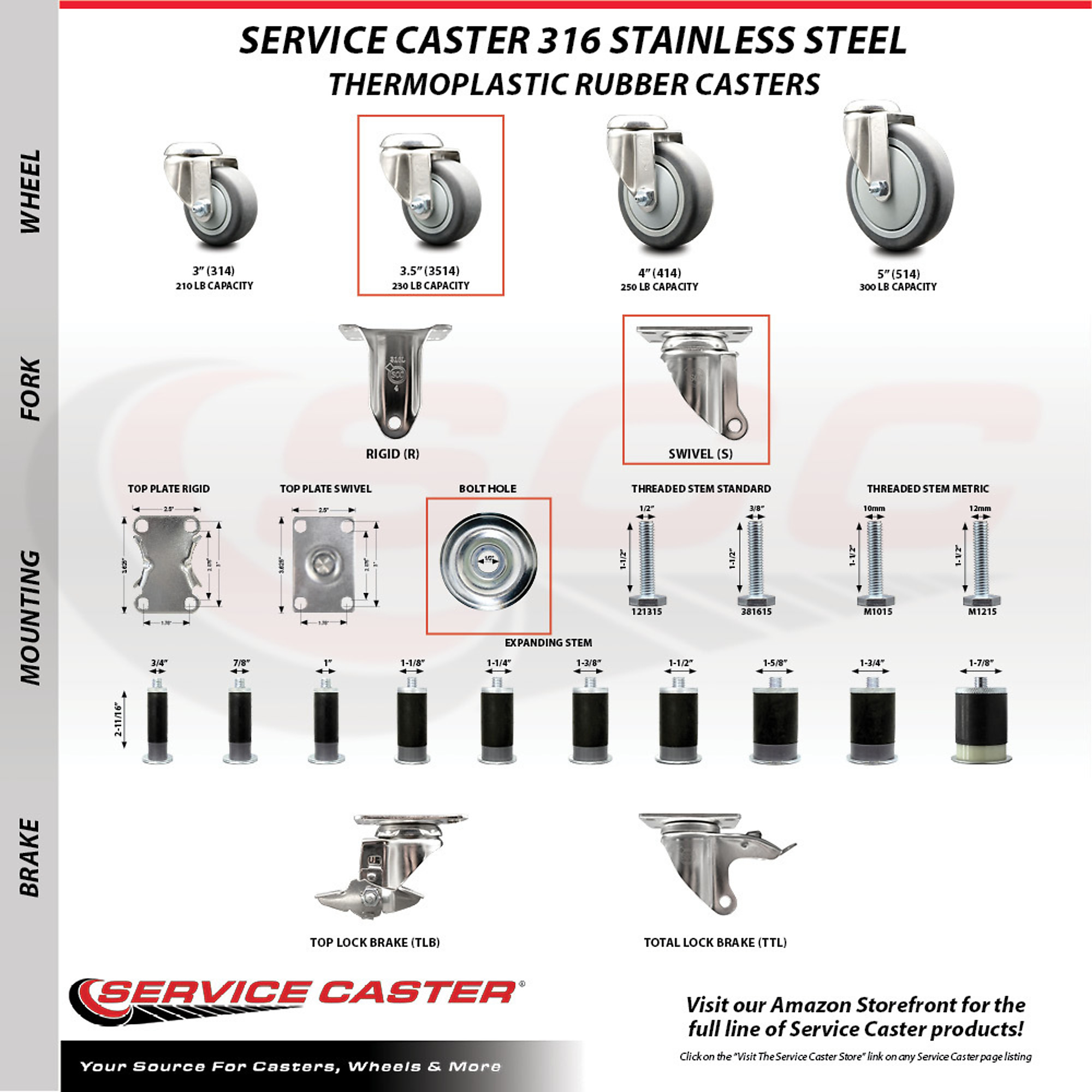

- These Service Caster Series #20 316 Stainless Steel Thermoplastic Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
- Weight Capacity: 3": 210 lbs Capacity/Caster, 3.5": 230 lbs Capacity/Caster, 4": 250 lbs Capacity/Caster, and 5": 300 lbs Capacity/Caster
- All casters feature a 1/2” diameter bolt hole. Bolt hole casters have a hole in the rivet which can accept a bolt or a customized stem for any type of mounting requirement.
- Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
See full description
What's Included
- (4) Stem Casters
Features + Benefits
- These Service Caster Series #20 316 Stainless Steel Thermoplastic Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
- Weight Capacity: 3": 210 lbs Capacity/Caster, 3.5": 230 lbs Capacity/Caster, 4": 250 lbs Capacity/Caster, and 5": 300 lbs Capacity/Caster
- All casters feature a 1/2” diameter bolt hole. Bolt hole casters have a hole in the rivet which can accept a bolt or a customized stem for any type of mounting requirement.
- Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
See All 500 - 999 Lbs.
See All Service Caster 500 - 999 Lbs.
Currently Viewing This Product
Specifications
Specifications
Service Caster, 3 1/2in. x 1 1/4in. Stem Casters, Wheel Diameter 3.5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SS316BH20S3514-TPRB-4
Vestil Polyurethane Swivel Caster with Brake - 6in. Diameter, Zinc Plated, Non-Marking, Model# CST-BN-6X2PUP-SWB
Vestil Polyurethane Swivel Caster - 8in. x 2in., 925-Lb. Capacity, Non-Marking, Zinc Plated, Orange, Model# CST-E6-8X2PUP-S
Vestil Rigid Caster - 6in. Wheel Diameter, Polyurethane, Non-Marking, Zinc Plated, Model# CST-BN-6X2PUP-R
Wheel Diameter
Same
3.5 in
6 in
8 in
6 in
Caster Type
Same
Swivel
Swivel
Swivel
Rigid
Package (qty.)
Same
4
1
1
1
Wheel Material
Same
Thermoplastic Rubber
Polyurethane
Polyurethane
Polyurethane
Mount Type
Same
Bolt-hole
Plate
Plate
Plate
Load Capacity per Caster
Same
920 lb
836 lb
925 lb
836 lb
Wheel Width
Same
1.25 in
6 in
8 in
6 in
Finish Type
Same
316 Polished Stainless Steel
Zinc Plated
Zinc Plated
Zinc Plated
Foot Brake
Same
No
Yes
No
No
Overall Height
Same
4.625 in
7.5 in
9.5 in
7.5 in
Bearing Type
Same
Sealed
Ball
Ball
Ball
Product Weight
Same
4.8000 lb
6.0000 lb
7.0000 lb
4.0000 lb
Dimensions L x W x H (in.)
Same
8.0 x 8.0 x 8.0 in
7.25 x 5.0 x 7.5 in
8.5 x 4.0 x 9.5 in
6.0 x 4.0 x 7.5 in
Plate Dimensions
Same
-
4 X 4 1/2
4 X 4 1/2
4 X 4 1/2
Non-Marking
Same
-
Yes
Yes
Yes
Includes Thread Guards
Same
-
No
No
No
Bolt Hole Spacing
Same
-
-
2 3/4 X 3 1/4
-
