Sodium Hydroxide, the pump can handle up to 80% concentration.
Peracetic Acid, will damage the pump.
Phosphoric Acid , the pump can handle up to 40% concentration.
Hydrogen Peroxide, can be used straight with no limitations.

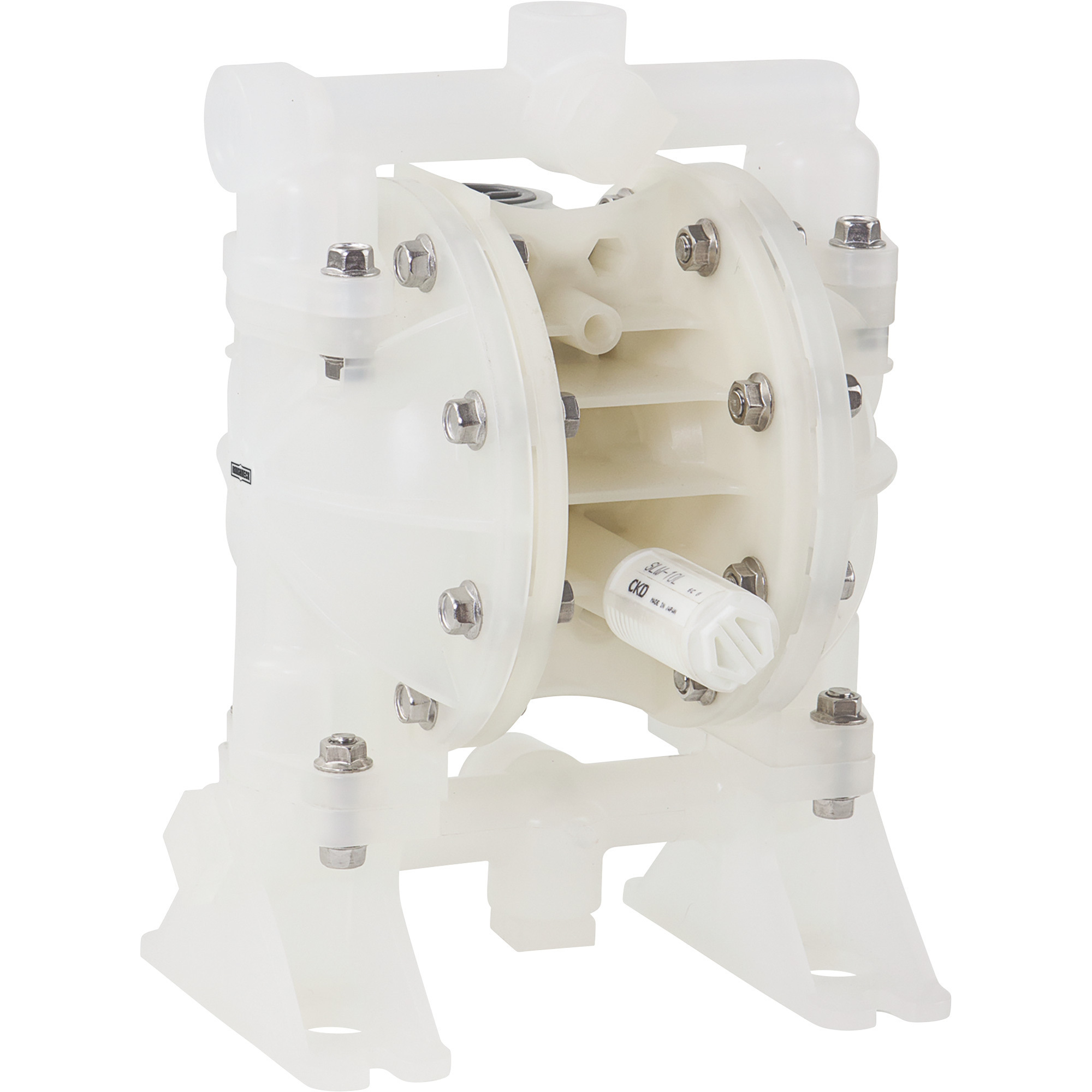

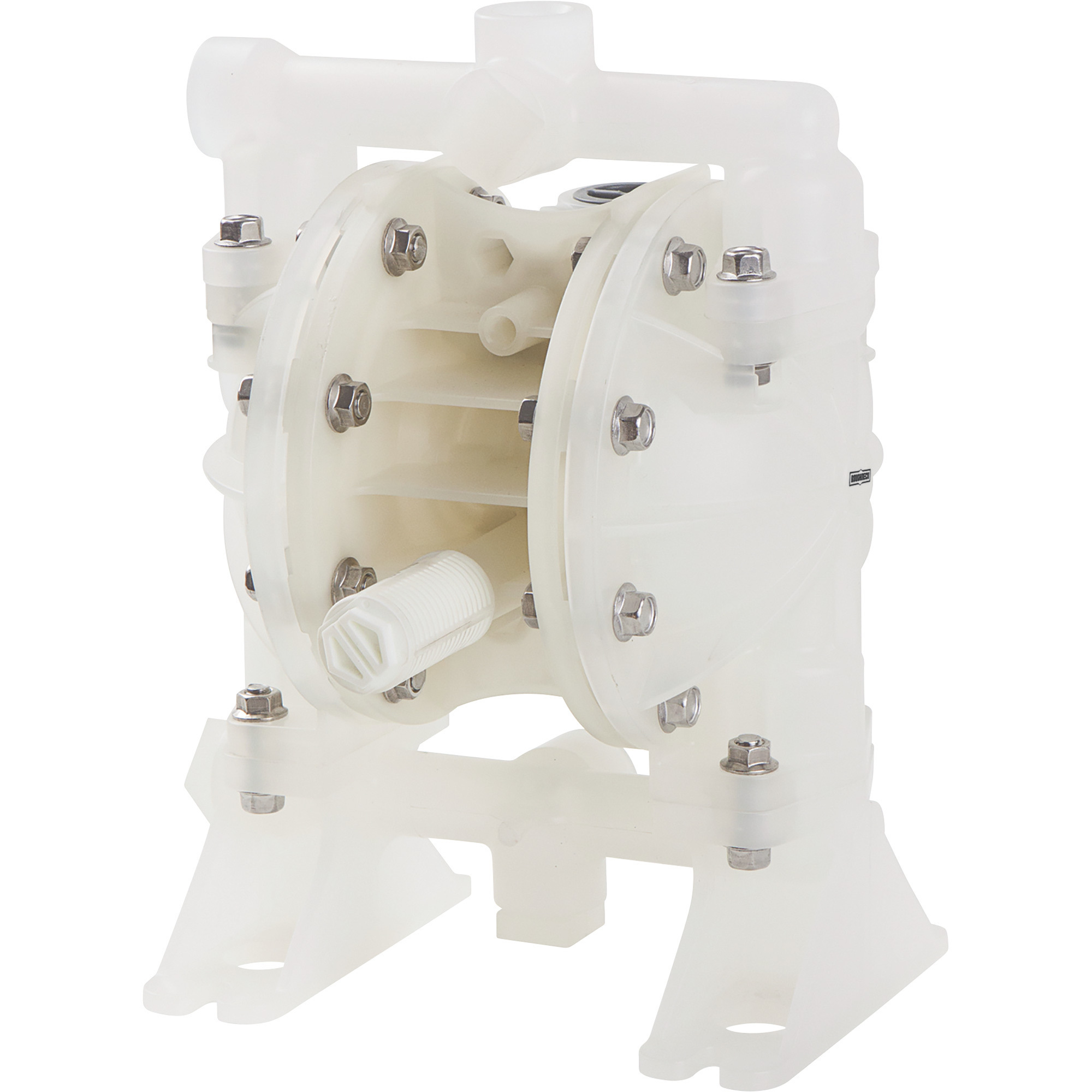

Roughneck Air-Operated Double-Diaphragm Pump, 1/2in. Ports, 14.5 GPM, Polypropylene
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- 1/2in. inlet and outlet ports
- Handles 1/32in. max. suspended solids
- Polypropylene body and Santoprene diaphragm
- Ideal for use with AdBlue, antifreeze, ethanol, ammonium hydroxide and waste water
- Graphite-filled seal rings for a non-lubricated design
Prop 65 Warning: See Details
See full description
Price for all two:
$286.98
What's Included
- (1) Air-operated double-diaphragm pump
Features + Benefits
- 1/2in. inlet and outlet ports
- Handles 1/32in. max. suspended solids
- Polypropylene body and Santoprene diaphragm
- Ideal for use with AdBlue, antifreeze, ethanol, ammonium hydroxide and waste water
- Graphite-filled seal rings for a non-lubricated design
- Flow rate up to 14.5 GPM
- 30–100 PSI operating pressure
- Not for use with gasoline
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Air Operated Diaphragm Pumps
See All Roughneck Air Operated Diaphragm Pumps
Currently Viewing This Product
Shipping: Sold Out
Specifications
Specifications
Roughneck Air-Operated Double-Diaphragm Pump, 1/2in. Ports, 14.5 GPM, Polypropylene
Roughneck Air-Operated Double Diaphragm Oil Pump, 12 GPM, 1/2in. Inlet and Outlet
Versa-Matic Air-Operated Double Diaphragm Pump - 1/2in. Ports, 15 GPM, Polypropylene, Buna Nitrile Diaphragm, Model# E5PP2R259D
Versa-Matic Air-Operated Double Diaphragm Pump - 1in. Ports, 40 GPM, Aluminum, Teflon Diaphragm, Model# E1AA5T559C-ATEX
Flow
Same
14.5 GPM
12 GPM
15 GPM
45 GPM
Inlet Port
Same
1/4 in
1/4 in
1/2 in
1 in
Outlet Port
Same
1/4 in
1/4 in
1/2 in
1 in
Diaphragm Material
Same
Santoprene
Nitrile
Nitrile
PTFE
Average Air Consumption
Same
20.8 cfm
10 cfm
1.605 cfm
5.619 cfm
Operating PSI
Same
100 PSI
115 PSI
80 PSI
80 PSI
Max. PSI
Same
100
115
125
125
Air Inlet Size NPT
Same
0.375 in
0.25 in
0.375 in
0.375 in
Max. Fluid Temp
Same
140 °F
200 °F
200 °F
200 °F
Pump Housing Material
Same
Polypropylene
Aluminum
Polypropylene
Aluminum
Max. Suspended Solids
Same
0.031 in
0.125 in
0.063 in
0.125 in
Product Weight
Same
11.0000 lb
14.5000 lb
8.5000 lb
22.0000 lb
Dimensions L x W x H (in.)
Same
13.75 x 10.625 x 8.65 in
9.1 x 6.7 x 11.6 in
6.25 x 8.39 x 10.05 in
9.33 x 10.72 x 14.54 in
