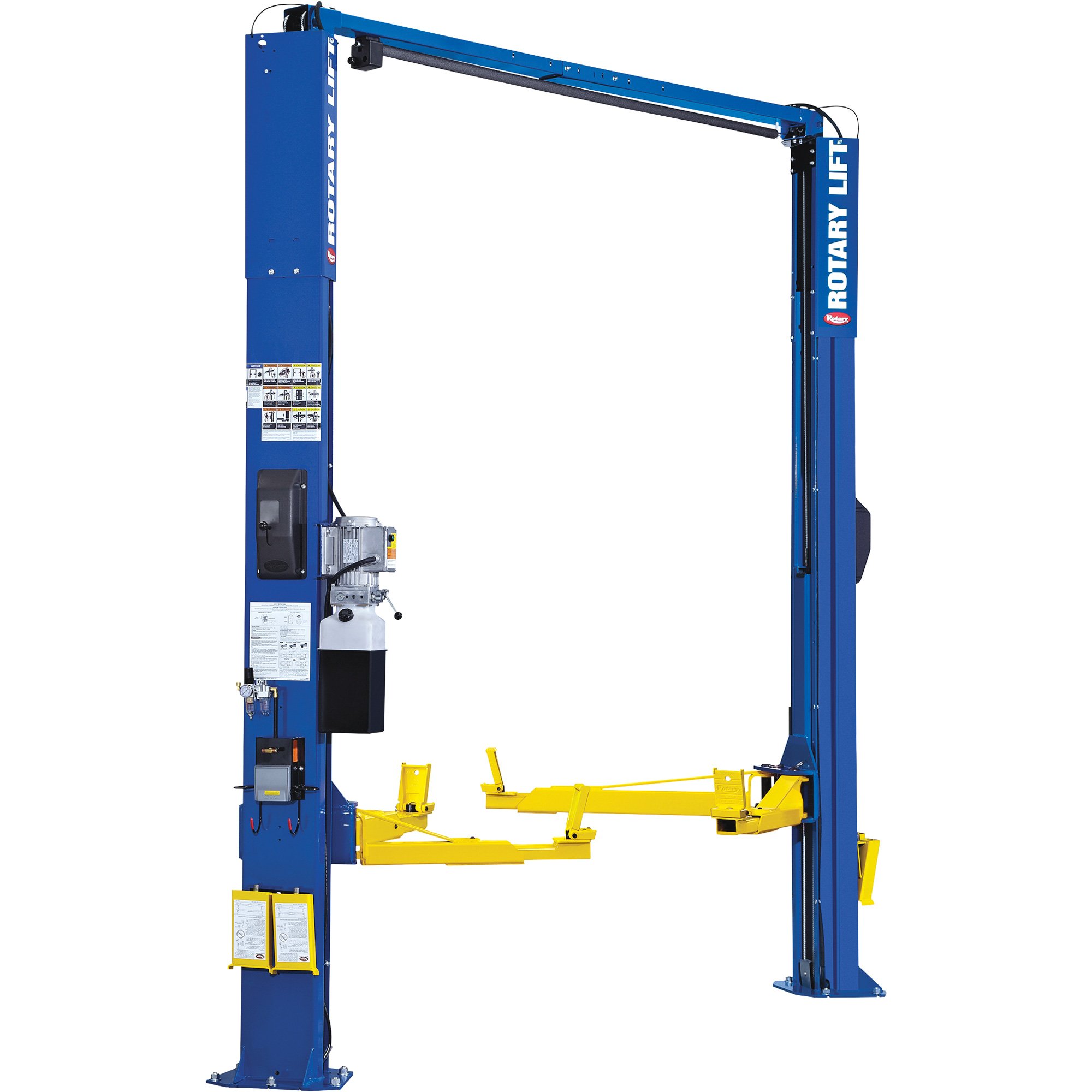

Rotary Lift 2-Post Asymmetrical Narrow Car Lift — 7000-Lb. Capacity, Blue, Model# ATO7N000BBL

Item# 59499
Rotary Lift 2-Post Asymmetrical Narrow Car Lift — 7000-Lb. Capacity, Blue, Model# ATO7N000BBL

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Rotary Lift 2-Post Asymmetrical Narrow Car Lift — 7000-Lb. Capacity, Blue, Model# ATO7N000BBL

Click or Tap image to Zoom

  • Lifts up to 7000 lbs. for use with most cars, light trucks, and other passenger vehicles
  • When loaded properly, vehicle doors can be opened for interior access and the vehicle is positioned a minimum of 24in. away from the nearest obstruction
  • Columns are rotated 30º to place the approximate center of gravity of the vehicle in line with the optimum load capability of the column, reducing unnecessary wear and tear on the column, carriage and bearings
  • 2 HP, single-phase, 208-230V motor delivers the lifting strength and speed you need
  • Reaches full rise in just 45 seconds

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Rotary® Lift 2-Post Asymmetrical Narrow Car Lift offers maximum drive-through clearance while using minimum external dimensions. The narrow design stands 14 1/2in. narrower than a standard 2-post lift to conserve garage space. Includes stackable adapters and storage rack. Blue. ALI Gold certified. NOTE: This item is too large for a lift gate. Customer must provide a forklift or other means to unload the product.

What's Included

  • (1) 2-post asymmetrical narrow car lift
  •  (4) 90mm stackable adapters
  •  (4) 130mm stackable adapters
  • (1) Storage rack

Downloads

Product Manual

Features + Benefits

  • Lifts up to 7000 lbs. for use with most cars, light trucks, and other passenger vehicles
  • When loaded properly, vehicle doors can be opened for interior access and the vehicle is positioned a minimum of 24in. away from the nearest obstruction
  • Columns are rotated 30º to place the approximate center of gravity of the vehicle in line with the optimum load capability of the column, reducing unnecessary wear and tear on the column, carriage and bearings
  • 2 HP, single-phase, 208-230V motor delivers the lifting strength and speed you need
  • Reaches full rise in just 45 seconds
  • Maximum drive-through clearance of 92in.

Key Specs

AttributeSpecification

item#

59499

Brand

Rotary

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

1389.0 LB
AttributeSpecification

Horsepower

2 HP

Motor Phase

Single-phase

Volts

208-230

Product Weight

1,389 lb

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All Two-Post Lifts

Specifications

Specifications
Rotary Lift 2-Post Asymmetrical Narrow Car Lift — 7000-Lb. Capacity, Blue, Model# ATO7N000BBL

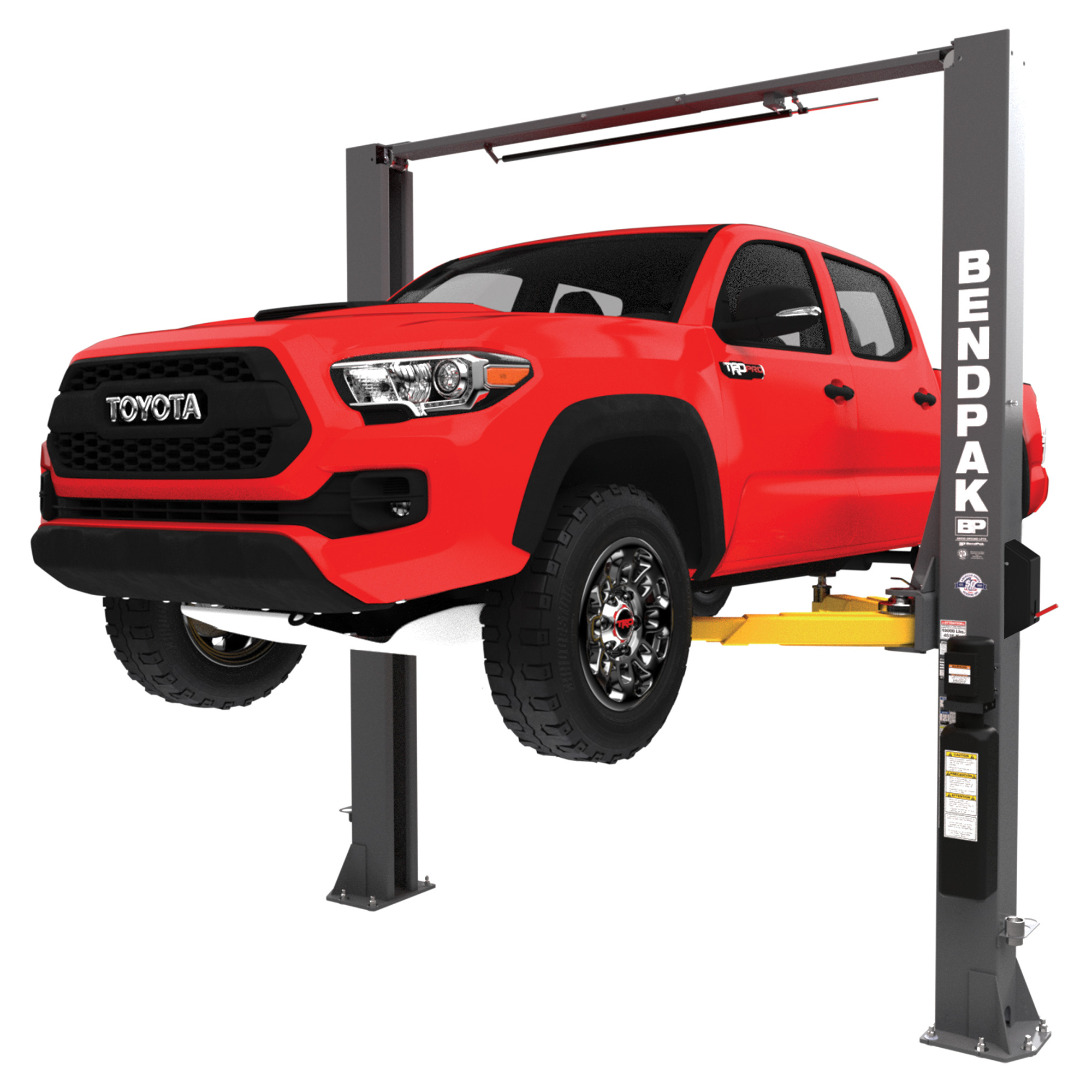

BendPak 2-Post Car Lift, 10,000-Lb. Capacity, Model# 10AP

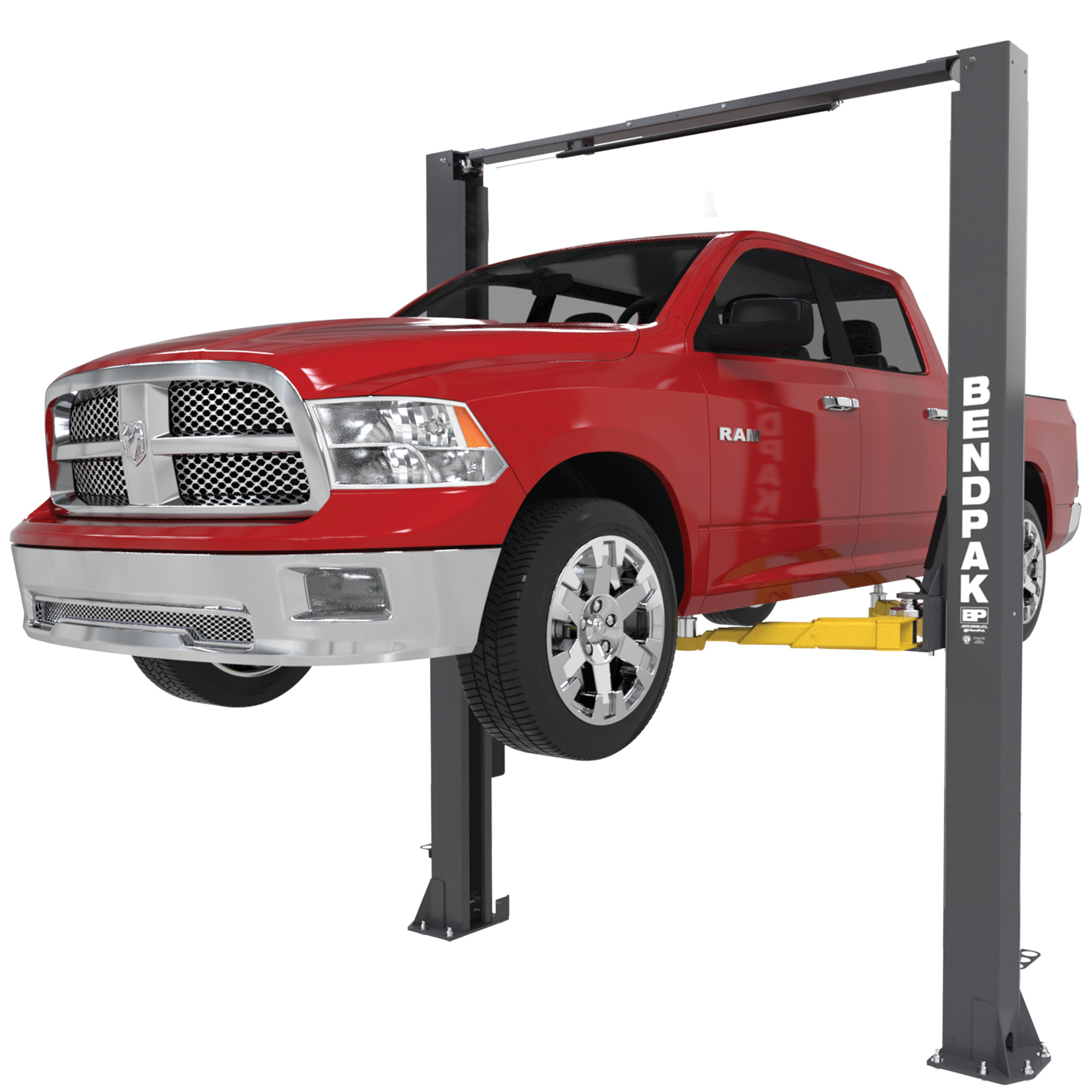

BendPak 2-Post Truck and Car Lift, 10,000 Lb. Capacity, Model# 10APX

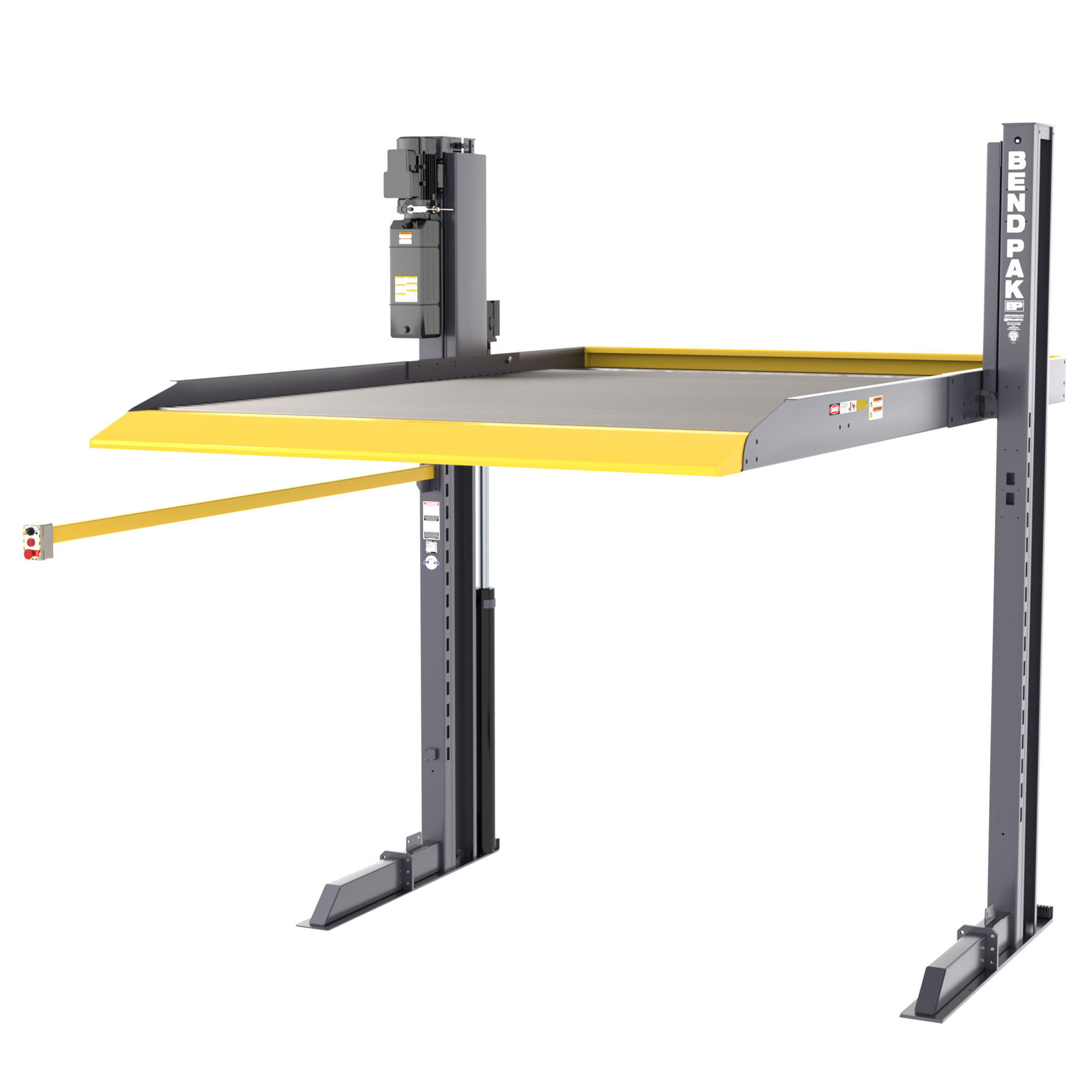

BendPak, Two Post Parking Lift 6000lb Capacity, Capacity 6000 lb, Max. Rise 6.8 ft, Horsepower 4 HP, Model# PL-6000DCX
Horsepower
Same

2 HP

3 HP

3 HP

4 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

208-230

220

220

220

Product Weight
Same

1,389 lb

1710.0000 lb

1766.0000 lb

2288.0000 lb

Capacity
Same

-

10,000 lb

10,000 lb

6,000 lb

Max. Rise
Same

-

6 ft

6.5 ft

6.8 ft

Lock Spacing
Same

-

3.75 in

4 in

-

Locking Position (qty.)
Same

-

14

15

10

Time of Full Rise
Same

-

45 sec.

45 sec.

50 sec.

Pad Height
Same

-

4 in

4 in

-

Drive-Thru Clearance
Same

-

102 in

102 in

-

Material
Same

-

Steel

Steel

Steel

Dimensions L x W x H (in.)
Same

-

145.0 x 20.0 x 145.0 in

145.0 x 20.0 x 157.0 in

163.5 x 112.0 x 131.0 in
