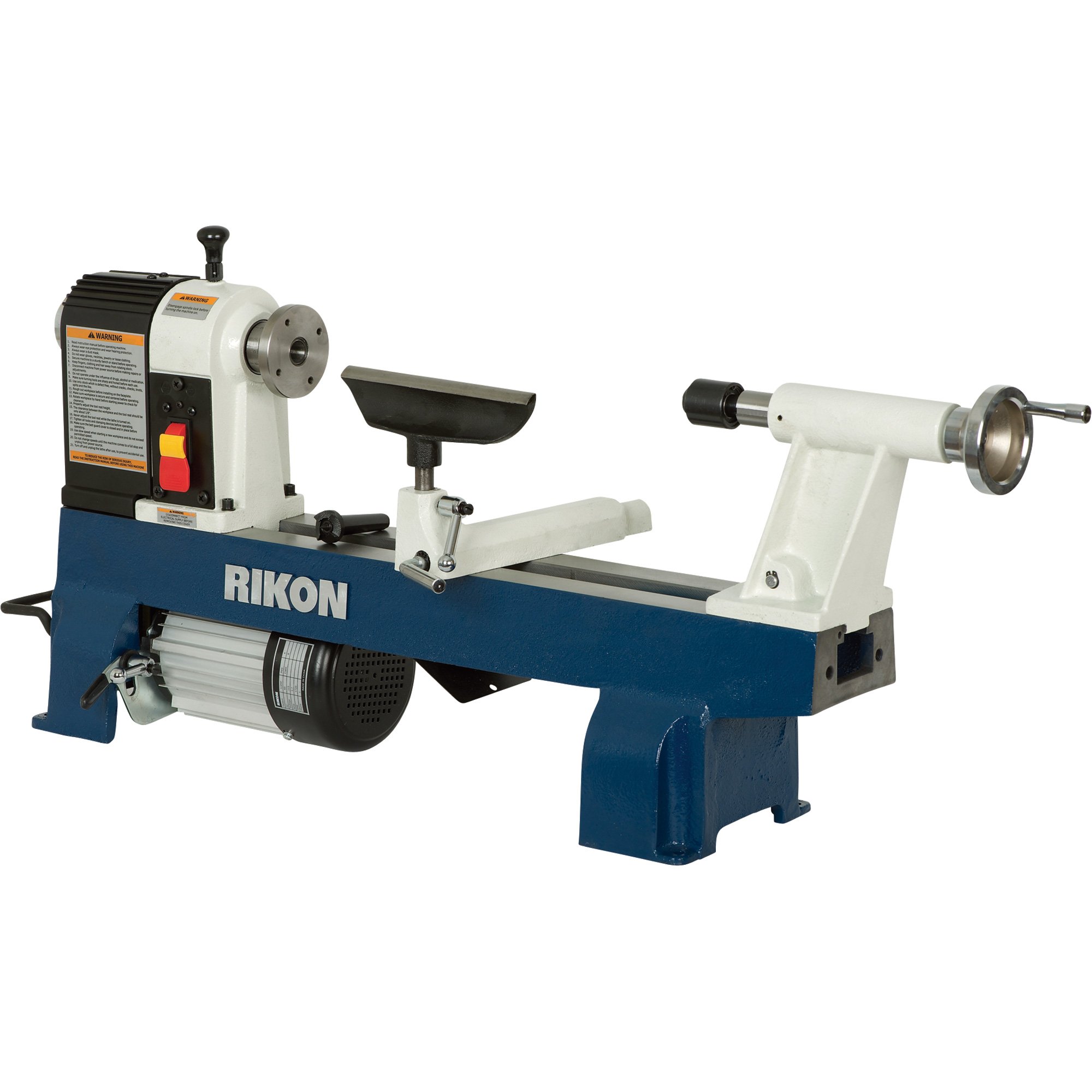

Rikon 12in. x 16in. Woodworking Mini Lathe — 1/2 HP, 3,450 RPM, Model# 70-100

Item# 25297
Rikon 12in. x 16in. Woodworking Mini Lathe — 1/2 HP, 3,450 RPM, Model# 70-100

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Rikon 12in. x 16in. Woodworking Mini Lathe — 1/2 HP, 3,450 RPM, Model# 70-100

Click or Tap image to Zoom

  • 1/2 HP, 110V, 6.6 Amp 3,450 RPM TEFC motor
  • Large 12in. swing over bed
  • 16in. distance between centers
  • 12-position indexing spindle for fluting, grooving, drilling and layout
  • Six speeds: 430, 810, 1,230, 1,810, 2,670 and 3,900 RPM

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Rikon 12in. x 16in. Woodworking Mini Lathe is a premier woodworking lathe with many desirable features. It offers 16in. distance between centers, a 12-position indexing head for accurate pattern work, spindle lock for easy accessory removal. Operates at 6 speeds via a poly V-belt that transfers power smoothly with minimal vibration and can be changed quickly to match the task at hand. This lathe's cast iron construction dampens vibration and has an excellent fit and finish. Comes complete with a 4in. tool rest, spur center, live center, 4in. faceplate and tool holder.

What's Included

  • (1) Lathe
  • (1) 4in. tool rest
  • (1) Spur center
  • (1) Live center
  • (1) 4in. faceplate
  • (1) Tool holder

Downloads

Product Manual

Features + Benefits

  • 1/2 HP, 110V, 6.6 Amp 3,450 RPM TEFC motor
  • Large 12in. swing over bed
  • 16in. distance between centers
  • 12-position indexing spindle for fluting, grooving, drilling and layout
  • Six speeds: 430, 810, 1,230, 1,810, 2,670 and 3,900 RPM
  • Flip-up handle for easier lifting and positioning of lathe
  • Easy access belt cover for quick speed changes
  • Tool-less tool rest and tailstock adjustment
  • Cast iron construction dampens vibration
  • Tailstock has 2 1/2in. travel with a MT2 taper and is self-ejecting for easy removal

Key Specs

AttributeSpecification

item#

25297

Brand

Rikon Power Tools

Manufacturer's Warranty

5 year limited warranty

Ship Weight

96.0 LB

Distance Between Centers

16 in

Horsepower

0.5

Swing

12 in
AttributeSpecification

Min. RPM

430

Max. RPM

3900

Product Type

Lathe

Speeds (qty.)

6

Volts

110

Amps

6.6

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. What accessories are available for this lathe?

    Like a stand, chucks, etc

    1 answer

    1. Northern Tool does not offer any accessories for the Rikon Mini Lathe. Accessories available would be shown in the product manual from the manufacturer that is included with the machine.

      Helpful?

  2. Can I get a 3 jaw chuck for the Riko 12 x 16 lathe

    1 answer

    1. At this time, Northern Tool does not offer a 3-jaw chuck for the Rikon Woodworking Mini Lathe.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
