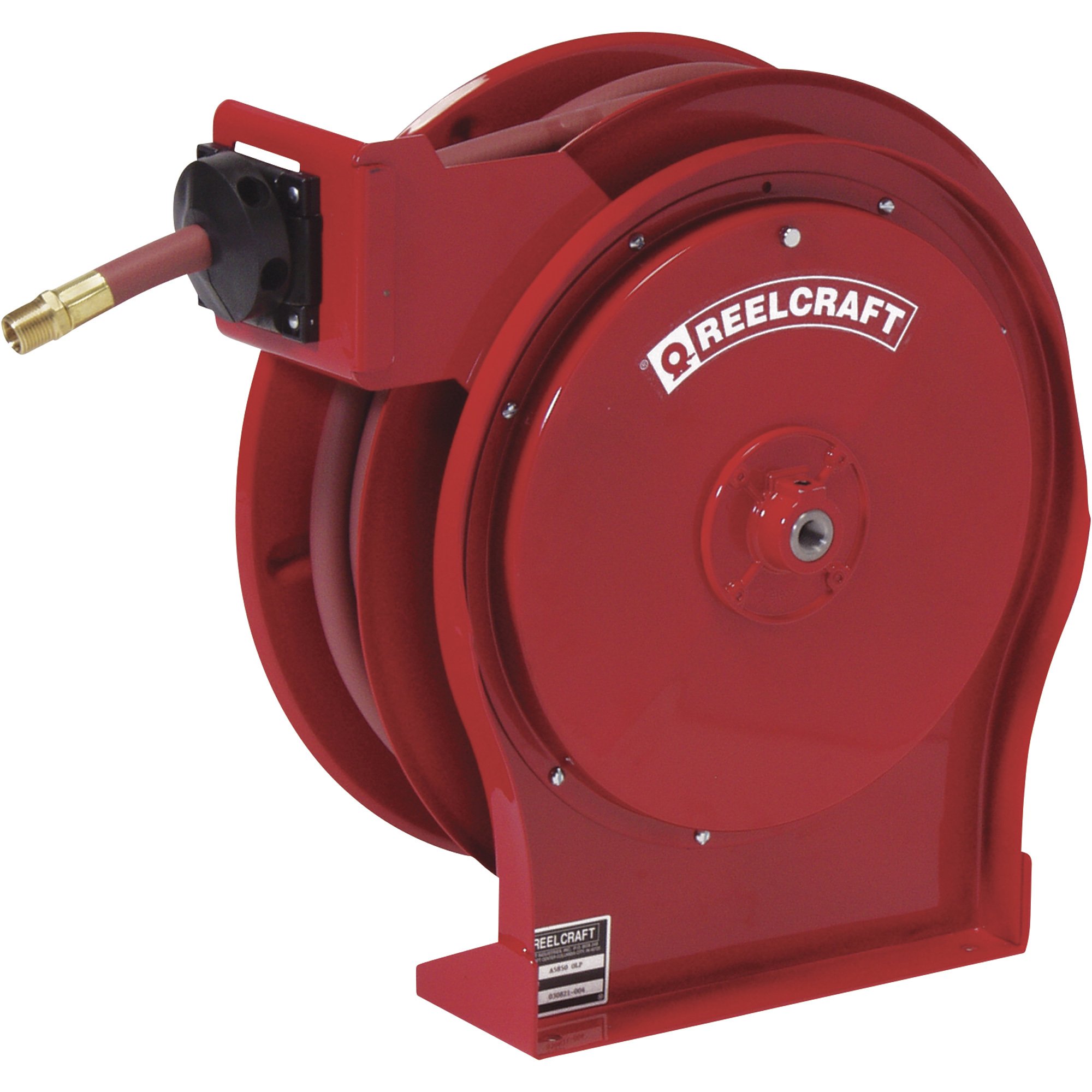

Reelcraft Air/Water Hose Reel — With 3/8in. x 50ft. PVC Hose, Max. 300 PSI, Model # 5650 OLP

Item# 159654
Reelcraft Air/Water Hose Reel — With 3/8in. x 50ft. PVC Hose, Max. 300 PSI, Model # 5650 OLP
Reelcraft Air/Water Hose Reel — With 3/8in. x 50ft. PVC Hose, Max. 300 PSI, Model # 5650 OLP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Reelcraft Air/Water Hose Reel — With 3/8in. x 50ft. PVC Hose, Max. 300 PSI, Model # 5650 OLP

Click or Tap image to Zoom

  • Steel fitting
  • Molded rubber bumpers
  • Function in temperatures down to -20°F

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Industrial grade reel has steel construction and is compact for a wide range of applications with critical space requirements. A full flow shaft and swivel assures maximum product delivery. Quiet Speed latch mechanism offers quiet operation combined with latch cam technology, insuring longer latching life and troublefree performance.

What's Included

  • (1) Hose reel
  • (1) 3/8in. x 50ft. hose

Downloads

Product Manual

Features + Benefits

  • Steel fitting
  • Molded rubber bumpers
  • Function in temperatures down to -20°F

Key Specs

AttributeSpecification

item#

159654

Brand

Reelcraft

Manufacturer's Warranty

24 months limited parts / No labor

Ship Weight

37.85 LB

Hose Length

50 ft
AttributeSpecification

Max. PSI

300

Hose Material

PVC

Max. Hose Temperature

150 °F

Hose Outlet Size

1/4 in. NPT

Dimensions L x W x H (in.)

16.5 x 6 x 17.25 in

Reviews

Questions & Answers

Questions

1–9 of 9 Questions
Sort by:

  1. Will this reel work if mounted from a 14' high ceiling?

    1. Yes it will. You will need to move the black rubber stop so that the hose will stay within reach

      Helpful?

    2. There's really no reason why it wouldn't, but make sure you don't reel it all the way up and then can't reach the hose.

      Helpful?

    3. Yes but I wouldn't recommend it. It's 26' long, so from the ground to the ceiling you lose more than 1/2 your working length. I guess if you didn't have to move much laterally it would work, but this doesn't sound like a good setup. Maybe pipe your air from the compressor to a better location for the reel? Just a thought.

      Helpful?

    4. The Reelcraft Air/Water Hose Reel with Hose can be mounted to a 14' ceiling, however cannot be mounted to a 16' or higher ceiling.

      Helpful?

  2. What does PVC hose mean?

    1 answer

    1. The 50 ft hose provided with this reel is made of a flexible PVC, polyvinyl chloride pipe.

      Helpful?

  3. What adapters are necessary for water use?

    1 answer

    1. This hose reel comes ready for water or air use. The inlet connection size is 3/8 inch NPT and the outlet on the end of the hose is 1/4 inch NPT.

      Helpful?

  4. Can standard garden water hose be used with this reel? - ie 5/8" or 3/4" garden hose...

    1 answer

    1. The Reelcraft Hose Reel has a 3/8 inch NPT ( national pipe thread ) inlet fitting which would be incompatible with a standard garden hose.

      Helpful?

  5. Would this water hose support my workspace 16ftx30ft or 40ft sq ft of

    480sq ft or 640sq ft. I need to be able to wash down vehicles, motorcycles, equipment, wash the floor out.

    1 answer

    1. The Reelcraft Hose Reel with 50 feet of hose should easily be able support a workspace of 16 feet by 30 feet.

      Helpful?

  6. How many feet of water hose will fit on this reel. It will be mounted on a mobile mix concrete truck body.

    1 answer

    1. This hose reel is capable of holding 50 feet of 3/8in hose.

      Helpful?

  7. What is the correct fitting to connect the reel to the short hose that will go to the compressor?

    I've purchased this reel, but need to know what fitting/short hose I need to connect it to my compressor. In other words, what is the correct fitting that would go in the center receptacle that runs to the reel hose?

    1 answer

    1. This hose reel has a 3/8" NPTF reel input.

      Helpful?

  8. I am using this for water what tempurature isthe hose rated to?

    1 answer

    1. This hose is rated for a max temperature of 150º F or 65º C.

      Helpful?

  9. Can I get the manufacturers model # for this?

    1 answer

    1. This Reelcraft air/water hose reel with hose is model # 5650OLP.

      Helpful?

Warranty

Manufacturer's Warranty

24 months limited parts / No labor
