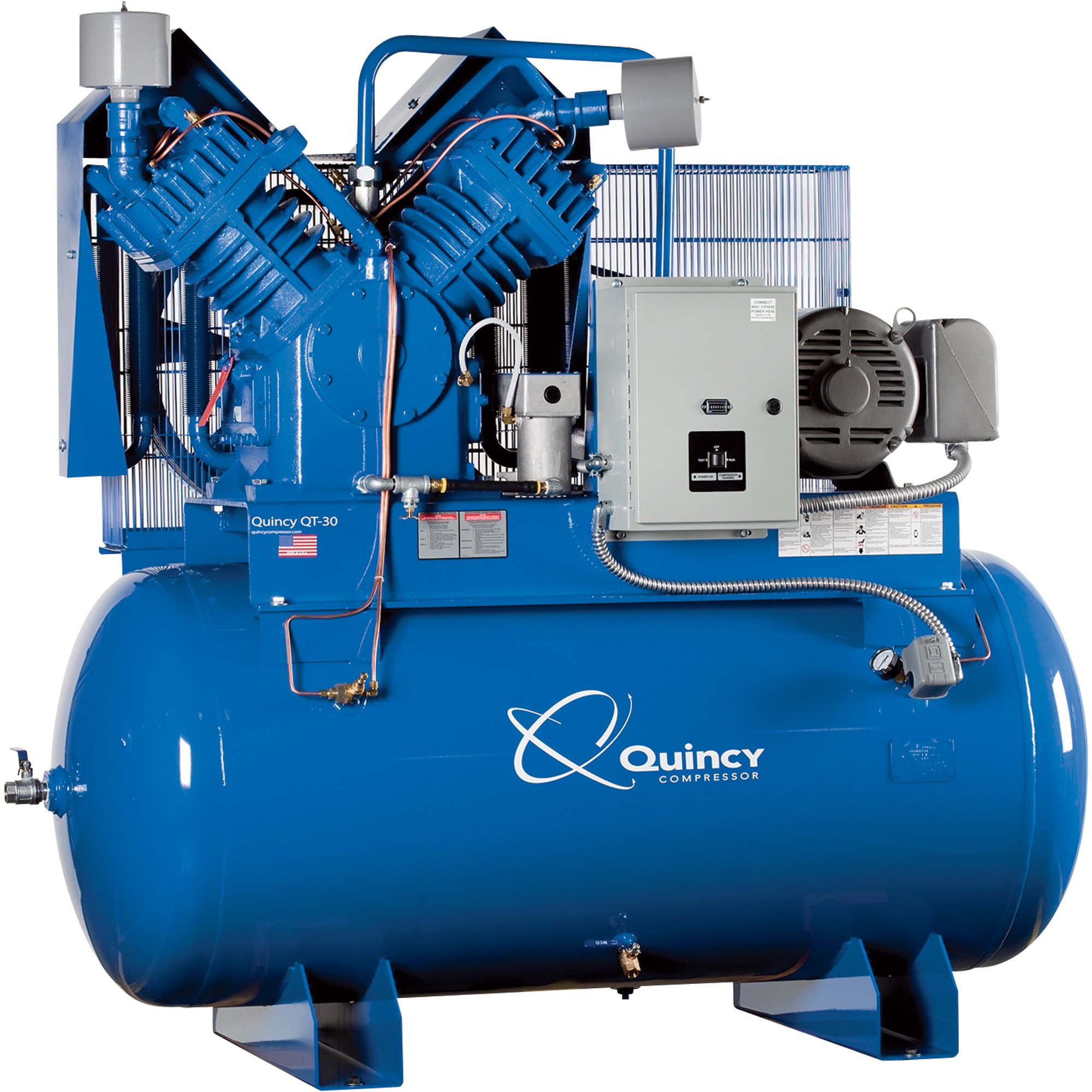

Quincy Compressor Reciprocating Air Compressor — 25 HP, 230 Volt 3 Phase, 120 Gallon Horizontal, Model# 2253DS12HC23

Item# 24291
Quincy Compressor Reciprocating Air Compressor — 25 HP, 230 Volt 3 Phase, 120 Gallon Horizontal, Model# 2253DS12HC23

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor Reciprocating Air Compressor — 25 HP, 230 Volt 3 Phase, 120 Gallon Horizontal, Model# 2253DS12HC23

Click or Tap image to Zoom

  • Industrial-duty low RPM motor
  • Industrial-duty general-purpose mounted and wired magnetic starter
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 145–175 working PSI
  • Pump RPM: 833

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy reciprocating air compressors are designed to be a compressor for life. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. Heavy-duty compressors are engineered for industrial applications and boast a best-in-the-industry 50,000-hour pump life rating. 2-year limited warranty (5-year limited warranty on pump if customer purchases and uses maintenance kit.) Call a sales representative to order maintenance kit. U.S.A.

What's Included

  • (1) Compressor

Downloads

Additional Product Info Additional Product Info2

Features + Benefits

  • Industrial-duty low RPM motor
  • Industrial-duty general-purpose mounted and wired magnetic starter
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 145–175 working PSI
  • Pump RPM: 833
  • 4-cylinder pump design
  • Heavy-duty, easy-to-reach, manual ball valve
  • 2-stage belt drive pump with solid cast iron cylinder
  • Finned intercooler for maximum cooling and increased valve life
  • Aluminum head for heat dissipation
  • Extra-capacity oil reservoir for low oil temperatures
  • Cast iron fly wheel for energy efficiency and durability
  • 100% duty cycle
  • Splash lubrication
  • UL & CSA approval on all electrical components
  • ASME-coded pressure relief valves and tanks
  • Additional charge for liftgate shipping option
  • Ships in heavy-duty protective crate with oil in the pump

Key Specs

AttributeSpecification

item#

24291

Brand

Quincy Compressor

Manufacturer's Warranty

24 months parts / 24 months labor

Ship Weight

1940.0 LB

Air Tank Size

120 Gal

Volts

230

Motor Phase

3

Stage

2

Tank Orientation

Horizontal
AttributeSpecification

Horsepower

25 HP

Max. PSI

175

Duty Cycle

100 %

Working Pressure

175 PSI

Pump Material

Cast Iron

Air Outlet Size

1 in. NPT

Drain Type

Manual

Dimensions L x W x H (in.)

78 x 29 x 65 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

24 months parts / 24 months labor
