The pins on this cylinder are 1-1/4 inch in diameter.

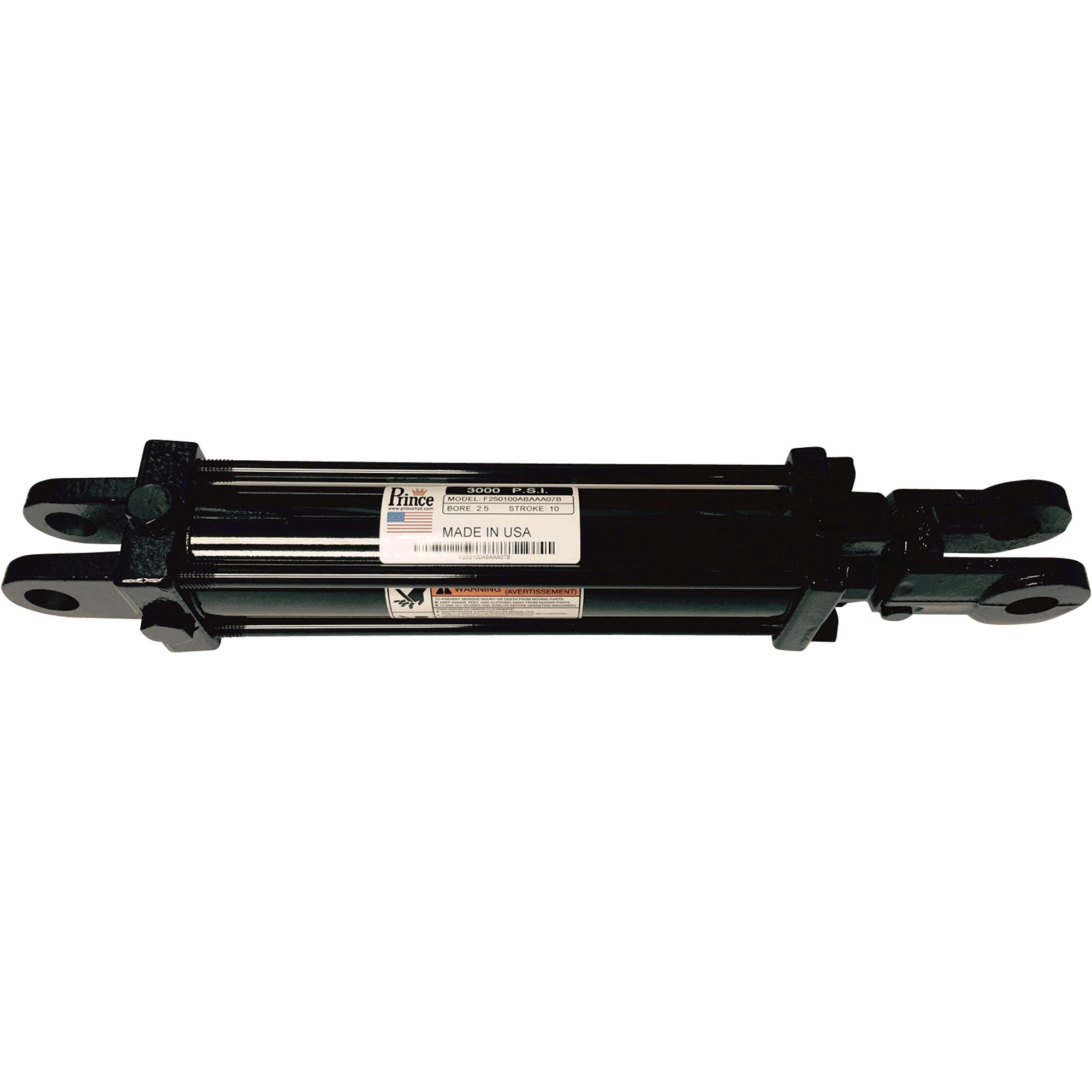

Prince Tie-Rod Hydraulic Cylinder — 3,000 PSI, 4 1/2in. Bore, 16in. Stroke, 2in. Shaft
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- 1/2in. working ports and 1in. pins
- Induction hardened piston rods
See full description
See All Tie Rod Cylinders
See All Prince Tie Rod Cylinders
Currently Viewing This Product
Item # 9034516
Shipping: Sold Out
Specifications
Specifications
Prince Tie-Rod Hydraulic Cylinder — 3,000 PSI, 4 1/2in. Bore, 16in. Stroke, 2in. Shaft
Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 24 in, Model# 211311
Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 10 in, Model# 211421
Maxim, TC Tie-rod Cylinder, Max. PSI 2500, Bore Diameter 2 in, Stroke Length 10 in, Model# 218306
Max. PSI
Same
3,000
3,000
3,000
2,500
Bore Diameter
Same
4.5 in
2 in
5 in
2 in
Stroke Length
Same
16 in
24 in
10 in
10 in
Shaft Diameter
Same
2 in
-
-
-
Closed Pin Center
Same
31.5 in
-
-
-
Retracted Length
Same
-
34.25 in
22.25 in
20.25 in
Extended Length
Same
-
58.25 in
32.25 in
30.25 in
Pin Diameter
Same
-
1 in
1.25 in
1 in
Product Weight
Same
-
31.8100 lb
80.5100 lb
19.0000 lb
Dimensions L x W x H (in.)
Same
-
58.25 x 2.0 x 2.0 in
32.25 x 5.0 x 5.0 in
30.25 x 2.0 x 2.0 in
