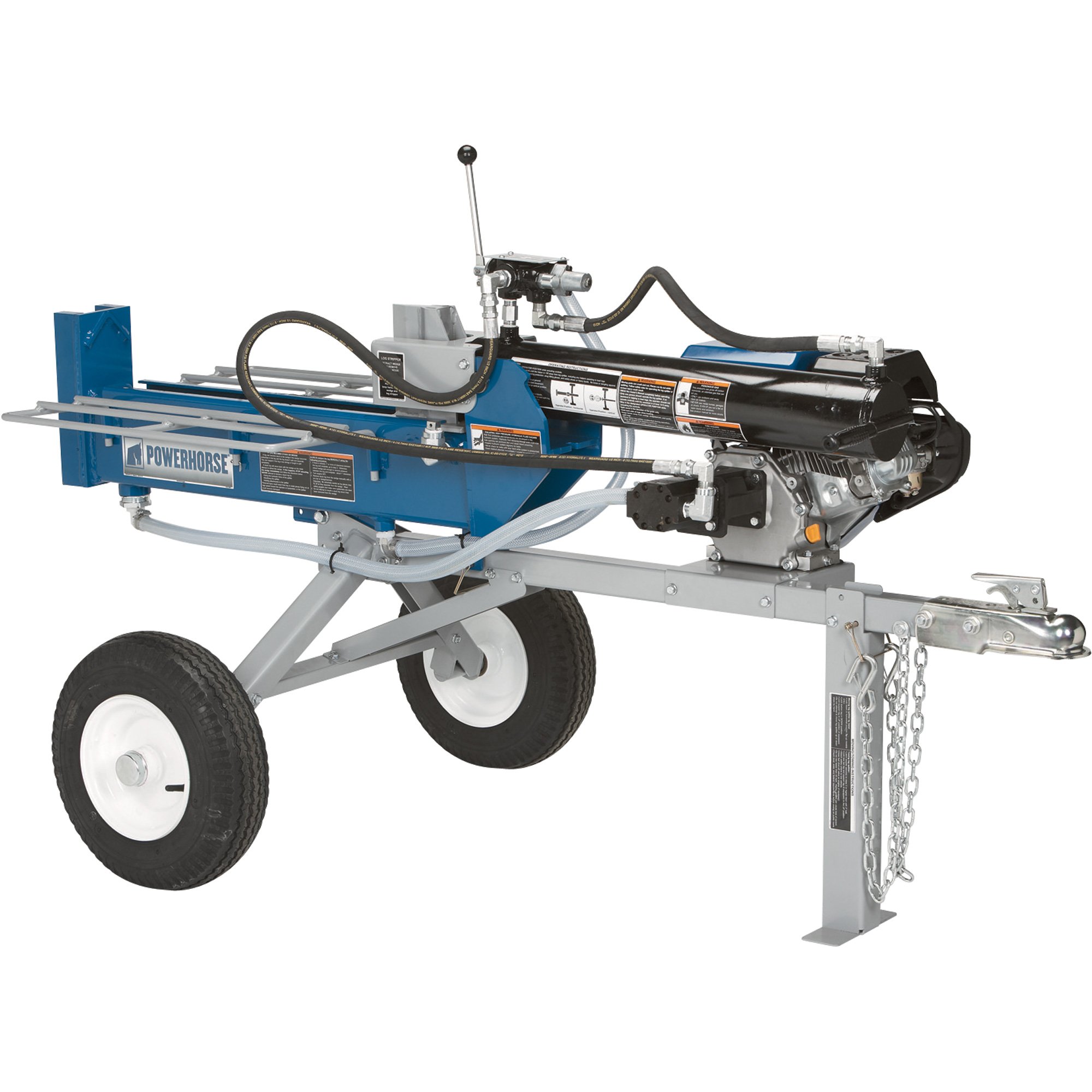

Powerhorse Horizontal/Vertical Log Splitter — 20 Ton, 208cc Powerhorse Engine

Item# 1165
Powerhorse Horizontal/Vertical Log Splitter - 20 Ton, 208cc Powerhorse Engine
Powerhorse Horizontal/Vertical Log Splitter — 20 Ton, 208cc Powerhorse Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powerhorse Horizontal/Vertical Log Splitter — 20 Ton, 208cc Powerhorse Engine

Click or Tap image to Zoom

  • Dependable Powerhorse OHV engine with cast iron sleeve
  • Low oil shutdown, dual ball bearings, forged crankshaft
  • 2-stage pump produces 11 GPM
  • Splits logs up to 25in.L x 14in. dia.
  • High-speed tires for towing to the log pile

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Powerhorse® Log Splitter has a 208cc OHV engine with low oil shut down and an 11 GPM pump that produces 20 tons of splitting force to split logs up to 25in.L x 14in.dia. Splits in both horizontal and vertical positions, so there is no need to lift large logs. Not for sale in California.

What's Included

  • (1) Beam/cylinder
  • (1) Engine/pump
  • (2) Tires
  • (1) Tow bar
  • (1) Manual bag
  • (2) Log cradles
  • (1) Hose box

Downloads

Product Manual Product Manual2

Features + Benefits

  • Dependable Powerhorse OHV engine with cast iron sleeve
  • Low oil shutdown, dual ball bearings, forged crankshaft
  • 2-stage pump produces 11 GPM
  • Splits logs up to 25in.L x 14in. dia.
  • High-speed tires for towing to the log pile
  • Log table keeps split logs from falling on ground
  • Brand Hydraulic open center, spring to center with detent valve
  • Some assembly required

Key Specs

AttributeSpecification

item#

1165

Brand

Powerhorse

Manufacturer's Warranty

24 months consumer / 90 day commercial

Ship Weight

325.0 LB
AttributeSpecification

Product Type

Electric

Engine Displacement

208 cc

Tire Size

4.80-8

Dimensions L x W x H (in.)

75 x 41 x 44 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. oil for log splitter

    How much oil do i need for the 20 ton 3000 psi Model 1165 log splitter

    1. 3.5 gallons

      Helpful?

    2. 10w 30 for motor 1 qt. will do and 3.5 gallons of hydraulic fluid for hydraulic pump

      Helpful?

    3. The capacity for hydraulic oil is 3.5 gallons.

      Helpful?

  2. Does this unit "auto-return"?

    So when you let go of the hydrolic handle, does the ram return automatically, or do you have to hold the handle to return the ram?

    1. have to reverse handle and it auto stops its self.

      Helpful?

    2. This Powerhorse Log Splitter will detent on the return stroke. When the valve lever is pulled back, it will hold on its own and the ram will return automatically.

      Helpful?

  3. will the 4 way splitter head fit this splitter

    1. I don't believe guard on return will accept 4 way buts its much faster and racks are sturdy built to hold large diameter logs over 20" ,I just laid half on other side and split it fast .

      Helpful?

    2. The 4-way wedge wings will not work with the Powerhorse Log Splitters. The dual split feature on this splits on both the forward and return stroke, making it faster than most splitters even without a 4-way wedge.

      Helpful?

  4. HYDRAULIC FLUID

    Hi There !! How much fluid will I need to refill the Whole Unit ....... ?? Thank You..... Joseph .....

    1. 3 and half gallon approximately and very slow process ,you' need long neck skinny funnel and figure at least 45 minutes to get thru small inlet ,break down into smaller container much easier to hold and easier on back than trying to hold 5 gallon pail.

      Helpful?

    2. The Powerhorse Log Splitter requires 3.5 gallons of either 10wt AW32, ASLE H-150, or ISO32 hydraulic fluid.

      Helpful?

  5. How many separate heavy parts are in the crate?

    I will have to transport the splitter by boat from my home delivery address to my island where it will be assembled. I would like to transport it in as many less than one hundred pound pieces as possible.

    1. the heavyist part is cylinder at about 75 lbs ,then motor at say 35 lbs ,the frame is in pieces so should be able to distribute weight around ,shouldn't be a problem but you would probably have to make at least 2 runs at it with hydraulic oil which is heavy (5 Gallon container) .there's 3 heavy parts counting Hydraulic fluid.

      Helpful?

    2. The Powerhorse Horizontal/Vertical Log Splitter will arrive almost entirely assembled. If you need to disassemble in order to transport, it has only 3 heavy parts. The heaviest part is the beam itself, weighing 93 lbs. The hydraulic cylinder is 57 lbs, and the engine is 36lbs. The rest of the splitter is smaller pieces, typically less than 10 lbs.

      Helpful?

  6. Looks like only one way operition? What is cycle time?

    1. one way operation appox.15sec.

      Helpful?

    2. Yes, this splitter is different from the other Powerhorse splitters in the respect that it only splits in one direction. The feature that you will get with this unit that you do not get with the other Powerhorse splitters, is that it has the capability to split either vertically or horizontally so that if you are splitting especially heavy logs they do not need to lifted all the way up to the table. The cycle time for this splitter is approximately 13 seconds.

      Helpful?

  7. How can i purchas parts for this log splitter

    1. Parts (powerhorse product support 1-866-443-2576.)

      Helpful?

    2. One of the main advantages of purchasing our Powerhorse line-up means you will have access to all replacement parts through the warehouse where they are assembled in Minnesota at phone number 1-866-443-2576.

      Helpful?

  8. Can you tell me what diameter logs this unit is capable of splitting ?

    1. I would say if you tilt upright it will split anything.

      Helpful?

    2. This splitter is capable of splitting logs that are up to 14" in diameter.

      Helpful?

  9. Where is this made? Where is the engine made?

    1. China.

      Helpful?

    2. The Powerhorse log splitter is manufactured in China, built to Northern Tool's specifications, and the engine is built by Powerhorse as well.

      Helpful?

  10. Can I store it upright?

    Assuming all the gasoline is removed, can I store it upright, including the tongue and motor without oil leaking from the engine?

    1 answer

    1. The Powerhorse Log Splitter cannot be stored with the whole unit in a vertical position. This would void the manufacturer's warranty.

      Helpful?
