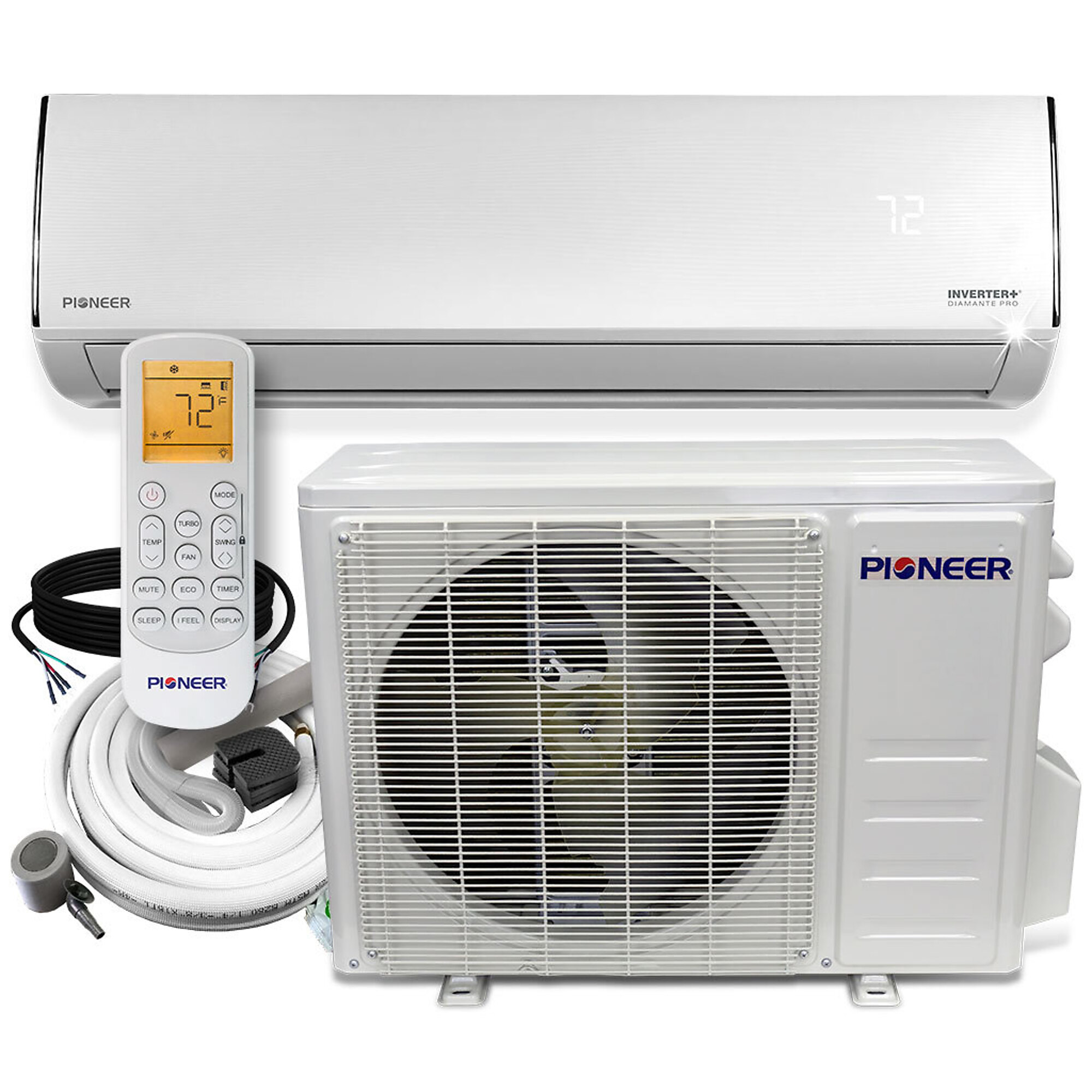

PIONEER, 12000 BTU Mini Split Inverter+ AC Heat Pump 115V, BTU Cooling 12000 Volts 115 Cooling Capacity 450 ft², Model# WYT012ALFI19RL

Item# 5907795
PIONEER, 12000 BTU Mini Split Inverter+ AC Heat Pump 115V, BTU Cooling 12000 Volts 115 Cooling Capacity 450 ft², Model# WYT012ALFI19RL

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

PIONEER, 12000 BTU Mini Split Inverter+ AC Heat Pump 115V, BTU Cooling 12000 Volts 115 Cooling Capacity 450 ft², Model# WYT012ALFI19RL

Click or Tap image to Zoom

  • Cooling capacity of 12,000 BTU/hour with 19 SEER2 and 10 EER2 efficiency
  • Heating capacity of 12,200 BTU/H with 8.5 HSPF2 & 3.21 COP2 efficiency
  • Voltage of 110V - 120V, 60Hz, 1Ph
  • Complete system set including indoor fan coil section, outdoor condenser section, wireless remote controller with remote holder, 16 ft. line set with other installation accessories and free vibration absorber feet for the condensing unit
  • Unsurpassed support hotline covers installation, use, troubleshooting, warranty and parts issues

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Experience instant relief the moment you enter your room with Pioneer’s latest Diamante series high-wall ductless mini split heat pumps. This all-new product line was designed and developed to bring a truly affordable heating and cooling solution without sacrificing desirable features. The variable-speed inverter technology and high-efficiency 19 SEER2 rating guarantees substantial savings from your monthly energy bill. A dual-swing louver system ensures both horizontal and vertical sweeping air throw, to perfectly reach all directions of the room. All systems in this series come equipped with an auxiliary strip heater in the condensing unit, to provide hyper-heating even in frigid -13°F temperatures. And with noise measurements as low as 27 dB, you can sleep peacefully with air conditioning quieter than even an empty library. In addition, all systems come pre-packed with a full 16ft. installation kit, so your ductless mini split heat pump system is ready to be up and running in a single afternoon. Browse our newest selection of wall mounted Diamante split systems today!

What's Included

    (1) Indoor Unit (1) Outdoor Unit (1) Wireless Remote Control (with wall holder and batteries) (1) 16 Ft. Copper Lines (1) 16 Ft. Signal Cable Between Units (1) Drain for Indoor/Outdoor (1) Wall Passage Sleeve (1) Putty for Wall Hole (1) Leak Guard Sealer (1) Wrapping Tape (1) Installation Manual (1) User’s Manual

Downloads

Safety Data Sheet

Features + Benefits

  • Cooling capacity of 12,000 BTU/hour with 19 SEER2 and 10 EER2 efficiency
  • Heating capacity of 12,200 BTU/H with 8.5 HSPF2 & 3.21 COP2 efficiency
  • Voltage of 110V - 120V, 60Hz, 1Ph
  • Complete system set including indoor fan coil section, outdoor condenser section, wireless remote controller with remote holder, 16 ft. line set with other installation accessories and free vibration absorber feet for the condensing unit
  • Unsurpassed support hotline covers installation, use, troubleshooting, warranty and parts issues
  • Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
  • Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
  • Certified by ETL, AHRI, DOE for safety, performance and efficiency
  • Diamante series carries a full line of low-ambient wall-mounted mini splits with capacities ranging from 9,000 BTU/hour to 36,000 BTU/hour for various residential and light commercial applications
  • R410A pre-charged outdoor unit, accommodating line lengths up to 25 ft. long

Key Specs

AttributeSpecification

item#

5907795

Brand

Pioneer

Manufacturer's Warranty

5 year limited warranty

Ship Weight

141.5 LB

BTU Cooling

12,000

Volts

115

Cooling Capacity

450 ft²

Amps

9.6

Product Type

Mini-Split
AttributeSpecification

Mini Split

Yes

Speeds (qty.)

26

CFM

383

Temperature Range

61-86; 46

Timer

Yes

For Use With

Home, Office, or Rental

Product Weight

20.0000 lb

Dimensions L x W x H (in.)

32.0 x 8.0 x 11.5 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

5 year limited warranty
