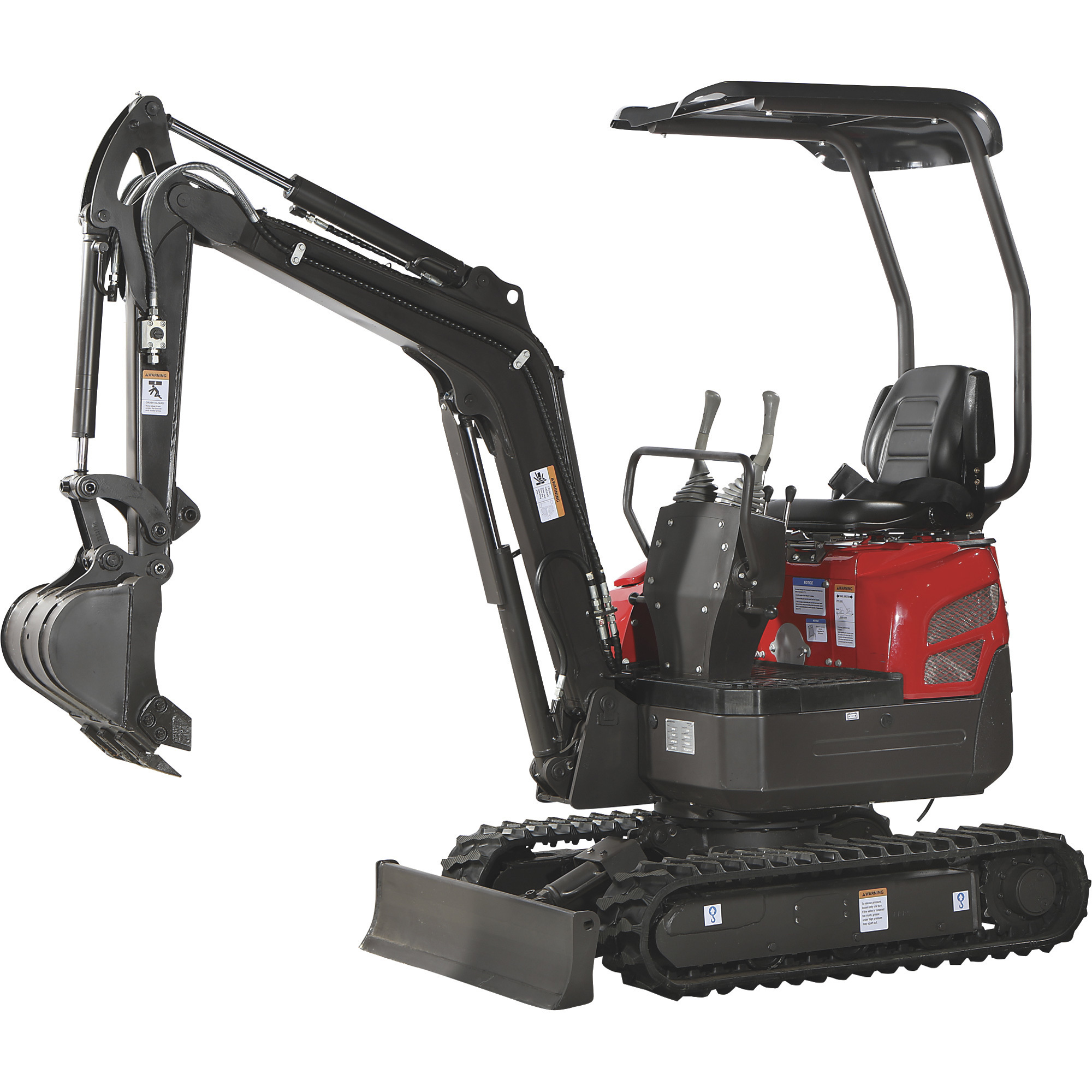

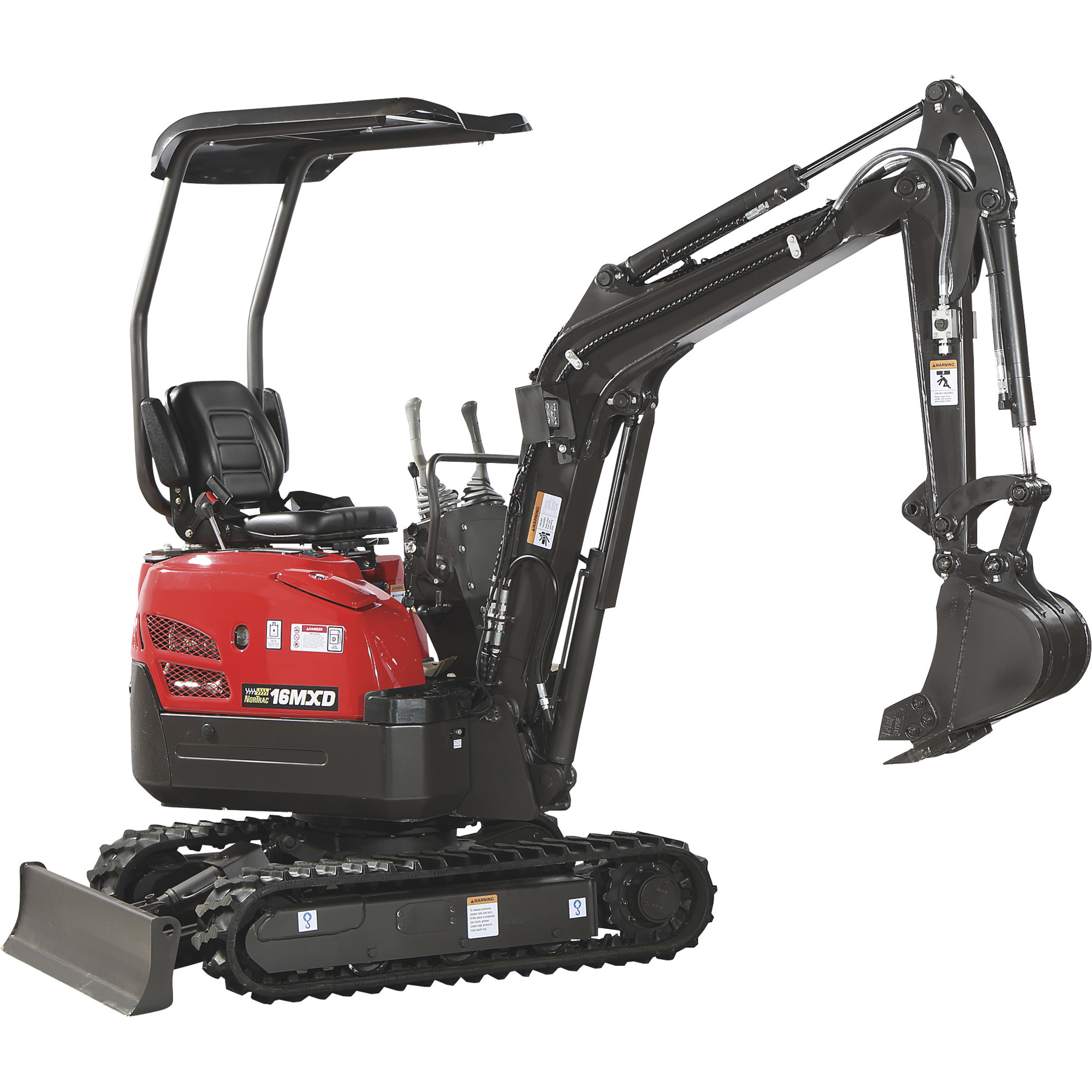

NorTrac XN16 Mini Excavator, 15.2 HP

Item# 960999
On Sale
NorTrac XN16 Mini Excavator, 15.2 HP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac XN16 Mini Excavator, 15.2 HP

Click or Tap image to Zoom

  • Powerful 15.2 HP YANMAR 3TNV74 3-cylinder diesel engine with EPA
  • Dependable KDK hydraulic main pump
  • EATON swing motor for smooth operation and control
  • 2400 max. RPM/minute
  • 124in.L x 43.7in.W x 93.5in.H overall dimensions

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorTrac® XN16 Mini Excavator is the perfect machine for digging in and being productive on every job. This 15.2 HP mini excavator makes many construction tasks safer and more efficient. Its compact size allows for quick movement into uneven and hard-to-access areas that can speed up many jobs, including digging holes and lifting or moving rocks and dirt. Compatible with the NorTrac Quick Change hitch, plus the following accessories: auger, hammer, heavy-duty grabber, and narrow bucket (each sold separately.) EPA certified. NOTE: Due to supply chain disruptions, the track pattern for this excavator may vary slightly from the image shown.

What's Included

    (1) * (1) Mini excavator

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Powerful 15.2 HP YANMAR 3TNV74 3-cylinder diesel engine with EPA
  • Dependable KDK hydraulic main pump
  • EATON swing motor for smooth operation and control
  • 2400 max. RPM/minute
  • 124in.L x 43.7in.W x 93.5in.H overall dimensions
  • 11.89-gallon digging bucket capacity
  • 440-lb. lifting capacity
  • 84.65in. max. digging depth
  • Stable design and compact size with 57.09in.L tracks for exceptional maneuverability in rough and awkward spaces
  • 43.7in.W blade is ideal for moving dirt, rocks and debris
  • Compatible with the NorTrac® Quick Change Hitch (Item# 96674), plus these Quick Change attachments: (Auger #96715, Heavy-Duty Grabber #103373, Hammer #96686 and Narrow Bucket #96666, all sold separately)

Key Specs

AttributeSpecification

item#

960999

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3086.0 LB

Engine Brand

Yanmar

Horsepower

15.2

Engine Model

3TNV74

Cylinders (qty.)

3

Product Type

Mini Excavator

Max. RPM

2,400

Max. Torque

50.2 ft-lbs.

Blade Width

43.7 in

Digging Depth

84.65 in
AttributeSpecification

Ground Clearance

17.2 in

Bucket Capacity

11.89 Gal

Lift Capacity

440 lb

Max. Lift Height

128.94 in

Displacement

60.6 in³

Fuel Type

Diesel

Material

Multiple

Hitch Type

Fixture Hang

Bore Diameter

2.91 in

Stoke Length

3.03 in

Compatible With

Quick Change Hitch (Item# 96674), Auger (Item #96715), Heavy-Duty Grabber (Item #103373), Hammer (Item #96686) and Narrow Bucket (Item #96666)

Product Weight

3,086 lb

Dimensions L x W x H (in.)

124 x 43.7 x 93.5 in

Reviews

Questions & Answers

10 Reviews This action will navigate to reviews.

Questions

1–10 of 26 Questions
Sort by:

  1. What is the maximum dig radius?

    1 answer

    1. This mini excavator will have a 360 degree dig radius.

      Helpful?

  2. What is the weight lifting capacity

    1 answer

    1. This mini excavator has a 440 lb. lifting capacity.

      Helpful?

  3. Does it have a hydraulic adjustment valve?(needle valve)

    1 answer

    1. This mini excavator is not equipped with a hydraulic adjustment valve.

      Helpful?

  4. can you increase the throttle of the machine? or is it a set throttle?

    1 answer

    1. The idle/throttle can be increased by adjusting the stop bolt first, then by adjusting the slack on the cable.

      Helpful?

  5. Can you adjust the flow rate ?

    1 answer

    1. The flow rate for the hydraulic pump cannot be adjusted.

      Helpful?

  6. Does the body rotate 360

    1 answer

    1. The body does rotate 360 degrees.

      Helpful?

  7. Where can I purchase parts such as replacement pins tracks, drive motors. Etc…

    1 answer

    1. Please call our NorTrac parts line 800-521-0438 for parts pricing and availability.

      Helpful?

  8. Does it have an oil cooler?

    1 answer

    1. The mini excavator does not come with an oil cooler.

      Helpful?

  9. What is the hydraulic flow in gallons per minute?

    1 answer

    1. The hydraulic pump on this can produce a flow rate of 6.16 GPM.

      Helpful?

  10. Does the XN16 mini excavator have the hydraulics needed to run the auger attachment already in place from the factory or would they need to be added

    1 answer

    1. The auger attachment, item 96715, will connect directly to this mini excavator without any additional valving.

      Helpful?
