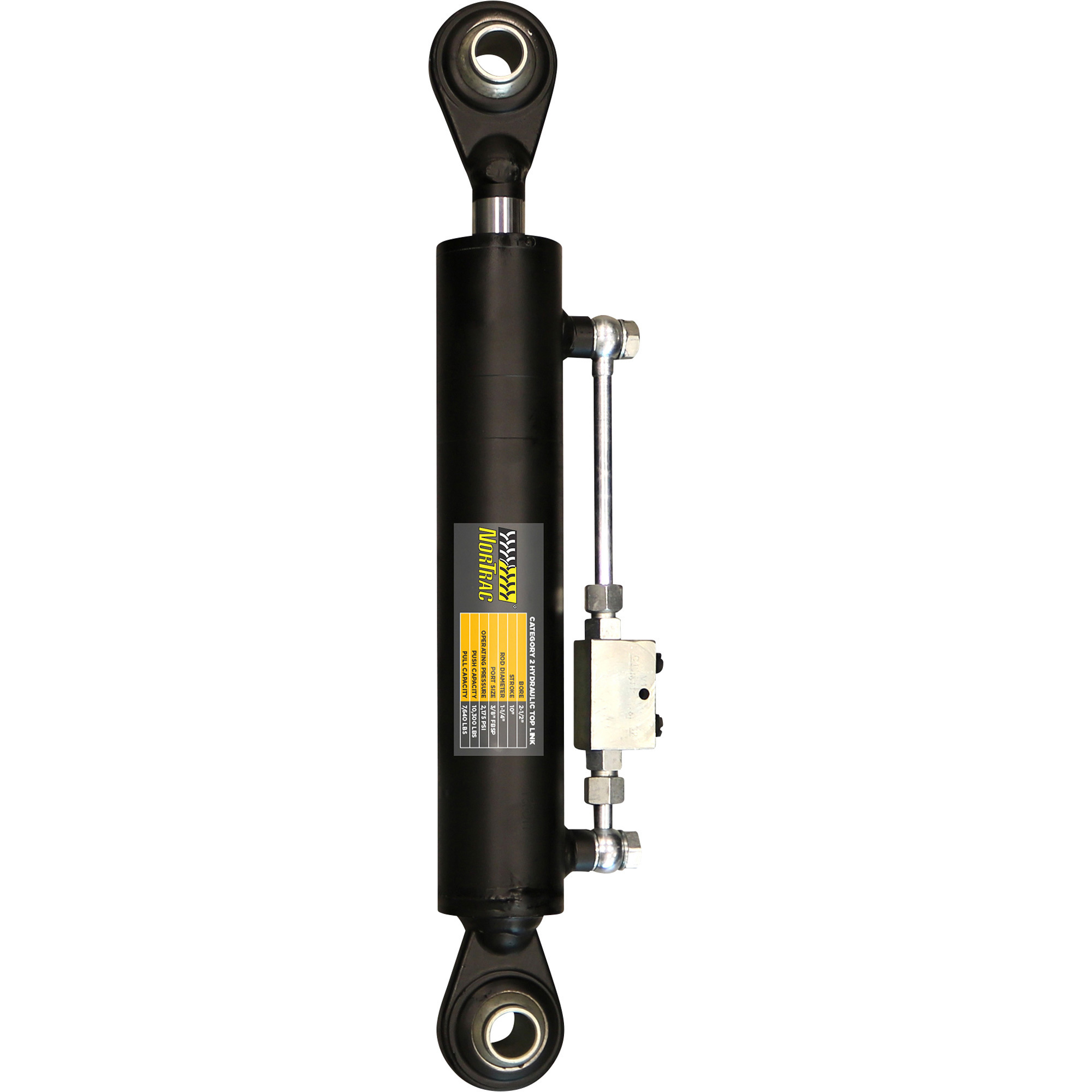

NorTrac Hydraulic Top Link Cylinder and Quick-Connect Hose Kit with Double Pilot-Operated Check Valve, 2.5in. x 10in., Category 2

Item# 114197
NorTrac Hydraulic Top Link Cylinder and Quick-Connect Hose Kit with Double Pilot-Operated Check Valve, 2.5in. x 10in., Category 2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Hydraulic Top Link Cylinder and Quick-Connect Hose Kit with Double Pilot-Operated Check Valve, 2.5in. x 10in., Category 2

Click or Tap image to Zoom

  • Works with Category 2 implements
  • Fits standard 2.5in. x 10in. applications
  • Bore diameter: 2.5in.
  • Stroke length: 10in.
  • Collapsed length: 21.5in.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The NorTrac Hydraulic Top Link Cylinder and Quick-Connect Hose Kit is designed to work seamlessly with Category 2 implements and allows you to easily adjust implements directly from your tractor seat. This NorTrac Top Link Hydraulic Cylinder includes a double pilot-operated check valve to help lock the cylinder and prevent drift.

What's Included

    (1) 2.5in. x 10in. Category 2 hydraulic top link hose kit with quick-connect couplers (1) Double pilot-operated check valve

Features + Benefits

  • Works with Category 2 implements
  • Fits standard 2.5in. x 10in. applications
  • Bore diameter: 2.5in.
  • Stroke length: 10in.
  • Collapsed length: 21.5in.
  • Extended length: 31.5in.
  • 2,175 PSI operating pressure
  • 10,300-lb. push capacity
  • 7,640-lb. pull capacity
  • 3/8in. FBSP port
  • Includes (2) 36in. hydraulic hoses with 3/8in. BSP thread cylinder end and 1/2in. NPT thread tractor end
  • Also includes a double pilot-operated check valve to help lock the cylinder and prevent drift

Key Specs

AttributeSpecification

item#

114197

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty
AttributeSpecification

Ship Weight

30.0 LB

Category

2

Thread Size

1/2 in

Reviews

Questions & Answers

10 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. Do you carry the valves to operate this?

    1 answer

    1. We do not offer valves to operate this top link. Normally the valve would be part of the tractor's hydraulic system.

      Helpful?

  2. Where do you connect the two hydraulic hoses to the tractors hydraulic system ?

    1 answer

    1. The hoses would connect from the top link to the hydraulic hose connections on the tractor. These connections are typically found near the attachment mounting point.

      Helpful?

  3. What is the center to center distance between the two ends

    1 answer

    1. The center to center distance when the cylinder is collapsed is 21.5". The center to center distance when the cylinder is extended is 31.5".

      Helpful?

  4. What is the width of the link top or bottom where it connects to tractor or implement .

    1 answer

    1. On the fixed end, the width is 2.96" (75.10mm) and on the dynamic end, the width is 2.95" (75.03mm).

      Helpful?

  5. wat is the inside ball diameter on both the pin ends? im wondering if its for a 1 inch pin

    1 answer

    1. This top link cylinder will use a 1" diameter pin on both ends.

      Helpful?

  6. This cylinder has a "double-piloted check valve", does it have some sort of manual override to turn it into floating mode? What are the pin hole sizes and ball width on both tractor and implements ends? Thank you.

    1 answer

    1. This hydraulic top link cylinders does not have a float mode. Since the standard use of a top link does not include a float mode – especially with a manual toplink – this is not something included with these cylinders. Generally it would be the tractor that would have the float mode for the 3pt attachment
      and the top link is used only to adjust the angle of the implement that is attached.

      The ball thickness for this unit is 2”. The outside width of the ball is 2”, as well.

      Helpful?

  7. What is the rod diameter of this cylinder?

    1 answer

    1. This top link cylinder will feature a 1-1/4" diameter rod.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
