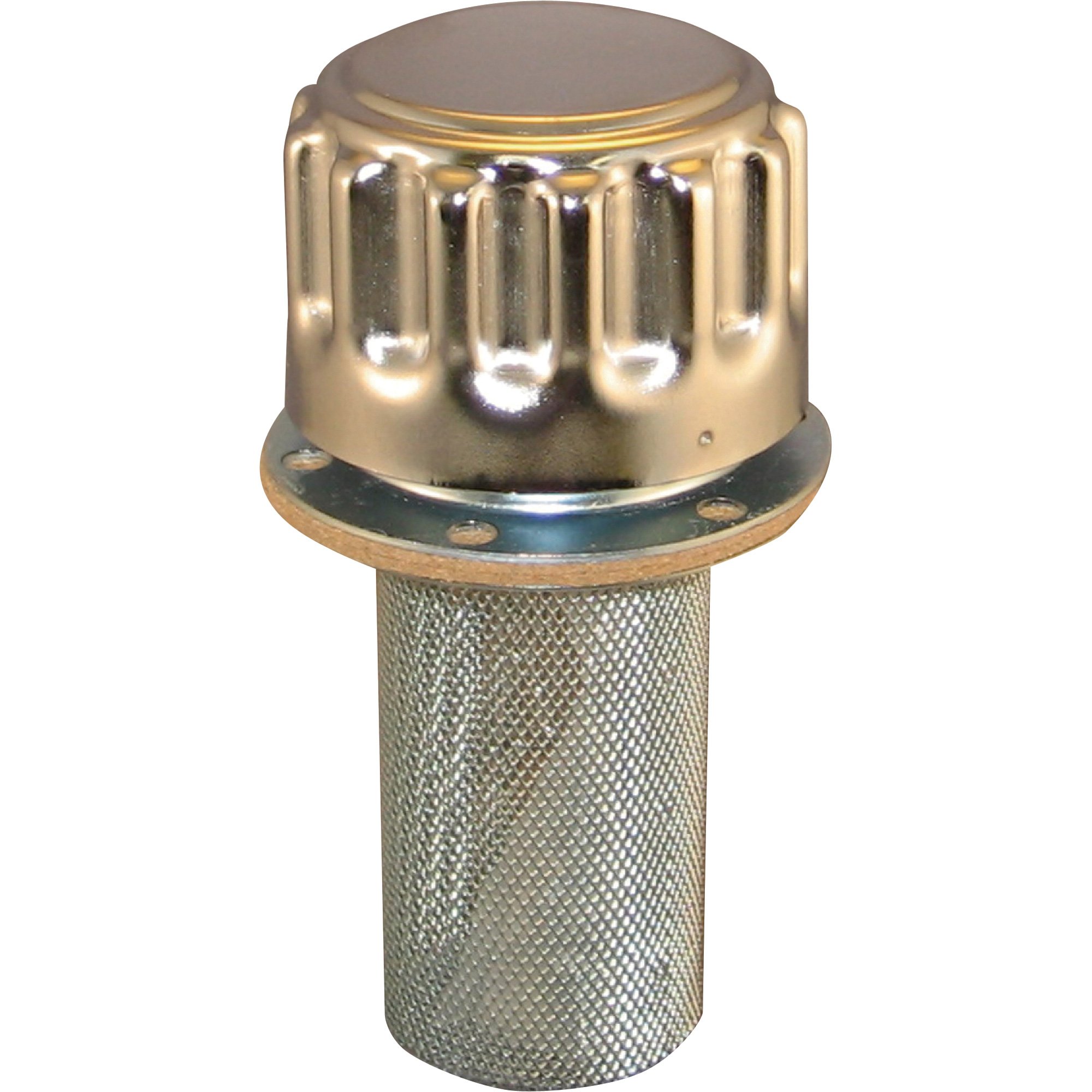

Nortrac Hydraulic Filler-Breather Assembly

Item# 778656
Nortrac Hydraulic Filler-Breather Assembly

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Nortrac Hydraulic Filler-Breather Assembly

Click or Tap image to Zoom

  • Easy 1/4 turn bayonet-style assembly
  • Mounts using 6 self-threading screws on a 2.82in. bolt circle

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

This Nortrac® Hydraulic Filler-Breather Assembly is designed to fill hydraulic reservoirs; also works as a breather. 20 mesh pulled steel basket stops large contaminants from falling in while cap is off; provides 40 micron filtration against air-borne contaminants.

What's Included

  • (1) Filler-Breather

Features + Benefits

  • Easy 1/4 turn bayonet-style assembly
  • Mounts using 6 self-threading screws on a 2.82in. bolt circle

Key Specs

AttributeSpecification

item#

778656

Brand

NorTrac

Ship Weight

0.8 LB

Fitting Size (in.)

Bayonet flange
AttributeSpecification

Filter Performance Rating

40 micron open cell foam

Filter Rating

40

Material

Steel

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Can I get one that has tab to put a lock on it ??

    1. Yes.

      Helpful?

    2. Yes, please see the breather assembly with a locking tab available listed below...

      Helpful?

  2. what is the psi on the cap

    1 answer

    1. There is no PSI rating given for filler-breather assembly, but states a breather rating of 190 GPM.

      Helpful?

  3. What are the dimensions of the screen and opening?

    I need it to fit in a opening that is 2 inches in diameter and has a bolt hole pattern of 2.875 diameter.

    1 answer

    1. The diameter of the screen is 1.95" and the bolt hole circle pattern is 2.82".

      Helpful?

  4. What size screws and drill bit are required

    1 answer

    1. This breather assembly uses 6 self-tapping 10-32 screws (#10 screw, 32 TPI). A #21 drill bit is recommended, but a 5/32" will also work.

      Helpful?
